Amana 70/80.00

Model: 70/80.00

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Wrap Outer WPL-M80D27
...
2
Tinnerman (4) WPL-M1D303
...
3
Filter Frame WPL-M48D7
...
4
Filter WPL-20098P01
...
5
Drip Shield WPL-M65D21
...
6
Guard WPL-M2D147
...
7
Ia Washer No.10 WPL-M1D326
...
8
Not Available WPL-M25D24
...
9
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
10
Nut, Mag. Mtg. WPL-M1D95
...
11
Gasket M2d36 WPL-M2D36
...
12
Not Available WPL-M1D128
...
13
Ia Door WPL-36707P01
...
14
Outer Door Cast WPL-M70D34
...
15
Not Available WPL-M52D32
...
16
Shaft WPL-21516P01
...
17
Latch Spring WPL-M2D98
...
18
Arm WPL-M2D148
...
19
Catch WPL-21515P01
...
20
Screw (25) WPL-M1D199
...
21
Door Spring Kit WPL-M2D120
...
22
Screw WPL-M0227520
...
23
Retainer WPL-M7D66
...
24
Retainer WPL-19920P01
...
25
Retainer M7d68 WPL-19922P01
...
26
Retainer WPL-M7D69
...
27
Outer Glass WPL-M51D3
...
28
Spacer WPL-M25D25
...
29
Spacer WPL-M25D26
...
30
Inner Door Casting WPL-M70D35
...
31
Pin WPL-19915P01
...
32
Cam Roller Rt & Lft WPL-M2D100
...
33
Allen Screw WPL-M1D210
...
34
Ferrite Stop WPL-M25D15
...
35
Filler WPL-23230P01
...
36
Filler WPL-23230P02
...
37
Screw (25) WPL-M1D201
...
38
Bracket WPL-M2D149
...
39
Nut K WPL-M0282005
...
40
Nut K WPL-M0282005
...
41
Nut K WPL-M0282005
...
42
Switch WPL-M14D31
...
43
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
44
Switch Adjust Pad WPL-6140612001
...
45
Lamp WPL-M9D10
...
46
Receptacle WPL-18336P01
...
47
Nut (25) WPL-M1D310
...
48
Sensor Asm WPL-M20D27
...
49
Cam Roller M2d87 WPL-23248A01
...
50
Cam Roller Assembly-Left WPL-M2D124
...
51
No.8 Flat Hd Machine Screw WPL-M1D312
...
52
No.4-40 Pan Hd Mach Scr (25) WPL-M1D314
...
53
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
54
Latch & Pin WPL-24593A01
...
55
No.4-40 Pan Hd Mach Scr (25) WPL-M1D314
...
56
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
57
Tinnerman (10) WPL-M1D317
...
58
Set Screw Kit (1) WPL-M1D461
...
59
Cavity WPL-M77D19
...
60
Guide WPL-M2D155
...
61
Stirrer Motor Kit WPL-M12D5
...
62
R.f. Gasket WPL-94072P01
...
63
Spacer WPL-M2D156
...
64
Nut, Antenna Pin Mtg WPL-M1D104
...
65
Hinge Support WPL-M52D33
...
66
Spacer (10) WPL-M1D315
...
67
Hinge WPL-24216P01
...
68
Washer (25) WPL-M1D320
...
69
Screw(10) WPL-M1D316
...
70
No.6 Pan Hd Machine Screw WPL-M1D321
...
71
Not Available WPL-M79D11
...
72
Switch Brkt WPL-M20D6
...
73
Screw, Switch Mtg. WPL-M1D37
...
74
Filament Transformer WPL-M60D20
...
75
Speed Nut (25) WPL-M1D335
...
76
Strain Rel WPL-14138P01
...
77
Power Cord WPL-M26D17
...
78
Snap Bushing WPL-M2D114
...
79
Snap Bushing WPL-M2D115
...
80
Nut WPL-M0282009
...
81
Motor M40d4 WPL-94065P01
...
82
Gasket WPL-M25D8
...
83
Housing, Blower Motor WPL-M65D22
...
84
Blower Wheel WPL-M35D4
...
85
Not Available WPL-M20D4
...
86
Screw WPL-M0202325
...
87
Not Available WPL-M1D323
...
88
Screw WPL-WPW10068250
...
89
Clip (25) WPL-M1D324
...
90
Screw, No.6x18x1/4 (3) WPL-487010
...
91
Fuseholder WPL-M5D17
...
92
Kit, Cook Relay WPL-M16D97
...
93
Nut K WPL-M0282005
...
94
Nut K WPL-M0282005
...
95
Nut K WPL-M0282005
...
96
Terminal Block WPL-M4D33
...
97
Not Available WPL-M2D162
...
98
Screw, Switch Mtg. WPL-M1D209
...
99
No.8 Spring Lockwasher (25) WPL-M1D57
...
100
Capacitor Bracket WPL-M2D163
...
101
Not Available ) WPL-M1D150
...
102
Baffle WPL-M2D164
...
103
Screw (25) WPL-M1D50
...
104
Balance Spring WPL-M2D104
...
105
Linkage Strap WPL-M2D165
...
106
M2d103 Hook WPL-20159P01
...
107
Control Panel Trim WPL-M15D4
...
108
Control Box WPL-M52D35
...
109
Trim WPL-M7D45
...
110
Net-Timer,push Button WPL-M59D21
...
111
Sq Gray Button WPL-M6D33
...
112
Timer M30d13 WPL-M30D13
...
113
Indicator Light WPL-M9D38
...
114
Not Available WPL-M1D52
...
115
Knob WPL-M6D40
...
116
Nut K WPL-M0282005
...
117
Relay WPL-M16D25
...
118
Ia Knob WPL-M6D69
...
119
Button WPL-23085P08

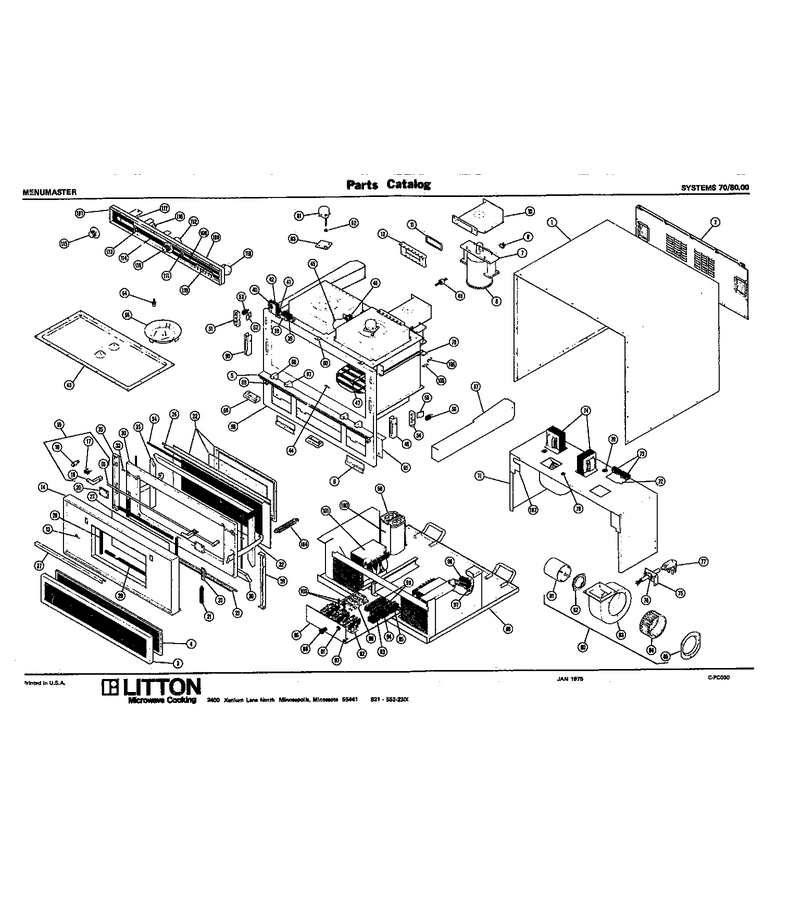

Schematic Image Zoomed
