Amana 70/55.300B (BOM: 70/55.300 B)

Model: 70/55.300B (BOM: 70/55.300 B)

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Retainer (10) WPL-M1D519
...
1
Screw (25) WPL-M1D107
...
2
Lock Nut (25) WPL-M1D119
...
3
Gasket M2d36 WPL-M2D36
...
4
Not Available WPL-M2D42
...
5
Air Duct WPL-29763P02
...
6
Air Duct WPL-M64D11
...
7
Thermal Protector WPL-M4D64
...
8
Net Magnetron Kit 2m131 WPL-M57D11
...
9
R F Gasket WPL-M2D15
...
10
Not Available WPL-M2D366
...
11
Air Baffle Assembly-3 Side WPL-M65D95
...
12
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
13
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
14
Nut WPL-WP488130
...
15
Nut WPL-WP488130
...
16
Insulator Switch WPL-M5D194
...
17
Not Available WPL-M20D7
...
18
Strike Plate WPL-M8D1D
...
19
Adj Screw WPL-M2D45
...
20
Blower Assy 50hz WPL-M41D19
...
21
Nut WPL-WP488130
...
22
Blower Hsg WPL-M65D8
...
23
No.10 X 3/8`` Set Screw WPL-M1D115
...
24
Not Available WPL-M20D4
...
25
Not Available WPL-M65D9
...
26
Screw WPL-M0202325
...
27
Screw WPL-M0202325
...
28
Bushing, Snap WPL-A3293504
...
29
Not Available WPL-M20D122
...
30
Snap Bushing K WPL-M2D1
...
31
Fuse Block Asm WPL-M5D207
...
32
Fuse- 3 Am WPL-Y0078733
...
33
Fuse 20 A WPL-WPM0805101
...
34
Step-On Xformer WPL-M60D57
...
35
Lamp WPL-M9D10
...
36
Socket Lamp Left WPL-M5D208
...
37
Lock Washer WPL-M0272803
...
38
Power Cord 70/45.300 WPL-M26D29
...
39
Strain Relf WPL-26632P01
...
40
Screw, Block Mtg. WPL-M1D264
...
41
Dual Capacitor 3+1 WPL-M10D37
...
42
Univ Cap Brkt WPL-M20D52
...
43
Capacitor 2.20mf WPL-M10D65
...
44
Fil Transformer WPL-M60D69
...
45
Screw (25) WPL-M1D341
...
46
Insulator Diode WPL-M5D195
...
47
Brace WPL-M52D5
...
48
Bleeder Resistor WPL-M3D26
...
49
Resistor WPL-M3D2
...
50
Not Available WPL-M7D112
...
51
Screw (25) WPL-M1D452
...
52
Insulator Switch WPL-M5D191
...
53
Pivot Arm WPL-M8D56
...
54
Standoff WPL-M2D193
...
55
Not Available WPL-M60D68
...
56
Filter WPL-M48D1
...
57
Nut Clip (25) WPL-M1D126
...
58
Ia Knob WPL-M6D19
...
59
T Bolt (25) WPL-M1D15
...
60
Ia End Cover WPL-21887P01
...
61
Screw WPL-M0202325
...
62
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
63
Adhesive WPL-W10841140
...
64
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
65
Set Screw Kit (1) WPL-M1D461
...
66
Nut, Locking WPL-M1D414
...
67
Nut WPL-WP488130
...
68
Spacer WPL-M2D156
...
69
R.f. Gasket WPL-94072P01
...
70
Ia Screw WPL-M1D329
...
71
Latch Bar WPL-M20D5
...
72
Bushing M2d46 WPL-25788P01
...
73
Spring Latch Kit WPL-M2D198
...
74
Screw WPL-WPW10068250
...
75
Cushion Door Stop WPL-M2D49
...
76
Door Inlay WPL-M7D95
...
77
Not Available WPL-M1D647
...
78
Nameplate, Pressure Switch WPL-M7D344
...
79
Set Screw (25) WPL-M1D101
...
80
Hinge WPL-M8D8
...
81
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
82
Seal Plate Kit WPL-M54D1
...
83
Inner Window Kit WPL-M51D1
...
84
Gasket Seal Plate WPL-M25D34
...
85
M25d9 Window Gasket WPL-25170P01
...
86
Flat Washer (25) WPL-M1D644

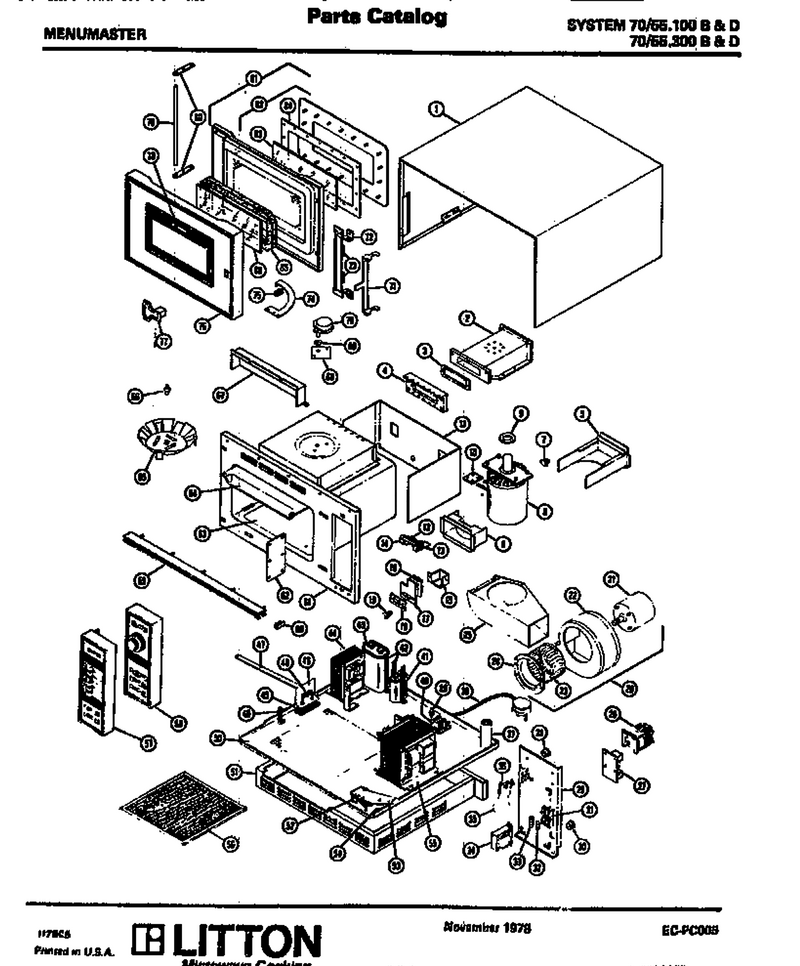

Schematic Image Zoomed
