Amana 70/55.100B (BOM: 70/55.100 B)

Model: 70/55.100B (BOM: 70/55.100 B)

Save Part Not Listed?
product name

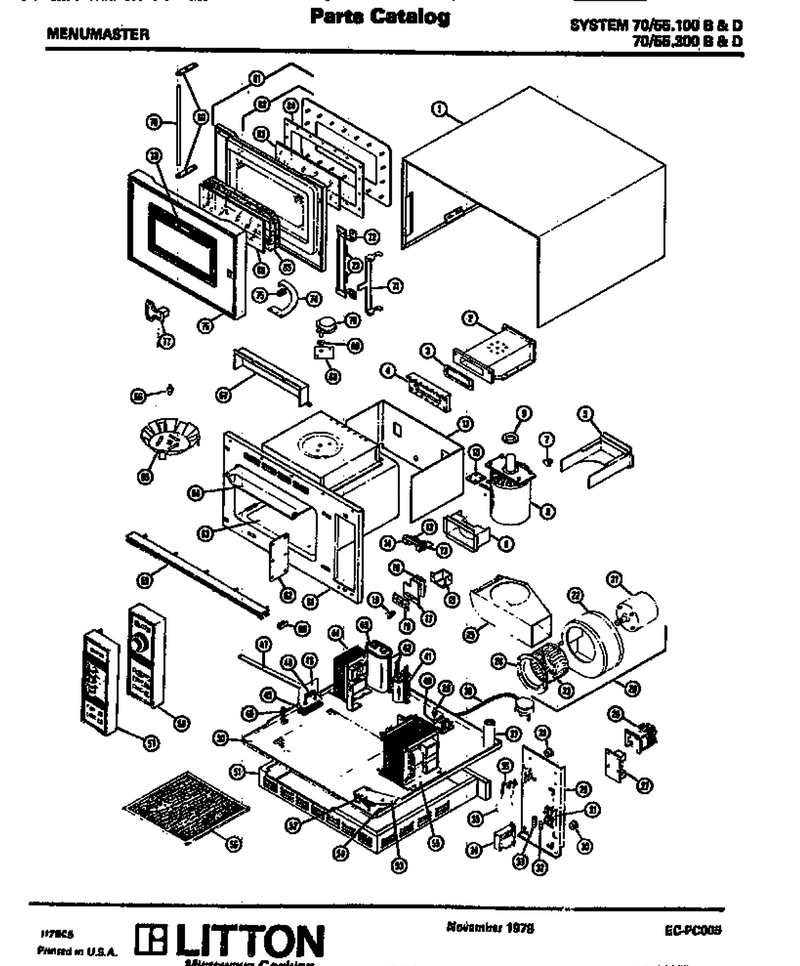

01 - Page 1

...
...
NI
Not Available WPL-M1D288
...
1
Not Available WPL-M80D48
...
2
Lock Nut (25) WPL-M1D119
...
3
Gasket M2d36 WPL-M2D36
...
4
Not Available WPL-M1D128
...
5
Air Duct WPL-29763P02
...
6
Air Duct WPL-M64D11
...
7
Insulator Thermal WPL-M5D190
...
8
Nut, Mag. Mtg. WPL-M1D95
...
9
R F Gasket WPL-M2D15
...
10
Not Available WPL-M2D366
...
11
Air Baffle Assembly-3 Side WPL-M65D95
...
12
Not Available WPL-M5D193
...
13
Insulator Switch WPL-M5D192
...
14
Switch Bracket WPL-M2D279
...
15
Nut WPL-WP488130
...
16
Lower Door Inter-Lock Switch WPL-M14D141
...
17
Nut WPL-WP488130
...
18
Strike Plate WPL-M8D1D
...
19
Adj Screw WPL-M2D45
...
20
Not Available WPL-M25D7
...
21
Blower Motor WPL-M40D9
...
22
Blower Hsg WPL-M65D8
...
23
No.10 X 3/8`` Set Screw WPL-M1D115
...
24
Screw (25) WPL-M1D129
...
25
Not Available WPL-M65D9
...
26
Cook Relay WPL-M16D44
...
27
Oven Relay WPL-96750P01
...
28
Bushing, Snap WPL-A3293504
...
29
Not Available WPL-M20D122
...
30
Snap Bushing K WPL-M2D1
...
31
Fuse Block Asm WPL-M5D207
...
32
Fuse- 3 Am WPL-Y0078733
...
33
Fuse 20 A WPL-WPM0805101
...
34
Step-On Xformer WPL-M60D57
...
35
Lamp WPL-M9D10
...
36
Socket Lamp Left WPL-M5D208
...
37
Line Filter Kit WPL-M10D35
...
38
Powercord 250v 10/16 Amps WPL-1738379615
...
39
Screwund Hd Mach Scr (25) WPL-M1D83
...
40
Screw, Block Mtg. WPL-M1D264
...
41
Dual Capacitor 3+1 WPL-M10D37
...
42
Screw Bkt Mtg WPL-M1D336
...
43
Capacitor 2.20mf WPL-M10D65
...
44
Fil Transformer WPL-M60D69
...
45
Screw (25) WPL-M1D341
...
46
Insulator Diode WPL-M5D195
...
47
Brace WPL-M52D5
...
48
Bleeder Resistor WPL-M3D26
...
49
Resistor WPL-M3D2
...
50
Nut WPL-WP488130
...
51
Rail Assy Kit WPL-M52D8
...
52
Switch WPL-M14D47
...
53
Screw, Arm Mtg. WPL-M1D419
...
54
Standoff WPL-M2D193
...
55
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
56
Filter WPL-M48D1
...
57
Timer 6 Button WPL-M59D69
...
58
Timer Plate Dial WPL-M7D295
...
59
Nut WPL-WP488130
...
60
Ia End Cover WPL-21887P01
...
61
Nut WPL-WP488130
...
62
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
63
Shelf Kit WPL-M50D2
...
64
Cover WPL-M45D2
...
65
Set Screw Kit (1) WPL-M1D461
...
66
Nut, Locking WPL-M1D414
...
67
Exhaust Duct WPL-M65D13
...
68
Spacer WPL-M2D156
...
69
R.f. Gasket WPL-94072P01
...
70
Clip WPL-51539P01
...
71
Latch Bar WPL-M20D5
...
72
Pivot WPL-23681P01
...
73
Spring Latch Kit WPL-M2D198
...
74
Screw WPL-WPW10068250
...
75
Cushion Door Stop WPL-M2D49
...
76
Door Inlay WPL-M7D95
...
77
Set Screw, Handle Mtg. WPL-M1D646
...
78
Nameplate, Pressure Switch WPL-M7D344
...
79
Rod WPL-M52D7
...
80
Hinge WPL-M8D8
...
81
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
82
Seal Plate Kit WPL-M54D1
...
83
Inner Window Kit WPL-M51D1
...
84
Gasket Seal Plate WPL-M25D34
...
85
M25d9 Window Gasket WPL-25170P01
...
86
Ia Window WPL-M51D2
