Amana 70/50.11

Model: 70/50.11

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Timer Test Cord WPL-M95D2
...
1
Screw (25) WPL-M1D107
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
M7d40 Lens Amber WPL-23752P01
...
6
Seal Strip, Rail WPL-M1D740
...
7
Not Available WPL-M79D21
...
8
Screw WPL-M0227520
...
9
Pivot Arm WPL-M8D56
...
10
Standoff WPL-M2D193
...
11
Splash Cover WPL-M45D17
...
12
Resistor WPL-M3D2
...
13
On / Off Switch WPL-M14D128
...
14
Lock Nut (25) WPL-M1D119
...
15
Power Cord WPL-M26D2
...
16
Strain Relief WPL-8536977
...
17
Capacitor 4.00mf Kit WPL-M10D21
...
18
Screw Bkt Mtg WPL-M1D336
...
19
H.v. Capacitor WPL-M10D8
...
20
Filament Transformer WPL-M60D40
...
21
Heat Sink Plate WPL-M20D98
...
22
Not Available WPL-M1D34
...
23
Bracket WPL-M20D74
...
24
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
25
Snap Bushing K WPL-M2D1
...
26
Socket WPL-M5D100
...
27
Lamp WPL-M9D10
...
28
Kit, Cook Relay WPL-M16D97
...
29
Relay 10 Sec Start-Up Kit WPL-M16D26
...
30
Ia Support WPL-26360P01
...
31
Bushing, Snap WPL-A3293504
...
32
Not Available WPL-M25D7
...
33
Nut WPL-WP488130
...
34
Blower Hsg WPL-M65D8
...
35
No.10 X 3/8`` Set Screw WPL-M1D115
...
36
Not Available WPL-M20D4
...
37
Not Available WPL-M65D113
...
38
Ia Washer No.10 WPL-M1D326
...
39
R F Gasket WPL-M2D15
...
40
Thermal Protector WPL-M4D3
...
41
Jw Insul Spacer WPL-M2D221
...
42
Air Duct WPL-29763P02
...
43
Air Duct WPL-30107P02
...
44
Wave Guide WPL-M65D17
...
45
Gasket M2d36 WPL-M2D36
...
46
Not Available WPL-M1D128
...
47
Set Screw Kit (1) WPL-M1D461
...
48
Stirrer Motor Kit WPL-M12D5
...
49
R.f. Gasket WPL-94072P01
...
50
Spacer WPL-M2D156
...
51
Nut, Locking WPL-M1D414
...
52
Nut WPL-WP488130
...
53
Not Available WPL-M65D31
...
54
Rear Baffle WPL-M65D14
...
55
Not Available WPL-M65D12
...
56
Screw WPL-M0202325
...
57
Cover WPL-M45D2
...
58
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
59
Shelf Kit WPL-M50D2
...
60
Switch WPL-M14D14
...
61
Not Available WPL-M20D7
...
62
Nut WPL-WP488130
...
63
Strike WPL-M8D10
...
64
Nut, Locking WPL-M1D414
...
65
Switch WPL-M14D104
...
66
Switch Bracket WPL-M2D279
...
67
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
68
Speed Clip (25) WPL-M1D122
...
69
Set Screw Kit (1) WPL-M1D461
...
70
Nameplate, Pressure Sensitive WPL-M7D190
...
71
Door Inlay WPL-M7D95
...
72
Not Available WPL-M1D111
...
73
M25d9 Window Gasket WPL-25170P01
...
74
Arm,door Stop Kit WPL-M8D198
...
75
Cushion Door Stop WPL-M2D49
...
76
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
77
Nut K WPL-M0282005
...
78
Inner Window Kit WPL-M51D1
...
79
Spring Latch Kit WPL-M2D198
...
80
Brkt, Latch Bar WPL-M20D88
...
81
Pivot WPL-23681P01
...
82
Hinge WPL-M8D8
...
83
Rod WPL-M52D7

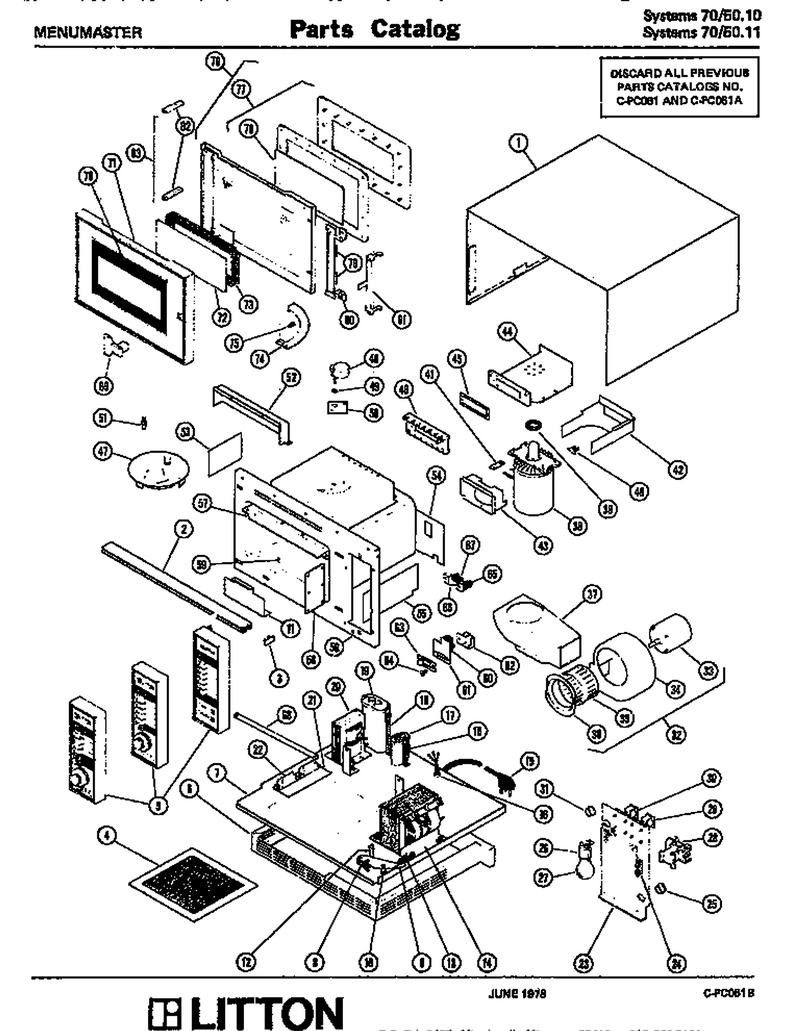

Schematic Image Zoomed
