Amana 70/50.05

Model: 70/50.05

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Screw (25) WPL-M1D107
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Combo Pb Dial Timer Assy WPL-M59D35
...
6
Not Available WPL-M1D342
...
7
Nut WPL-WP488130
...
8
Not Available WPL-M1D418
...
9
Screw, Arm Mtg. WPL-M1D419
...
10
Standoff WPL-M2D193
...
11
Terminal (25) WPL-M1D49
...
12
Ia Switch M14d35 WPL-M14D35
...
13
Not Available WPL-M60D34
...
14
No.8 Spring Lockwasher (25) WPL-M1D57
...
15
Strain Relief WPL-M2D10
...
16
Capacitor 4.00mf Kit WPL-M10D21
...
17
Screw Bkt Mtg WPL-M1D336
...
18
Washer (25) WPL-M1D236
...
19
Screw Bkt Mtg WPL-M1D336
...
20
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
21
Hv Rect 12kv 750max WPL-1330000301
...
22
Not Available WPL-M20D45
...
23
Fuseholder WPL-M5D17
...
24
Not Available WPL-M2D44
...
25
Snap Bushing K WPL-M2D1
...
26
Screw WPL-M0202325
...
27
Lamp WPL-M9D10
...
28
Nut WPL-WP488130
...
29
Nut K WPL-M0282005
...
30
Screw, No.6x18x1/4 (3) WPL-487010
...
31
Nut K WPL-M0282005
...
32
Nut K WPL-M0282005
...
33
Bushing, Snap WPL-A3293504
...
34
Nut WPL-WP488130
...
35
Blower Motor WPL-M40D1
...
36
Blower Hsg WPL-M65D8
...
37
No.10 X 3/8`` Set Screw WPL-M1D115
...
38
Not Available WPL-M20D4
...
39
Not Available WPL-M65D9
...
40
Nut, Pin Mtg. WPL-M1D76
...
41
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
42
Air Duct WPL-29763P02
...
43
Not Available WPL-M1D121
...
44
Nut, Waveguide To Magnetron WPL-M1D415
...
45
Gasket M2d36 WPL-M2D36
...
46
Guide Pin (25) WPL-M1D245
...
47
Stirrer & Hub WPL-M44D5
...
48
Stirrer Motor Kit WPL-M12D5
...
49
R.f. Gasket WPL-94072P01
...
50
Spacer WPL-M2D156
...
51
Nut, Locking WPL-M1D414
...
52
Nut WPL-WP488130
...
53
Not Available WPL-M65D31
...
54
Rear Baffle WPL-M65D14
...
55
Not Available WPL-M65D12
...
56
Screw WPL-M0202325
...
57
Cover WPL-M45D2
...
58
Cover M7d41 WPL-24011P01
...
59
Shelf Kit WPL-M50D2
...
60
Switch WPL-M14D14
...
61
Nut WPL-WP488130
...
62
Nut WPL-WP488130
...
63
Strike WPL-M8D10
...
64
Adj Screw WPL-M2D45
...
65
Brace WPL-M52D5
...
66
Door Handle WPL-M8D11
...
67
Ia Sticker WPL-M7D46
...
68
Push Nut WPL-Y0088250
...
69
Not Available WPL-M1D111
...
70
M25d9 Window Gasket WPL-25170P01
...
71
Arm,door Stop Kit WPL-M8D198
...
72
Cushion Door Stop WPL-M2D49
...
73
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
74
Seal Plate Kit WPL-M54D1
...
75
Inner Window Kit WPL-M51D1
...
76
Nut WPL-WP488130
...
77
Bearing Flng (10) WPL-M1D112
...
78
Timer Test Cord WPL-M95D2

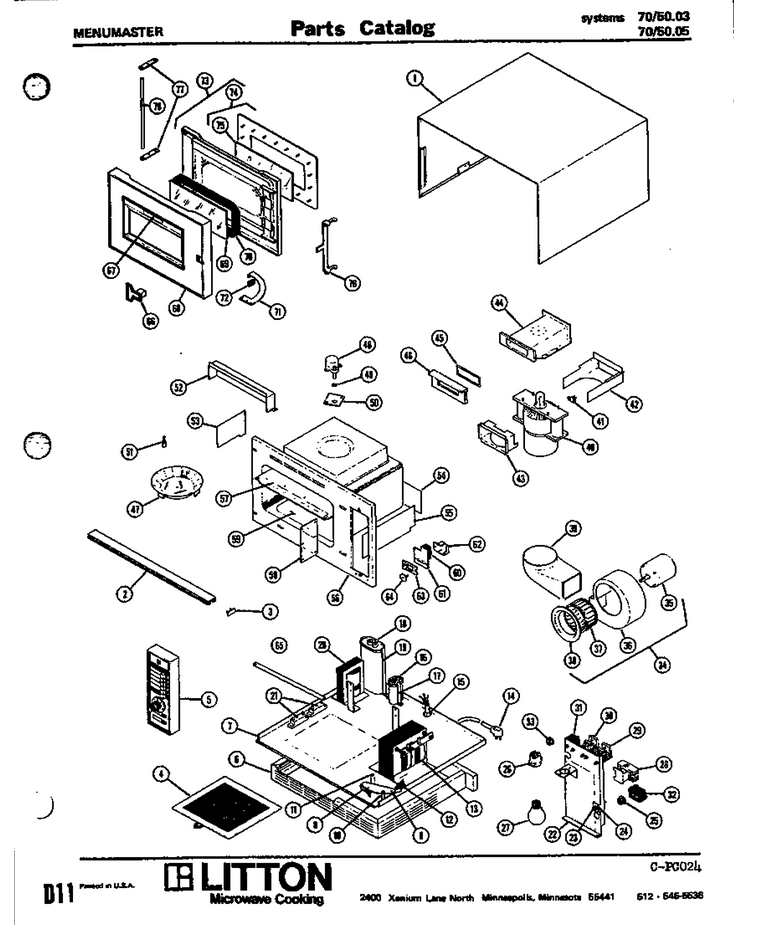

Schematic Image Zoomed
