product name

Amana 70/50.02

Model: 70/50.02

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Screw (25) WPL-M1D107
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Net-Timer,push Button 70/40/50 WPL-M59D77
...
6
Rear Baffle WPL-M65D14
...
7
Not Available WPL-M65D12
...
8
Not Available WPL-M65D31
...
9
Screwund Hd Mach Scr (25) WPL-M1D83
...
10
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
11
Air Duct WPL-29763P02
...
12
Not Available WPL-M1D121
...
13
Nut WPL-M0282009
...
14
Gasket M2d36 WPL-M2D36
...
15
Not Available WPL-M1D128
...
16
Nut WPL-WP488130
...
17
Nut WPL-WP488130
...
18
Blower Hsg WPL-M65D8
...
19
Blower Wheel WPL-M35D4
...
20
Not Available WPL-M20D4
...
21
Screwund Hd Mach Scr (25) WPL-M1D83
...
22
Screw Bkt Mtg WPL-M1D336
...
23
Set Screw Kit (1) WPL-M1D461
...
24
Nut, Locking WPL-M1D414
...
25
Stirrer Motor Kit WPL-M12D5
...
26
R.f. Gasket WPL-94072P01
...
27
Spacer WPL-M2D156
...
28
Not Available WPL-M20D7
...
29
Adj Screw WPL-M2D45
...
30
3/8 Int Tooth Lockwasher WPL-M1D118
...
31
Nut WPL-WP488130
...
32
Nut K WPL-M0282005
...
33
Nut WPL-WP488130
...
34
Nut WPL-WP488130
...
35
Nut WPL-WP488130
...
36
Nut WPL-WP488130
...
37
No.6 Pan Hd Machine Screw WPL-M1D836
...
38
Nut K WPL-M0282005
...
39
Nut K WPL-M0282005
...
40
Kit, Cook Relay WPL-M16D97
...
41
Nut K WPL-M0282005
...
42
Receptacle WPL-18336P01
...
43
Bushing, Snap WPL-A3293504
...
44
Not Available WPL-M2D44
...
45
Fuse 1 Amp WPL-M4D21
...
46
Snap Bushing K WPL-M2D1
...
47
Lamp WPL-M9D10
...
48
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
49
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
50
Shelf Kit WPL-M50D2
...
51
Heat Sink Plate WPL-M20D2
...
52
Hv Rect 12kv 750max WPL-1330000301
...
53
Switch Brkt WPL-M20D6
...
54
Switch Kit WPL-M14D12
...
55
Rail Assy Kit WPL-M52D8
...
56
See Note Base WPL-Y00000000
...
57
Filament Transformer WPL-M60D40
...
58
Lock Nut (25) WPL-M1D119
...
59
Capacitor 4.00mf Kit WPL-M10D60
...
60
Screw Bkt Mtg WPL-M1D336
...
61
Ia Switch M14d35 WPL-M14D35
...
62
Screw, Switch Mtg. WPL-M1D209
...
63
Not Available WPL-M65D113
...
64
Nut WPL-WP488130
...
65
Ia Cord M26d3 WPL-23737P01
...
66
Strain Relief WPL-8536977
...
67
Fbr Washer (25) WPL-M1D51
...
68
Outer Door Cast WPL-M70D37
...
69
Not Available WPL-M1D52
...
70
Ia Handle WPL-M7D94
...
71
Not Available WPL-M1D111
...
72
M25d9 Window Gasket WPL-25170P01
...
73
Arm,door Stop Kit WPL-M8D198
...
74
Cushion Door Stop WPL-M2D49
...
75
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
76
Nut WPL-WP488130
...
77
Flat Washer WPL-M1D117
...
78
Set Screw (25) WPL-M1D101

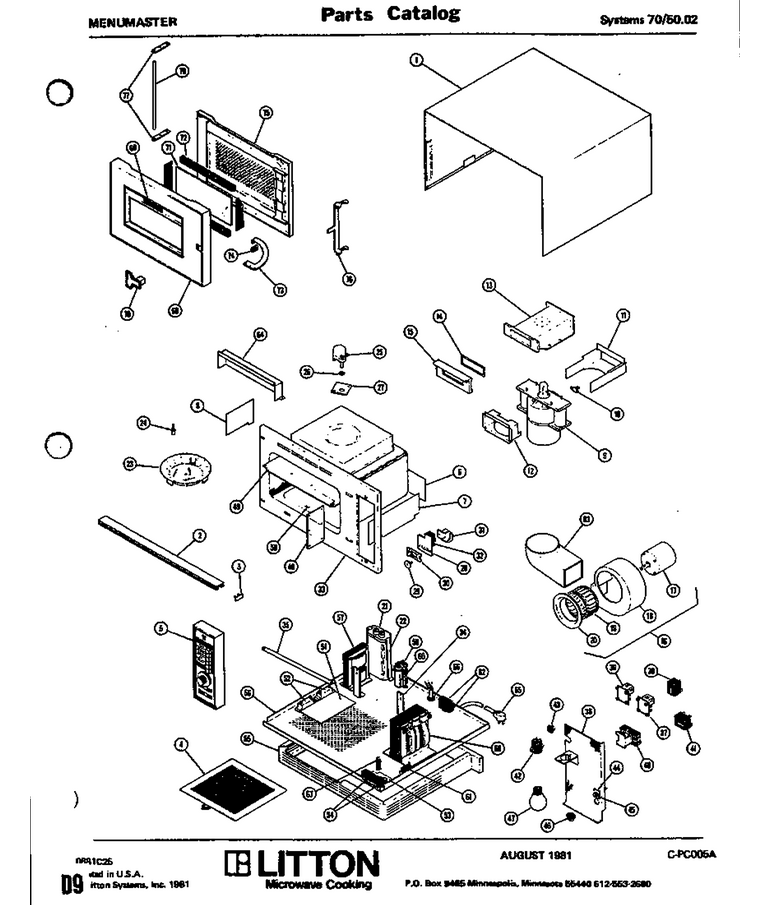

Schematic Image Zoomed
