Amana 70/45.300

Model: 70/45.300

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Retainer (10) WPL-M1D519
...
1
Screw (25) WPL-M1D107
...
2
Waveguide Asm WPL-M20D85
...
3
Not Available WPL-M2D42
...
4
Not Available WPL-M1D128
...
5
Screw (25) WPL-M1D341
...
6
No.8 T X 1/4`` Screw WPL-M1D486
...
7
No.8 T X 1/4`` Screw WPL-M1D486
...
8
Gasket Duct WPL-M25D55
...
9
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
10
Net-Kit,magnetron WPL-M57D21
...
11
Blower Assy 50hz WPL-M41D19
...
12
Not Available WPL-M20D4
...
13
Blower Wheel WPL-M35D4
...
14
Blower Hsg WPL-M65D8
...
15
Gasket WPL-M25D8
...
16
Insulator Switch WPL-M5D192
...
17
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
18
Nut WPL-WP488130
...
19
Nut WPL-WP488130
...
20
Nut K WPL-M0282005
...
21
Not Available WPL-M20D7
...
22
Strike WPL-M8D10
...
23
Nut, Locking WPL-M1D414
...
24
Clamp Blwr WPL-28444P01
...
25
Nut WPL-WP488130
...
26
Capacitor 1.26mf WPL-M10D64
...
27
Screw Bkt Mtg WPL-M1D336
...
28
Termnl Block WPL-M4D55
...
29
Socket WPL-M5D100
...
30
Lamp WPL-M9D10
...
31
Not Available WPL-M20D84
...
32
Washer (25) WPL-M1D236
...
33
Line Filter Kit WPL-M10D35
...
34
Screw (25) WPL-M1D341
...
35
Fuse 12 Amp WPL-M4D65
...
36
Fuse WPL-WP22001555
...
37
Fuse Holder WPL-M5D125
...
38
Fuse Holder WPL-M5D123
...
39
Screw WPL-M0202325
...
40
Insulator Diode WPL-M5D195
...
41
Screw, Arm Mtg. WPL-M1D419
...
42
Standoff WPL-M2D193
...
43
Not Available WPL-M1D263
...
44
Nut (25) WPL-M1D451
...
45
Filter WPL-M48D1
...
46
C/d Timer WPL-M59D70
...
47
50 Hz Timer-Japan WPL-M58D15
...
48
Timer 6 Button WPL-M59D69
...
49
Screw WPL-M0202325
...
50
Hv Rect 12kv 750max WPL-1330000301
...
51
Bleeder Resistor WPL-M3D42
...
52
Screw (25) WPL-M1D102
...
53
Transformer Plate WPL-M60D60
...
54
Screw WPL-M0202325
...
55
Cover M7d41 WPL-24011P01
...
56
Ia End Cover WPL-21887P01
...
57
Trim WPL-M7D45
...
58
Shelf Kit WPL-M50D2
...
59
Cover WPL-M45D2
...
60
Nut WPL-WP488130
...
61
Air Baffle Assembly-3 Side WPL-M65D95
...
62
Nut, Locking WPL-M1D414
...
63
Spacer WPL-M2D156
...
64
R.f. Gasket WPL-94072P01
...
65
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
66
Latch Bar WPL-M20D5
...
67
Nut WPL-WP488130
...
68
Spring Latch Kit WPL-M2D198
...
69
Screw WPL-WPW10068250
...
70
Cushion Door Stop WPL-M2D49
...
71
Set Screw Kit (1) WPL-M1D461
...
72
Door Handle WPL-M8D11
...
73
Outer Door Casting WPL-M70D2
...
74
Nameplate 70/46 WPL-M7D273
...
75
Flat Washer (25) WPL-M1D644
...
76
M25d9 Window Gasket WPL-25170P01
...
77
Rod WPL-M52D7
...
78
Hinge WPL-M8D8
...
79
Clip WPL-M2D47
...
80
Seal Plate Kit WPL-M54D1
...
81
Inner Window Kit WPL-M51D1
...
82
Gasket Seal Plate WPL-M25D34
...
83
Screw (25) WPL-M1D50

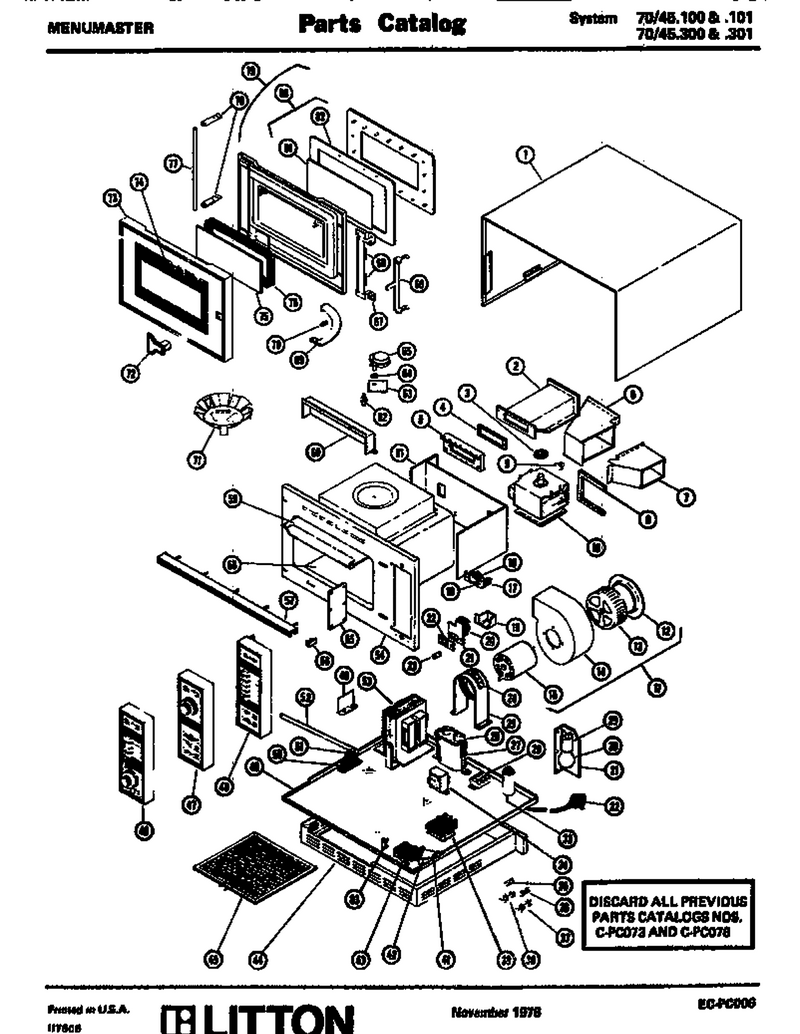

Schematic Image Zoomed
