product name

Amana 70/45.102

Model: 70/45.102

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Harness Tie (25) WPL-M1D230
...
1
Screw (25) WPL-M1D107
...
2
Waveguide Asm WPL-M20D85
...
3
Not Available WPL-M2D42
...
4
Not Available WPL-M1D128
...
5
Nut K WPL-M0282005
...
6
No.8 T X 1/4`` Screw WPL-M1D486
...
7
No.8 T X 1/4`` Screw WPL-M1D486
...
8
Gasket Duct WPL-M25D55
...
9
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
10
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
11
Blower Assy 50hz WPL-M41D19
...
12
Not Available WPL-M20D4
...
13
No.10 X 3/8`` Set Screw WPL-M1D115
...
14
Blower Hsg WPL-M65D8
...
15
Blower Motor WPL-M40D9
...
16
Not Available WPL-M5D193
...
17
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
18
Nut WPL-WP488130
...
19
Nut WPL-WP488130
...
20
Insulator Switch WPL-M5D194
...
21
Not Available WPL-M20D7
...
22
Strike WPL-M8D10
...
23
Adj Screw WPL-M2D45
...
24
Clamp Blwr WPL-28444P01
...
25
Nut WPL-WP488130
...
26
Capacitor 1.26mf WPL-M10D64
...
27
Screw Bkt Mtg WPL-M1D336
...
28
Termnl Block WPL-M4D55
...
29
Socket WPL-M5D100
...
30
Lamp WPL-M9D10
...
31
Clip WPL-51539P01
...
32
Screwund Hd Mach Scr (25) WPL-M1D83
...
33
Line Filter Kit WPL-M10D35
...
34
Screw (25) WPL-M1D341
...
35
Fuse 12 Amp WPL-M4D65
...
36
Fuse 1/4 Amp WPL-M4D76
...
37
Fuse Holder WPL-M5D125
...
38
Fuse Holder WPL-M5D123
...
39
Screw WPL-M0202325
...
40
Insulator Diode WPL-M5D195
...
41
Pivot Arm WPL-M8D56
...
42
Stand Off WPL-M2D377
...
43
Insulator Switch WPL-M5D191
...
44
Screw (25) WPL-M1D452
...
45
Filter WPL-M48D1
...
46
C/d Timer WPL-M59D70
...
47
50 Hz Timer-Japan WPL-M58D15
...
48
Six-Button Timer WPL-M58D69
...
49
Not Available WPL-M79D67
...
50
Nylon Screw (25) WPL-M1D183
...
51
Bleeder Resistor WPL-M3D26
...
52
Brace WPL-M52D5
...
53
Transformer Plate WPL-M60D60
...
54
Nut WPL-WP488130
...
55
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
56
Ia End Cover WPL-21887P01
...
57
T Bolt (25) WPL-M1D15
...
58
Shelf Kit WPL-M50D2
...
59
Cover WPL-M45D2
...
60
Nut WPL-WP488130
...
61
Air Baffle Assembly-3 Side WPL-M65D95
...
62
Antenna Pin WPL-M2D37
...
63
Spacer WPL-M2D156
...
64
R.f. Gasket WPL-94072P01
...
65
Stirrer Motor WPL-M12D55
...
66
Latch Bar WPL-M20D5
...
67
Brkt, Latch Bar WPL-M20D88
...
68
Spring Latch Kit WPL-M2D198
...
69
Arm,door Stop Kit WPL-M8D198
...
70
Reflector Kit WPL-M44D14
...
71
Speed Clip WPL-30530P01
...
72
Not Available WPL-M1D647
...
73
Door Inlay WPL-M7D95
...
74
Nameplate 70/46 WPL-M7D273
...
75
Flat Washer (25) WPL-M1D644
...
76
M25d9 Window Gasket WPL-25170P01
...
77
Set Screw (25) WPL-M1D101
...
78
Flat Washer WPL-M1D117
...
79
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
80
Seal Plate Kit WPL-M54D1
...
81
Inner Window Kit WPL-M51D1
...
82
Gasket Seal Plate WPL-M25D34

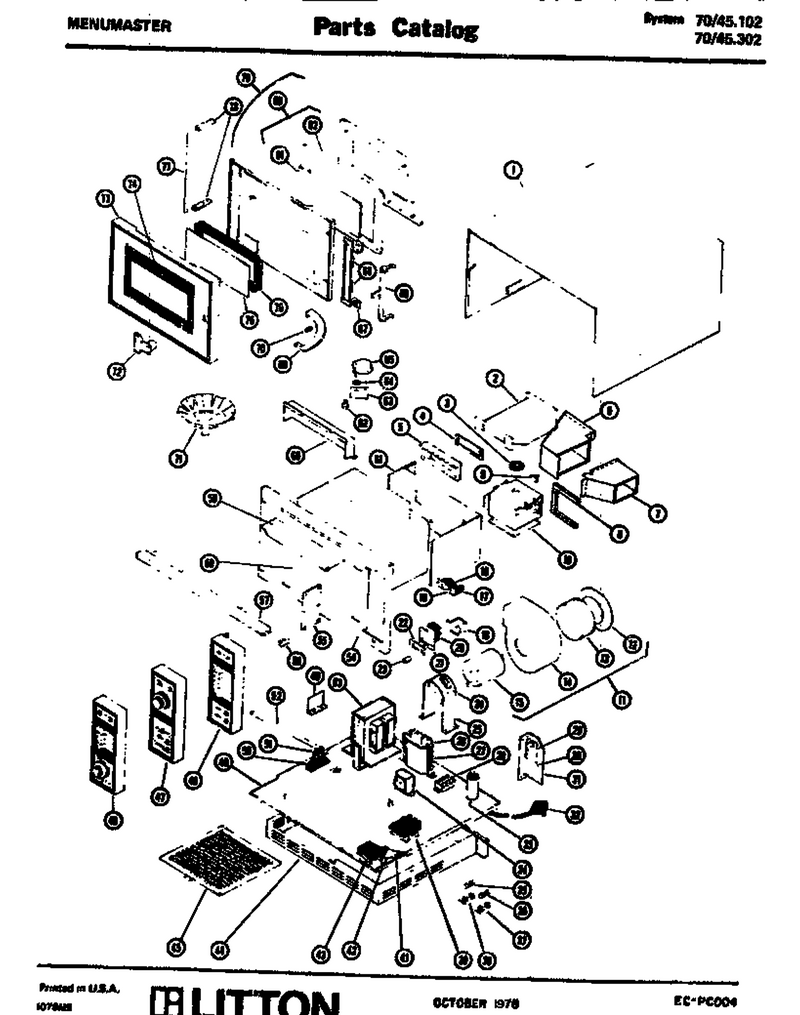

Schematic Image Zoomed
