Amana 70/45.100

Model: 70/45.100

Save Part Not Listed?
product name

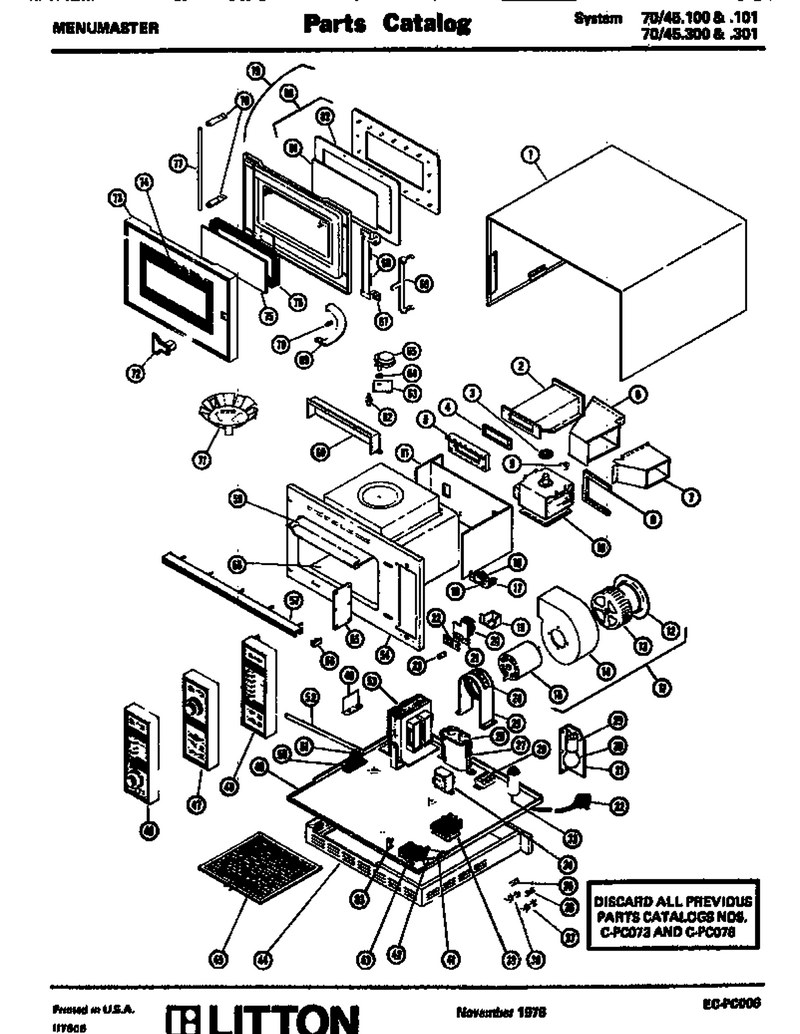

01 - Page 1

...
...
NI
Not Available WPL-M1D288
...
1
Wrap Stainless WPL-M80D49
...
2
Waveguide Asm WPL-M20D85
...
3
Not Available WPL-M2D42
...
4
Gasket M2d36 WPL-M2D36
...
5
Nut K WPL-M0282005
...
6
Duct Mag Exhaust WPL-M65D172
...
7
No.8 T X 1/4`` Screw WPL-M1D486
...
8
Gasket Duct WPL-M25D55
...
9
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
10
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
11
Blower Assy 50hz WPL-M41D19
...
12
Not Available WPL-M20D4
...
13
No.10 X 3/8`` Set Screw WPL-M1D115
...
14
Blower Hsg WPL-M65D8
...
15
Blower Motor WPL-M40D9
...
16
Not Available WPL-M5D193
...
17
Insulator Switch WPL-M5D192
...
18
Switch Bracket WPL-M2D279
...
19
Nut WPL-WP488130
...
20
Insulator Switch WPL-M5D194
...
21
Nut WPL-WP488130
...
22
Strike WPL-M8D10
...
23
Nut, Locking WPL-M1D414
...
24
Clamp Blwr WPL-28444P01
...
25
Bracket, Blower WPL-M20D93
...
26
Capacitor 1.26mf WPL-M10D64
...
27
Univ Cap Brkt WPL-M20D52
...
28
Nut WPL-WP488130
...
29
Socket WPL-M5D100
...
30
Lamp WPL-M9D10
...
31
Clip WPL-51539P01
...
32
Power Cord 70/45.300 WPL-M26D29
...
33
Nut WPL-WP488130
...
34
Step-On Xformer WPL-M60D57
...
35
Fuse 12 Amp WPL-M4D65
...
36
Fuse WPL-WP22001555
...
37
Fuse Holder WPL-M5D125
...
38
Fuse Holder WPL-M5D123
...
39
Cook Relay WPL-M16D44
...
40
Insulator Diode WPL-M5D195
...
41
Pivot Arm WPL-M8D56
...
42
Standoff WPL-M2D193
...
43
Insulator Switch WPL-M5D191
...
44
Screw (25) WPL-M1D452
...
45
Filter WPL-M48D1
...
46
C/d Timer WPL-M59D70
...
47
50 Hz Timer-Japan WPL-M58D15
...
48
M6d89 Push Button WPL-M6D181
...
49
Not Available WPL-M79D50
...
50
Hv Rect 12kv 750max WPL-1330000301
...
51
Bleeder Resistor WPL-M3D42
...
52
Brace WPL-M52D5
...
53
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
54
Not Available WPL-M77D52
...
55
Cover M7d41 WPL-24011P01
...
56
Ia End Cover WPL-21887P01
...
57
T Bolt (25) WPL-M1D15
...
58
Shelf Kit WPL-M50D2
...
59
Cover WPL-M45D2
...
60
Nut WPL-WP488130
...
61
Air Baffle Assembly-3 Side WPL-M65D95
...
62
Antenna Pin WPL-M2D37
...
63
Spacer WPL-M2D156
...
64
R.f. Gasket WPL-94072P01
...
65
Stir Motor Kit WPL-M12D32
...
66
Latch Bar WPL-M20D5
...
67
Nut WPL-WP488130
...
68
Spring Latch Kit WPL-M2D198
...
69
Screw WPL-WPW10068250
...
70
Cushion Door Stop WPL-M2D49
...
71
Set Screw Kit (1) WPL-M1D461
...
72
Set Screw, Handle Mtg. WPL-M1D646
...
73
Outer Door Casting WPL-M70D2
...
74
Nameplate 70/46 WPL-M7D273
...
75
Ia Window WPL-M51D2
...
76
M25d9 Window Gasket WPL-25170P01
...
77
Rod WPL-M52D7
...
78
Flat Washer WPL-M1D117
...
79
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
80
Seal Plate Kit WPL-M54D1
...
81
Inner Window Kit WPL-M51D1
...
82
Gasket Seal Plate WPL-M25D34
...
83
Resistor WPL-M3D2
