product name

Amana 70/42.01

Model: 70/42.01

Save Part Not Listed?
product name

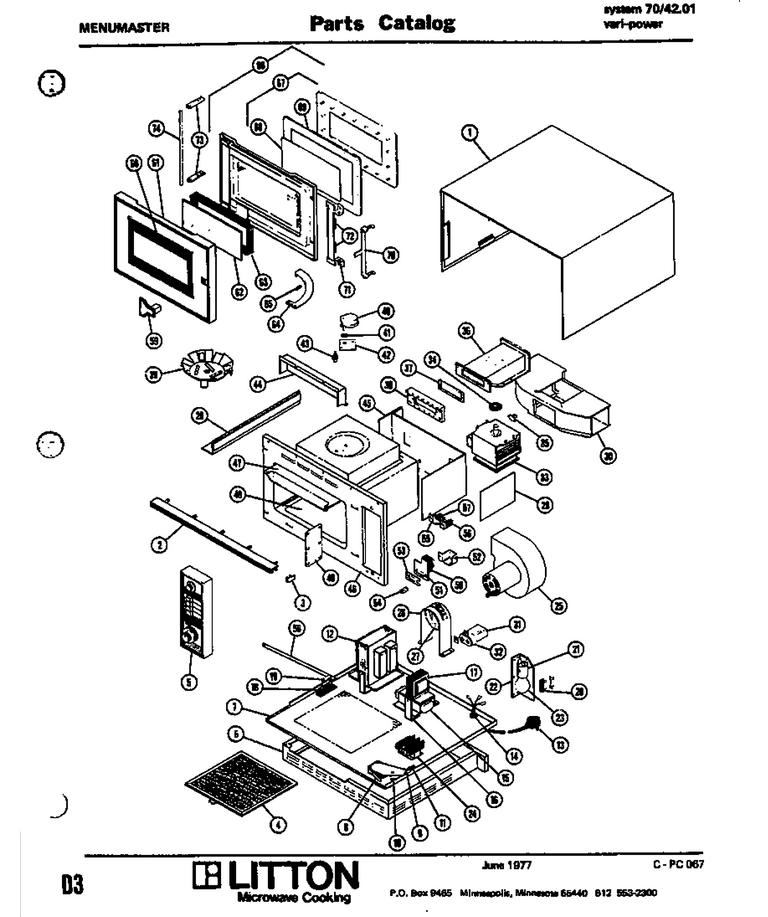

01 - Page 1

...
...
1
Wrap Stainless WPL-M80D49
...
2
Not Available WPL-M7D8
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Dec Panel WPL-M7D301
...
6
Screw (25) WPL-M1D452
...
7
Nut WPL-WP488130
...
8
Washer (25) WPL-M1D236
...
9
Pivot Arm WPL-M8D56
...
10
Standoff WPL-M2D193
...
11
On / Off Switch WPL-M14D128
...
12
High Voltage Transformer WPL-M60D53
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
Strain Relief WPL-8536977
...
15
Washer (25) WPL-M1D236
...
16
Screw WPL-M0202325
...
17
Filament Xformer WPL-M60D61
...
18
Screw (25) WPL-M1D341
...
19
Bleeder Resistor Assembly WPL-M3D30
...
20
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
21
Socket WPL-M5D100
...
22
Not Available WPL-M20D84
...
23
Lamp WPL-M9D10
...
24
Kit, Cook Relay WPL-M16D97
...
25
Assy, Blower Kit WPL-M41D16
...
26
Bracket, Blower WPL-M20D93
...
27
Clamp Blwr WPL-28444P01
...
28
Not Available WPL-M65D111
...
29
Baffle Left WPL-M65D112
...
30
Air Duct Kit WPL-M65D235
...
31
Capacitor 4.00mf Kit WPL-M10D21
...
32
Clip WPL-51539P01
...
33
Net-Kit,magnetron WPL-M57D17
...
34
Not Available WPL-M2D42
...
35
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
36
Waveguide Asm WPL-M20D85
...
37
Gasket M2d36 WPL-M2D36
...
38
Nut K WPL-M0282005
...
39
Speed Clip WPL-30530P01
...
40
M12d37 Stirrer Motor WPL-M12D37
...
41
R.f. Gasket WPL-94072P01
...
42
Spacer WPL-M2D156
...
43
Nut, Locking WPL-M1D414
...
44
Nut WPL-WP488130
...
45
Air Baffle Assembly-3 Side WPL-M65D95
...
46
Not Available WPL-M77D52
...
47
Cover WPL-M45D2
...
48
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
49
Shelf Kit WPL-M50D2
...
50
Switch WPL-M14D14
...
51
Not Available WPL-M20D7
...
52
Nut WPL-WP488130
...
53
Strike WPL-M8D10
...
54
Adj Screw WPL-M2D45
...
55
Nut WPL-WP488130
...
56
Switch WPL-M14D104
...
57
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
58
Nut WPL-WP488130
...
59
Door Handle WPL-M8D11
...
60
Nameplate, Pressure Sensitive WPL-M7D280
...
61
Door Inlay WPL-M7D95
...
62
Ia Window WPL-M51D2
...
63
M25d9 Window Gasket WPL-25170P01
...
64
Screw WPL-WPW10068250
...
65
Cushion Door Stop WPL-M2D49
...
66
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
67
Seal Plate Kit WPL-M54D1
...
68
Inner Window Kit WPL-M51D1
...
69
Gasket Seal Plate WPL-M25D34
...
70
Latch Bar WPL-M8D112
...
71
Bushing M2d46 WPL-25788P01
...
72
Spring Latch Kit WPL-M2D198
...
73
Bearing Flng (10) WPL-M1D112
...
74
Not Available WPL-M1D288
