product name

Amana 70/40.09

Model: 70/40.09

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Wrap Sst WPL-M80D8
...
2
Not Available WPL-M7D8
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Allen Screw (25) WPL-M1D106
...
6
Rail Assy Kit WPL-M52D8
...
7
Not Available WPL-M79D21
...
8
Switch WPL-M14D47
...
9
Pivot Arm WPL-M8D56
...
10
Standoff WPL-M2D193
...
11
Spring Pivot Arm WPL-M2D227
...
12
Resistor WPL-M3D2
...
13
Switch, Light WPL-M14D55
...
14
Plate Transformer WPL-M60D5
...
15
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
16
Strain Relief WPL-8536977
...
17
No.8 Spring Lockwasher (25) WPL-M1D57
...
18
Screw Bkt Mtg WPL-M1D336
...
19
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
20
Heat Sink WPL-M5D154
...
21
Jumper Lead WPL-M5D79
...
22
Nut WPL-WP488130
...
23
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
24
Bushing, Snap WPL-A3293504
...
25
Socket WPL-M5D100
...
26
Lamp WPL-M9D10
...
27
Nut WPL-WP488130
...
28
Relay 10 Sec Start-Up Kit WPL-M16D26
...
29
Nut K WPL-M0282005
...
30
Snap Bushing K WPL-M2D1
...
31
Not Available WPL-M25D7
...
32
Nut WPL-WP488130
...
33
Blower Hsg WPL-M65D8
...
34
No.10 X 3/8`` Set Screw WPL-M1D115
...
35
Screw (25) WPL-M1D129
...
36
Not Available WPL-M65D9
...
37
Ia Washer No.10 WPL-M1D326
...
38
Not Available WPL-M2D42
...
39
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
40
Jw Insul Spacer WPL-M2D221
...
41
Air Duct WPL-29763P02
...
42
Not Available WPL-M1D121
...
43
Nut, Mag. Mtg. WPL-M1D95
...
44
Gasket M2d36 WPL-M2D36
...
45
Not Available WPL-M2D42
...
46
Stirrer & Hub WPL-M44D13
...
47
Ia Screw WPL-M1D329
...
48
R.f. Gasket WPL-94072P01
...
49
Spacer WPL-M2D156
...
50
Nut, Locking WPL-M1D414
...
51
Exhaust Duct WPL-M65D13
...
52
Rear Baffle WPL-M65D14
...
53
Not Available WPL-M65D12
...
54
Not Available WPL-M77D52
...
55
Cover WPL-M45D2
...
56
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
57
Shelf Kit WPL-M50D2
...
58
Nut K WPL-M0282005
...
59
Adj Screw WPL-M2D45
...
60
Nut WPL-WP488130
...
61
Strike WPL-M8D10
...
62
Adj Screw WPL-M2D45
...
63
Switch Bracket WPL-M2D279
...
64
Nut WPL-WP488130
...
65
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
66
Speed Clip (25) WPL-M1D122
...
67
Set Screw Kit (1) WPL-M1D461
...
68
Nameplate, Pressure Sensitive WPL-M7D190
...
69
Push Nut WPL-Y0088250
...
70
Ia Window WPL-M51D2
...
71
M25d9 Window Gasket WPL-25170P01
...
72
Screw WPL-WPW10068250
...
73
Cushion Door Stop WPL-M2D49
...
74
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
75
Seal Plate Kit WPL-M54D1
...
76
Inner Window Kit WPL-M51D1
...
77
Gasket Seal Plate WPL-M25D34
...
78
Pivot WPL-23681P01
...
79
Spring Latch Kit WPL-M2D198
...
80
Brkt, Latch Bar WPL-M20D88
...
81
Hinge WPL-M8D8
...
82
Not Available WPL-M1D288

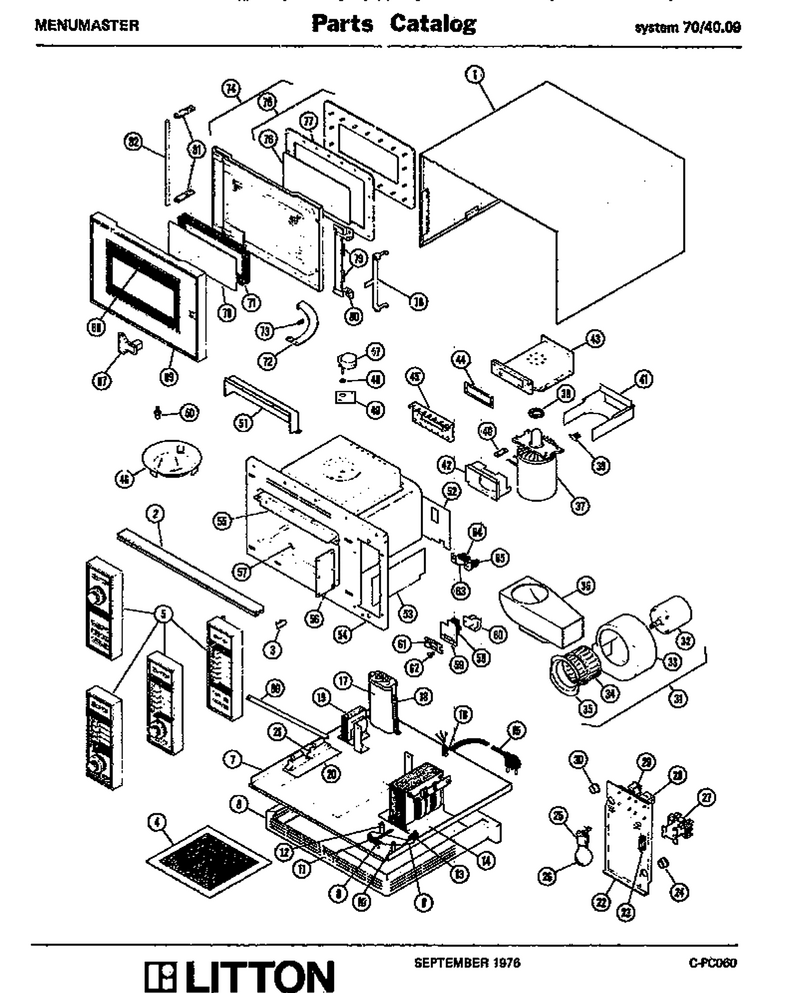

Schematic Image Zoomed
