Amana 70/40.06

Model: 70/40.06

Save Part Not Listed?
product name

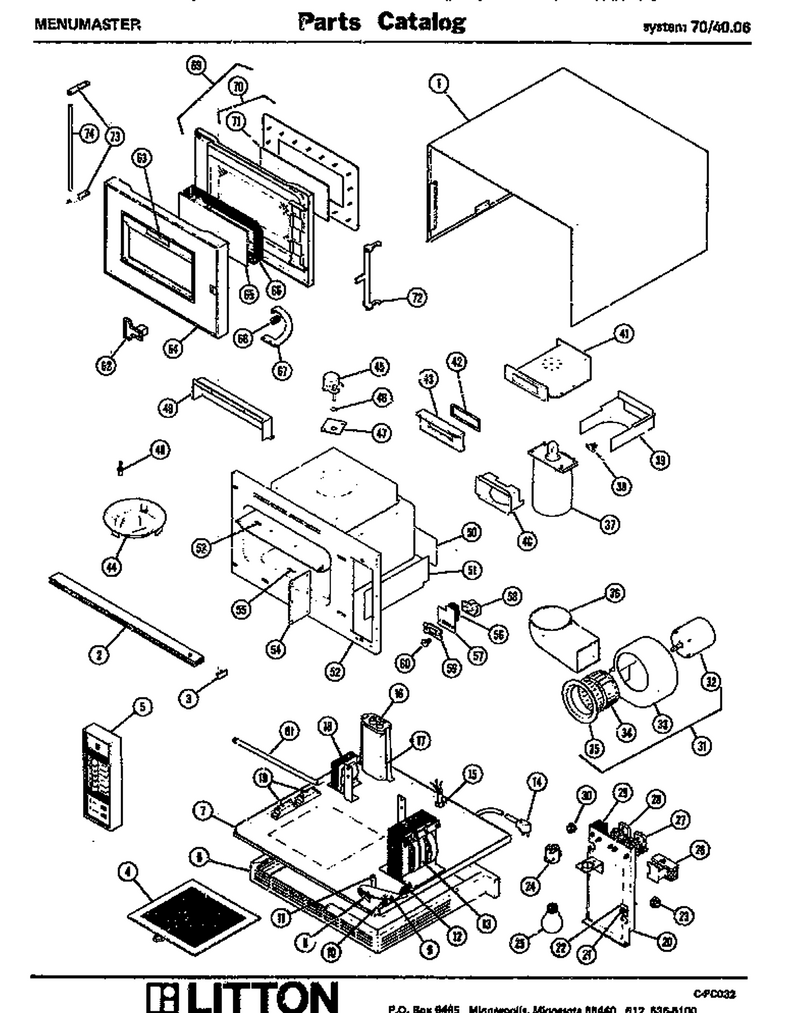

01 - Page 1

...
...
1
Not Available WPL-M80D7
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Net-Timer,push Button 70/40/50 WPL-M59D55
...
6
Not Available WPL-M1D342
...
7
Nut WPL-WP488130
...
8
Screw WPL-M0227520
...
9
Lock Washer WPL-M0272803
...
10
Standoff WPL-M2D193
...
11
Terminal (25) WPL-M1D49
...
12
Switch, Light WPL-M14D55
...
13
Plate Transformer WPL-M60D5
...
14
No.8 Spring Lockwasher (25) WPL-M1D57
...
15
Strain Relief WPL-M2D10
...
16
No.8 Spring Lockwasher (25) WPL-M1D57
...
17
Screw Bkt Mtg WPL-M1D336
...
18
Ia Trans WPL-M60D4
...
19
Screw (25) WPL-M1D341
...
20
Not Available WPL-M20D45
...
21
Fuseholder WPL-M5D17
...
22
Not Available WPL-M2D44
...
23
Snap Bushing K WPL-M2D1
...
24
Screw WPL-M0202325
...
25
Lamp WPL-M9D10
...
26
Nut WPL-WP488130
...
27
Nut K WPL-M0282005
...
28
Nut K WPL-M0282005
...
29
Nut K WPL-M0282005
...
30
Bushing, Snap WPL-A3293504
...
31
Blower Assembly WPL-M41D2
...
32
Blower Motor WPL-M40D1
...
33
Blower Hsg WPL-M65D8
...
34
No.10 X 3/8`` Set Screw WPL-M1D115
...
35
Not Available WPL-M20D4
...
36
Not Available WPL-M65D9
...
37
Nut, Pin Mtg. WPL-M1D76
...
38
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
39
Air Duct WPL-29763P02
...
40
Air Duct WPL-30107P02
...
41
Nut, Mag. Mtg. WPL-M1D95
...
42
Gasket M2d36 WPL-M2D36
...
43
Screw (25) WPL-M1D341
...
44
Stirrer & Hub WPL-M44D5
...
45
Stirrer Motor Kit WPL-M12D5
...
46
R.f. Gasket WPL-94072P01
...
47
Spacer WPL-M2D156
...
48
Antenna Pin WPL-M2D37
...
49
Nut WPL-WP488130
...
50
Rear Baffle WPL-M65D14
...
51
Not Available WPL-M65D12
...
52
Cavity-Sy/70 WPL-M77D5
...
53
Cover WPL-M45D2
...
54
Cover M7d41 WPL-24011P01
...
55
Shelf Kit WPL-M50D2
...
56
Nut K WPL-M0282005
...
57
Not Available WPL-M20D7
...
58
Not Available WPL-M20D9
...
59
Strike WPL-M8D10
...
60
Nut, Locking WPL-M1D414
...
61
Screw (25) WPL-M1D102
...
62
Ia Handle WPL-M7D94
...
63
Not Available WPL-M1D52
...
64
Outer Door Casting WPL-M70D2
...
65
Not Available WPL-M1D111
...
66
M25d9 Window Gasket WPL-25170P01
...
67
Screw WPL-WPW10068250
...
68
Cushion Door Stop WPL-M2D49
...
69
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
70
Nut K WPL-M0282005
...
71
Inner Window Kit WPL-M51D1
...
72
Bushing M2d46 WPL-25788P01
...
73
Flat Washer WPL-M1D117
...
74
Button Retainer (1) Kit WPL-M2D43
