product name

Amana 70/40.01

Model: 70/40.01

Save Part Not Listed?
product name

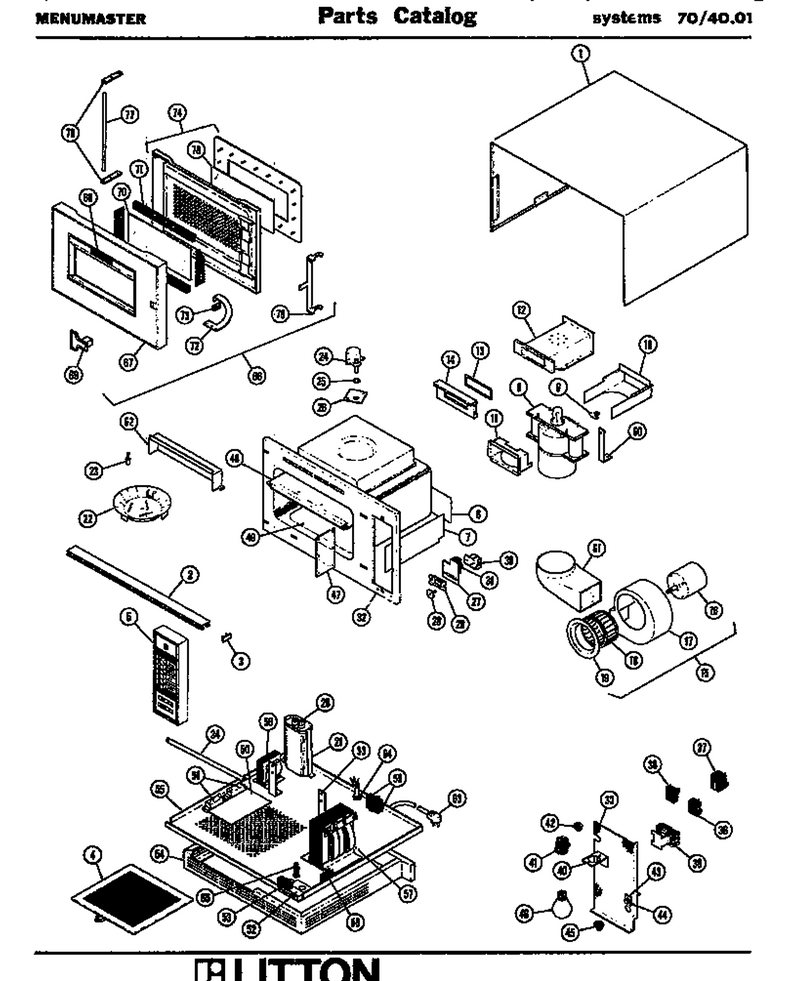

01 - Page 1

...
...
1
Not Available WPL-M80D7
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Lensx M7d39 WPL-M7D39
...
6
Rear Baffle WPL-M65D14
...
7
Not Available WPL-M65D12
...
8
Magnetron Assembly WPL-M57D7
...
9
Thermal Protector WPL-M4D1
...
10
Air Duct WPL-29763P02
...
11
Not Available WPL-M1D121
...
12
Nut WPL-M0282009
...
13
Gasket M2d36 WPL-M2D36
...
14
Waveguide Socket WPL-M20D1
...
15
Blower Assembly WPL-M41D2
...
16
Nut WPL-WP488130
...
17
Blower Hsg WPL-M65D8
...
18
No.10 X 3/8`` Set Screw WPL-M1D115
...
19
Not Available WPL-M20D4
...
20
Screwund Hd Mach Scr (25) WPL-M1D83
...
21
Screw Bkt Mtg WPL-M1D336
...
22
Set Screw Kit (1) WPL-M1D461
...
23
3/8 Int Tooth Lockwasher WPL-M1D118
...
24
Ia Screw WPL-M1D329
...
25
R.f. Gasket WPL-94072P01
...
26
Spacer WPL-M2D156
...
27
Nut WPL-WP488130
...
28
Adj Screw WPL-M2D45
...
29
3/8 Int Tooth Lockwasher WPL-M1D118
...
30
Nut WPL-WP488130
...
31
Switch WPL-M14D14
...
32
Nut WPL-WP488130
...
33
Not Available WPL-M7D112
...
34
Not Available WPL-M1D52
...
35
Nut WPL-WP488130
...
36
Screw (25) WPL-M1D5
...
37
Holding Relay WPL-M16D7
...
38
Screw (25) WPL-M1D5
...
39
Kit, Cook Relay WPL-M16D97
...
40
Screw WPL-M0202325
...
41
Receptacle WPL-18336P01
...
42
Bushing, Snap WPL-A3293504
...
43
Not Available WPL-M2D44
...
44
Fuseholder WPL-M5D17
...
45
Snap Bushing K WPL-M2D1
...
46
Lamp WPL-M9D10
...
47
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
48
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
49
Shelf Kit WPL-M50D2
...
50
Heat Sink Plate WPL-M20D2
...
51
Hv Rect 12kv 750max WPL-1330000301
...
52
Switch Brkt WPL-M20D6
...
53
Switch Kit WPL-M14D12
...
54
Rail Assy Kit WPL-M52D8
...
55
Not Available WPL-M79D3
...
56
Ia Trans WPL-M60D4
...
57
Plate Transformer WPL-M60D5
...
58
Screw (25) WPL-M1D343
...
59
Switch Kit WPL-M14D12
...
60
Nut WPL-WP488130
...
61
Not Available WPL-M65D9
...
62
Nut WPL-WP488130
...
63
Screwund Hd Mach Scr (25) WPL-M1D83
...
64
Strain Relief WPL-8536977
...
65
Terminal (25) WPL-M1D49
...
66
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
67
Push Nut WPL-Y0088250
...
68
Not Available WPL-M1D52
...
69
Door Handle WPL-M8D11
...
70
Not Available WPL-M1D111
...
71
M25d9 Window Gasket WPL-25170P01
...
72
Screw WPL-WPW10068250
...
73
Cushion Door Stop WPL-M2D49
...
74
Inner Door Assembly WPL-M70D3
...
75
Nut WPL-WP488130
...
76
Bearing Flng (10) WPL-M1D112
...
77
Set Screw (25) WPL-M1D101
...
78
Clamp, Harness To Cavity WPL-M1D75
