Amana 70/30.11

Model: 70/30.11

Save Part Not Listed?
product name

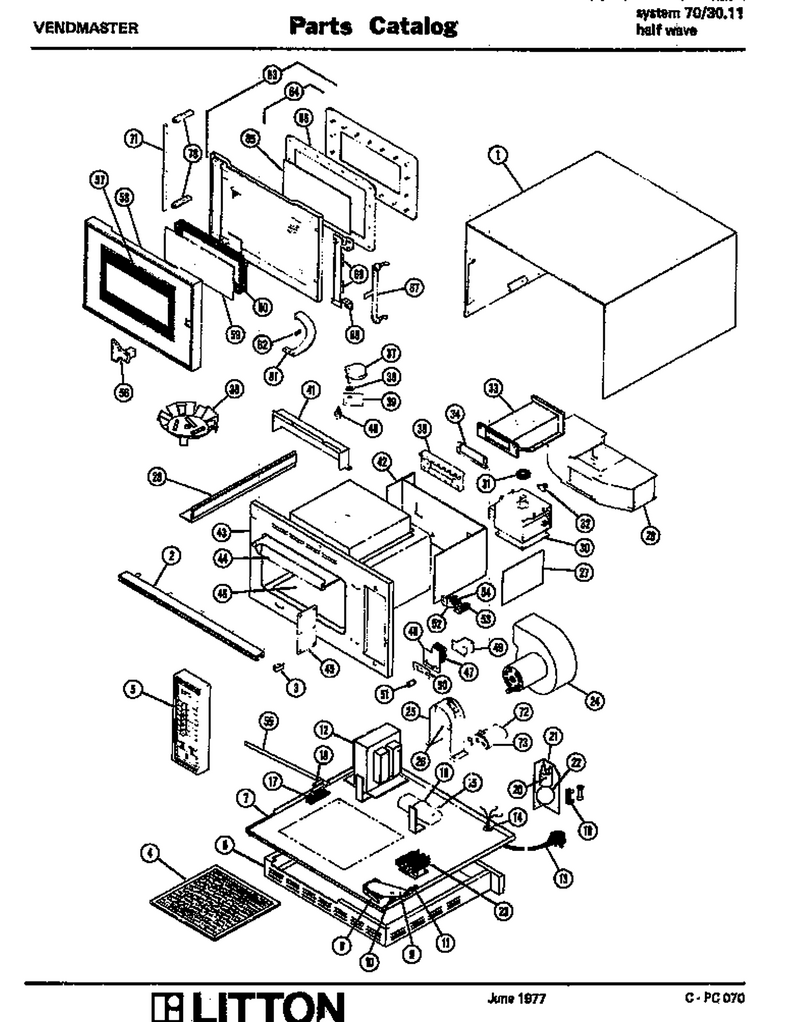

01 - Page 1

...
...
1
Wrap Stainless WPL-M80D49
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Net-Timer 73/30 WPL-M59D53
...
6
Screw (25) WPL-M1D452
...
7
Not Available WPL-M79D30
...
8
Nut K WPL-M0282005
...
9
Pivot Arm WPL-M8D56
...
10
Standoff WPL-M2D193
...
11
On / Off Switch WPL-M14D128
...
12
Not Available WPL-M1D411
...
13
Washer (25) WPL-M1D236
...
14
Strain Relief WPL-8536977
...
15
Washer (25) WPL-M1D236
...
16
Screw Bkt Mtg WPL-M1D336
...
17
Screw (25) WPL-M1D341
...
18
Bleeder Resistor Assembly WPL-M3D30
...
19
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
20
Receptacle WPL-18336P01
...
21
Not Available WPL-M20D84
...
22
Lamp WPL-M9D10
...
23
Screw WPL-M0202325
...
24
Assy, Blower Kit WPL-M41D16
...
25
Bracket, Blower WPL-M20D93
...
26
Clamp Blwr WPL-28444P01
...
27
Not Available WPL-M65D111
...
28
Baffle Left WPL-M65D112
...
29
Air Duct Kit WPL-M65D235
...
30
Net-Kit,magnetron WPL-M57D17
...
31
Gasket-Rf WPL-M2D305
...
32
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
33
Waveguide Asm WPL-M20D85
...
34
Gasket M2d36 WPL-M2D36
...
35
Nut K WPL-M0282005
...
36
Speed Clip WPL-30530P01
...
37
Ia Screw WPL-M1D329
...
38
R.f. Gasket WPL-94072P01
...
39
Spacer WPL-M2D156
...
40
Nut, Locking WPL-M1D414
...
41
Exhaust Duct WPL-M65D13
...
42
Baffle Assy WPL-M65D101
...
43
Screw WPL-M0202325
...
44
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
45
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
46
Shelf Kit WPL-M50D2
...
47
Nut K WPL-M0282005
...
48
Nut WPL-WP488130
...
49
Nut WPL-WP488130
...
50
Strike WPL-M8D10
...
51
Adj Screw WPL-M2D45
...
52
Nut WPL-WP488130
...
53
Switch WPL-M14D104
...
54
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
55
Nut WPL-WP488130
...
56
Door Handle WPL-M8D11
...
57
Ia Sticker WPL-M7D187
...
58
Outer Dr Asm WPL-M70D1
...
59
Ia Window WPL-M51D2
...
60
M25d9 Window Gasket WPL-25170P01
...
61
Screw WPL-WPW10068250
...
62
Cushion Door Stop WPL-M2D49
...
63
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
64
Seal Plate Kit WPL-M54D1
...
65
Inner Window Kit WPL-M51D1
...
66
Gasket Seal Plate WPL-M25D34
...
67
Latch Bar WPL-M8D112
...
68
Pivot WPL-23681P01
...
69
Spring Latch Kit WPL-M2D198
...
70
Hinge WPL-M8D8
...
71
Set Screw (25) WPL-M1D101
...
72
Capacitor 4.00mf Kit WPL-M10D21
...
73
Not Available WPL-M1D288
