Amana 70/30.07

Model: 70/30.07

Save Part Not Listed?
product name

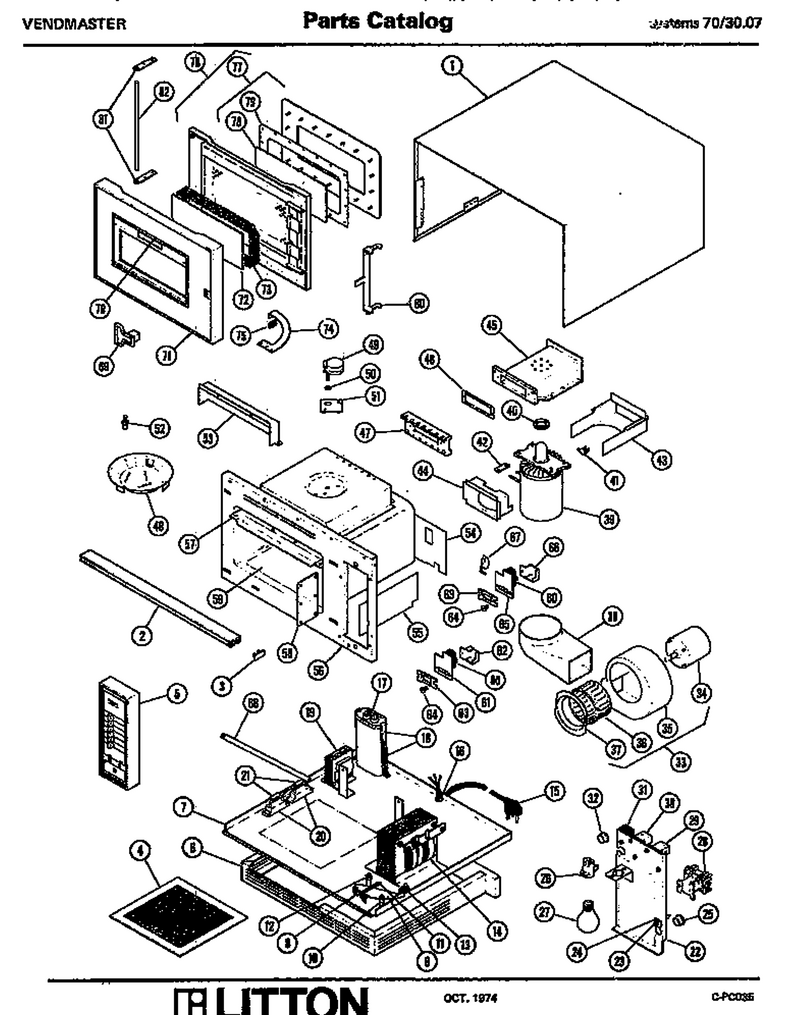

01 - Page 1

...
...
1
Outer Wrap WPL-M80D5
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Net-Timer 73/30 WPL-M59D53
...
6
Not Available WPL-M1D342
...
7
Nut WPL-WP488130
...
8
Not Available WPL-M1D418
...
9
Pivot Arm WPL-M8D56
...
10
Standoff WPL-M2D193
...
11
Spring Pivot Arm WPL-M2D227
...
12
Fbr Washer (25) WPL-M1D51
...
13
Switch, Light WPL-M14D55
...
14
Lock Nut (25) WPL-M1D119
...
15
Washer (25) WPL-M1D236
...
16
Strain Relief WPL-M2D10
...
17
No.8 Spring Lockwasher (25) WPL-M1D57
...
18
Screw Bkt Mtg WPL-M1D336
...
19
Ia Trans WPL-M60D4
...
20
Screw (25) WPL-M1D341
...
21
Bleeder Resistor Assembly WPL-M3D25
...
22
Not Available WPL-M20D45
...
23
Fuse- 3 Am WPL-Y0078733
...
24
Not Available WPL-M2D44
...
25
Snap Bushing K WPL-M2D1
...
26
Receptacle WPL-18336P01
...
27
Lamp WPL-M9D10
...
28
Nut WPL-WP488130
...
29
Nut K WPL-M0282005
...
30
Nut K WPL-M0282005
...
31
Nut K WPL-M0282005
...
32
Bushing, Snap WPL-A3293504
...
33
Not Available WPL-M25D7
...
34
Nut WPL-WP488130
...
35
Blower Hsg WPL-M65D8
...
36
No.10 X 3/8`` Set Screw WPL-M1D115
...
37
Not Available WPL-M20D4
...
38
Not Available WPL-M65D9
...
39
Nut, Pin Mtg. WPL-M1D76
...
40
R F Gasket WPL-M2D15
...
41
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
42
Jw Insul Spacer WPL-M2D221
...
43
Air Duct WPL-29763P02
...
44
Not Available WPL-M1D121
...
45
Nut, Mag. Mtg. WPL-M1D95
...
46
Gasket M2d36 WPL-M2D36
...
47
Waveguide Socket WPL-M20D1
...
48
Set Screw Kit (1) WPL-M1D461
...
49
Ia Screw WPL-M1D329
...
50
R.f. Gasket WPL-94072P01
...
51
Spacer WPL-M2D156
...
52
Antenna Pin WPL-M2D37
...
53
Nut WPL-WP488130
...
54
Rear Baffle WPL-M65D14
...
55
Not Available WPL-M65D12
...
56
Nut WPL-WP488130
...
57
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
58
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
59
Shelf Kit WPL-M50D2
...
60
Switch WPL-M14D14
...
61
Nut WPL-WP488130
...
62
Nut WPL-WP488130
...
63
Strike WPL-M8D10
...
64
Adj Screw WPL-M2D45
...
65
Nut WPL-WP488130
...
66
Nut WPL-WP488130
...
67
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
68
Nut WPL-WP488130
...
69
Set Screw Kit (1) WPL-M1D461
...
70
Ia Sticker WPL-M7D187
...
71
Ia Inlay M7d49 WPL-23708P01
...
72
Not Available WPL-M1D111
...
73
M25d9 Window Gasket WPL-25170P01
...
74
Arm,door Stop Kit WPL-M8D198
...
75
Cushion Door Stop WPL-M2D49
...
76
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
77
Nut K WPL-M0282005
...
78
Inner Window Kit WPL-M51D1
...
79
Gasket Seal Plate WPL-M25D34
...
80
Pivot WPL-23681P01
...
81
Sq Gray Button WPL-M6D33
