Amana 70/30.02

Model: 70/30.02

Save Part Not Listed?
product name

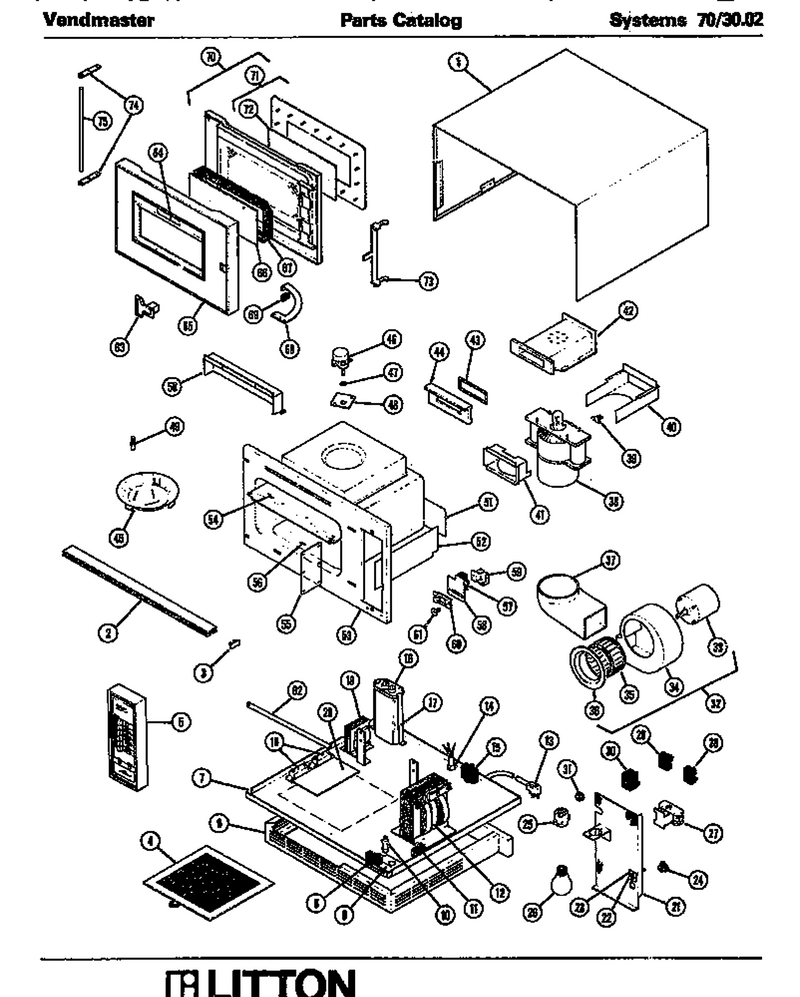

01 - Page 1

...
...
1
Outer Wrap WPL-M80D5
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Sq Gray Button WPL-M6D33
...
6
Seal Strip, Rail WPL-M1D237
...
7
Nut WPL-WP488130
...
8
Switch Kit WPL-M14D12
...
9
Nut WPL-WP488130
...
10
Terminal (25) WPL-M1D49
...
11
Screw (25) WPL-M1D343
...
12
Plate Transformer WPL-M60D5
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
Strain Relief WPL-8536977
...
15
Switch Kit WPL-M14D12
...
16
No.8 Spring Lockwasher (25) WPL-M1D57
...
17
Screw Bkt Mtg WPL-M1D336
...
18
Ia Trans WPL-M60D4
...
19
Hv Rect 12kv 750max WPL-1330000301
...
20
Screw (25) WPL-M1D341
...
21
Not Available WPL-M20D45
...
22
Fuseholder WPL-M5D17
...
23
Not Available WPL-M2D44
...
24
Snap Bushing K WPL-M2D1
...
25
Receptacle WPL-18336P01
...
26
Lamp WPL-M9D10
...
27
Kit, Cook Relay WPL-M16D97
...
28
Relay 10 Sec Start-Up Kit WPL-M16D26
...
29
Nut K WPL-M0282005
...
30
Nut K WPL-M0282005
...
31
Bushing, Snap WPL-A3293504
...
32
Nut WPL-WP488130
...
33
Nut WPL-WP488130
...
34
Blower Hsg WPL-M65D8
...
35
No.10 X 3/8`` Set Screw WPL-M1D115
...
36
Not Available WPL-M20D4
...
37
Not Available WPL-M65D9
...
38
Screw (25) WPL-M1D416
...
39
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
40
Air Duct WPL-29763P02
...
41
Air Duct WPL-30107P02
...
42
Waveguide Assembly WPL-M65D15
...
43
Gasket M2d36 WPL-M2D36
...
44
Nut K WPL-M0282005
...
45
Set Screw Kit (1) WPL-M1D461
...
46
Stirrer Motor Kit WPL-M12D5
...
47
R.f. Gasket WPL-94072P01
...
48
Spacer WPL-M2D156
...
49
Nut, Locking WPL-M1D414
...
50
Nut WPL-WP488130
...
51
Rear Baffle WPL-M65D14
...
52
Not Available WPL-M65D12
...
53
Cavity-Sy/70 WPL-M77D5
...
54
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
55
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
56
Shelf Kit WPL-M50D2
...
57
Switch WPL-M14D14
...
58
Nut WPL-WP488130
...
59
Nut WPL-WP488130
...
60
Strike WPL-M8D10
...
61
Adj Screw WPL-M2D45
...
62
Brace WPL-M52D5
...
63
Ia Handle WPL-M7D42
...
64
Ia Sticker WPL-M7D43
...
65
Ia Inlay M7d49 WPL-23708P01
...
66
Not Available WPL-M1D111
...
67
M25d9 Window Gasket WPL-25170P01
...
68
Screw WPL-WPW10068250
...
69
Cushion Door Stop WPL-M2D49
...
70
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
71
Not Available WPL-M2D195
...
72
Inner Window Kit WPL-M51D1
...
73
Bushing M2d46 WPL-25788P01
...
74
Bearing Flng (10) WPL-M1D112
...
75
Timer Test Cord WPL-M95D2
