Amana 70/30.00

Model: 70/30.00

Save Part Not Listed?
product name

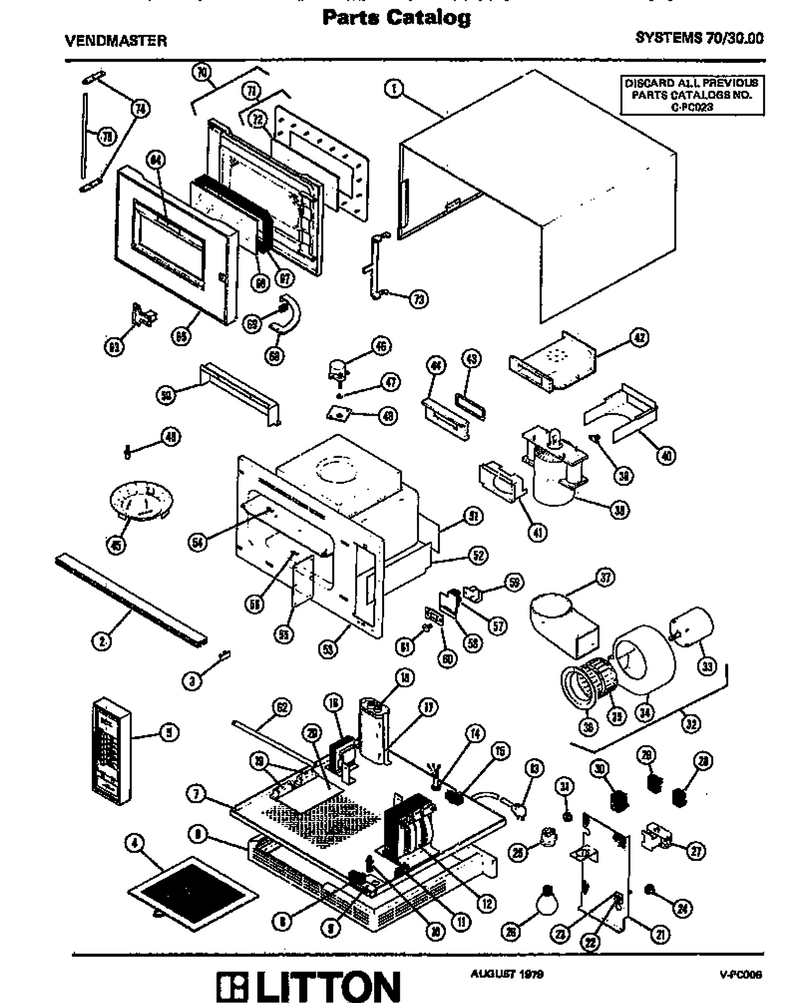

01 - Page 1

...
...
1
Outer Wrap WPL-M80D5
...
2
T Bolt (25) WPL-M1D15
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Net-Timer 73/30 WPL-M59D76
...
6
Rail Assy Kit WPL-M52D8
...
7
Nut WPL-WP488130
...
8
Switch Kit WPL-M14D12
...
9
Nut WPL-WP488130
...
10
Fbr Washer (25) WPL-M1D51
...
11
Ia 6-32 Screw (25) WPL-M1D123
...
12
Plate Transformer WPL-M60D5
...
13
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
14
Strain Relief WPL-8536977
...
15
Switch Kit WPL-M14D12
...
16
Dual Cap .88x2mf WPL-M10D62
...
17
Screw Bkt Mtg WPL-M1D336
...
18
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
19
Hv Rect 12kv 750max WPL-1330000301
...
20
Heat Sink Plate WPL-M20D2
...
21
Not Available WPL-M20D45
...
22
Fuse- 3 Am WPL-Y0078733
...
23
Not Available WPL-M2D44
...
24
Snap Bushing K WPL-M2D1
...
25
Receptacle WPL-18336P01
...
26
Lamp WPL-M9D10
...
27
Nut WPL-WP488130
...
28
Screw, No.6x18x1/4 (3) WPL-487010
...
29
Screw, No.6x18x1/4 (3) WPL-487010
...
30
Nut K WPL-M0282005
...
31
Bushing, Snap WPL-A3293504
...
32
Not Available WPL-M25D7
...
33
Nut WPL-WP488130
...
34
Blower Hsg WPL-M65D8
...
35
No.10 X 3/8`` Set Screw WPL-M1D115
...
36
Not Available WPL-M20D4
...
37
Not Available WPL-M65D113
...
38
Ia Washer No.10 WPL-M1D326
...
39
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
40
Air Duct WPL-29763P02
...
41
Air Duct WPL-30107P02
...
42
Wave Guide WPL-M65D17
...
43
Gasket M2d36 WPL-M2D36
...
44
Waveguide Socket WPL-M20D1
...
45
Stirrer & Hub WPL-M44D13
...
46
Ia Screw WPL-M1D329
...
47
R.f. Gasket WPL-94072P01
...
48
Spacer WPL-M2D156
...
49
Antenna Pin WPL-M2D37
...
50
Exhaust Duct WPL-M65D13
...
51
Not Available WPL-M65D12
...
52
Rear Baffle WPL-M65D14
...
53
Cavity-Sy/70 WPL-M77D5
...
54
Cover M7d41 WPL-24011P01
...
56
Shelf Kit WPL-M50D2
...
57
Nut K WPL-M0282005
...
58
Not Available WPL-M20D7
...
59
Not Available WPL-M20D9
...
60
Strike WPL-M8D10
...
61
Adj Screw WPL-M2D45
...
62
Nut WPL-WP488130
...
63
Ia Handle WPL-M7D42
...
64
Ia Sticker WPL-M7D187
...
65
Ia Inlay M7d49 WPL-23708P01
...
66
Ia Window WPL-M51D2
...
67
M25d9 Window Gasket WPL-25170P01
...
68
Screw WPL-WPW10068250
...
69
Cushion Door Stop WPL-M2D49
...
70
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
71
Nut K WPL-M0282005
...
72
Inner Window Kit WPL-M51D1
...
73
Pivot WPL-23681P01
...
74
Hinge WPL-M8D8
...
75
Set Screw (25) WPL-M1D101
