Amana 70/20.11

Model: 70/20.11

Save Part Not Listed?
product name

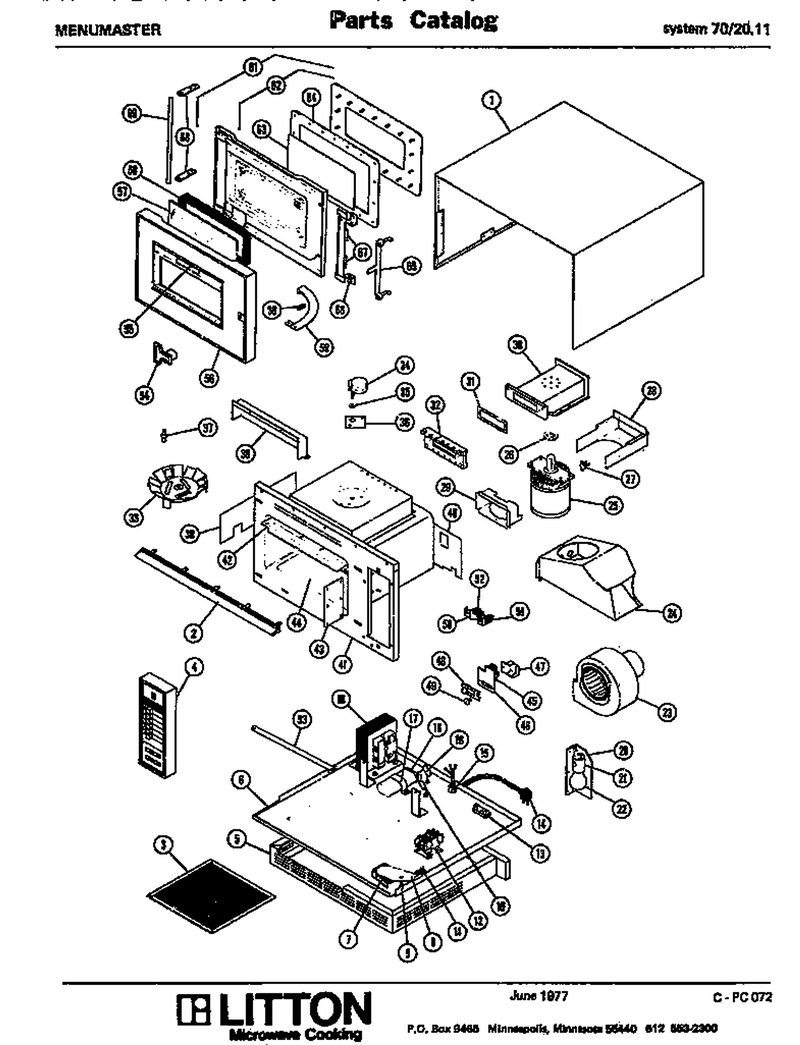

01 - Page 1

...
...
NI
Harness Retainer WPL-M2D12
...
1
Screw (25) WPL-M1D107
...
2
T Bolt (25) WPL-M1D15
...
3
Filter WPL-M48D1
...
4
M7d40 Lens Amber WPL-23752P01
...
5
Not Available WPL-M1D342
...
6
Screw WPL-M0202325
...
7
Not Available WPL-M1D418
...
8
Screw, Arm Mtg. WPL-M1D419
...
9
Screw WPL-M0202325
...
10
Bleeder Resistor Assembly WPL-M3D30
...
11
On / Off Switch WPL-M14D128
...
12
Screw WPL-M0202325
...
13
Fuse 20 A WPL-WPM0805101
...
14
Washer (25) WPL-M1D236
...
15
Strain Relief WPL-8536977
...
16
Capacitor-.69 WPL-59001160
...
17
Capacitor Brkt WPL-M20D60
...
18
No.8 Spring Lockwasher (25) WPL-M1D57
...
19
Not Available WPL-M1D342
...
20
Not Available WPL-M20D84
...
21
Receptacle WPL-18336P01
...
22
Lamp WPL-M9D10
...
23
Blower Assembly WPL-M41D2
...
24
Not Available WPL-M65D113
...
25
Nut, Mag. Mtg. WPL-M1D95
...
26
R F Gasket WPL-M2D35
...
27
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
28
Not Available WPL-M65D28
...
29
Air Duct WPL-30107P02
...
30
Waveguide WPL-M65D25
...
31
Gasket M2d36 WPL-M2D36
...
32
Nut K WPL-M0282005
...
33
Speed Clip WPL-30530P01
...
34
M12d37 Stirrer Motor WPL-M12D37
...
35
R.f. Gasket WPL-94072P01
...
36
Spacer WPL-M2D156
...
37
Nut, Locking WPL-M1D414
...
38
Nut WPL-WP488130
...
39
Baffle WPL-M65D64
...
40
Rear Baffle WPL-M65D14
...
41
Nut WPL-WP488130
...
42
Cover WPL-M45D2
...
43
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
44
Shelf Kit WPL-M50D2
...
45
Nut K WPL-M0282005
...
46
Not Available WPL-M20D7
...
47
Not Available WPL-M20D9
...
48
Strike WPL-M8D10
...
49
Nut, Locking WPL-M1D414
...
50
Bracket Switch WPL-M2D226
...
51
Switch WPL-M14D104
...
52
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
53
Screw (25) WPL-M1D102
...
54
Door Handle WPL-M8D11
...
55
Nameplate, Pressure Sensitive WPL-M7D188
...
56
Push Nut WPL-Y0088250
...
57
Ia Window WPL-M51D2
...
58
M25d9 Window Gasket WPL-25170P01
...
59
Screw WPL-WPW10068250
...
60
Cushion Door Stop WPL-M2D49
...
61
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
62
Nut K WPL-M0282005
...
63
Inner Window Kit WPL-M51D1
...
64
Gasket Seal Plate WPL-M25D34
...
65
Not Available WPL-M82D112
...
66
Bushing M2d46 WPL-25788P01
...
67
Spring Latch Kit WPL-M2D198
...
68
Bearing Flng (10) WPL-M1D112
...
69
Set Screw (25) WPL-M1D101
