Amana 70/20.09

Model: 70/20.09

Save Part Not Listed?
product name

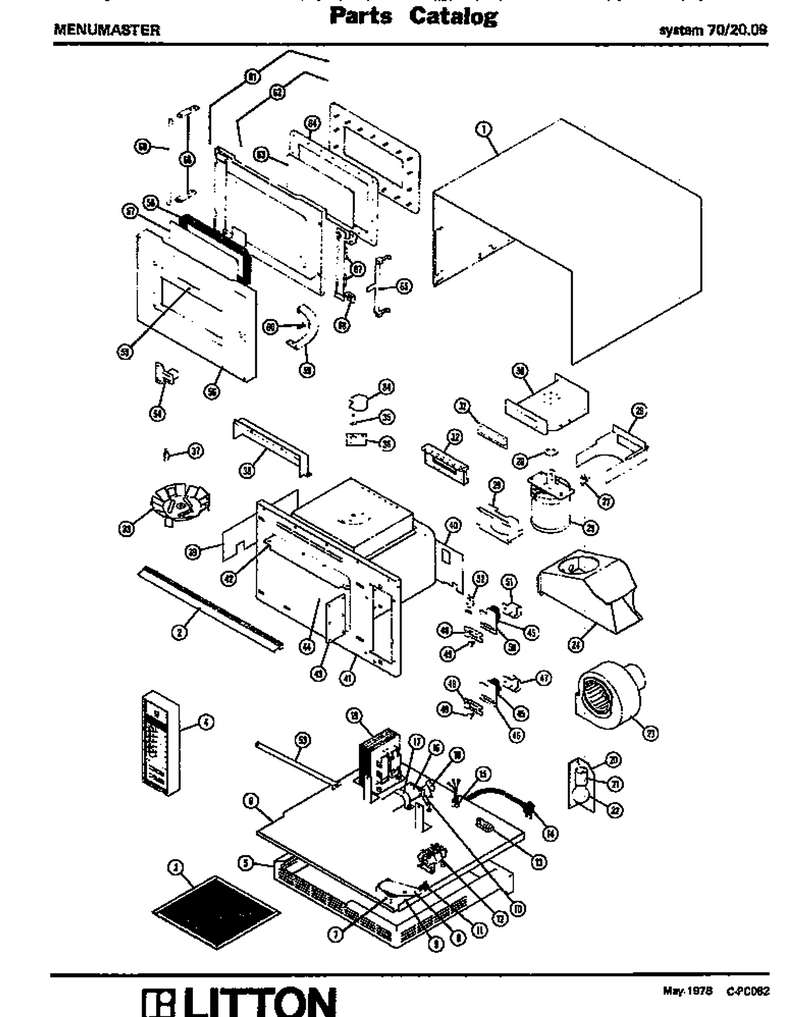

01 - Page 1

...
...
NI
Retainer (10) WPL-M1D519
...
1
Not Available WPL-M80D7
...
2
Not Available WPL-M7D155
...
3
Filter WPL-M48D1
...
4
M6d89 Push Button WPL-M6D181
...
5
Not Available WPL-M1D342
...
6
Screw WPL-M0202325
...
7
Nut K WPL-M0282005
...
8
Pivot Arm WPL-M8D56
...
9
Standoff WPL-M2D193
...
10
Bleeder Resistor Assembly WPL-M3D30
...
11
On / Off Switch WPL-M14D128
...
12
Kit, Cook Relay WPL-M16D97
...
13
Fuse 20 A WPL-WPM0805101
...
14
No.8 Spring Lockwasher (25) WPL-M1D57
...
15
Strain Relief WPL-8536977
...
16
Capacitor-.69 WPL-59001160
...
17
Capacitor Brkt WPL-M20D60
...
18
Washer (25) WPL-M1D236
...
19
Plate & Fil. Transformer WPL-M60D28
...
20
Not Available WPL-M20D84
...
21
Receptacle WPL-18336P01
...
22
Lamp WPL-M9D10
...
23
Nut WPL-WP488130
...
24
Not Available WPL-M65D113
...
25
Magnetron Assembly WPL-M57D9
...
26
R F Gasket WPL-M2D35
...
27
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
28
Not Available WPL-M65D28
...
29
Air Duct WPL-30107P02
...
30
Waveguide WPL-M65D25
...
31
Gasket M2d36 WPL-M2D36
...
32
Screw (25) WPL-M1D341
...
33
Stirrer & Hub WPL-M44D13
...
34
Ia Screw WPL-M1D329
...
35
R.f. Gasket WPL-94072P01
...
36
Spacer WPL-M2D156
...
37
Antenna Pin WPL-M2D37
...
38
Exhaust Duct WPL-M65D13
...
39
Baffle WPL-M65D64
...
40
Rear Baffle WPL-M65D14
...
41
Nut WPL-WP488130
...
42
Cover WPL-M45D2
...
43
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
44
Shelf Kit WPL-M50D2
...
45
Nut K WPL-M0282005
...
46
Not Available WPL-M20D7
...
47
Not Available WPL-M20D9
...
48
Strike WPL-M8D10
...
49
Adj Screw WPL-M2D45
...
50
Nut WPL-WP488130
...
51
Nut WPL-WP488130
...
52
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
53
Nut WPL-WP488130
...
54
Ia Handle WPL-M7D94
...
55
Nameplate, Pressure Sensitive WPL-M7D188
...
56
Outer Door Cast WPL-M70D37
...
57
Ia Window WPL-M51D2
...
58
M25d9 Window Gasket WPL-25170P01
...
59
Screw WPL-WPW10068250
...
60
Cushion Door Stop WPL-M2D49
...
61
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
62
Nut K WPL-M0282005
...
63
Inner Window Kit WPL-M51D1
...
64
Gasket Seal Plate WPL-M25D34
...
65
Latch Bar WPL-M8D112
...
66
Pivot WPL-23681P01
...
67
Spring Latch Kit WPL-M2D198
...
68
Hinge WPL-M8D8
...
69
Set Screw (25) WPL-M1D101
