Amana 70/20.04

Model: 70/20.04

Save Part Not Listed?
product name

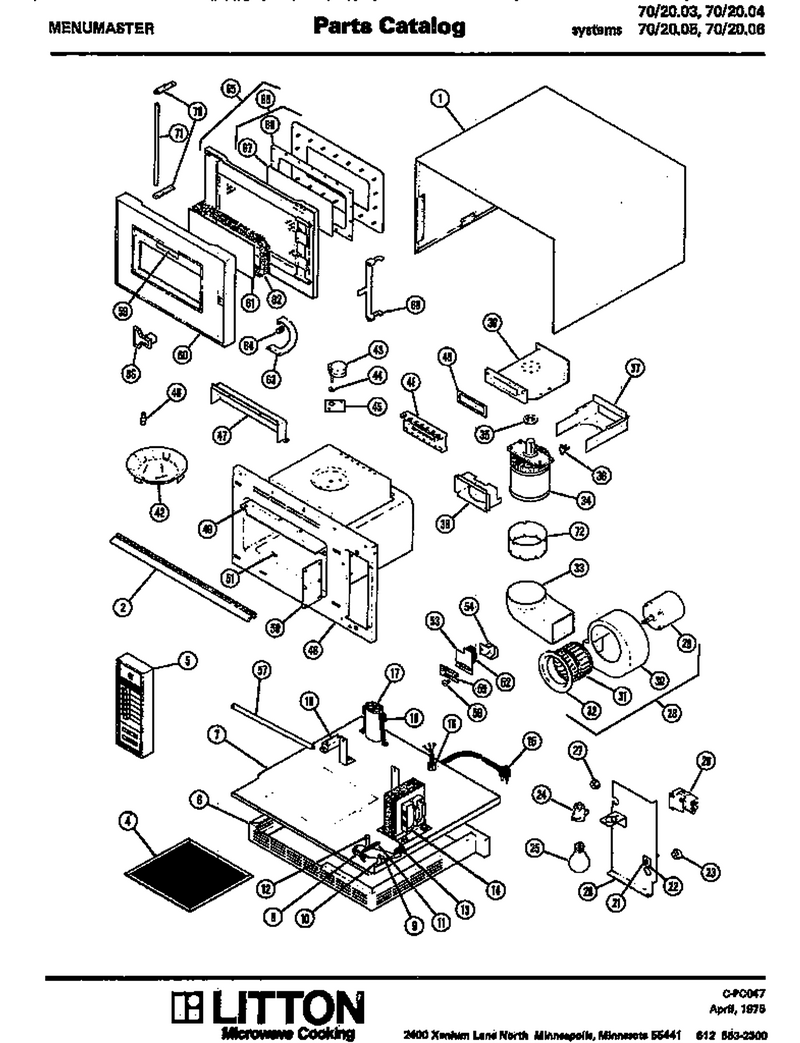

01 - Page 1

...
...
NI
H.v. Lead Kit WPL-M1D246
...
1
Not Available WPL-M80D7
...
2
T Bolt (25) WPL-M1D15
...
4
Filter WPL-M48D1
...
5
Button Retainer (1) Kit WPL-M2D43
...
6
Rail Assy Kit WPL-M52D8
...
7
Nut WPL-WP488130
...
8
Washer (25) WPL-M1D236
...
9
Pivot Arm WPL-M8D56
...
10
Standoff WPL-M2D193
...
11
Spring Pivot Arm WPL-M2D227
...
12
Fbr Washer (25) WPL-M1D51
...
13
Ia Switch M14d35 WPL-M14D35
...
14
Not Available WPL-M1D342
...
15
No.8 Spring Lockwasher (25) WPL-M1D57
...
16
Strain Relief WPL-M2D10
...
17
H.v. Capacitor WPL-M10D22
...
18
Screw Bkt Mtg WPL-M1D336
...
19
Screw (25) WPL-M1D341
...
20
Not Available WPL-M20D45
...
21
Fuseholder WPL-M5D17
...
22
Not Available WPL-M2D44
...
23
Snap Bushing K WPL-M2D1
...
24
Receptacle WPL-18336P01
...
25
Lamp WPL-M9D10
...
26
Nut WPL-WP488130
...
27
Bushing, Snap WPL-A3293504
...
28
Not Available WPL-M25D7
...
29
Blower Motor WPL-M40D1
...
30
Blower Hsg WPL-M65D8
...
31
No.10 X 3/8`` Set Screw WPL-M1D115
...
32
Not Available WPL-M20D4
...
33
Not Available WPL-M65D9
...
34
Nut, Mag. Mtg. WPL-M1D95
...
35
R F Gasket WPL-M2D35
...
36
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
37
Not Available WPL-M65D28
...
38
Not Available WPL-M1D121
...
39
Waveguide WPL-M65D25
...
40
Gasket M2d36 WPL-M2D36
...
41
Nut K WPL-M0282005
...
42
Stirrer & Hub WPL-M44D5
...
43
Stirrer Motor Kit WPL-M12D5
...
44
R.f. Gasket WPL-94072P01
...
45
Spacer WPL-M2D156
...
46
Antenna Pin WPL-M2D37
...
47
Nut WPL-WP488130
...
48
Cavity-Sy/70 WPL-M77D5
...
49
Cover WPL-M45D2
...
50
Cover M7d41 WPL-24011P01
...
51
Shelf Kit WPL-M50D2
...
52
Nut K WPL-M0282005
...
53
Not Available WPL-M20D7
...
54
Not Available WPL-M20D9
...
55
Strike WPL-M8D10
...
56
Nut, Locking WPL-M1D414
...
57
Screw (25) WPL-M1D102
...
58
Door Handle WPL-M8D11
...
59
Nameplate, Pressure Sensitive WPL-M7D188
...
60
Outer Door Casting WPL-M70D2
...
61
Not Available WPL-M1D111
...
62
M25d9 Window Gasket WPL-25170P01
...
63
Arm,door Stop Kit WPL-M8D198
...
64
Cushion Door Stop WPL-M2D49
...
65
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
66
Nut K WPL-M0282005
...
67
Inner Window Kit WPL-M51D1
...
68
Gasket Seal Plate WPL-M25D34
...
69
Bushing M2d46 WPL-25788P01
...
70
Hinge WPL-M8D8
...
71
Set Screw (25) WPL-M1D101
...
72
Not Available WPL-M65D26
