Amana 70/20.00

Model: 70/20.00

Save Part Not Listed?
product name

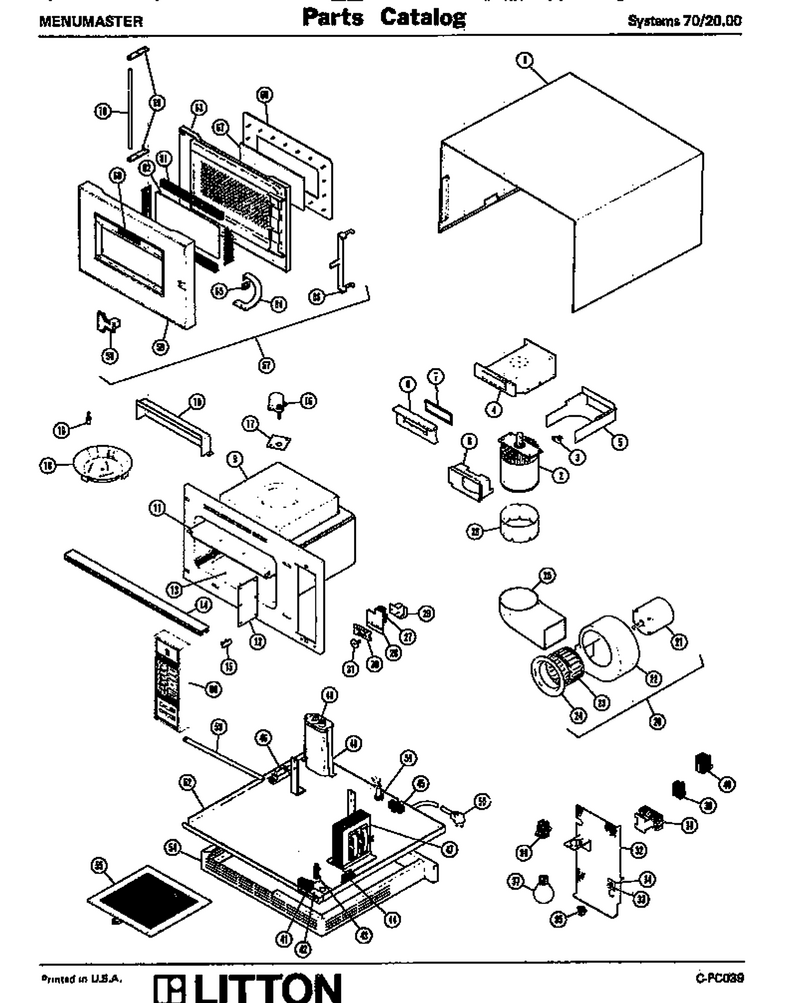

01 - Page 1

...
...
NI
Nla (See D-Pb17) WPL-M27D29
...
1
Not Available WPL-M80D7
...
2
Magnetron Assembly WPL-M57D9
...
3
Thermal Protector WPL-M4D3
...
4
Nut - Transformer Mtg WPL-M1D26
...
5
Not Available WPL-M65D28
...
6
Not Available WPL-M1D121
...
7
Gasket M2d36 WPL-M2D36
...
8
Waveguide Socket WPL-M20D1
...
9
Cavity-Sy/70 WPL-M77D5
...
10
Nut WPL-WP488130
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D25
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D25
...
13
Shelf Kit WPL-M50D2
...
14
Nut WPL-WP488130
...
15
Ia End Cover WPL-21887P01
...
16
Stirrer Motor Kit WPL-M12D5
...
17
Spacer WPL-M2D156
...
18
Set Screw Kit (1) WPL-M1D461
...
19
Nut, Antenna Pin Mtg WPL-M1D104
...
20
Blower Assembly WPL-M41D2
...
21
Blower Motor WPL-M40D1
...
22
Nut WPL-WP488130
...
23
Blower Wheel WPL-M35D4
...
24
Not Available WPL-M20D4
...
25
Not Available WPL-M65D9
...
26
Not Available WPL-M65D26
...
27
Switch WPL-M14D14
...
28
Not Available WPL-M20D7
...
29
Not Available WPL-M20D9
...
30
Strike WPL-M8D10
...
31
3/8 Int Tooth Lockwasher WPL-M1D118
...
32
Nut WPL-WP488130
...
33
Fuseholder WPL-M5D17
...
34
Not Available WPL-M2D44
...
35
Snap Bushing K WPL-M2D1
...
36
Screw WPL-M0202325
...
37
Lamp WPL-M9D10
...
38
Nut WPL-WP488130
...
39
Screw (25) WPL-M1D5
...
40
Nut WPL-WP488130
...
41
Nut K WPL-M0282005
...
42
Switch Brkt WPL-M20D6
...
43
Screw (25) WPL-M1D50
...
44
Switch WPL-M14D13
...
45
Switch Kit WPL-M14D12
...
46
Diode WPL-M3D15
...
47
Not Available ) WPL-M1D150
...
48
H. V. Capacitor WPL-M10D18
...
49
Capacitor Bracket WPL-M52D9
...
50
Adapter Clip WPL-M2D141
...
51
Strain Relief WPL-M2D10
...
52
Not Available WPL-M79D3
...
53
Not Available WPL-M1D121
...
54
Not Available (25) WPL-M1D27
...
55
Filter WPL-M48D1
...
56
Net-Timer,push Button 70/40/50 WPL-M59D55
...
57
Door Assembly WPL-M68D23
...
58
Ia Handle WPL-M7D94
...
59
Push Nut WPL-Y0088250
...
60
Not Available WPL-M1D110
...
61
M25d9 Window Gasket WPL-25170P01
...
62
Not Available WPL-M1D111
...
63
Clip WPL-M2D47
...
64
Arm,door Stop Kit WPL-M8D198
...
65
Cushion Door Stop WPL-M2D49
...
66
Bushing M2d46 WPL-25788P01
...
67
Not Available WPL-M25D10
...
68
Nut K WPL-M0282005
...
69
Flat Washer WPL-M1D117
...
70
Set Screw (25) WPL-M1D101
