product name

Amana 70/15.02

Model: 70/15.02

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Nla (See D-Pb17) WPL-M27D174
...
1
Not Available WPL-M80D36
...
2
T Bolt (25) WPL-M1D15
...
3
Not Available WPL-M7D159
...
4
Cook Lite WPL-M9D4
...
5
Ia Knob WPL-M6D19
...
6
Screw (25) WPL-M1D463
...
7
Not Available WPL-M79D18
...
8
Foot WPL-M2D205
...
9
Lock Nut (25) WPL-M1D119
...
10
Power Cord WPL-1731300202
...
11
Strain Relief (10) WPL-M1D365
...
12
Switch Kit WPL-M14D12
...
13
Fuse 20 A WPL-WPM0805101
...
14
Not Available WPL-M2D44
...
15
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
16
H V Cap .91 +-6% WPL-M10D26
...
17
Screw Bkt Mtg WPL-M1D336
...
18
Kit, Diode WPL-M3D71
...
19
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
20
Not Available WPL-M65D49
...
21
Ia Washer No.10 WPL-M1D326
...
22
Thermal Protector WPL-M4D3
...
23
Not Available WPL-M65D113
...
24
Waveguide WPL-M65D25
...
25
R F Gasket Kit WPL-M2D152
...
26
Waveguide Socket WPL-M20D1
...
27
Set Screw Kit (1) WPL-M1D461
...
28
Ia Screw WPL-M1D329
...
29
R F Gasket Kit WPL-M2D152
...
30
Spacer WPL-M2D156
...
31
Nut, Locking WPL-M1D414
...
32
Nut WPL-WP488130
...
33
Screw WPL-M0202325
...
34
Cover WPL-M45D2
...
35
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
36
Shelf Kit WPL-M50D17
...
37
Switch WPL-M14D14
...
38
Not Available WPL-M20D7
...
39
Nut WPL-WP488130
...
40
Strike WPL-M8D10
...
41
Nut, Locking WPL-M1D414
...
42
Bracket Switch WPL-M2D226
...
43
Nut WPL-WP488130
...
44
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
45
Speed Clip (25) WPL-M1D122
...
46
Set Screw Kit (1) WPL-M1D461
...
47
Not Available WPL-M70D39
...
48
Arm,door Stop Kit WPL-M8D198
...
49
Cushion Door Stop WPL-M2D49
...
50
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
51
Seal Plate WPL-M54D9
...
52
Pivot WPL-23681P01
...
53
Hinge WPL-M8D8
...
54
Rod WPL-M52D7

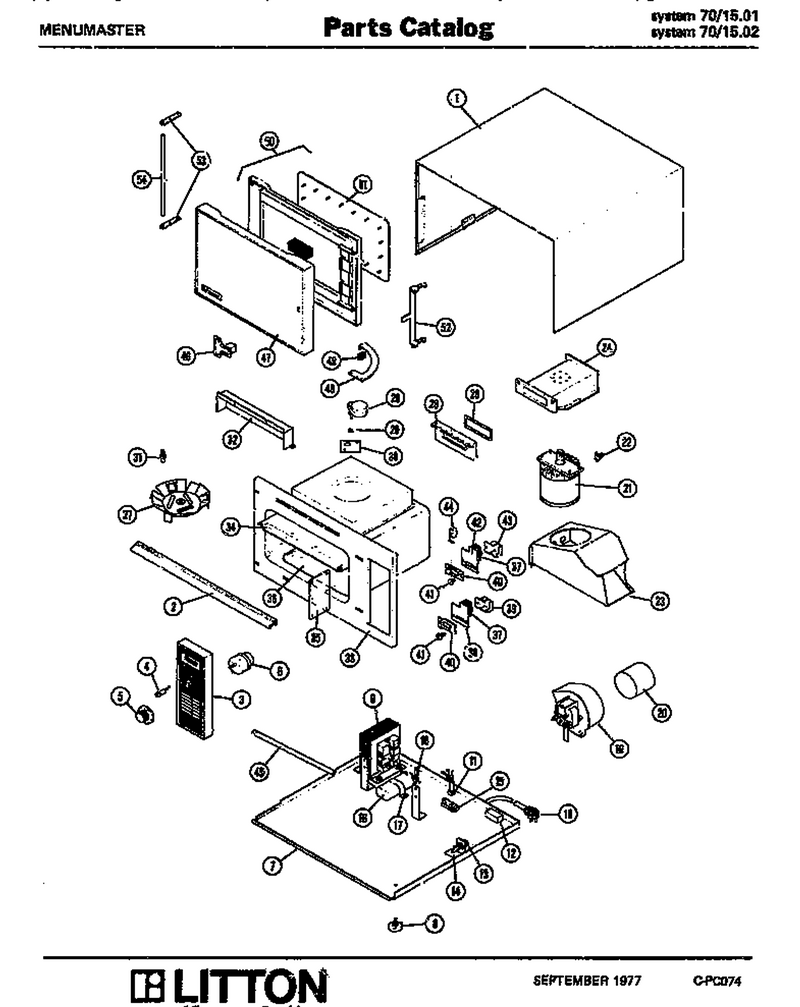

Schematic Image Zoomed
