Amana 70/10.01

Model: 70/10.01

Save Part Not Listed?
product name

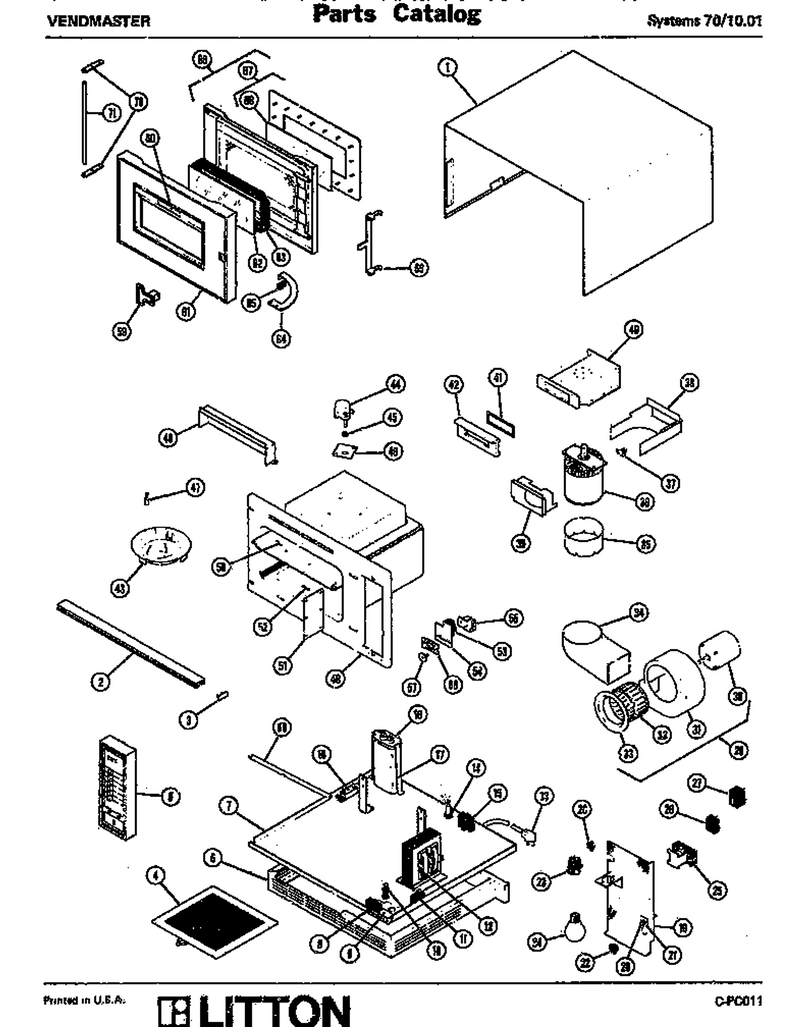

01 - Page 1

...
...
NI
Clamp, Harness To Cavity WPL-M1D75
...
1
Screw (25) WPL-M1D107
...
2
Nut WPL-WP488130
...
3
Ia End Cover WPL-21887P01
...
4
Filter WPL-M48D1
...
5
Pushbutton Timer Assembly WPL-M59D73
...
6
Not Available WPL-M1D342
...
7
Nut WPL-WP488130
...
8
Screw, Switch Mtg. WPL-M1D37
...
9
Switch Brkt WPL-M20D6
...
10
Terminal (25) WPL-M1D49
...
11
Ia Switch M14d35 WPL-M14D35
...
12
Plate & Fil. Transformer WPL-M60D28
...
13
Washer (25) WPL-M1D236
...
14
Strain Relief WPL-M2D10
...
15
Screw, Switch Mtg. WPL-M1D209
...
16
No.8 Spring Lockwasher (25) WPL-M1D57
...
17
Screw Bkt Mtg WPL-M1D336
...
18
Diode WPL-M3D15
...
19
Nut WPL-WP488130
...
20
Fuseholder WPL-M5D17
...
21
Not Available WPL-M2D44
...
22
Snap Bushing K WPL-M2D1
...
23
Receptacle WPL-18336P01
...
24
Lamp WPL-M9D10
...
25
Nut WPL-WP488130
...
26
Nut K WPL-M0282005
...
27
Nut K WPL-M0282005
...
28
Bushing, Snap WPL-A3293504
...
29
Blower Assembly WPL-M41D2
...
30
Nut WPL-WP488130
...
31
Blower Hsg WPL-M65D8
...
32
No.10 X 3/8`` Set Screw WPL-M1D115
...
33
Not Available WPL-M20D4
...
34
Not Available WPL-M65D9
...
35
Not Available WPL-M65D26
...
36
Ia Washer No.10 WPL-M1D326
...
37
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
38
Air Duct WPL-29763P02
...
39
Air Duct WPL-30107P02
...
40
Waveguide WPL-M65D25
...
41
Gasket M2d36 WPL-M2D36
...
42
Waveguide Socket WPL-M20D1
...
43
Set Screw Kit (1) WPL-M1D461
...
44
Ia Screw WPL-M1D329
...
45
R.f. Gasket WPL-94072P01
...
46
Spacer WPL-M2D156
...
47
Nut, Locking WPL-M1D414
...
48
Nut WPL-WP488130
...
49
Cavity-Sy/70 WPL-M77D5
...
50
Cover WPL-M45D2
...
51
Cover M7d41 WPL-24011P01
...
52
Shelf Kit WPL-M50D2
...
53
Nut K WPL-M0282005
...
54
Not Available WPL-M20D7
...
55
Not Available WPL-M20D9
...
56
Strike WPL-M8D10
...
57
Nut, Locking WPL-M1D414
...
58
Screw (25) WPL-M1D102
...
59
Door Handle WPL-M8D11
...
60
Not Available WPL-M1D52
...
61
Door Inlay-Brown WPL-M7D99
...
62
Not Available WPL-M1D111
...
63
M25d9 Window Gasket WPL-25170P01
...
64
Screw WPL-WPW10068250
...
65
Cushion Door Stop WPL-M2D49
...
66
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
67
Seal Plate Kit WPL-M54D1
...
68
Nut K WPL-M0282005
...
69
Bushing M2d46 WPL-25788P01
...
70
Hinge WPL-M8D8
...
71
Set Screw (25) WPL-M1D101
