Amana 70/09.301

Model: 70/09.301

Save Part Not Listed?
product name

Popular Parts

Popular Parts

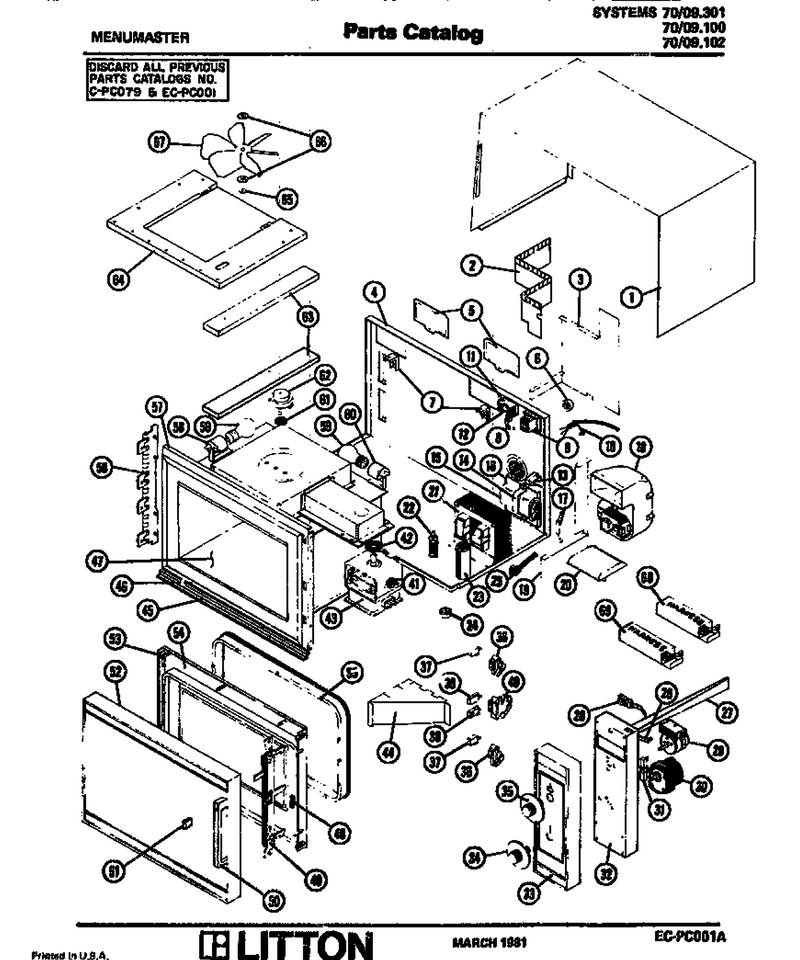

01 - Page 1

...
...
NI
Not Available WPL-M1D295
...
1
Screw WPL-WP90767
...
2
Not Available WPL-M65D121
...
3
Tinnerman (25) WPL-M1D386
...
4
Not Available WPL-M79D60
...
5
Not Available WPL-M7D181
...
6
Screw WPL-WP489474
...
7
Screw (25) WPL-M1D107
...
8
No.8 T X 1/4`` Screw WPL-M1D486
...
9
Termnl Block WPL-M4D55
...
10
Strain Relf WPL-26632P01
...
11
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
12
Fuse, 10 Amp WPL-M0805106
...
13
Kit, Diode WPL-M3D71
...
14
Bracket WPL-10825501
...
15
Capacitor Kit WPL-M10D113
...
16
Bushing WPL-M2D117
...
17
Bleeder Resistor WPL-M3D42
...
18
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
19
Tinnerman (25) WPL-M1D386
...
20
Tinnerman (25) WPL-M1D386
...
21
H.v. Transformer Kit WPL-M85D92
...
22
Resistor Monitor Surgex WPL-M3D44
...
23
Line Filter Kit WPL-M10D35
...
24
Feet 4/pkg WPL-M2D462
...
25
Power Cord, 70/09.301 WPL-M26D44
...
26
Brace C P WPL-M20D108
...
27
Brace WPL-M20D109
...
28
Light Dial WPL-M9D77
...
29
Timer 70/09 WPL-M30D63
...
30
Screw (25) WPL-M1D523
...
31
Clip, Resistor Mtg. WPL-M3D123
...
32
Not Available WPL-M7D325
...
33
Control Panel WPL-M7D321
...
34
Knob Vari-Power WPL-M6D179
...
35
Timer Dial Asm WPL-M6D195
...
36
Ia Strike WPL-M8D66
...
37
Switch WPL-M14D90
...
38
Switch-Cavity Light WPL-M14D148
...
39
Switch-Monitor WPL-M14D147
...
40
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
41
Thermal Protector WPL-M4D64
...
42
R F Gasket WPL-M2D234
...
43
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
44
Not Available WPL-M65D125
...
45
Intrusion WPL-M7D284
...
46
Gasket Asm Kit WPL-M25D45
...
47
Shelf Pyro-Ceram Kit WPL-M50D1
...
48
Spring M2d218 WPL-25951P01
...
49
M11d59 Latch Assy WPL-38621P01
...
50
Screw, Handle Mtg. WPL-M1D724
...
51
Button Door Han WPL-M6D252
...
52
Outer Door Assembly WPL-M70D55
...
53
Ball Stud (1) WPL-M1D594
...
54
Inner Door And Window Assembly WPL-M70D53
...
55
Choke WPL-25989P01
...
56
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
57
Not Available WPL-M77D53
...
58
No.6 Pan Hd Machine Screw WPL-M1D69
...
59
Lamp, Cavity WPL-M9D54
...
60
Socket Lamp Right WPL-M5D209
...
61
R F Gasket Kit WPL-M2D152
...
62
Stirrer Mtr WPL-29148P01
...
63
Gasket Cavity WPL-M25D49
...
64
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
65
.156 Dia Push On Clip WPL-M1D78
...
66
Spcr-Stir WPL-M2D491
...
67
Str Blade Kit WPL-M35D2
...
68
Nla (See D-Pb17) WPL-M27D182
...
69
Timer Harness WPL-M27D275
