Amana 70/05.740

Model: 70/05.740

Save Part Not Listed?
product name

Popular Parts

Popular Parts

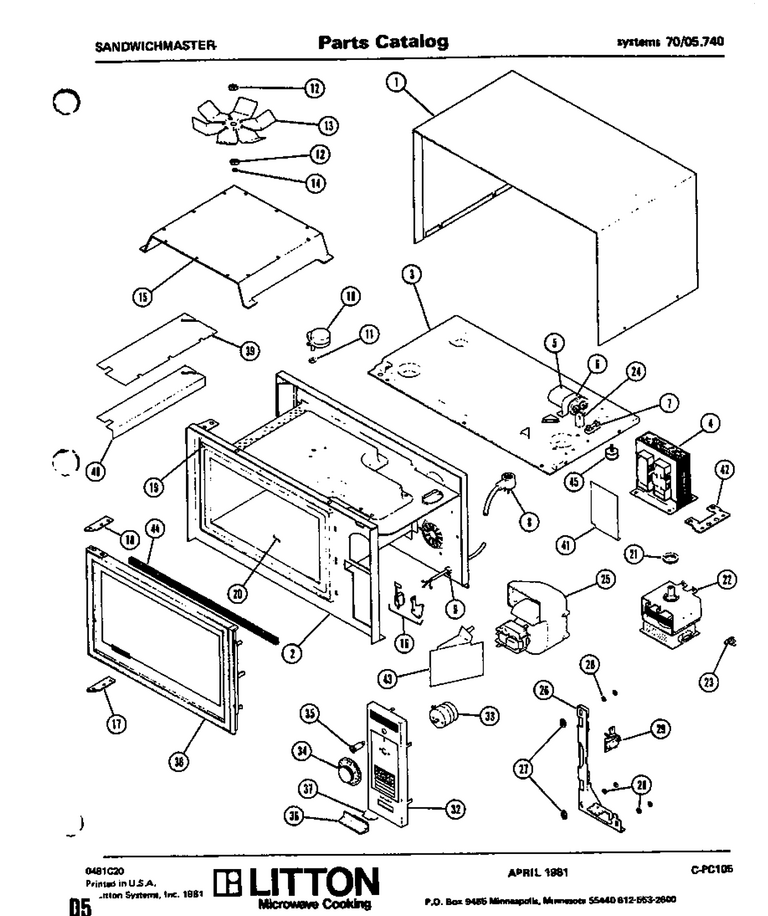

01 - Page 24

...
...
NI
Lead Asm WPL-M5D119
...
1
Not Available WPL-M80D45
...
2
Cavity & Faceplate Assy WPL-M77D76
...
3
No.8 Ab X 1/2`` Screw WPL-M1D358
...
4
Screw (25) WPL-M1D569
...
5
H V Cap .91 +-6% WPL-M10D51
...
6
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
7
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
8
Power Cord WPL-1731300202
...
9
Bush, Strain Relf (10) WPL-M1D600
...
10
Not Available WPL-M1D411
...
11
R F Gasket Kit WPL-M2D152
...
12
Spcr-Stir WPL-M2D491
...
13
Stirrer Blade Kit WPL-M35D22
...
14
.156 Dia Push On Clip WPL-M1D78
...
15
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
16
Screw (25) WPL-M1D107
...
17
Bearing WPL-M2D171
...
18
Bearing WPL-M2D171
...
19
Choke Filler WPL-M55D8
...
20
Adhesive WPL-W10841140
...
21
R F Gasket WPL-M2D35
...
22
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
23
Cutout-Thermal-Control WPL-31866P01
...
24
Kit, Diode WPL-M3D71
...
25
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
26
Washer (25) WPL-M1D361
...
27
Oval Bearing WPL-M2D175
...
28
Bearing WPL-M2D176
...
29
Ia Screw No.10-32 WPL-M1D370
...
32
Control Panel WPL-M7D228
...
33
Screw (25) WPL-M1D463
...
34
Knob Timer WPL-M6D174
...
35
Cook Light WPL-M9D50
...
36
Bar WPL-M11D10
...
37
Ia Spring WPL-M2D168
...
38
Not Available WPL-M68D125
...
39
Not Available WPL-M65D184
...
40
Not Available WPL-M65D185
...
41
Insulator WPL-M2D390
...
42
Screw (25) WPL-M1D569
...
43
Not Available WPL-M65D186
...
44
Front Rail WPL-M52D185
...
45
Nut WPL-M0282009
