Amana 70/05.530SS

Model: 70/05.530SS

Save Part Not Listed?
product name

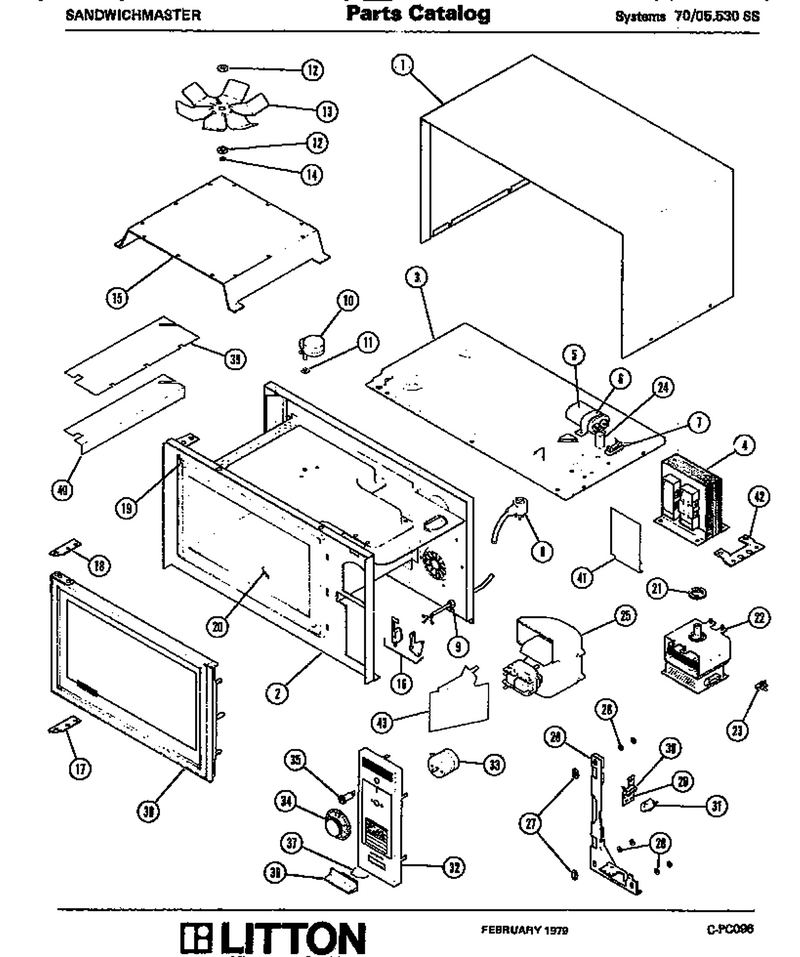

01 - Page 21

...
...
1
Not Available WPL-M80D45
...
2
Cavity & Faceplate Assy WPL-M77D76
...
3
No.8 Ab X 1/2`` Screw WPL-M1D358
...
4
Screw (25) WPL-M1D569
...
5
H V Cap .91 +-6% WPL-M10D51
...
6
Nut, Mag. Mtg. WPL-M1D95
...
7
Fuse 20 A WPL-WPM0805101
...
8
Power Cord WPL-M26D22
...
9
Strain Relief WPL-M1D570
...
10
Not Available WPL-M1D411
...
11
R F Gasket Kit WPL-M2D152
...
12
Spcr-Stir WPL-M2D26
...
13
Stirrer Blade Kit WPL-M35D22
...
14
.156 Dia Push On Clip WPL-M1D78
...
15
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
16
Screw (25) WPL-M1D107
...
17
Bearing WPL-M2D171
...
18
Screw (25) WPL-M1D571
...
19
Choke Filler WPL-M55D8
...
20
Shelf Kit WPL-M50D28
...
21
R F Gasket WPL-M2D35
...
22
Nut, Mag. Mtg. WPL-M1D95
...
23
Cutout-Thermal-Control WPL-31866P01
...
24
Kit, Diode WPL-M3D71
...
25
Blower Assembly WPL-M41D15
...
26
Washer (25) WPL-M1D361
...
27
Oval Bearing WPL-M2D175
...
28
Bearing WPL-M2D176
...
29
Ia Screw No.10-32 WPL-M1D370
...
30
Latch Switch WPL-M2D173
...
31
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
32
Timer Dec Panel WPL-M7D305
...
33
Screw (25) WPL-M1D463
...
34
Knob Timer WPL-M6D174
...
35
Cook Light WPL-M9D50
...
36
Bar WPL-M11D10
...
37
Ia Spring WPL-M2D168
...
38
Door Handle WPL-M11D33
...
39
Not Available WPL-M65D184
...
40
Not Available WPL-M65D185
...
41
Insulator WPL-M2D390
...
42
Bracket WPL-M8D110
...
43
Lead Asm WPL-M5D119
