Amana 70/05.02

Model: 70/05.02

Save Part Not Listed?
product name

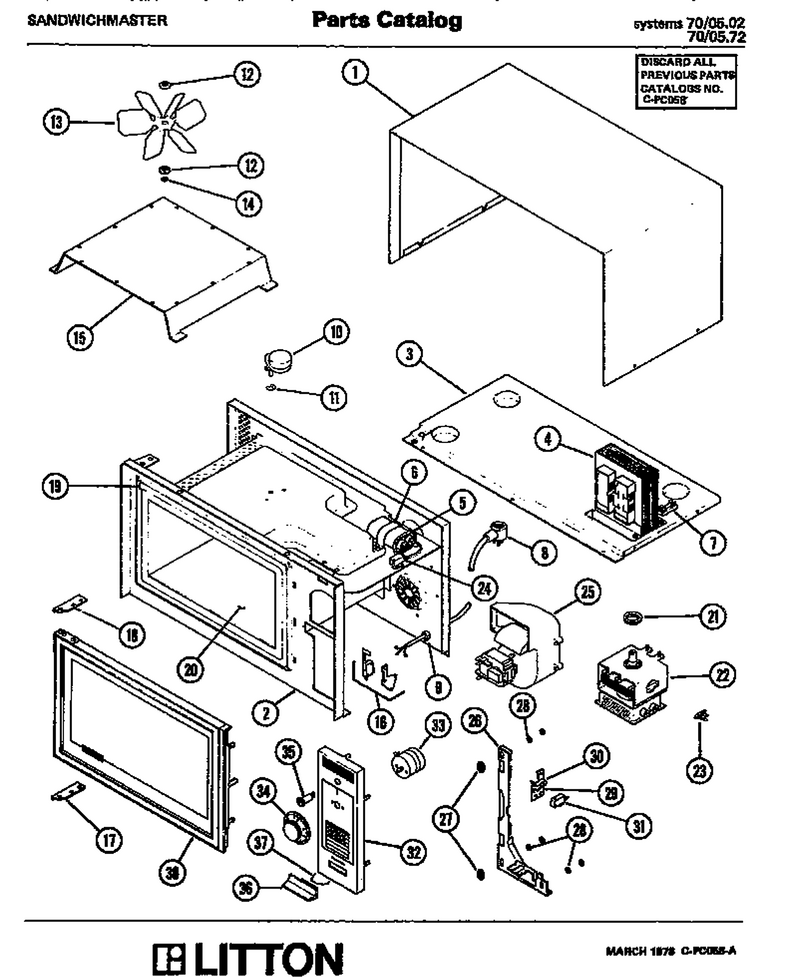

01 - Page 18

...
...
1
Not Available WPL-M80D45
...
2
Spirol Pin (10) WPL-M1D373
...
3
No.8 Ab X 1/2`` Screw WPL-M1D358
...
4
Transformer WPL-M60D54
...
5
H V Cap .91 +-6% WPL-M10D27
...
6
Capacitor Brkt WPL-M20D60
...
7
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
8
Power Cord WPL-M26D22
...
9
Strain Relief WPL-M1D570
...
10
Not Available WPL-M1D411
...
11
R F Gasket Kit WPL-M2D152
...
12
Spcr-Stir WPL-M2D26
...
13
Stirrer Blade Kit WPL-M35D22
...
14
.156 Dia Push On Clip WPL-M1D78
...
15
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
16
Screw (25) WPL-M1D107
...
17
Bearing WPL-M2D171
...
18
Bearing WPL-M2D171
...
19
Choke Filler WPL-M55D8
...
20
Not Available -Oz Tube WPL-M13D7
...
21
R F Gasket WPL-M2D35
...
22
Magnetron 2m172jd Kit WPL-M57D18
...
23
Cutout-Thermal-Control WPL-31866P01
...
24
Screw (25) WPL-M1D484
...
25
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
26
Washer (25) WPL-M1D361
...
27
Oval Bearing WPL-M2D175
...
28
Bearing WPL-M2D176
...
29
Ia Screw No.10-32 WPL-M1D370
...
30
Latch Switch WPL-M2D173
...
31
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
32
Control Panel WPL-M7D228
...
33
Screw (25) WPL-M1D463
...
34
Timer Knob WPL-M6D116
...
35
Cook Light WPL-M9D50
...
36
Bar WPL-M11D10
...
37
Ia Spring WPL-M2D168
...
38
Nla (See D-Pb17) WPL-M27D110
