product name

Amana 6P-2NH (BOM: P5497302R)

Model: 6P-2NH (BOM: P5497302R)

Save Part Not Listed?
product name

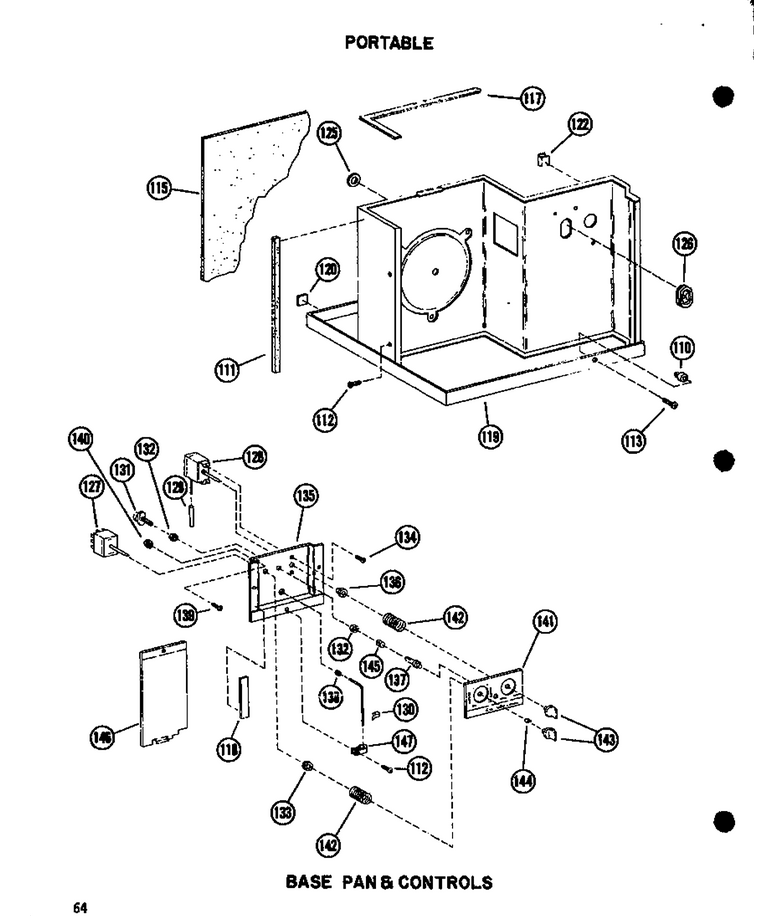

01 - Base Pan & Controls

...
...
110
Grommet WPL-A3309801
...
111
Gasket (per Foot) WPL-A3030303
...
112
Screw WPL-W11233072
...
113
Screw WPL-M0216531
...
115
Insulation- WPL-D5498802
...
117
Gasket WPL-A3030302
...
118
Gasket (per Foot) WPL-A3030313
...
119
Base Pan Wld WPL-D5497003
...
120
Pad WPL-A3317501
...
122
Clamp WPL-M0102304
...
125
Plug Button WPL-A3080003
...
126
Grommet WPL-A3310201
...
127
Switch-Rotary WPL-B1111402
...
128
Terminal K WPL-M0323804
...
129
Sleeve WPL-M0321016
...
130
Clip K WPL-M0118401
...
133
Palnut WPL-M0289601
...
134
Screw WPL-M0232012
...
135
Control Panel WPL-C5929601
...
136
Bushing WPL-A3073601
...
138
Grommet WPL-A3045501
...
139
Sems Fastner WPL-M0255015
...
140
Nut WPL-WP488130
...
141
Escutcheon WPL-C5884802
...
142
Spring WPL-A4663602
...
143
Knob WPL-D7009803
...
144
Clip,retainer WPL-M0115902
...
146
Control Panel WPL-B1143201
...
147
Clamp WPL-M0102320

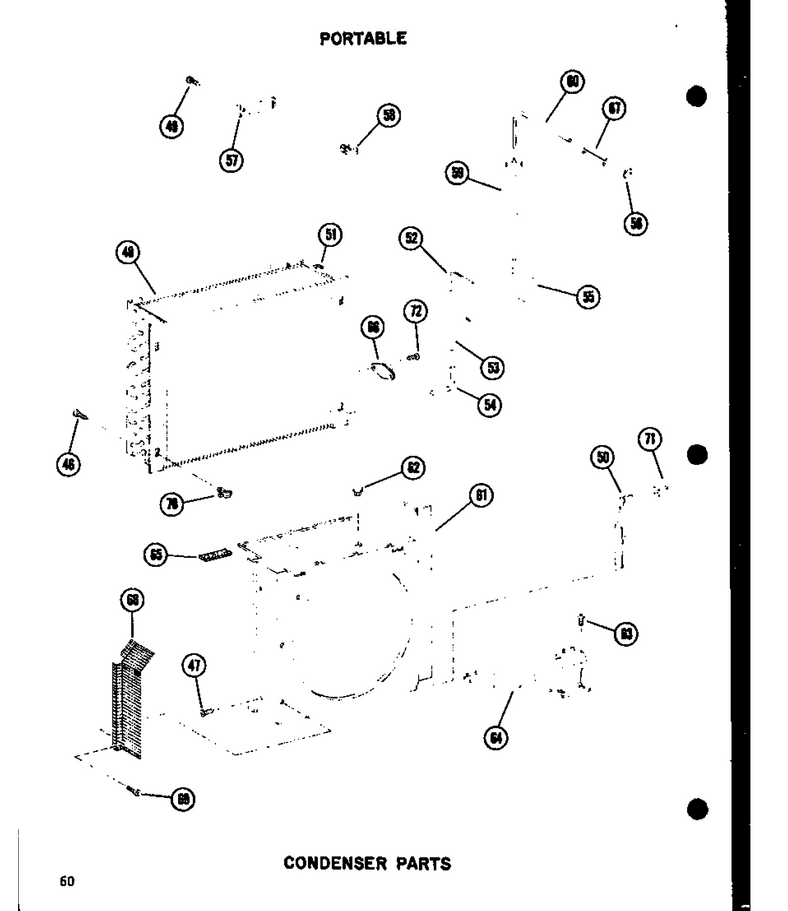

03 - Condenser Parts

...
...
46
Screw WPL-M0216531
...
47
Screw WPL-WP90767
...
48
Cond Assy WPL-D5502501
...
49
Screw WPL-WP90767
...
51
Elbow WPL-A4580113
...
52
Cap Tube WPL-C5933701
...
53
Strainer WPL-B4143102
...
55
Tube-Discharge WPL-C5933101
...
56
Wire Tie WPL-M0321204
...
57
Clamp WPL-A3310502
...
58
Bumper WPL-A3311002
...
59
Muffler WPL-C5885803
...
60
Tube-Discharge WPL-C5933001
...
61
Shroud-Cond Fan WPL-D5497102
...
62
Plug Button WPL-M0310008
...
63
Screw WPL-W11233072
...
64
Tie Brace WPL-C5922703
...
66
Thermostat WPL-B5126004
...
67
Dampener Tube-Per Ft WPL-B5165101
...
68
Fan Guard-Cond WPL-C5946901
...
69
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
70
Fastener WPL-B1145301
...
71
Clip WPL-M0113603
...
72
Screw WPL-WP59002061
...
73
Fan Motor WPL-C5959002
...
74
Clip, Wire WPL-M0585101
...
75
Screw WPL-M0233116
...
77
Gasket-Header WPL-C5952401
...
78
Gasket (per Foot) WPL-A3030313
...
79
Nut WPL-WP487939
...
80
Grommet WPL-M0500601
...
81
Nut WPL-WP487939
...
86
Blower Wheel WPL-D5409401
...
93
Scroll-Evap WPL-D5496601

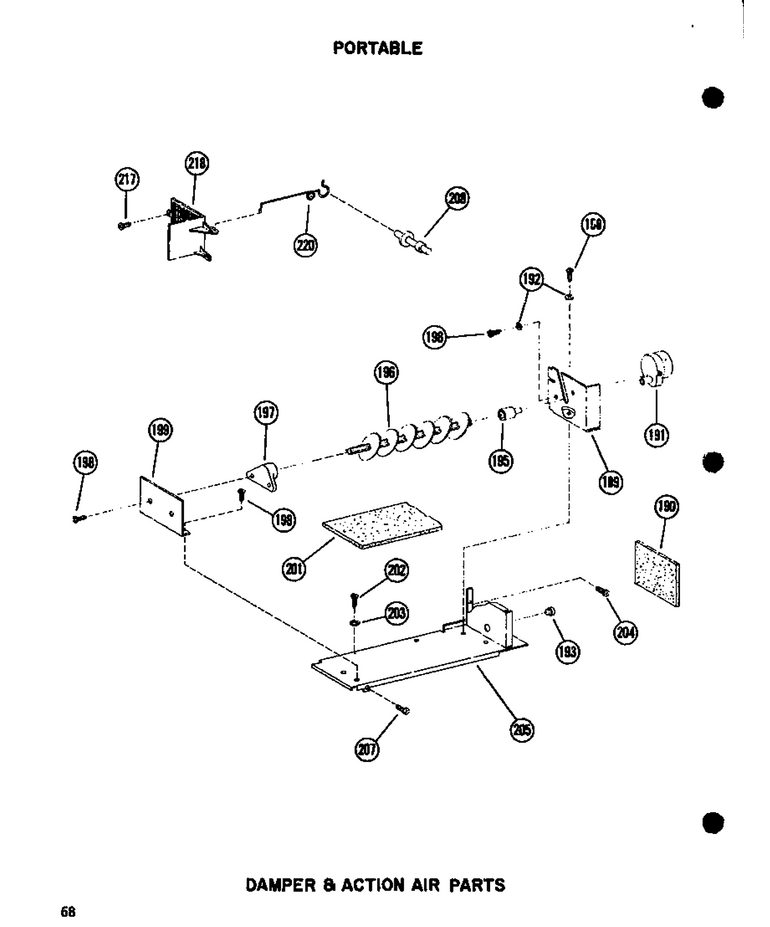

04 - Damper & Action Air Parts

...
...
190
Insulation WPL-A3310401
...
205
Cover Evap Weld WPL-C5919201
...
207
Screw WPL-WP90767

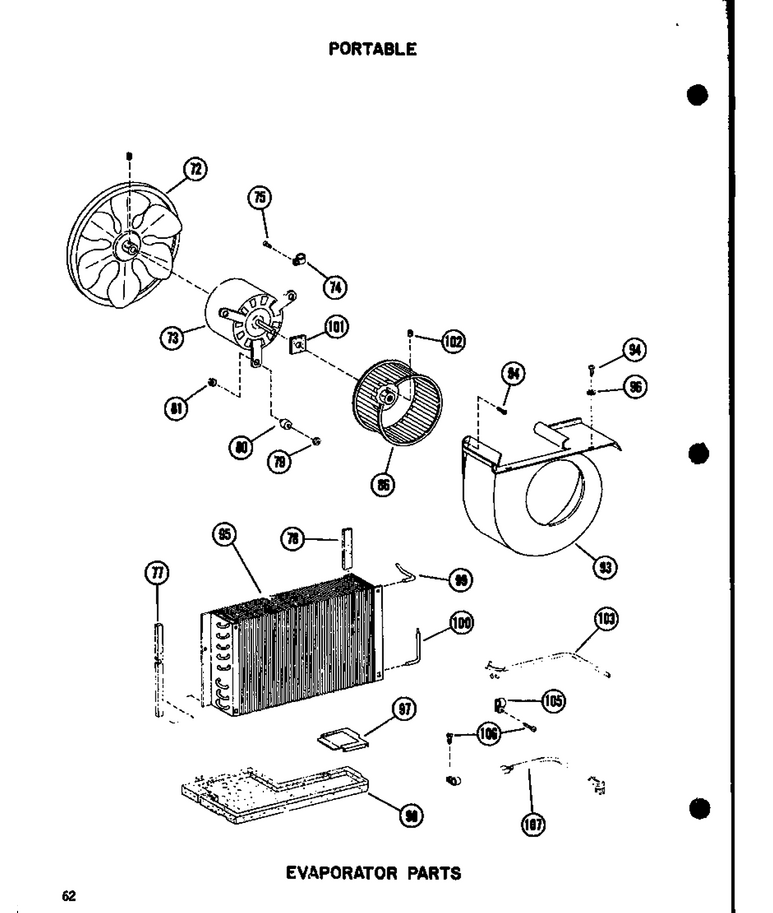

05 - Evap Parts

...
...
72
Fan, Condenser WPL-C5801401
...
94
Screw WPL-WP90767
...
95
Evaporator Assy WPL-D5498002
...
96
Washer WPL-M0270504
...
97
Shield-Filler Block WPL-B1147101
...
98
Filler Block WPL-D5496901
...
99
Elbow WPL-A3309101
...
100
Elbow WPL-A3318302
...
101
Gasket WPL-B5107608
...
102
Screw WPL-M0210516
...
103
Wiring Harness-Comp WPL-B1148401
...
105
Clamp WPL-M0104501
...
106
Screw WPL-W11233072
...
107
Cord, Power WPL-Y20057501

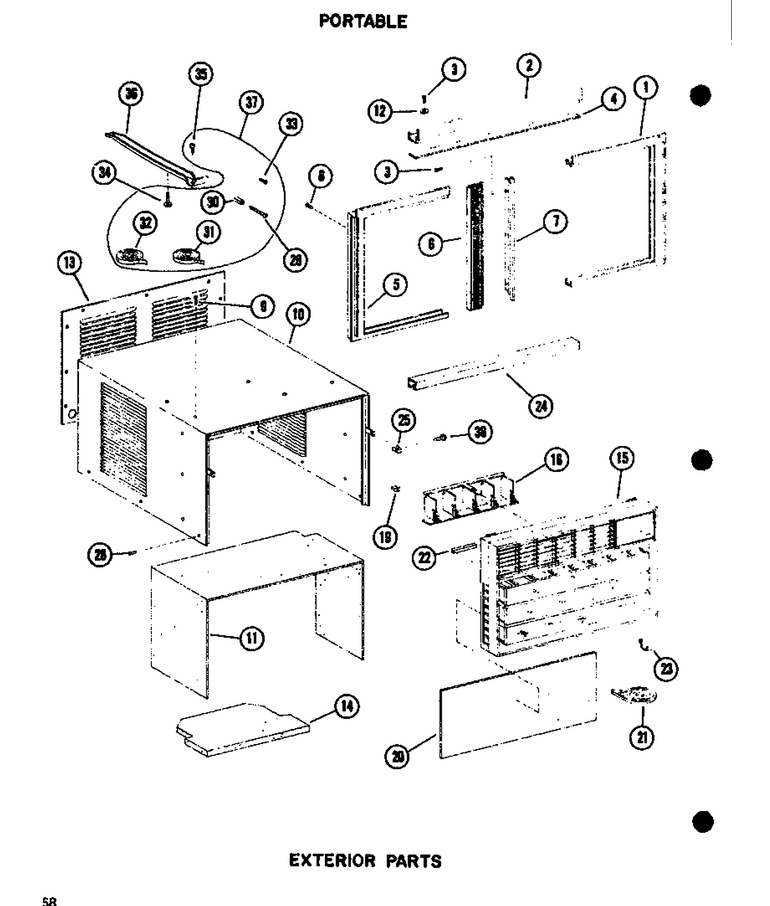

06 - Exterior Parts

...
...
2
Angle-Top WPL-B1100704
...
3
Screw WPL-WP90767
...
4
Gasket (inch) WPL-A3030301
...
9
Screw WPL-M0219233
...
10
Outer Case Pntd WPL-D6821203
...
11
Insulation-Oc WPL-B1145001
...
13
Outer Case Pntd WPL-D6821203
...
15
Front Assy K WPL-D5432410
...
16
Deflector WPL-C5298402
...
19
Clip WPL-M0116301
...
20
Filter-Air WPL-WP876775
...
21
Retainer WPL-A4542805
...
22
Gasket-Per Inch WPL-A3030311
...
23
Spring WPL-A3317601
...
25
Speed Nut WPL-M0288412
...
28
Screw WPL-W11233072
...
38
Thumb Screw K WPL-M0234916

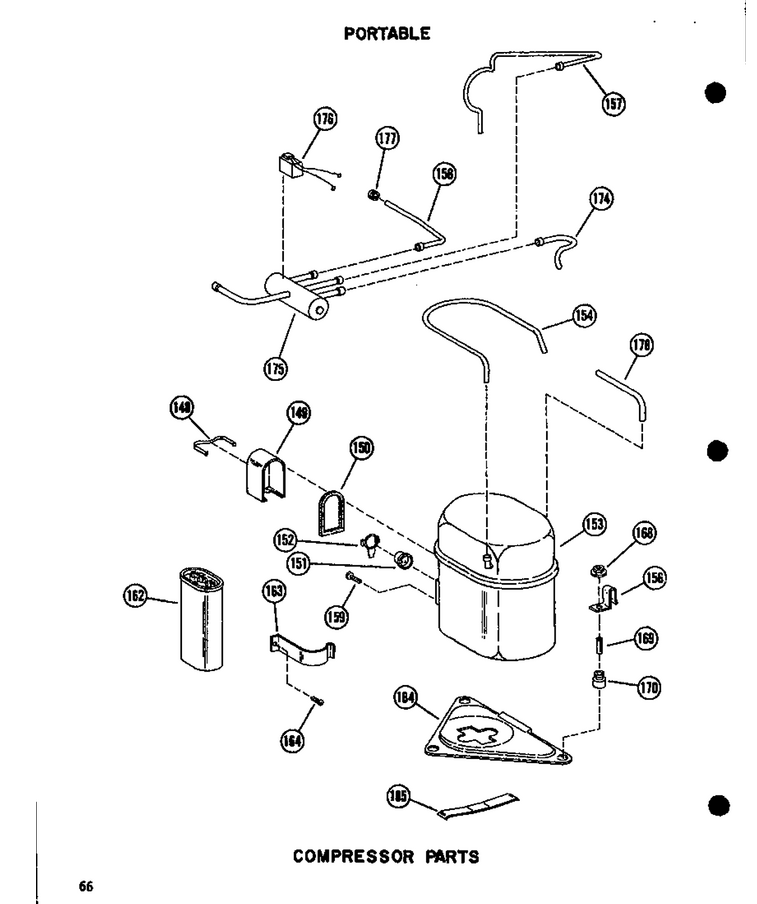

02 - Compressor Parts

...
...
148
Strap WPL-A4635901
...
149
Terminal Cover WPL-B5150201
...
150
Gasket WPL-A4636001
...
151
Overload WPL-D4976669
...
152
Spring WPL-A4636101
...
153
Compressor, Tecumseh, Ae8475e, WPL-D5501501
...
156
Clamp-Cord WPL-A3309701
...
157
Tube-Valve To Comp WPL-C5932801
...
158
Tube-Valve To Cond WPL-C5932601
...
159
Screw WPL-M0206116
...
162
Capacitor WPL-D6879703
...
163
Strap-Capacitor WPL-A3335001
...
164
Screw WPL-W11233072
...
168
Nut WPL-M0283610
...
169
Sleeve WPL-A4588801
...
170
Grommet WPL-B4793601
...
174
Tube-Valve To Evap WPL-C5932701
...
175
Reversing Valve, Ranco V26-126 WPL-B4743301
...
176
Solenoid WPL-B1150401
...
177
Grommet WPL-A3045502
...
178
Proces WPL-A4637802
...
184
Mounting Plate WPL-C5801301
...
185
Spring K WPL-A4635601
