Amana 651.006

Model: 651.006

Save Part Not Listed?
product name

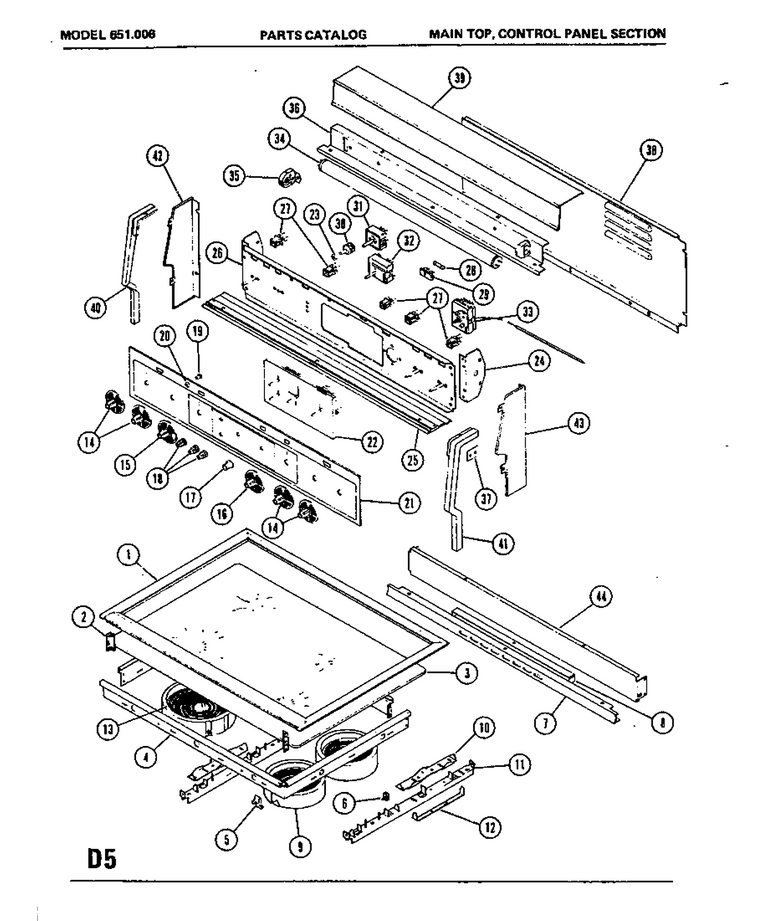

02 - Main Top

...
...
1
Trim, Cooktop WPL-50009A01
...
2
Bracket WPL-M2D237
...
3
Cook Top Glass Kit WPL-M50D20
...
4
Screw WPL-WP90767
...
5
Clip M2d238 WPL-M2D238
...
6
Clip WPL-51539P01
...
7
Screw WPL-WP90767
...
8
Not Available WPL-M52D68
...
9
M61d50-Sm WPL-96189P01
...
10
Element Supt WPL-M52D69
...
11
Screw WPL-WP90767
...
12
Supt Spring WPL-M52D71
...
13
Large Element Kit WPL-M61D49
...
14
Knob M6d95 WPL-M6D95
...
15
Knob, Selector Switch WPL-M6D149
...
16
Knob, Thermostat WPL-M6D210
...
17
Knob M/w Timer WPL-M6D180
...
18
Knob, Range Clock WPL-M6D159
...
19
Button Switc WPL-52332P01
...
20
Push On Retainer (25) WPL-M1D566
...
21
Glass Cont Pnl WPL-M51D26
...
22
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
23
Spacer WPL-M2D312
...
24
Screw (25) WPL-M1D526
...
25
Screw (25) WPL-M1D533
...
26
Pnl Mounting WPL-53434P01
...
27
Indicator Light WPL-M9D68
...
28
Fuse 20 A WPL-WPM0805101
...
29
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
30
Switch-Surface Lite WPL-M14D119
...
31
Screw 8-32 (25) WPL-M1D536
...
32
Screw 8-32 (25) WPL-M1D536
...
33
Screw 8-32 (25) WPL-M1D536
...
34
Flourescent Lamp WPL-M9D45
...
35
Screw (25) WPL-M1D129
...
36
Screw (25) WPL-M1D533
...
37
Bracket, Trim WPL-M2D323
...
38
Not Available WPL-M82D93
...
39
Top Cap Cont Pnl WPL-M65D106
...
40
Screw (25) WPL-M1D654
...
41
Screw (25) WPL-M1D654
...
42
Side Cover Lt Avoc WPL-M53D28
...
43
Side Cover Rt Copr WPL-M53D26
...
44
Not Available WPL-M82D107

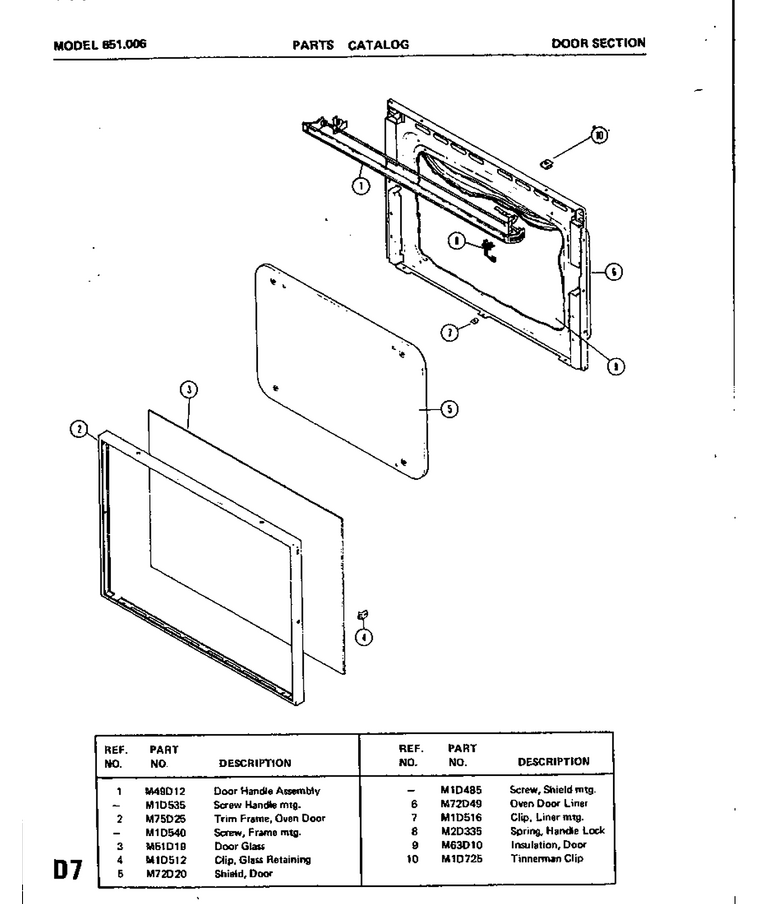

01 - Door Section

...
...
1
Screw WPL-WP489464
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Not Available WPL-M72D20
...
6
Not Available WPL-M72D49
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D335
...
9
Not Available WPL-M63D10
...
10
Tinnerman Clip (25) WPL-M1D725

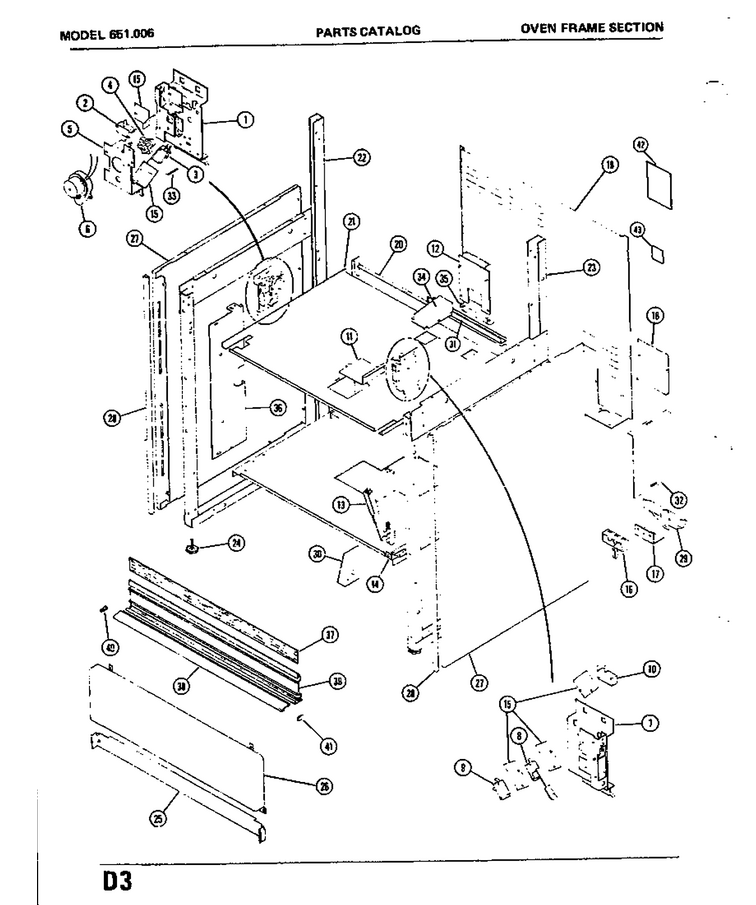

03 - Oven Frame Section

...
...
1
Not Available WPL-M8D99
...
2
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
3
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
4
Lock Cam WPL-M2D337
...
5
Brkt-Mtg WPL-52920P01
...
6
Lock Motor Assembly WPL-M12D34
...
7
Washer (25) WPL-M1D586
...
8
Switch (M14d121) WPL-M14D121
...
9
Switch-Oven Lite WPL-M14D122
...
10
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
11
Oven Light Cover WPL-M8D91
...
12
Screw WPL-WP90767
...
13
Washer Cup WPL-M1D531
...
14
Bracket- WPL-51793P01
...
15
Insulator WPL-M5D163
...
16
Screw (25) WPL-M1D587
...
17
Not Available WPL-M2D245
...
18
Screw WPL-WP90767
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Screw WPL-WP90767
...
22
Screw WPL-WP90767
...
23
Screw WPL-WP90767
...
24
Leveling Foot WPL-M8D117
...
25
Screw WPL-WP90767
...
26
Access Pnl Avoc WPL-M72D45
...
27
Screw WPL-WP90767
...
28
Trim-Corner M75d19 WPL-53024P01
...
29
Not Available WPL-M5D155
...
30
Bracket Retainer WPL-M2D315
...
31
Diverter Brkt WPL-M8D125
...
32
Screw (25) WPL-M1D638
...
33
Spring WPL-M2D276
...
34
Screw WPL-WP90767
...
35
Cover-Exhaust Duct WPL-M7D279
...
36
Retainer WPL-M52D85
...
37
Not Available WPL-M52D110
...
38
Heat Deflector WPL-M52D111
...
39
Screw (25) WPL-M1D593
...
40
End Cap Left WPL-M7D292
...
41
End Cap Right WPL-M7D291
...
42
Rivet, Pop WPL-A4539629
...
43
Rivet, Pop WPL-A4539629

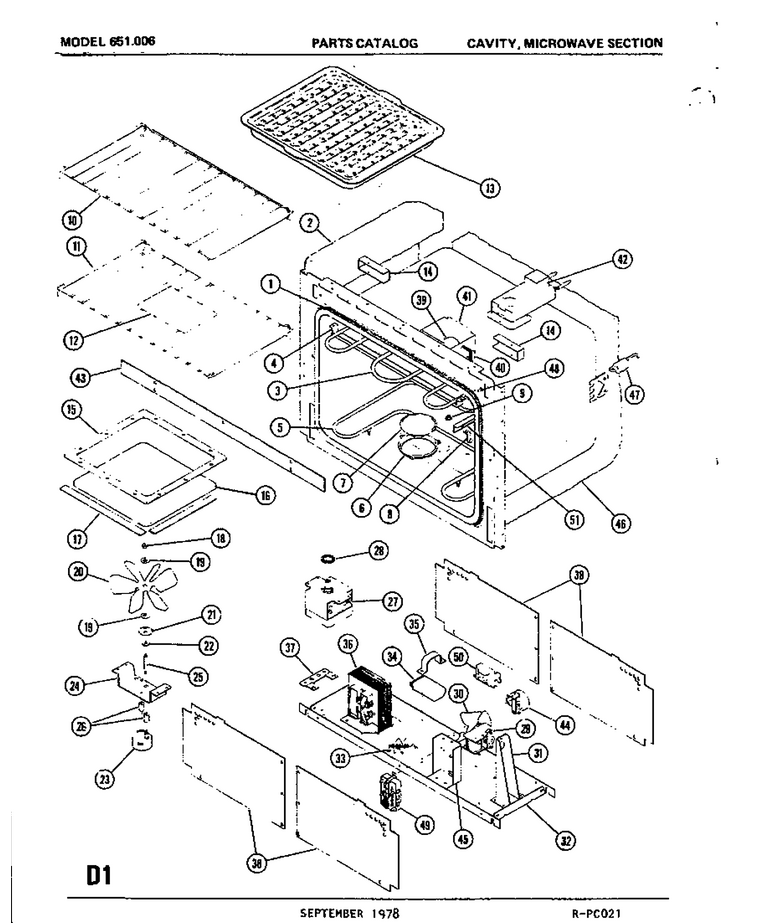

04 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Not Available WPL-M1D653
...
4
Brkt WPL-M52D72
...
5
Bake Element 120v Kit WPL-M61D43
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Plug Btn Kit WPL-M1D695
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan And Insert Assembl WPL-M67D16
...
14
Screw (25) WPL-M1D526
...
15
Trim, Bezel Kit WPL-M20D178
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
Nut WPL-WP488130
...
19
Washer WPL-M1D565
...
20
Stirrer WPL-M35D17
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Spacer-R F Disc WPL-M2D310
...
23
Not Available WPL-M1D628
...
24
Brkt-Shaft Support WPL-M20D97
...
25
Shaft, Stirrer WPL-M2D338
...
26
Spacer-Stirrer Shaft WPL-M2D307
...
27
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
28
Gasket-Rf WPL-M2D296
...
29
Nut K WPL-M0282005
...
30
Fan, Blower Kit WPL-M35D16
...
31
Screw (25) WPL-M1D526
...
32
Brkt Dec Panel WPL-M52D138
...
33
Screw (25) WPL-M1D526
...
34
H V Cap .91 +-6% WPL-M10D43
...
35
Capacitor Brkt WPL-M20D60
...
36
Transformer WPL-M60D54
...
37
Screw (25) WPL-M1D544
...
38
Not Available WPL-M52D127
...
39
Light Bulb WPL-8009
...
40
Socket Oven WPL-M5D113
...
41
Housing Frame WPL-M8D92
...
42
Screw (25) WPL-M1D532
...
43
Not Available WPL-M52D113
...
44
M12d23 Defrost Timer WPL-M12D23
...
45
Screw (25) WPL-M1D526
...
46
Not Available WPL-M63D12
...
47
Oven Spring WPL-M5D114
...
48
Washer WPL-M1D565
...
49
Relay, Oven WPL-Y0091669
...
50
Screw (25) WPL-M1D526
...
51
Shield Capillary WPL-M20D100
