Amana 651.004

Model: 651.004

Save Part Not Listed?
product name

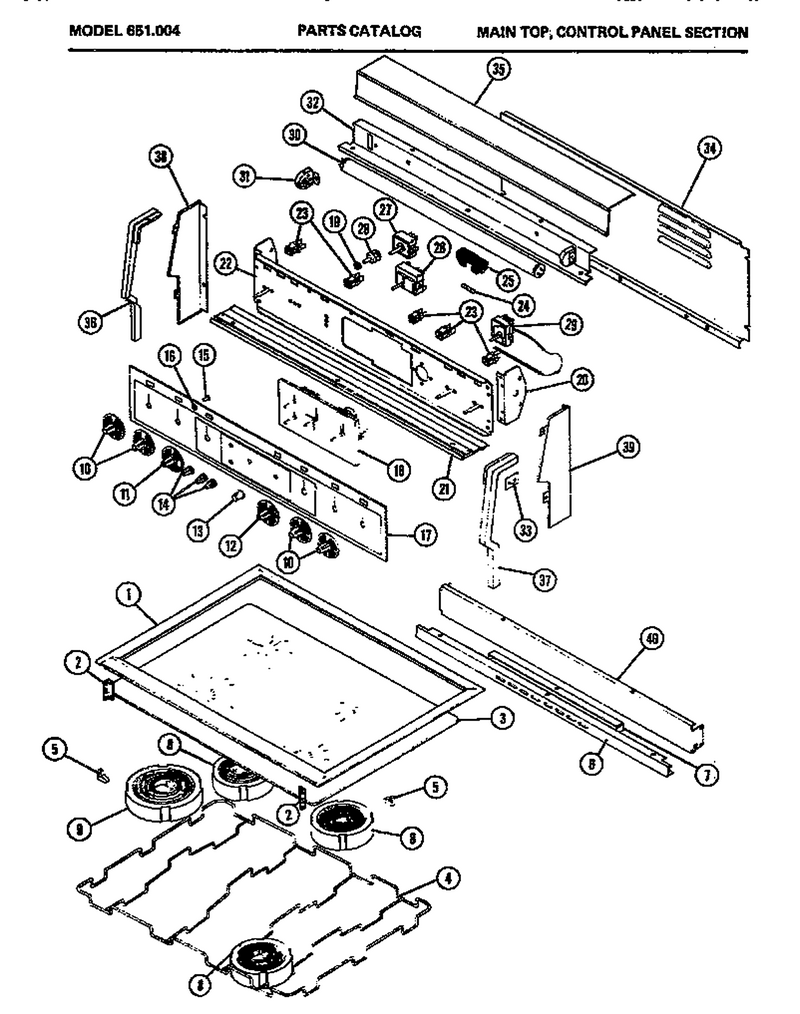

02 - Main Top

...
...
1
Trim, Cooktop WPL-50009A01
...
2
Screw WPL-WP90767
...
3
Cook Top Glass Kit WPL-M50D20
...
4
Frame, Element Mtg. WPL-M75D51
...
5
Clip (25) WPL-M1D775
...
6
Screw WPL-WP90767
...
7
Not Available WPL-M52D68
...
8
M61d50-Sm WPL-96189P01
...
9
Large Element Kit WPL-M61D49
...
10
Knob M6d95 WPL-M6D216
...
11
Control Knob Kit WPL-M6D253
...
12
Knob, Thermostat WPL-M6D210
...
13
Knob M/w Timer WPL-M6D180
...
14
Knob, Range Clock WPL-M6D159
...
15
Button Switc WPL-52332P01
...
16
Push On Retainer (25) WPL-M1D566
...
17
Glass Cont Pnl WPL-M51D26
...
18
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
19
Spacer WPL-M2D312
...
20
Bkt Control Panel Mtg WPL-M7D289
...
21
Not Available WPL-M52D131
...
22
Pnl Mounting WPL-53434P01
...
23
Indicator Light WPL-M9D68
...
24
Fuse-15amp WPL-A3410402
...
25
No.6 Pan Hd Machine Screw WPL-M1D69
...
26
Not Available WPL-M1D656
...
27
Surface Switch WPL-M14D181
...
28
Selector Switch Kit WPL-M14D174
...
29
Screw 8-32 (25) WPL-M1D536
...
30
Flourescent Lamp WPL-M9D45
...
31
Screw (25) WPL-M1D129
...
32
Screw (25) WPL-M1D533
...
33
Bracket, Trim WPL-M2D323
...
34
Not Available WPL-M82D93
...
35
Top Cap Cont Pnl WPL-M65D106
...
36
Side Trim Left WPL-M7D288
...
37
Screw (25) WPL-M1D654
...
38
Side Cover Lt Avoc WPL-M53D28
...
39
Side Cover Rt Copr WPL-M53D26
...
40
Splasher Alm/uas-S/s 54528p25 WPL-M82D114

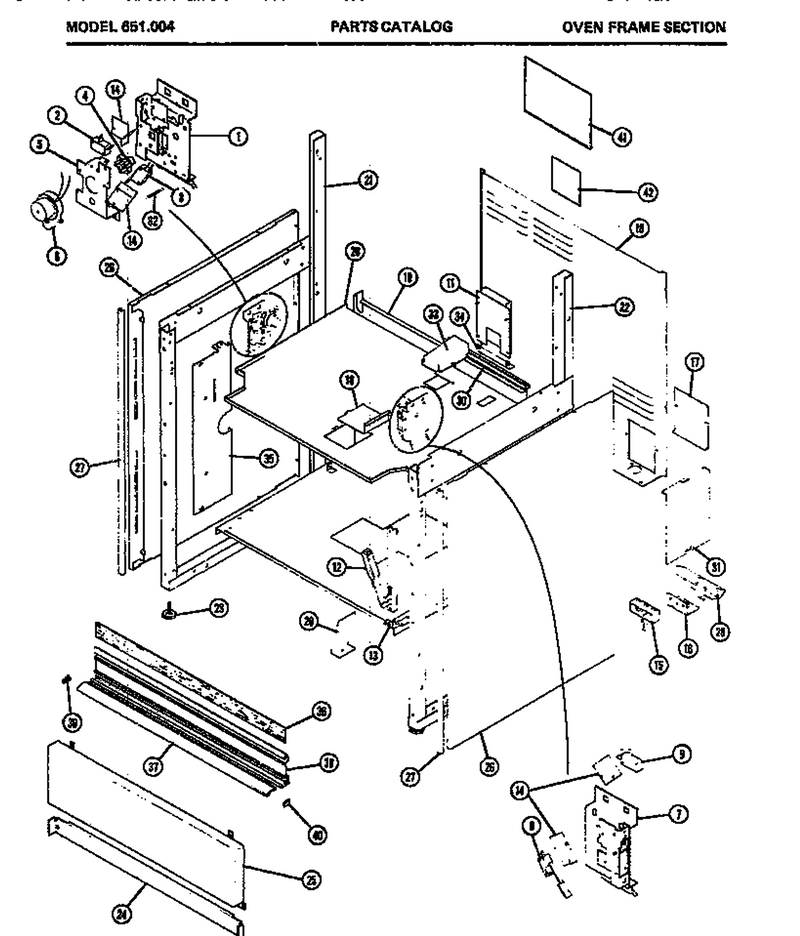

03 - Oven Frame Section

...
...
1
Not Available WPL-M8D99
...
2
Nut Twin Spd WPL-52735P01
...
3
Nut Twin Spd WPL-52735P01
...
4
Lock Cam WPL-M2D337
...
5
Screw (25) WPL-M1D526
...
6
Not Available WPL-M1D602
...
7
Washer (25) WPL-M1D586
...
8
Switch (M14d121) WPL-M14D121
...
9
Nut Twin Spd WPL-52735P01
...
10
Oven Light Cover WPL-M8D91
...
11
Screw WPL-WP90767
...
12
Screw (25) WPL-M1D280
...
13
No.10 T X 3/8`` Screw WPL-M1D539
...
14
Insulator WPL-M5D163
...
15
Terminal WPL-M4D45
...
16
Screw WPL-WP90767
...
17
Screw WPL-WP90767
...
18
Screw WPL-WP90767
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Screw WPL-WP90767
...
22
Screw WPL-WP90767
...
23
Leveling Foot WPL-M8D117
...
24
Screw WPL-WP90767
...
25
Panel Assy WPL-50011P25
...
26
Not Available WPL-M82D52
...
27
Trim-Corner M75d19 WPL-53024P01
...
28
Not Available WPL-M5D155
...
29
Bracket Retainer WPL-M2D315
...
30
Diverter Brkt WPL-M8D125
...
31
Shield R F WPL-M7D286
...
32
Spring WPL-M2D276
...
33
Horizontal Vent WPL-M65D60
...
34
Cover-Exhaust Duct WPL-M7D279
...
35
Retainer WPL-M52D85
...
36
Not Available WPL-M52D110
...
37
Heat Deflector WPL-M52D111
...
38
Extrusion WPL-M52D112
...
39
End Cap Left WPL-M7D292
...
40
End Cap Right WPL-M7D291
...
41
Insulator Broil WPL-M5D220
...
42
Rivet, Pop WPL-A4539629

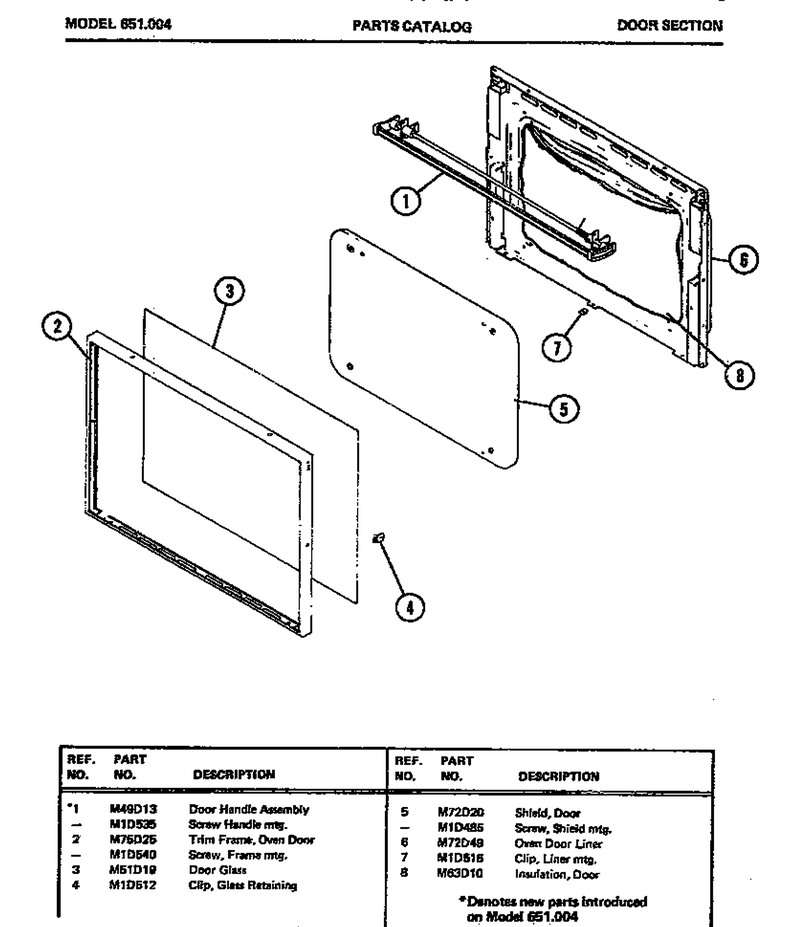

01 - Door Section

...
...
1
Door Handle Assembly WPL-M49D13
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Not Available WPL-M72D20
...
6
Not Available WPL-M72D49
...
7
U-Nut (25) WPL-M1D516
...
8
Not Available WPL-M63D10

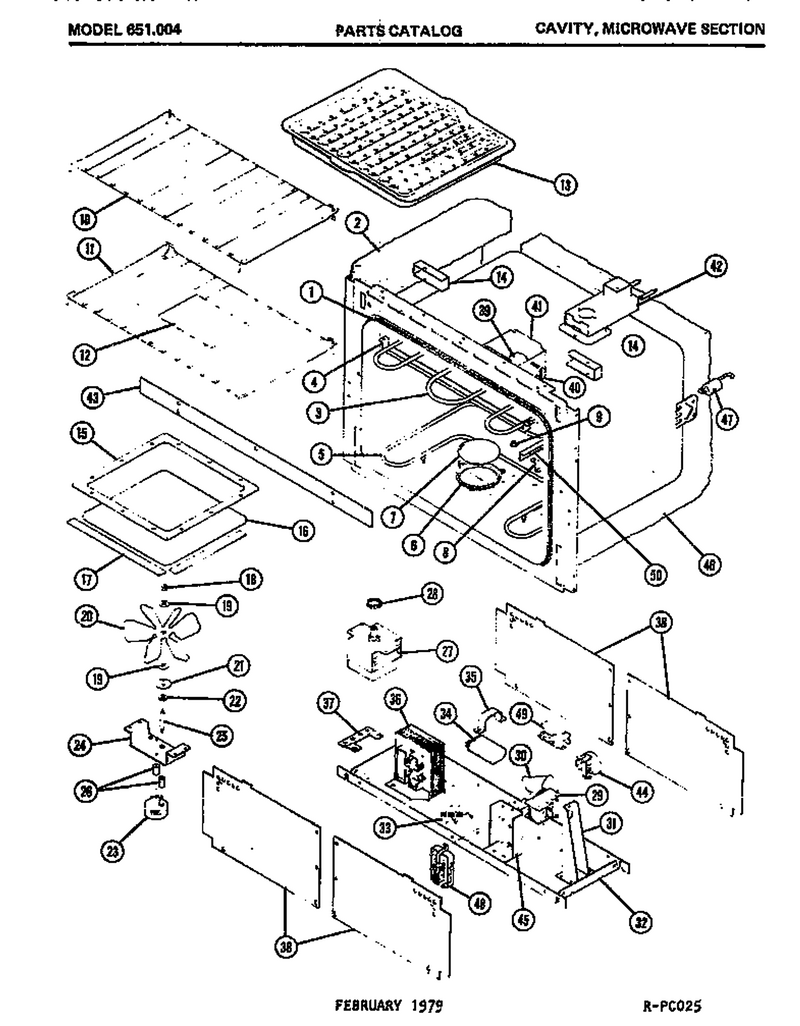

04 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Broil Element 208v WPL-M61D45
...
4
Brkt WPL-M52D72
...
5
Not Available WPL-M1D653
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Plug Btn Kit WPL-M1D695
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan And Insert Assembl WPL-M67D16
...
14
Screw (25) WPL-M1D526
...
15
Screw, Frame Mtg. WPL-M1D776
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
Nut WPL-WP488130
...
19
Washer WPL-M1D565
...
20
Stirrer WPL-M35D17
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Spacer-R F Disc WPL-M2D310
...
23
Not Available WPL-M1D628
...
24
Brkt-Shaft Support WPL-M20D97
...
25
Shaft, Stirrer WPL-M2D338
...
26
Spacer-Stirrer Shaft WPL-M2D307
...
27
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
28
Gasket-Rf WPL-M2D296
...
29
Blower Motor Kit WPL-M12D33
...
30
Fan, Blower Kit WPL-M35D16
...
31
Screw (25) WPL-M1D526
...
32
Brkt Dec Panel WPL-M52D138
...
33
Screw (25) WPL-M1D526
...
34
H V Cap .91 +-6% WPL-M10D52
...
35
Screw (25) WPL-M1D526
...
36
Transformer WPL-M60D54
...
37
Screw (25) WPL-M1D544
...
38
Not Available WPL-M52D127
...
39
Light Bulb WPL-8009
...
40
Socket Oven WPL-M5D113
...
41
Housing Frame WPL-M8D92
...
42
Screw (25) WPL-M1D532
...
43
Tinnerman (10) WPL-M1D317
...
44
M12d23 Defrost Timer WPL-M12D23
...
45
Brkt, Thermal Relay WPL-M8D127
...
46
Not Available WPL-M63D12
...
47
Oven Spring WPL-M5D114
...
48
Relay, Oven WPL-Y0091669
...
49
Screw (25) WPL-M1D526
...
50
Shield Capillary WPL-M20D100
