product name

Amana 651.000

Model: 651.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

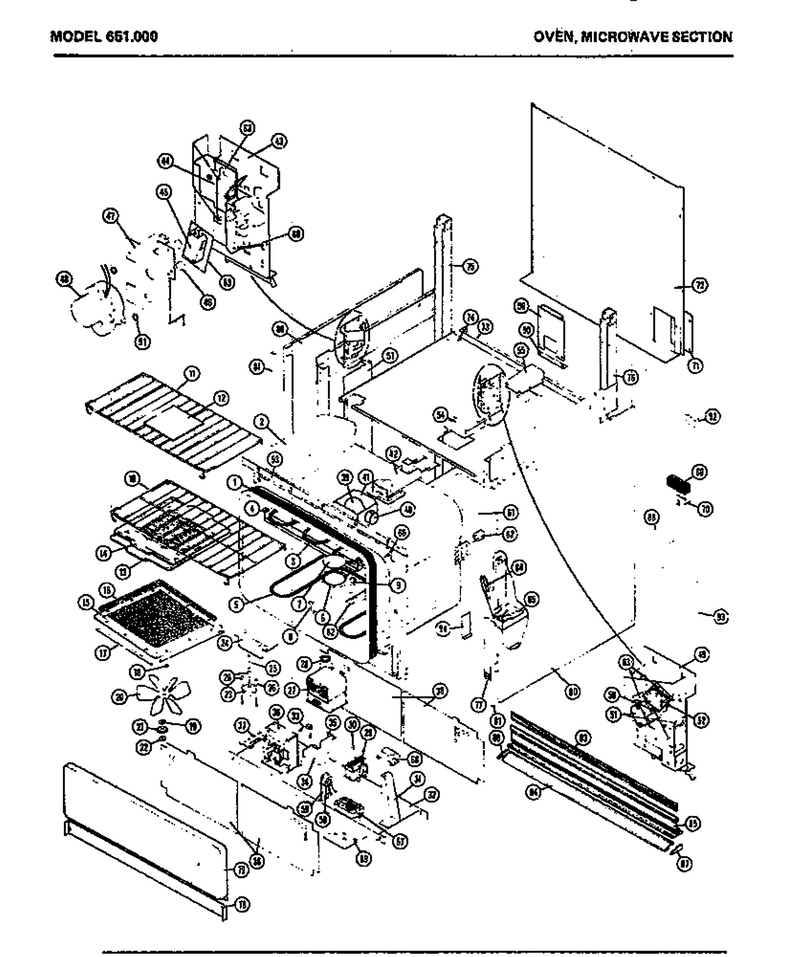

03 - Page 4

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Broil Element Kit WPL-R0157542
...
4
Brkt WPL-M52D72
...
5
Not Available WPL-M1D653
...
6
M7d379 Frame WPL-M7D197
...
7
Lens, Oven Light WPL-M6D93
...
8
Clip, Capillary Tube Mtg. WPL-M2D313
...
9
Hole Button WPL-M1D568
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan WPL-M67D1
...
14
Broiler Pan Insert WPL-M67D3
...
15
Screw-Frame Mtg (25) WPL-M1D585
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
Stirrer Mtg. Kit WPL-M85D37
...
19
Washer WPL-M1D565
...
20
Stirrer WPL-M35D17
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Spacer-R F Disc WPL-M2D310
...
23
Not Available WPL-M1D628
...
24
Brkt-Shaft Support WPL-M20D97
...
25
Stirrer Mtg. Kit WPL-M85D37
...
26
Spacer-Stirrer Shaft WPL-M2D307
...
27
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
28
Gasket-Rf WPL-M2D296
...
29
Nut K WPL-M0282005
...
30
Fan, Blower Kit WPL-M35D16
...
31
Screw (25) WPL-M1D526
...
32
Base Pwr Supply WPL-M52D128
...
33
Screw (25) WPL-M1D526
...
34
H V Cap .91 +-6% WPL-M10D43
...
35
Capacitor Brkt WPL-M20D60
...
36
Transformer WPL-M60D54
...
37
Screw (25) WPL-M1D544
...
38
Not Available WPL-M52D127
...
39
Light Bulb WPL-8009
...
40
Socket Oven WPL-M5D113
...
41
Housing Frame WPL-M8D92
...
42
Screw (25) WPL-M1D532
...
43
Screw WPL-WP90767
...
44
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
45
M14d94 Lock Switch WPL-M14D94
...
46
Spacer S W Mtg WPL-M2D317
...
47
Screw (25) WPL-M1D526
...
48
Lock Motor Assembly WPL-M12D34
...
49
Screw WPL-WP90767
...
50
Switch (M14d121) WPL-M14D121
...
51
Screw (25) WPL-M1D362
...
52
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
53
Not Available WPL-M52D113
...
54
Oven Light Cover WPL-M8D91
...
55
Screw WPL-WP90767
...
56
Screw WPL-WP90767
...
57
Screw WPL-WP90767
...
58
M12d23 Defrost Timer WPL-M12D23
...
59
Brkt-Defrost Timer Mtg WPL-M8D118
...
60
Spring WPL-M2D276
...
61
Not Available WPL-M63D12
...
62
Oven Spring WPL-M5D114
...
63
Insulator WPL-M5D163
...
64
Screw (25) WPL-M1D280
...
65
Bracket- WPL-51793P01
...
66
Pin (25) WPL-M1D582
...
67
Relay, Oven WPL-Y0091669
...
68
Screw (25) WPL-M1D526
...
69
Screw (25) WPL-M1D587
...
70
Not Available WPL-M2D245
...
71
Screw WPL-WP90767
...
72
Screw WPL-WP90767
...
73
Screw WPL-WP90767
...
74
Screw WPL-WP90767
...
75
Screw WPL-WP90767
...
76
Screw WPL-WP90767
...
77
Leveling Foot WPL-M8D117
...
78
Screw WPL-WP90767
...
79
Panel WPL-M72D31
...
80
Not Available WPL-M82D52
...
81
Trim-Corner M75d19 WPL-53024P01
...
82
Shield Capillary WPL-M20D100
...
83
Not Available WPL-M52D110
...
84
Heat Deflector WPL-M52D111
...
85
Extrusion WPL-M52D112
...
86
End Cap Left WPL-M7D292
...
87
End Cap Right WPL-M7D291
...
88
Not Available WPL-M5D155
...
89
Cover-Thermal Relay WPL-M2D309
...
90
Cover-Exhaust Duct WPL-M7D279
...
91
No.8 Flat Washer WPL-M1D136
...
92
Clip(25) WPL-M1D635
...
93
Screw (25) WPL-M1D638
...
94
Bracket Retainer WPL-M2D315

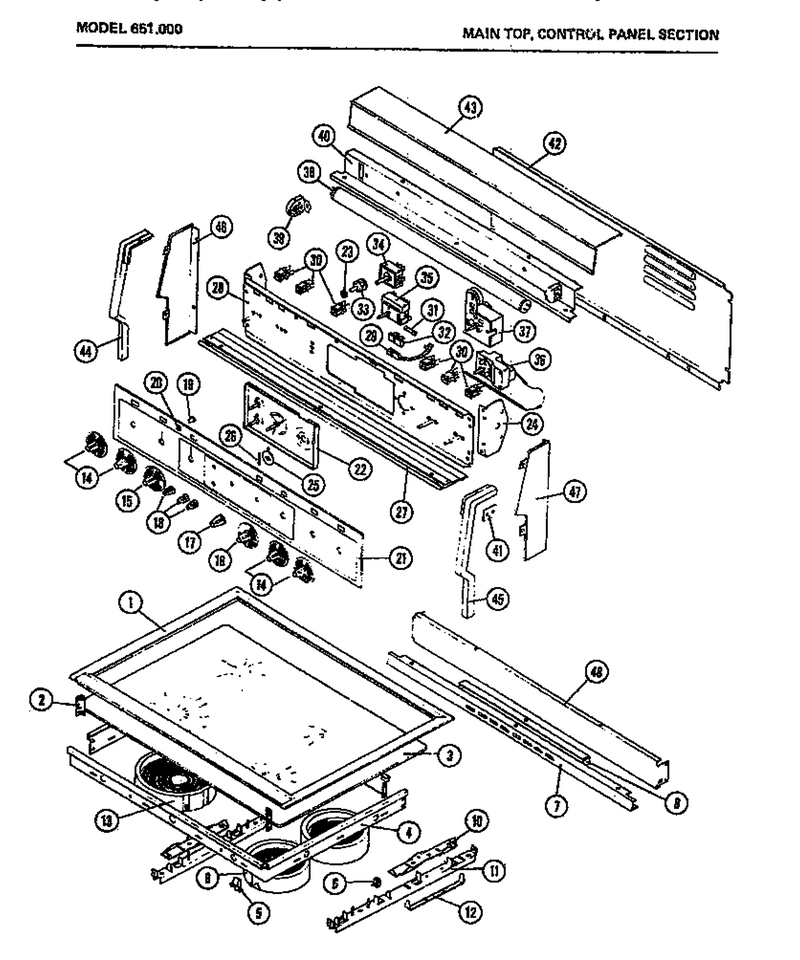

02 - Main Top

...
...
1
Trim, Cooktop WPL-50009A01
...
2
Bracket WPL-M2D237
...
3
Cook Top Glass Kit WPL-M50D20
...
4
Screw WPL-WP90767
...
5
Clip M2d238 WPL-M2D238
...
6
Clip WPL-51539P01
...
7
Screw WPL-WP90767
...
8
Not Available WPL-M52D68
...
9
M61d50-Sm WPL-96189P01
...
10
Element Supt WPL-M52D69
...
11
Screw WPL-WP90767
...
12
Screw WPL-WP489474
...
13
Large Element Kit WPL-M61D20
...
14
Knob M6d95 WPL-M6D95
...
15
Knob, Selector Switch WPL-M6D149
...
16
Knob M6d96 WPL-M6D96
...
17
Knob WPL-M6D119
...
18
Knob, Range Clock WPL-M6D159
...
19
Button Switc WPL-52332P01
...
20
Push On Retainer (25) WPL-M1D566
...
21
Not Available WPL-M51D25
...
22
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
23
Spacer WPL-M2D312
...
24
Bkt Control Panel Mtg WPL-M7D289
...
25
Pointer- WPL-M6D113
...
26
Outer Pointer WPL-M6D156
...
27
Not Available WPL-M52D131
...
28
Mnt Pnl Cont WPL-52349P01
...
29
Indicator Light WPL-M9D67
...
30
Indicator Light WPL-M9D68
...
31
Fuse 20 A WPL-WPM0805101
...
32
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
33
Switch-Surface Lite WPL-M14D119
...
34
Screw 8-32 (25) WPL-M1D536
...
35
Screw 8-32 (25) WPL-M1D536
...
36
Thermostat, Oven WPL-M18D17
...
37
Screw 8-32 (25) WPL-M1D536
...
38
Flourescent Lamp WPL-M9D45
...
39
Screw (25) WPL-M1D129
...
40
Screw (25) WPL-M1D533
...
41
Bracket, Trim WPL-M2D323
...
42
Not Available WPL-M82D93
...
43
Top Cap Cont Pnl WPL-M65D106
...
44
Side Trim Left WPL-M7D288
...
45
Screw (25) WPL-M1D654
...
46
Side Cover Lt Avoc WPL-M53D12
...
47
Side Cover Rt Wht WPL-M53D14
...
48
Not Available WPL-M82D78

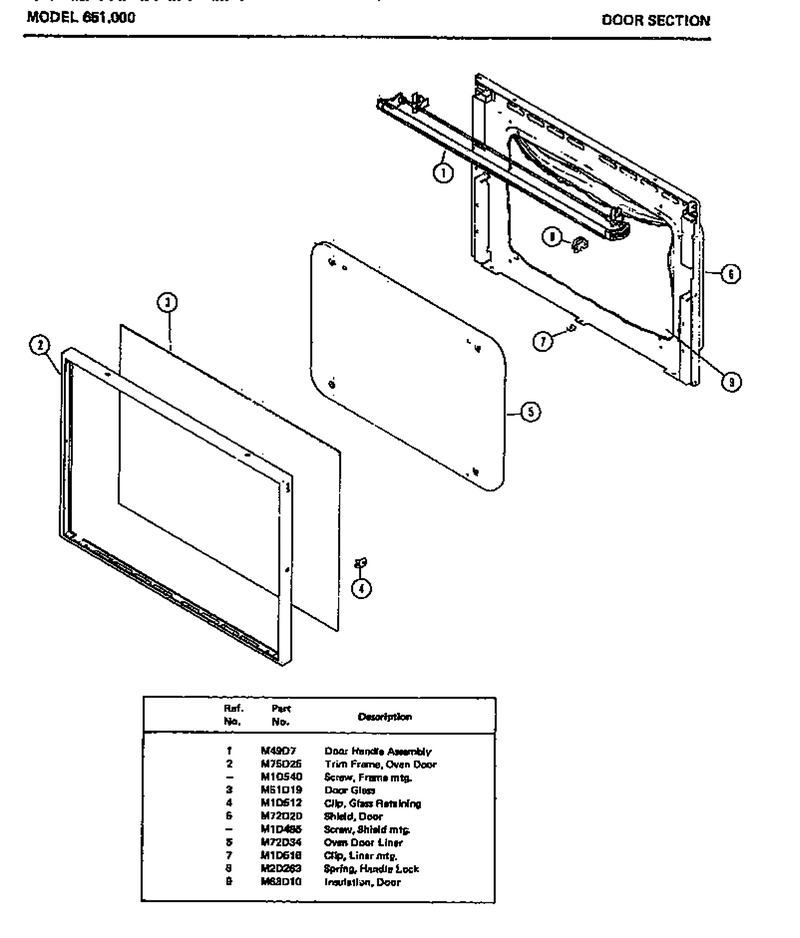

01 - Door

...
...
1
Door Handle Assembly WPL-M49D7
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Not Available WPL-M72D20
...
6
Not Available WPL-M72D34
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D263
...
9
Not Available WPL-M63D10
