Amana 650.001

Model: 650.001

Save Part Not Listed?
product name

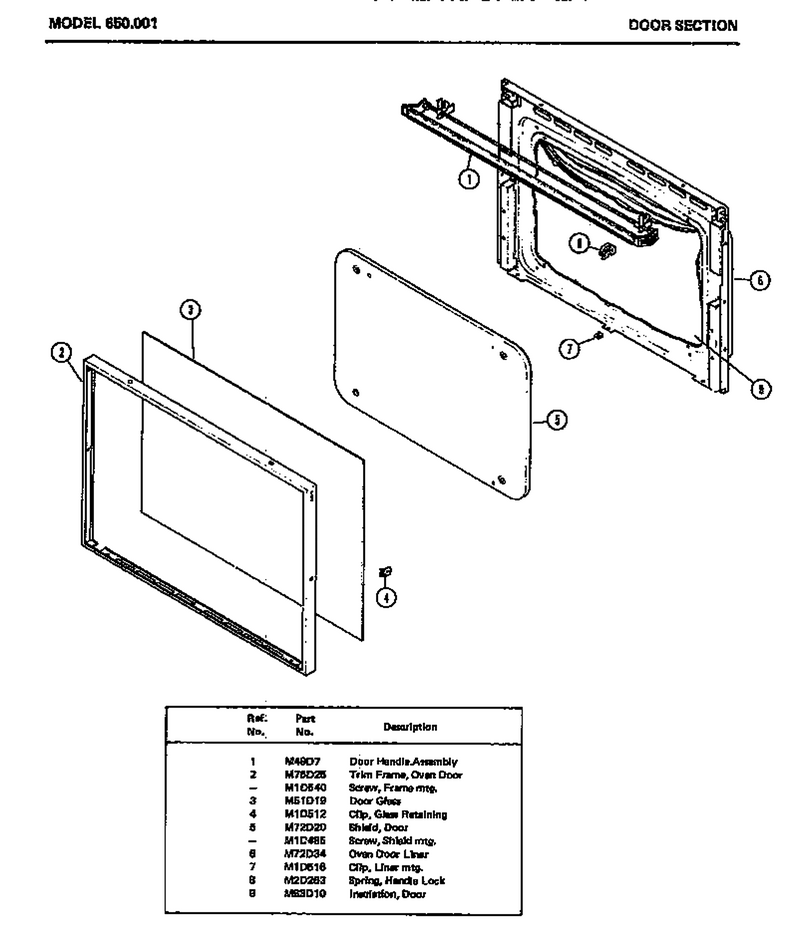

01 - Door Section

...
...
1
Door Handle Assembly WPL-M49D7
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Screw WPL-WP90767
...
6
Not Available WPL-M72D34
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D263
...
9
Not Available WPL-M63D10

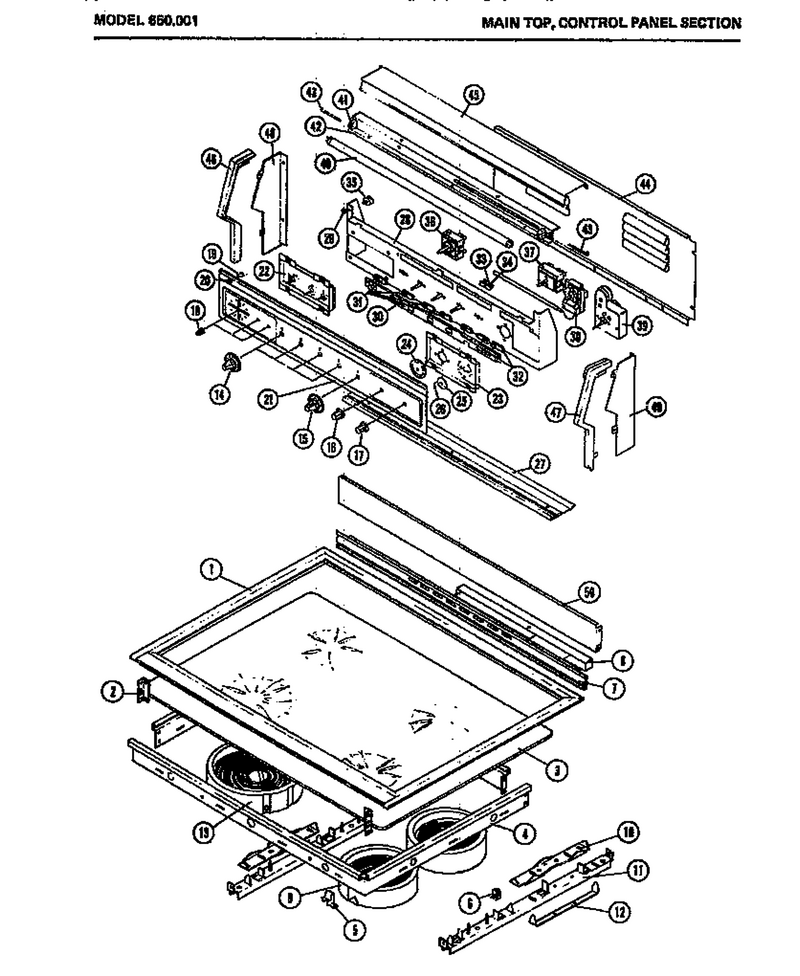

02 - Main Top

...
...
1
Trim, Cooktop WPL-50009A01
...
2
Screw WPL-WP90767
...
3
Cook Top Glass Kit WPL-M50D20
...
4
Screw WPL-WP90767
...
5
Clip M2d238 WPL-M2D238
...
6
Clip WPL-51539P01
...
7
Extrusion Vent WPL-M52D109
...
8
Not Available WPL-M52D68
...
9
M61d50-Sm WPL-96189P01
...
10
Element Supt WPL-M52D69
...
11
Screw WPL-WP90767
...
12
Screw WPL-WP489474
...
13
Large Element Kit WPL-M61D20
...
14
Knob M6d95 WPL-M6D95
...
15
Knob, Selector Switch WPL-M6D149
...
16
Knob, Thermostat Switch WPL-M6D110
...
17
Knob WPL-M6D119
...
18
Knobs 3/pkg Kit WPL-M6D92
...
19
Button Light Switch WPL-M6D115
...
20
Push On Retainer (25) WPL-M1D566
...
21
Glass Cont Pnl WPL-M51D24
...
22
Screw (25) WPL-M1D92
...
23
Screw (25) WPL-M1D92
...
24
Dial Thermostat WPL-M6D114
...
25
Pointer- WPL-M6D113
...
26
Pointer Outer WPL-M6D112
...
27
Screw (25) WPL-M1D540
...
28
Screw (25) WPL-M1D540
...
29
Nut (10) WPL-M1D562
...
30
Not Available WPL-M20D86
...
31
Indicator Light WPL-M9D64
...
32
Lamp M9d47 WPL-51435P01
...
33
Fuse 20 A WPL-WPM0805101
...
34
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
35
Switch WPL-M14D83
...
36
Kit- Switc WPL-WPR0702021
...
37
Screw 8-32 (25) WPL-M1D536
...
38
Thermostat, Oven WPL-M18D16
...
39
M/w Timer Kit WPL-M30D49
...
40
Lamp, Fluorescent WPL-M9D41
...
41
Lamp Socket WPL-M5D150
...
42
Screw, Panel Mtg. WPL-M1D392
...
43
Screw, Panel Mtg. WPL-M1D392
...
44
Screw WPL-WP90767
...
45
Top Cover WPL-M65D77
...
46
Not Available WPL-M1D583
...
47
Screw (25) WPL-M1D534
...
48
Side Cover Lt H-G WPL-M53D11
...
49
Not Available WPL-M53D16
...
50
Not Available WPL-M82D77

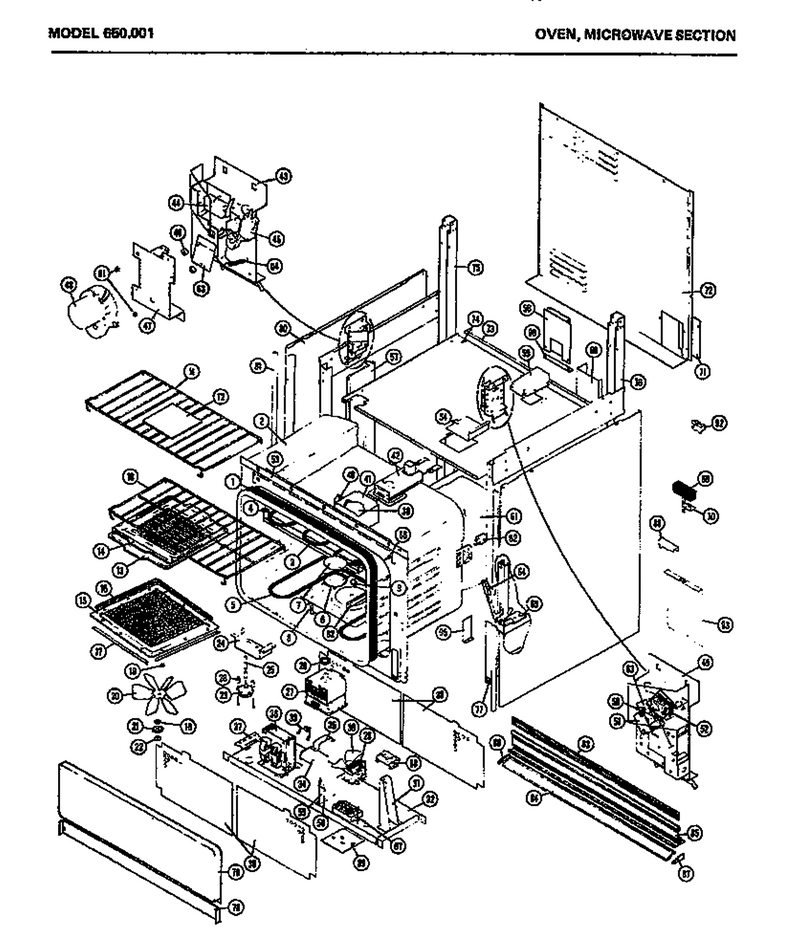

03 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Broil Element Kit WPL-R0157542
...
4
Brkt WPL-M52D72
...
5
Screw (25) WPL-M1D532
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Hole Button WPL-M1D568
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan WPL-M67D1
...
14
Broiler Pan Insert WPL-M67D3
...
15
Screw-Frame Mtg (25) WPL-M1D585
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
Stirrer Mtg. Kit WPL-M85D37
...
19
Washer WPL-M1D565
...
20
Stirrer WPL-M35D17
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Spacer-R F Disc WPL-M2D310
...
23
Stirrer Motor WPL-M12D35
...
24
Brkt-Shaft Support WPL-M20D97
...
25
Stirrer Mtg. Kit WPL-M85D37
...
26
Spacer-Stirrer Shaft WPL-M2D307
...
27
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
28
Gasket-Rf WPL-M2D296
...
29
Blower Motor Kit WPL-M12D33
...
30
Fan, Blower Kit WPL-M35D16
...
31
Screw (25) WPL-M1D526
...
32
Base Pwr Supply WPL-M52D128
...
33
Screw (25) WPL-M1D526
...
34
H V Cap .91 +-6% WPL-M10D43
...
35
Capacitor Brkt WPL-M20D60
...
36
Transformer WPL-M60D54
...
37
Bracket WPL-M8D110
...
38
Screw (25) WPL-M1D107
...
39
Light Bulb WPL-8009
...
40
Socket Oven WPL-M5D113
...
41
Housing Frame WPL-M8D92
...
42
Screw (25) WPL-M1D532
...
43
Screw WPL-WP90767
...
44
M14d98 Switch WPL-M14D98
...
45
Not Available WPL-M1D601
...
46
Spacer S W Mtg WPL-M2D317
...
47
Bracket WPL-M8D100
...
48
Not Available WPL-M1D602
...
49
Washer (25) WPL-M1D586
...
50
Switch (M14d121) WPL-M14D121
...
51
Screw (25) WPL-M1D362
...
52
M14d98 Switch WPL-M14D98
...
53
Not Available WPL-M1D592
...
54
Oven Light Cover WPL-M8D91
...
55
Screw WPL-WP90767
...
56
Screw WPL-WP90767
...
57
Screw WPL-WP90767
...
58
Screw (25) WPL-M1D343
...
59
Brkt-Defrost Timer Mtg WPL-M8D118
...
60
Not Available WPL-M52D114
...
61
Not Available WPL-M63D12
...
62
Oven Spring WPL-M5D114
...
63
Insulator WPL-M5D163
...
64
Screw (25) WPL-M1D280
...
65
Bracket- WPL-51793P01
...
66
Nut K WPL-M0282005
...
67
Screw (25) WPL-M1D526
...
68
Screw (25) WPL-M1D526
...
69
Screw (25) WPL-M1D587
...
70
Not Available WPL-M2D245
...
71
Screw WPL-WP90767
...
72
Screw WPL-WP90767
...
73
Screw WPL-WP90767
...
74
Screw WPL-WP90767
...
75
Screw WPL-WP90767
...
76
Screw WPL-WP90767
...
77
Leveling Foot WPL-M8D117
...
78
Screw WPL-WP90767
...
79
Panel WPL-M72D31
...
80
Not Available WPL-M82D52
