Amana 631.002

Model: 631.002

Save Part Not Listed?
product name

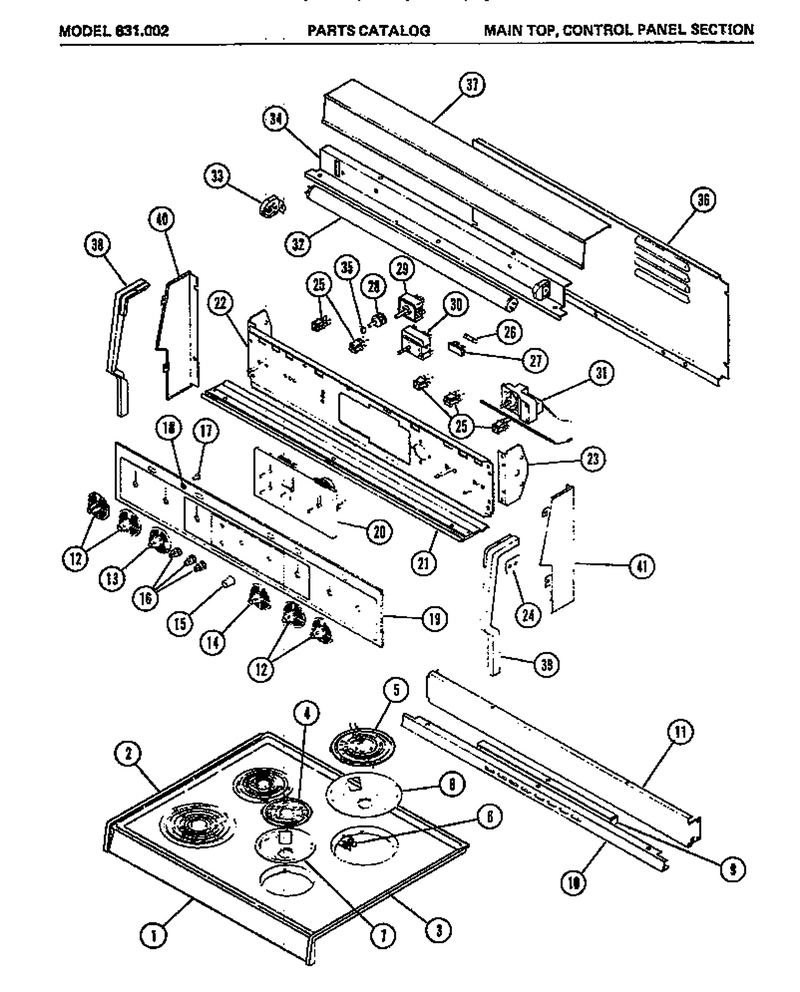

02 - Main Top

...
...
1
Not Available WPL-M82D82
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Medallion Blk WPL-M2D321
...
5
Medallion Blk WPL-M2D321
...
6
Receptacle WPL-330031
...
7
Burner Bow WPL-51294P01
...
8
Bowl-Drip WPL-WPW10196405
...
9
Not Available WPL-M52D68
...
10
Screw (25) WPL-M1D526
...
11
Backsplasher WPL-M82D75
...
12
Knob M6d95 WPL-M6D95
...
13
Knob, Selector Switch WPL-M6D149
...
14
Knob M6d96 WPL-M6D96
...
15
Knob M/w Timer WPL-M6D180
...
16
Knob, Range Clock WPL-M6D159
...
17
Button Switc WPL-52332P01
...
18
Retainer, Button WPL-M2D314
...
19
Glass Cont Pnl WPL-M51D26
...
20
Screw (25) WPL-M1D533
...
21
Screw (25) WPL-M1D533
...
22
Screw (25) WPL-M1D526
...
23
Screw (25) WPL-M1D526
...
24
Bracket, Trim WPL-M2D323
...
25
Indicator Light WPL-M9D68
...
26
Fuse 20 A WPL-WPM0805101
...
27
Not Available WPL-M1D524
...
28
Not Available WPL-M1D656
...
29
Kit- Switc WPL-WPR0702021
...
30
Screw 8-32 (25) WPL-M1D536
...
31
Thermostat, Oven WPL-M18D17
...
32
Flourescent Lamp WPL-M9D45
...
33
Lamp Holder WPL-52064P01
...
34
Screw (25) WPL-M1D533
...
35
Spacer WPL-M2D312
...
36
Not Available WPL-M82D93
...
37
Top Cap Cont Pnl WPL-M65D106
...
38
Side Trim Left WPL-M7D288
...
39
Screw (25) WPL-M1D654
...
40
Side Cover Lt Ald WPL-M53D31
...
41
Not Available WPL-M53D24

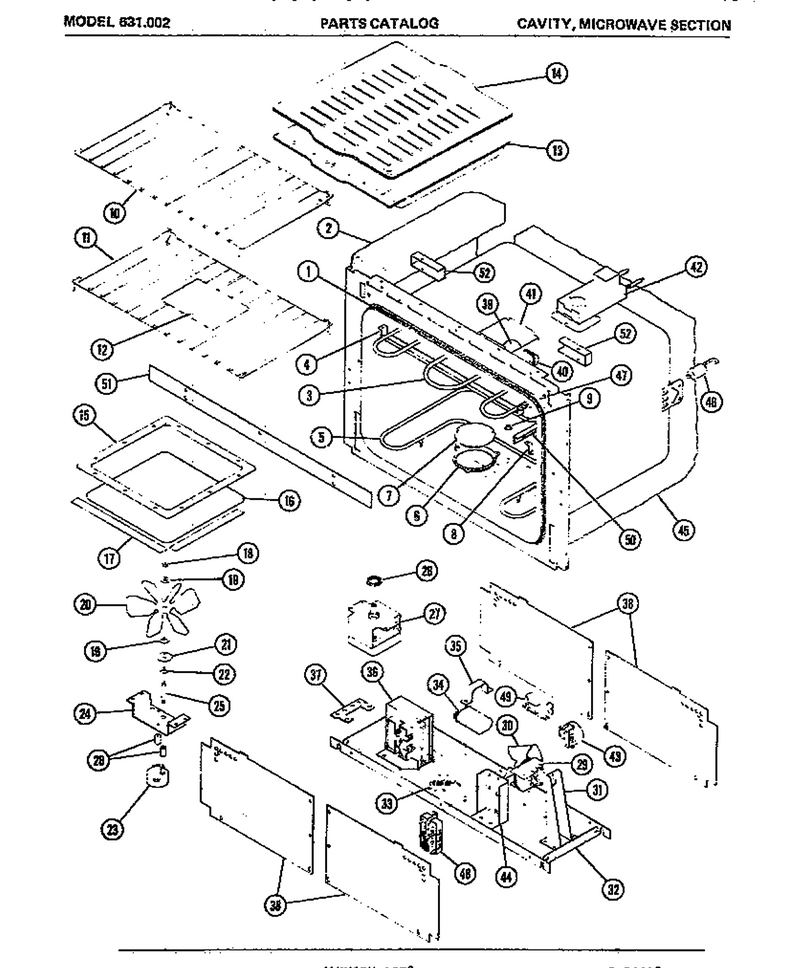

04 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Not Available WPL-M1D653
...
4
Brkt WPL-M52D72
...
5
Bake Element 120v Kit WPL-M61D43
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Clip, Capillary Tube Mtg. WPL-M2D313
...
9
Hole Button WPL-M1D568
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan WPL-M67D1
...
14
Broiler Pan Insert WPL-M67D3
...
15
Trim, Bezel Kit WPL-M20D178
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
Nut WPL-WP488130
...
19
Washer WPL-M1D565
...
20
Stirrer WPL-M35D17
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Spacer-R F Disc WPL-M2D310
...
23
Not Available WPL-M1D628
...
24
Brkt-Shaft Support WPL-M20D97
...
25
Shaft, Stirrer WPL-M2D338
...
26
Spacer-Stirrer Shaft WPL-M2D307
...
27
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
28
Gasket-Rf WPL-M2D296
...
29
Nut K WPL-M0282005
...
30
Fan, Blower Kit WPL-M35D16
...
31
Screw (25) WPL-M1D526
...
32
Brkt Dec Panel WPL-M52D138
...
33
Screw (25) WPL-M1D526
...
34
H V Cap .91 +-6% WPL-M10D43
...
35
Capacitor Brkt WPL-M20D60
...
36
Transformer WPL-M60D54
...
37
Screw (25) WPL-M1D544
...
38
Not Available WPL-M52D127
...
39
Light Bulb WPL-8009
...
40
Socket Oven WPL-M5D113
...
41
Housing Frame WPL-M8D92
...
42
Screw (25) WPL-M1D532
...
43
M12d23 Defrost Timer WPL-M12D23
...
44
Screw (25) WPL-M1D526
...
45
Not Available WPL-M63D12
...
46
Oven Spring WPL-M5D114
...
47
Washer WPL-M1D565
...
48
Relay, Oven WPL-Y0091669
...
49
Screw (25) WPL-M1D526
...
50
Shield Capillary WPL-M20D100
...
51
Not Available WPL-M52D113
...
52
Lock Cover WPL-M2D336

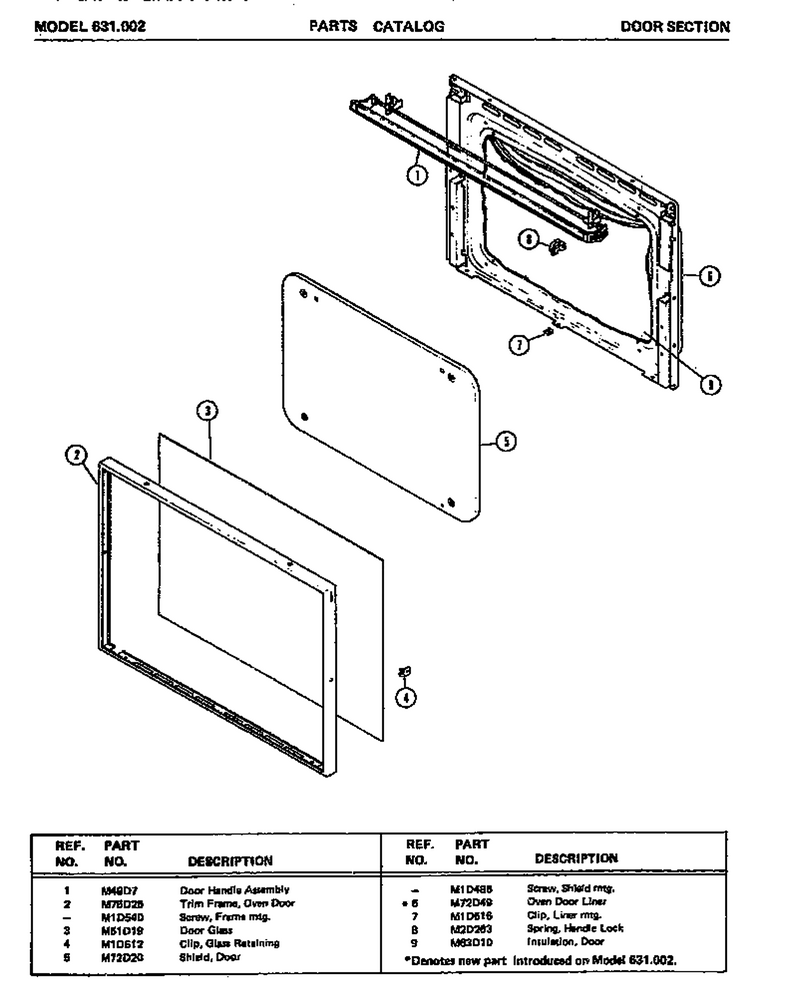

01 - Door Section

...
...
1
Door Handle Assembly WPL-M49D7
...
2
Not Available WPL-M75D25
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Screw WPL-WP90767
...
6
Not Available WPL-M72D49
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D263
...
9
Not Available WPL-M63D10

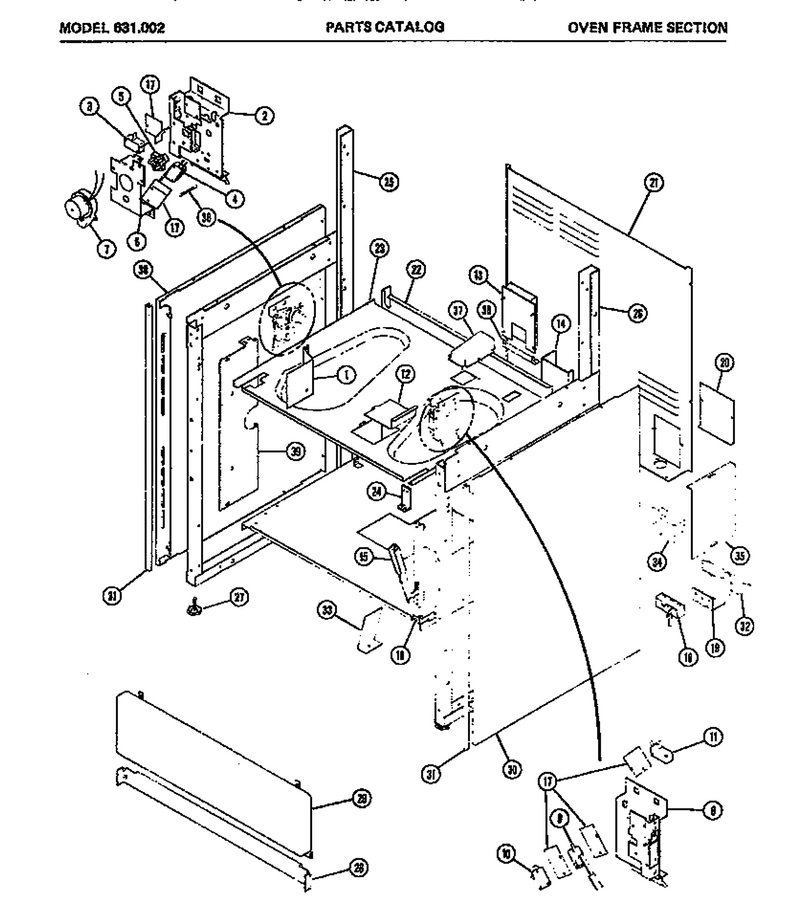

03 - Oven Frame Section

...
...
1
Shield Switch Asm WPL-M7D272
...
2
Screw WPL-WP90767
...
3
Nut Twin Spd WPL-52735P01
...
4
Nut Twin Spd WPL-52735P01
...
5
Lock Cam WPL-M2D337
...
6
Brkt-Mtg WPL-52920P01
...
7
Not Available WPL-M1D602
...
8
Screw WPL-WP90767
...
9
Switch (M14d121) WPL-M14D121
...
10
Screw (25) WPL-M1D362
...
11
Nut Twin Spd WPL-52735P01
...
12
Oven Light Cover WPL-M8D91
...
13
Vert Exhaust WPL-M65D88
...
14
Screw WPL-WP90767
...
15
Screw (25) WPL-M1D280
...
16
No.10 T X 3/8`` Screw WPL-M1D539
...
17
Insulator WPL-M5D163
...
18
Screw (25) WPL-M1D587
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Not Available WPL-M82D112
...
22
Screw WPL-WP90767
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Screw WPL-WP90767
...
27
Leveling Foot WPL-M8D117
...
28
Screw WPL-WP90767
...
29
Not Available WPL-M72D44
...
30
Screw WPL-WP90767
...
31
Trim-Corner M75d19 WPL-53024P01
...
32
Not Available WPL-M5D155
...
33
Bracket Retainer WPL-M2D315
...
34
Clip(25) WPL-M1D635
...
35
Screw (25) WPL-M1D638
...
36
Spring WPL-M2D276
...
37
Screw WPL-WP90767
...
38
Cover-Exhaust Duct WPL-M7D279
...
39
Retainer WPL-M52D85
