Amana 631.001

Model: 631.001

Save Part Not Listed?
product name

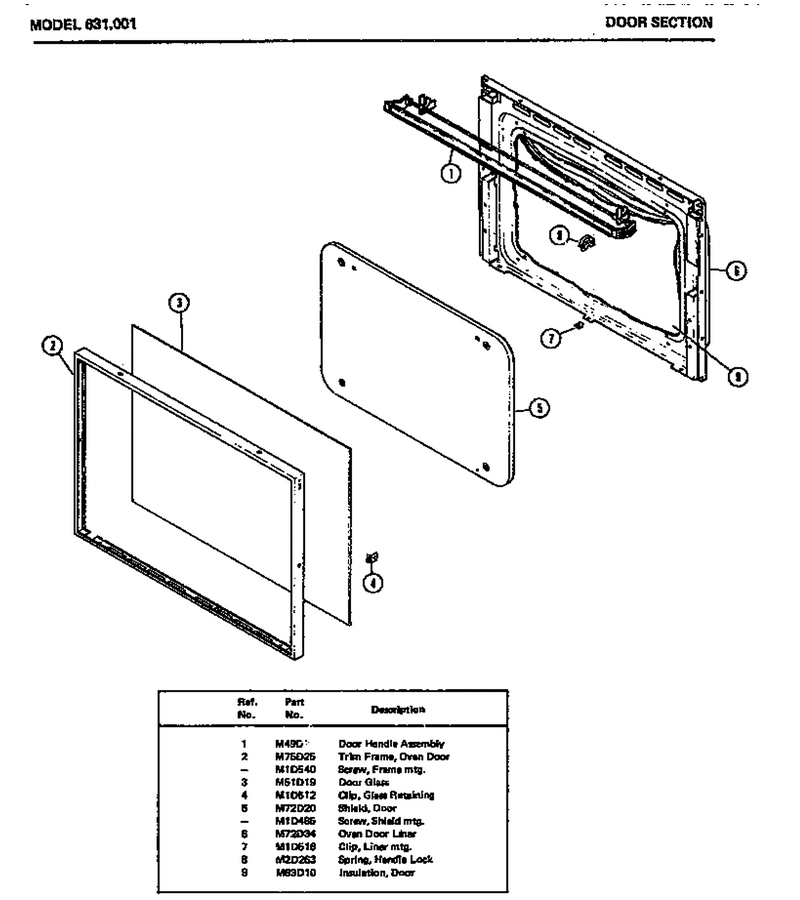

01 - Door Section

...
...
1
Door Handle Assembly WPL-M49D7
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Screw WPL-WP90767
...
6
Not Available WPL-M72D34
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D263
...
9
Not Available WPL-M63D10

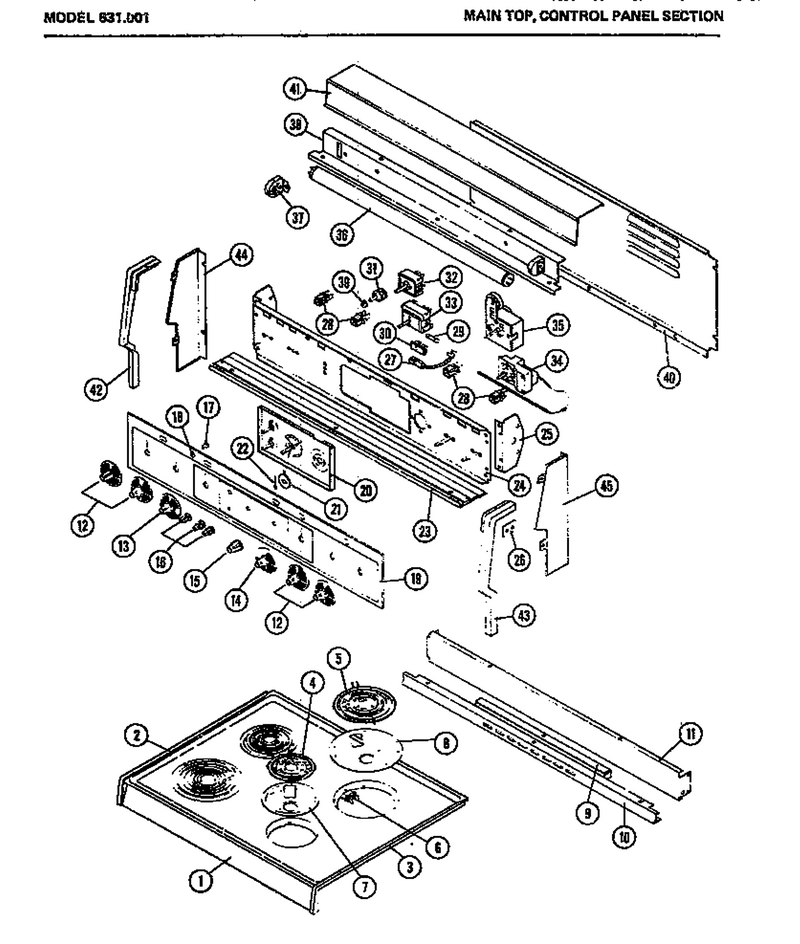

02 - Main Top

...
...
1
Cooktop- WPL-53295P25
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Medallion Blk WPL-M2D321
...
5
Medallion Blk WPL-M2D321
...
6
Receptacle WPL-330031
...
7
Burner Bow WPL-51294P01
...
8
Bowl-Drip WPL-WPW10196405
...
9
Screw (25) WPL-M1D526
...
10
Screw (25) WPL-M1D526
...
11
Not Available WPL-M82D106
...
12
Knob M6d95 WPL-M6D95
...
13
Knob, Selector Switch WPL-M6D149
...
14
Knob M6d96 WPL-M6D96
...
15
Knob WPL-M6D119
...
16
Knob, Range Clock WPL-M6D159
...
17
Button Switc WPL-52332P01
...
18
Push On Retainer (25) WPL-M1D566
...
19
Glass Cont Pnl WPL-M51D26
...
20
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
21
Pointer- WPL-M6D113
...
22
Outer Pointer WPL-M6D156
...
23
Not Available WPL-M52D131
...
24
Screw (25) WPL-M1D526
...
25
Screw (25) WPL-M1D526
...
26
Bracket, Trim WPL-M2D323
...
27
Indicator Light WPL-M9D67
...
28
Indicator Light WPL-M9D68
...
29
Fuse 20 A WPL-WPM0805101
...
30
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
31
Not Available WPL-M1D656
...
32
Kit- Switc WPL-WPR0702021
...
33
Screw 8-32 (25) WPL-M1D536
...
34
Thermostat, Oven WPL-M18D17
...
35
Timer Kit WPL-M30D57
...
36
Flourescent Lamp WPL-M9D45
...
37
Lamp Holder WPL-52064P01
...
38
Screw (25) WPL-M1D533
...
39
Spacer WPL-M2D312
...
40
Not Available WPL-M82D93
...
41
Top Cap Cont Pnl WPL-M65D106
...
42
Screw (25) WPL-M1D654
...
43
Screw (25) WPL-M1D654
...
44
Side Cover Lt Ald WPL-M53D31
...
45
Not Available WPL-M53D25

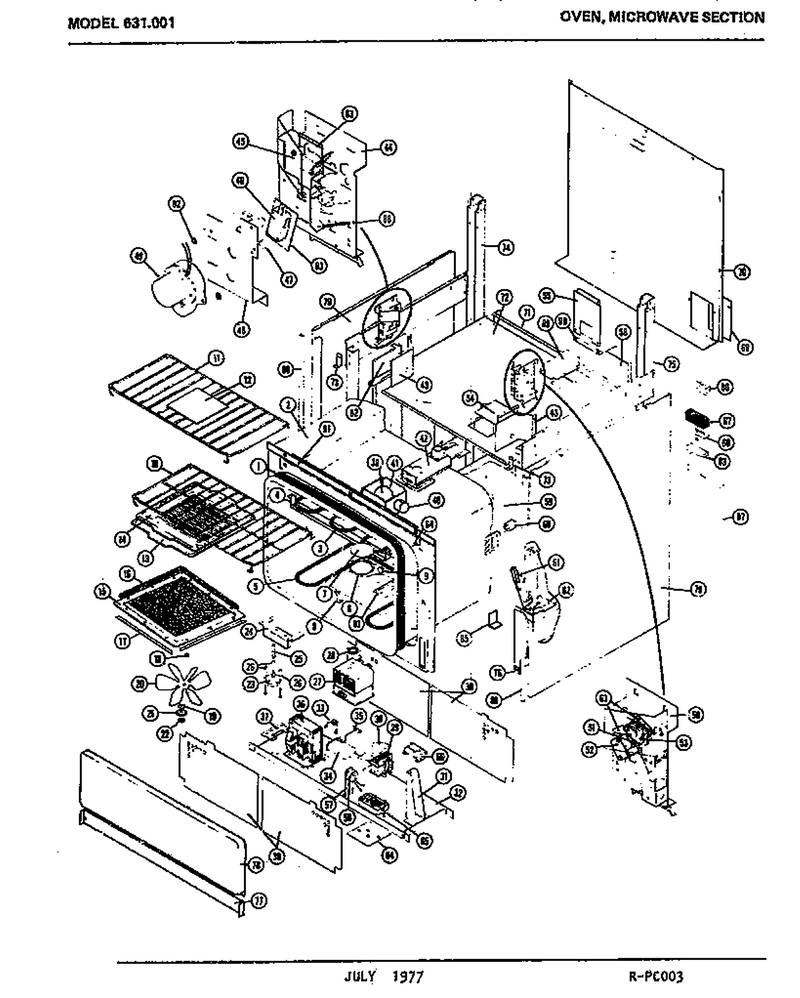

03 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Broil Element Kit WPL-R0157542
...
4
Brkt WPL-M52D72
...
5
Not Available WPL-M1D653
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Hole Button WPL-M1D568
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan WPL-M67D1
...
14
Broiler Pan Insert WPL-M67D3
...
15
Trim, Bezel Kit WPL-M20D178
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
Stirrer Mtg. Kit WPL-M85D37
...
19
Washer WPL-M1D565
...
20
Stirrer WPL-M35D17
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Spacer-R F Disc WPL-M2D310
...
23
Not Available WPL-M1D628
...
24
Brkt-Shaft Support WPL-M20D97
...
25
Stirrer Mtg. Kit WPL-M85D37
...
26
Spacer-Stirrer Shaft WPL-M2D307
...
27
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
28
Gasket-Rf WPL-M2D296
...
29
Blower Motor Kit WPL-M12D33
...
30
Fan, Blower Kit WPL-M35D16
...
31
Screw (25) WPL-M1D526
...
32
Base Pwr Supply WPL-M52D128
...
33
Screw (25) WPL-M1D526
...
34
H V Cap .91 +-6% WPL-M10D43
...
35
Capacitor Brkt WPL-M20D60
...
36
Transformer WPL-M60D54
...
37
Screw (25) WPL-M1D544
...
38
Screw (25) WPL-M1D107
...
39
Light Bulb WPL-8009
...
40
Socket Oven WPL-M5D113
...
41
Housing Frame WPL-M8D92
...
42
Screw (25) WPL-M1D532
...
43
Shield Switch Asm WPL-M7D272
...
44
Screw WPL-WP90767
...
45
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
46
M14d94 Lock Switch WPL-M14D94
...
47
Spacer S W Mtg WPL-M2D317
...
48
Screw (25) WPL-M1D526
...
49
Not Available WPL-M1D602
...
50
Washer (25) WPL-M1D586
...
51
Switch (M14d121) WPL-M14D121
...
52
Screw (25) WPL-M1D362
...
53
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
54
Oven Light Cover WPL-M8D91
...
55
Vert Exhaust WPL-M65D88
...
56
M12d23 Defrost Timer WPL-M12D23
...
57
Brkt-Defrost Timer Mtg WPL-M8D118
...
58
Not Available WPL-M52D114
...
59
Not Available WPL-M63D12
...
60
Oven Spring WPL-M5D114
...
61
Screw (25) WPL-M1D280
...
62
Bracket- WPL-51793P01
...
63
Insulator WPL-M5D163
...
64
Pin (25) WPL-M1D582
...
65
Relay, Oven WPL-Y0091669
...
66
Screw (25) WPL-M1D526
...
67
Screw (25) WPL-M1D587
...
68
Not Available WPL-M2D245
...
69
Screw WPL-WP90767
...
70
Not Available WPL-M82D112
...
71
Screw WPL-WP90767
...
72
Screw WPL-WP90767
...
73
Screw WPL-WP90767
...
74
Screw WPL-WP90767
...
75
Screw WPL-WP90767
...
76
Leveling Foot WPL-M8D117
...
77
Not Available WPL-M72D32
...
78
Not Available WPL-M72D46
...
79
Not Available WPL-M82D105
...
80
Trim-Corner M75d19 WPL-53024P01
...
81
Shield Capillary WPL-M20D100
...
82
Retainer WPL-M52D85
...
83
Not Available WPL-M5D155
...
84
Cover-Thermal Relay WPL-M2D309
...
85
Bracket Retainer WPL-M2D315
...
86
Clip(25) WPL-M1D635
...
87
Shield R F WPL-M7D286
...
88
Spring WPL-M2D276
...
89
Screw WPL-WP90767
...
90
Cover-Exhaust Duct WPL-M7D279
...
91
Not Available WPL-M52D113
...
92
No.8 Flat Washer WPL-M1D136
