Amana 630.002

Model: 630.002

Save Part Not Listed?
product name

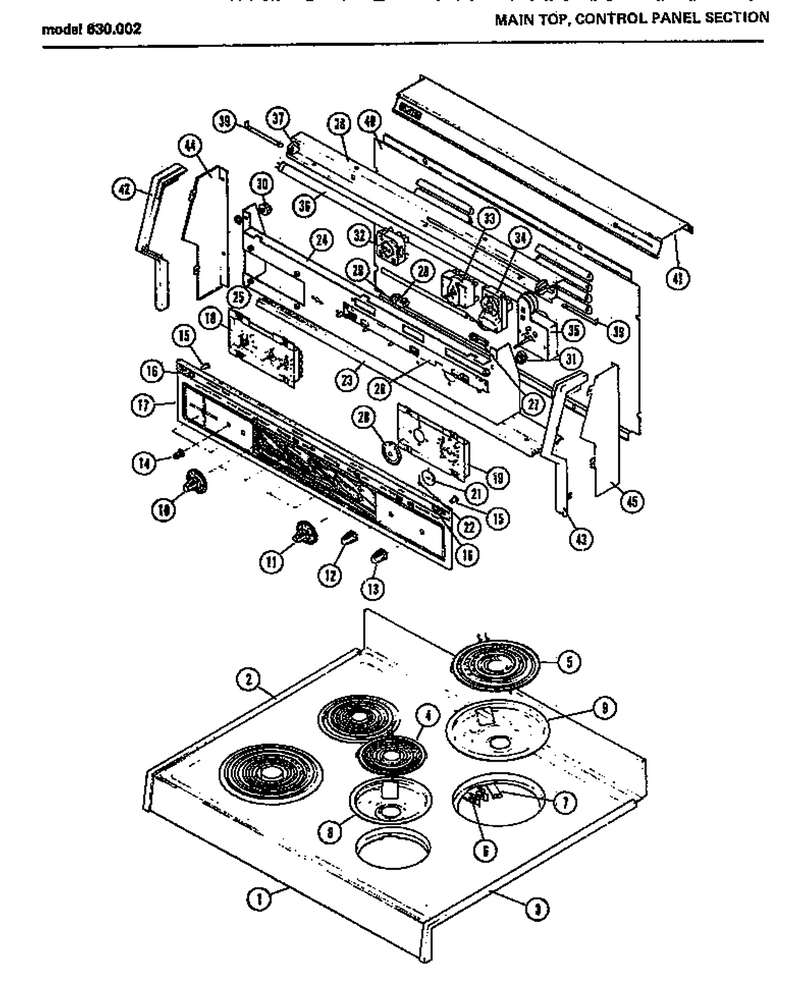

02 - Main Top

...
...
1
Not Available WPL-M82D66
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
5
Elmnt-Surf WPL-WP3191454
...
6
Receptacle WPL-330031
...
7
Not Available WPL-M2D240
...
8
Burner Bow WPL-51294P01
...
9
Bowl-Drip WPL-WPW10196405
...
10
Knob M6d95 WPL-M6D95
...
11
Knob Selector Switch WPL-M6D111
...
12
Knob, Thermostat Switch WPL-M6D110
...
13
Knob WPL-M6D119
...
14
Knobs 3/pkg Kit WPL-M6D92
...
15
Button Light Switch WPL-M6D115
...
16
Push On Retainer (25) WPL-M1D566
...
17
Glass WPL-M51D18
...
18
Screw, Panel Mtg. WPL-M1D392
...
19
Screw, Panel Mtg. WPL-M1D392
...
20
Dial Thermostat WPL-M6D114
...
21
Pointer- WPL-M6D113
...
22
Pointer Outer WPL-M6D112
...
23
Screw (25) WPL-M1D540
...
24
Screw (25) WPL-M1D540
...
25
Nut (10) WPL-M1D562
...
26
Not Available WPL-M20D86
...
27
Lamp M9d47 WPL-51435P01
...
28
Fuse 20 A WPL-WPM0805101
...
29
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
30
Switch WPL-M14D83
...
31
Switch-Oven Light WPL-M14D84
...
32
Kit- Switc WPL-WPR0702021
...
33
Screw, Panel Mtg. WPL-M1D392
...
34
Screw (25) WPL-M1D129
...
35
Screw 8-32 (25) WPL-M1D536
...
36
Lamp, Fluorescent WPL-M9D41
...
37
Lamp Holder WPL-52064P01
...
38
Brkt Surfc Lite WPL-M52D101
...
39
Screw, Panel Mtg. WPL-M1D392
...
40
Not Available WPL-M82D67
...
41
Top Cover WPL-M65D77
...
42
Not Available WPL-M1D583
...
43
Not Available WPL-M1D583
...
44
Side Cover Lt Avoc WPL-M53D12
...
45
Side Cover Rt H-G WPL-M53D15

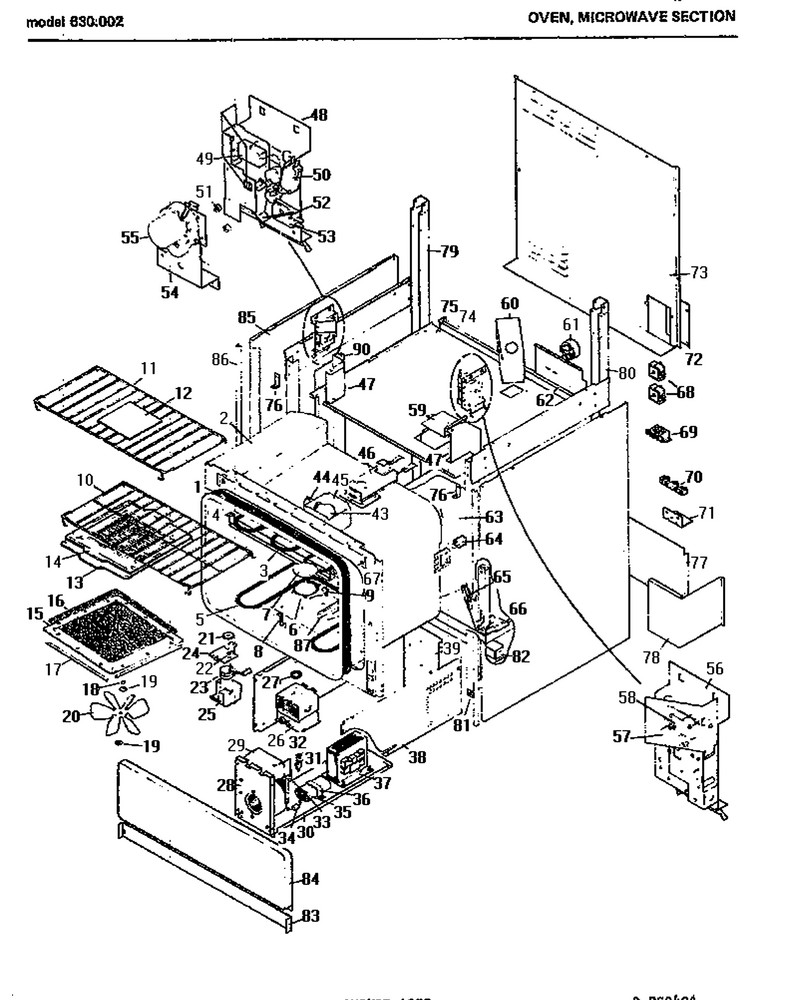

03 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Broil Element WPL-M61D24
...
4
Brkt WPL-M52D72
...
5
Screw (25) WPL-M1D532
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Hole Button WPL-M1D568
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan WPL-M67D1
...
14
Broiler Pan Insert WPL-M67D3
...
15
Screw-Frame Mtg (25) WPL-M1D585
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
.156 Dia Push On Clip WPL-M1D78
...
19
Washer WPL-M1D565
...
20
Stirrer Conv Kit WPL-M85D39
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Retainer WPL-M2D269
...
23
Stirrer Motor WPL-M12D25
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Washer (25) WPL-M1D73
...
27
R F Gasket WPL-M2D234
...
28
Screw WPL-WP90767
...
29
Blower Motor Assembly WPL-M41D14
...
30
Component Tray WPL-M52D104
...
31
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
32
Paddle, Air Sensor Switch WPL-M2D266
...
33
Bracket, Sensor Switch Mtg WPL-M8D90
...
34
Kit, Diode WPL-M3D71
...
35
H V Cap .91 +-6% WPL-M10D27
...
36
Nut WPL-WP488130
...
37
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
38
Screw WPL-WP90767
...
39
Screw WPL-WP90767
...
43
Light Bulb WPL-8009
...
44
Socket Oven WPL-M5D113
...
45
Housing Frame WPL-M8D92
...
46
Screw (25) WPL-M1D532
...
47
Screw WPL-WP90767
...
48
Screw WPL-WP90767
...
49
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
50
Not Available WPL-M1D601
...
51
Spacer WPL-M2D280
...
52
Spring WPL-M2D276
...
53
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
54
Screw (25) WPL-M1D526
...
55
Not Available WPL-M1D602
...
56
Washer (25) WPL-M1D586
...
57
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
58
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
59
Oven Light Cover WPL-M8D91
...
60
Not Available WPL-M65D74
...
61
M12d23 Defrost Timer WPL-M12D23
...
62
Not Available WPL-M52D106
...
63
Not Available WPL-M63D12
...
64
Oven Spring WPL-M5D114
...
65
Screw (25) WPL-M1D280
...
66
No.10 T X 3/8`` Screw WPL-M1D539
...
67
Pin (25) WPL-M1D582
...
68
Screw (25) WPL-M1D587
...
69
Screw WPL-WP90767
...
70
Screw (25) WPL-M1D587
...
71
Not Available WPL-M2D245
...
72
Screw WPL-WP90767
...
73
Screw WPL-WP90767
...
74
Screw WPL-WP90767
...
75
Screw WPL-WP90767
...
76
Screw WPL-WP90767
...
77
Screw WPL-WP90767
...
78
Screw WPL-WP90767
...
79
Screw WPL-WP90767
...
80
Screw WPL-WP90767
...
81
Foot WPL-M8D76
...
82
Screw WPL-WP90767
...
83
Screw WPL-WP90767
...
84
Panel WPL-M72D31
...
85
Not Available WPL-M82D53
...
86
Trim-Corner M75d19 WPL-53024P01
...
87
Heat Deflector Brkt. WPL-M20D78
...
90
Retainer WPL-M52D85

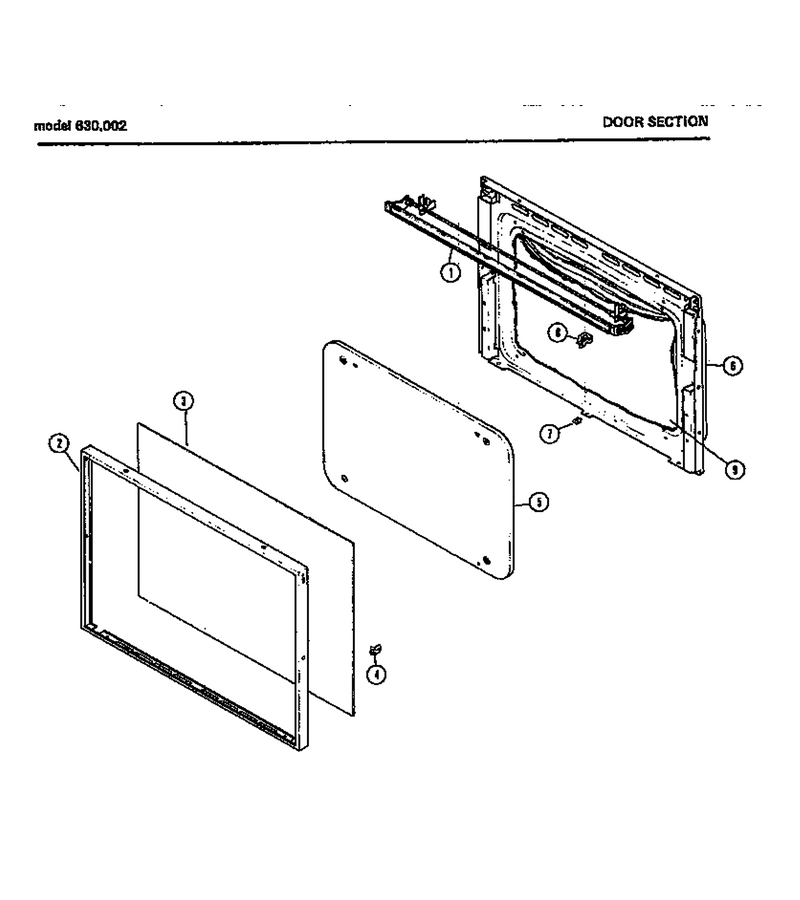

01 - Door Section

...
...
1
Door Handle Assembly WPL-M49D7
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Not Available WPL-M72D20
...
6
Not Available WPL-M72D34
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D263
...
9
Not Available WPL-M63D10
