Amana 630.001

Model: 630.001

Save Part Not Listed?
product name

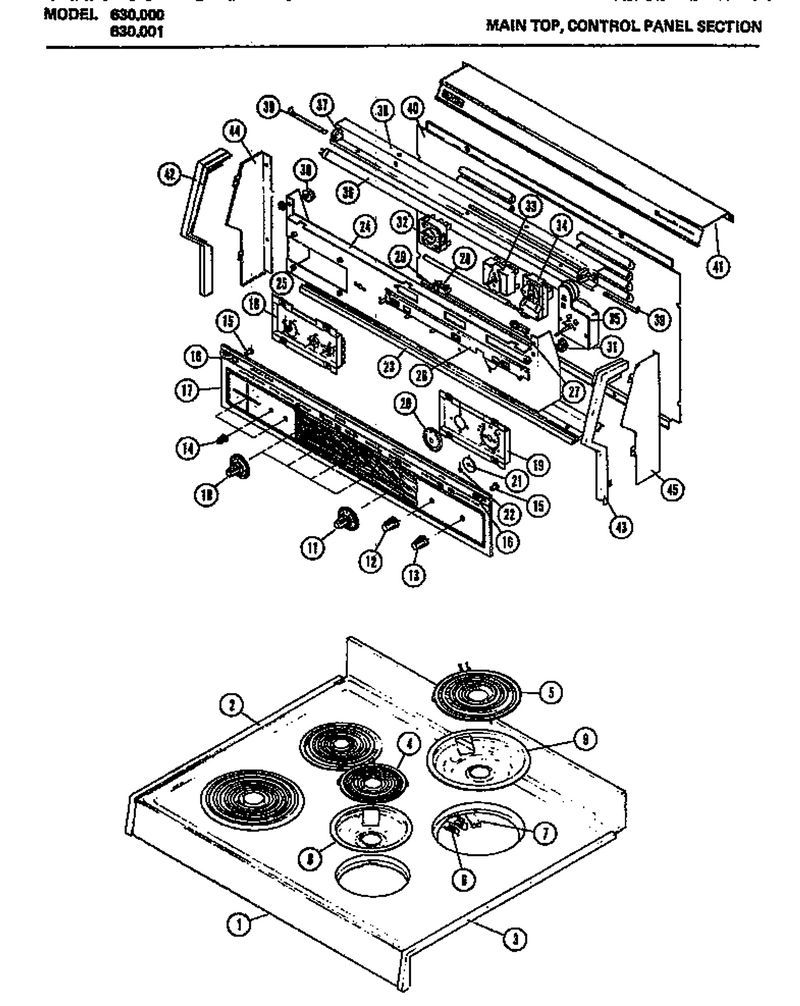

02 - Main Top

...
...
1
Not Available WPL-M82D63
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Insert WPL-M2D267
...
5
Insert WPL-M2D267
...
6
Receptacle WPL-330031
...
7
Not Available WPL-M2D240
...
8
Burner Bow WPL-51294P01
...
9
Bowl-Drip WPL-WPW10196405
...
10
Knob M6d95 WPL-M6D95
...
11
Knob Selector Switch WPL-M6D111
...
12
Knob, Thermostat Switch WPL-M6D110
...
13
Knob WPL-M6D119
...
14
Knobs 3/pkg Kit WPL-M6D92
...
15
Button Light Switch WPL-M6D115
...
16
Push On Retainer (25) WPL-M1D566
...
17
Glass WPL-M51D18
...
18
Screw, Panel Mtg. WPL-M1D392
...
19
Screw, Panel Mtg. WPL-M1D392
...
20
Dial Thermostat WPL-M6D114
...
21
Pointer- WPL-M6D113
...
22
Pointer Outer WPL-M6D112
...
23
Not Available WPL-M52D99
...
24
Screw (25) WPL-M1D540
...
25
Nut (10) WPL-M1D562
...
26
Indicator Brkt WPL-M20D79
...
27
Lamp M9d47 WPL-51435P01
...
28
Fuse 20 A WPL-WPM0805101
...
29
Not Available WPL-M4D46
...
30
Switch WPL-M14D83
...
31
Switch-Oven Light WPL-M14D84
...
32
Kit- Switc WPL-WPR0702021
...
33
Screw, Panel Mtg. WPL-M1D392
...
34
Thermostat, Oven WPL-M18D11
...
35
M/w Timer Kit WPL-M30D49
...
36
Lamp, Fluorescent WPL-M9D41
...
37
Lamp Socket WPL-M5D150
...
38
Brkt Surfc Lite WPL-M52D101
...
39
Screw, Panel Mtg. WPL-M1D392
...
40
Screw WPL-WP90767
...
41
Top Cover WPL-M65D77
...
42
Not Available WPL-M1D583
...
43
Not Available WPL-M1D583
...
44
Side Cover Lt Avoc WPL-M53D12
...
45
Not Available WPL-M53D16

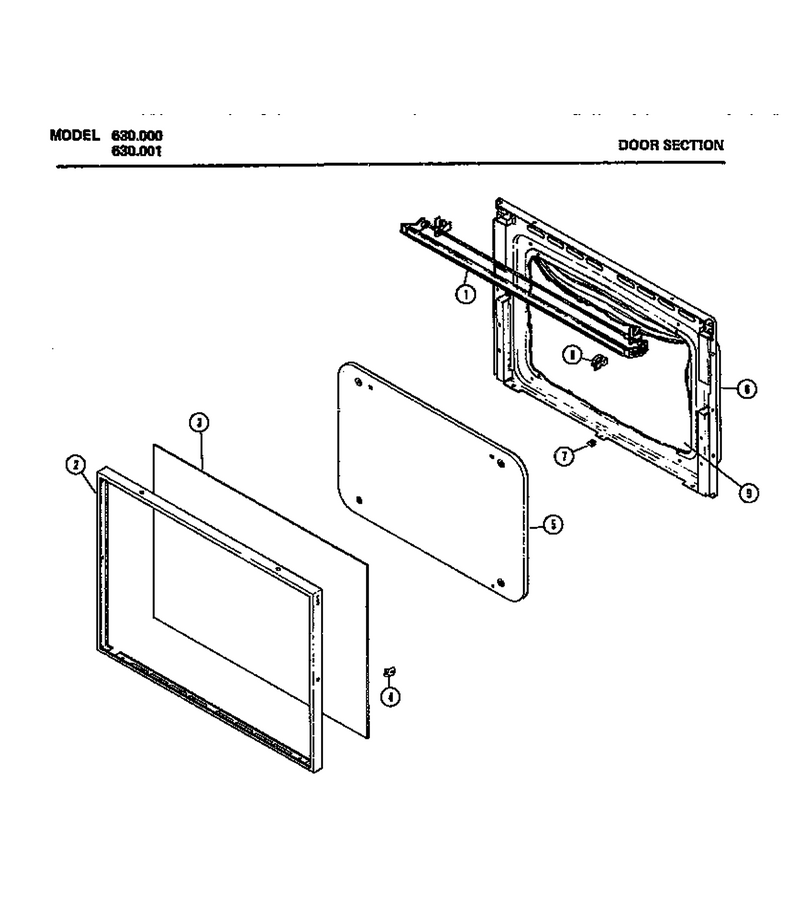

01 - Door Section

...
...
1
Door Handle Assembly WPL-M49D7
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Screw WPL-WP90767
...
6
Not Available WPL-M72D34
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D263
...
9
Not Available WPL-M63D10

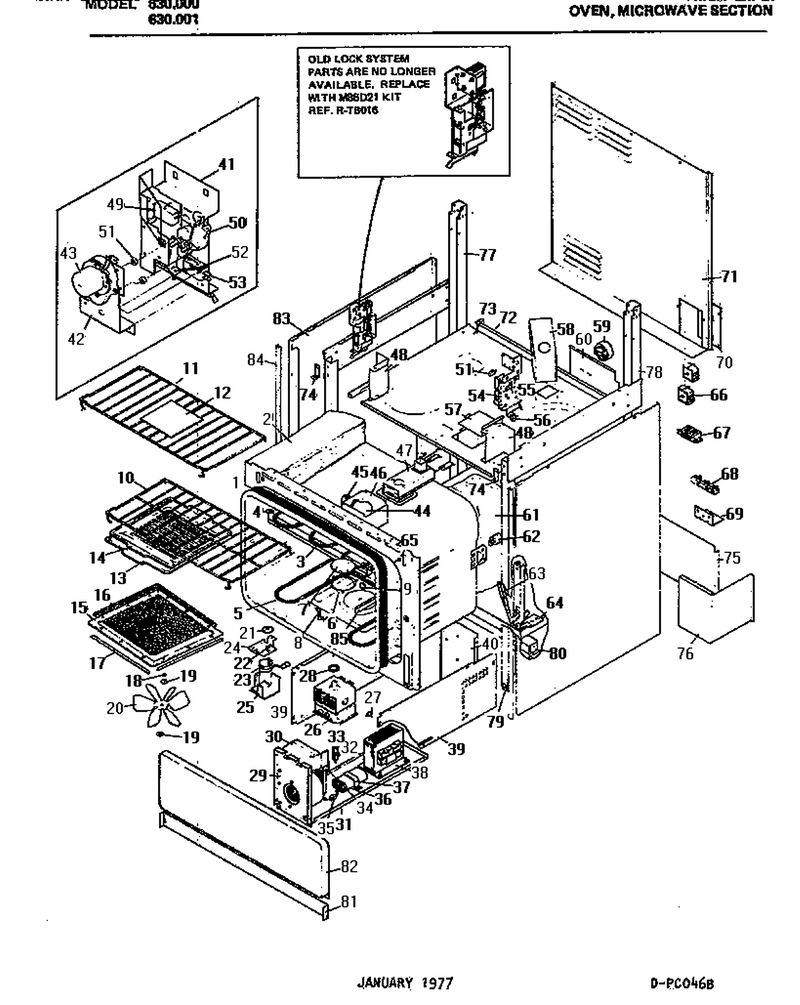

03 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Broil Element Kit WPL-R0157542
...
4
Screw (25) WPL-M1D532
...
5
Screw (25) WPL-M1D532
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Hole Button WPL-M1D568
...
10
Rack- WPL-M67D11
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan WPL-M67D1
...
14
Broiler Pan Insert WPL-M67D3
...
15
Trim, Bezel Kit WPL-M20D178
...
16
Shelf WPL-M50D23
...
17
Gasket, Microwave Shelf WPL-M25D42
...
18
.156 Dia Push On Clip WPL-M1D78
...
19
Washer WPL-M1D565
...
20
Stirrer Conv Kit WPL-M85D39
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Retainer WPL-M2D269
...
23
Stirrer Motor WPL-M12D25
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Washer (25) WPL-M1D73
...
27
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
28
R F Gasket WPL-M2D234
...
29
Not Available WPL-M52D102
...
30
Blower Motor Assembly WPL-M41D14
...
31
Component Tray WPL-M52D104
...
32
Switch WPL-M14D88
...
33
Paddle, Air Sensor Switch WPL-M2D266
...
34
Bracket, Sensor Switch Mtg WPL-M8D90
...
35
Nut WPL-WP488130
...
36
H V Cap .91 +-6% WPL-M10D27
...
37
Nut WPL-WP488130
...
38
Kit, Transformer WPL-M60D181
...
39
Screw WPL-WP90767
...
40
Screw WPL-WP90767
...
41
Screw WPL-WP90767
...
42
Screw (25) WPL-M1D526
...
43
Not Available WPL-M1D602
...
44
Light Bulb WPL-8009
...
45
Socket Oven WPL-M5D113
...
46
Housing Frame WPL-M8D92
...
47
Screw (25) WPL-M1D532
...
48
Shield WPL-M7D232
...
49
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
50
M14d94 Lock Switch WPL-M14D94
...
51
Spacer WPL-M2D280
...
52
Spring WPL-M2D276
...
53
Switch WPL-M14D95
...
54
Washer (25) WPL-M1D586
...
56
Strike Assy. Kit WPL-M14D86
...
57
Oven Light Cover WPL-M8D91
...
58
Not Available WPL-M65D74
...
59
M12d23 Defrost Timer WPL-M12D23
...
60
Screw WPL-WP90767
...
61
Not Available WPL-M63D12
...
62
Oven Spring WPL-M5D114
...
63
Screw (25) WPL-M1D280
...
64
Bracket- WPL-51793P01
...
65
Nut K WPL-M0282005
...
66
Thermal Relay WPL-M16D35
...
67
Ballast WPL-74003033
...
68
Screw (25) WPL-M1D587
...
69
Not Available WPL-M2D245
...
70
Screw WPL-WP90767
...
71
Screw WPL-WP90767
...
72
Screw WPL-WP90767
...
73
Screw WPL-WP90767
...
74
Screw WPL-WP90767
...
75
Screw WPL-WP90767
...
76
Screw WPL-WP90767
...
77
Screw WPL-WP90767
...
78
Screw WPL-WP90767
...
79
Foot WPL-M8D76
...
80
Screw WPL-WP90767
...
81
Screw WPL-WP90767
...
82
Not Available WPL-M72D29
...
83
Lower Panel Avoc WPL-M82D54
...
84
Trim-Corner M75d19 WPL-53024P01
...
85
Heat Deflector Brkt. WPL-M20D78
...
86
Not Available WPL-M20D82
...
87
Screw WPL-WPW10348409
