Amana 621.000

Model: 621.000

Save Part Not Listed?
product name

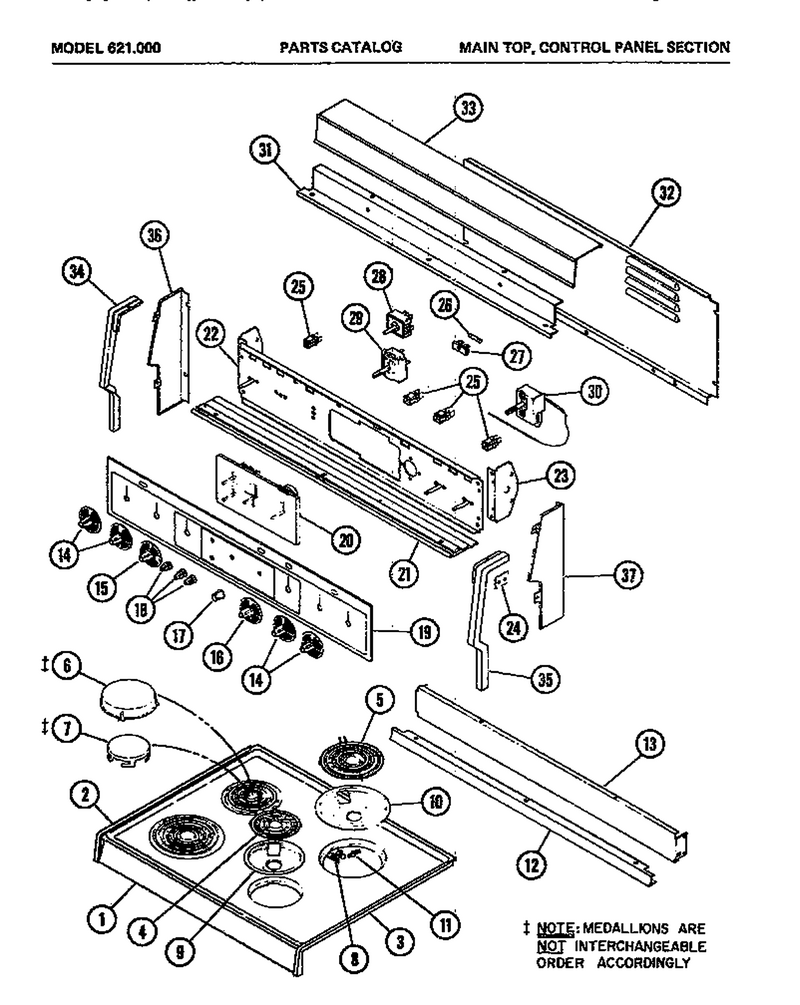

02 - Main Top

...
...
1
Not Available WPL-M82D109
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Element WPL-M61D27
...
5
Elmnt-Surf WPL-WP3191454
...
6
Insert WPL-M2D267
...
7
Medallion Blk WPL-M2D321
...
8
Screw (25) WPL-M1D129
...
9
Burner Bow WPL-51294P01
...
10
Bowl-Drip WPL-WPW10196405
...
11
Screw (25) WPL-M1D129
...
12
Screw (25) WPL-M1D526
...
13
Screw WPL-WPW10348409
...
14
Knob, Surface Switch WPL-M6D186
...
15
Knob, Selector Switch WPL-M6D182
...
16
Knob, Thermostat Switch WPL-M6D185
...
17
M6d184 Knob Kit WPL-M6D184
...
18
Knob, Clock WPL-M6D183
...
19
Not Available WPL-M51D29
...
20
Screw (25) WPL-M1D533
...
21
Screw (25) WPL-M1D533
...
22
Not Available WPL-M52D137
...
23
Screw (25) WPL-M1D526
...
24
Bracket, Trim WPL-M2D323
...
25
Indicator Light WPL-M9D68
...
26
Fuse 20 A WPL-WPM0805101
...
27
Not Available WPL-M1D524
...
28
Screw 8-32 (25) WPL-M1D536
...
29
Screw 8-32 (25) WPL-M1D536
...
30
Thermostat WPL-53110P01
...
31
Screw (25) WPL-M1D533
...
32
Not Available WPL-M82D93
...
33
Top Cover WPL-M65D141
...
34
Side Trim Left WPL-M7D288
...
35
Screw (25) WPL-M1D654
...
36
Not Available WPL-M53D10
...
37
Not Available WPL-M53D24

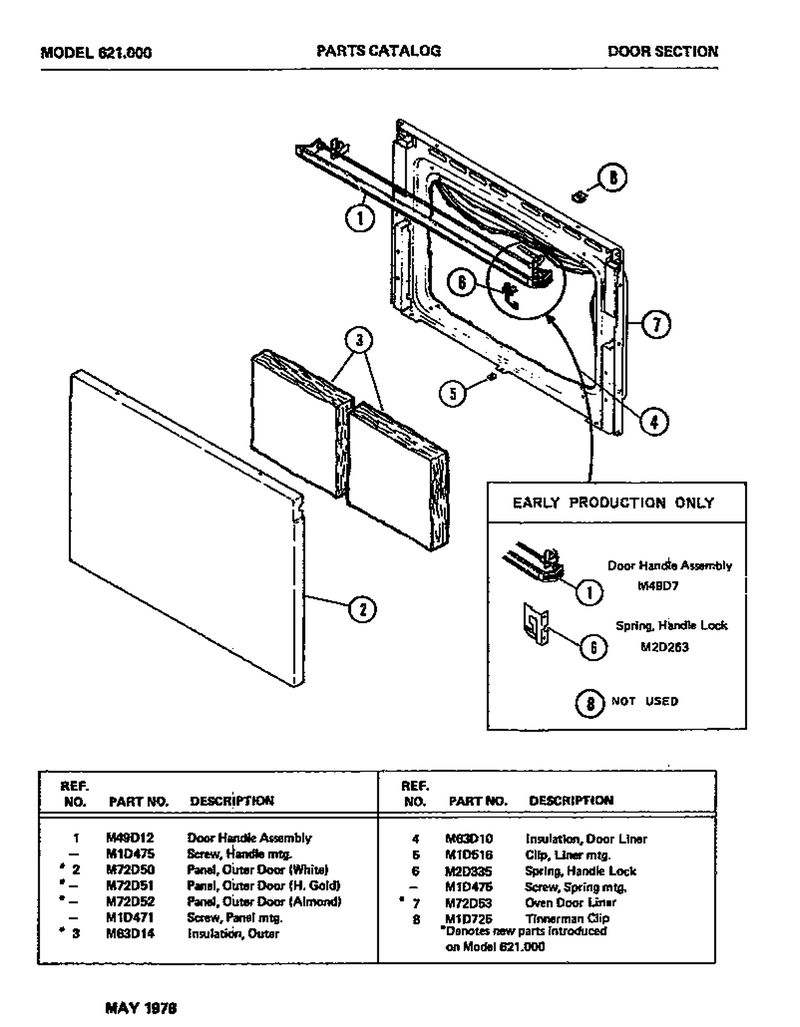

01 - Door Section

...
...
1
Screw WPL-WP90767
...
2
Not Available WPL-M72D51
...
3
Not Available WPL-M63D14
...
4
Not Available WPL-M63D10
...
5
U-Nut (25) WPL-M1D516
...
6
Spring, Handle Lock WPL-M2D335
...
7
Not Available WPL-M72D53
...
8
Tinnerman Clip (25) WPL-M1D725

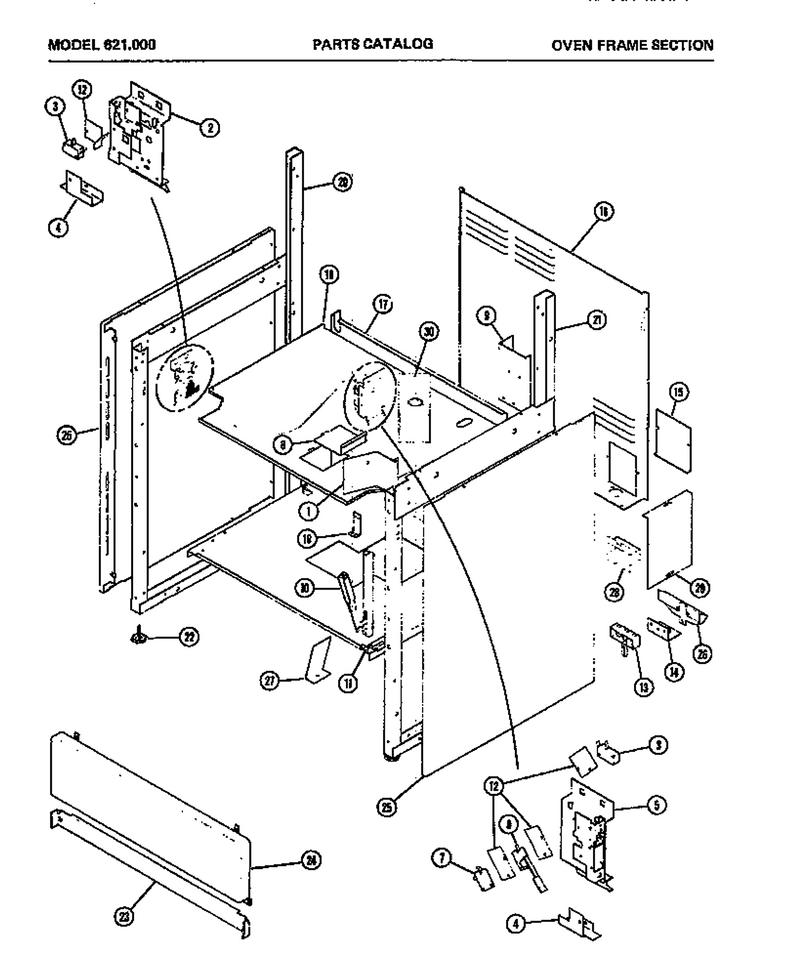

03 - Oven Frame Section

...
...
1
Shield Switch Asm WPL-M7D272
...
2
Screw WPL-WP90767
...
3
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
4
Rivet (25) WPL-M1D692
...
5
Washer (25) WPL-M1D586
...
6
Switch (m14d121) WPL-M14D121
...
7
Screw (25) WPL-M1D362
...
8
Oven Light Cover WPL-M8D91
...
9
Screw WPL-WP90767
...
10
Screw (25) WPL-M1D280
...
11
Bracket- WPL-51793P01
...
12
Insulator WPL-M5D163
...
13
Screw (25) WPL-M1D587
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Screw WPL-WP90767
...
17
Screw WPL-WP90767
...
18
Screw WPL-WP90767
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Screw WPL-WP90767
...
22
Leveling Foot WPL-M8D117
...
23
Screw WPL-WP90767
...
24
Panel WPL-M72D28
...
25
Screw WPL-WP90767
...
26
Not Available WPL-M5D155
...
27
Bracket Retainer WPL-M2D315
...
28
Clip(25) WPL-M1D635
...
29
Screw (25) WPL-M1D638
...
30
Not Available WPL-M65D74

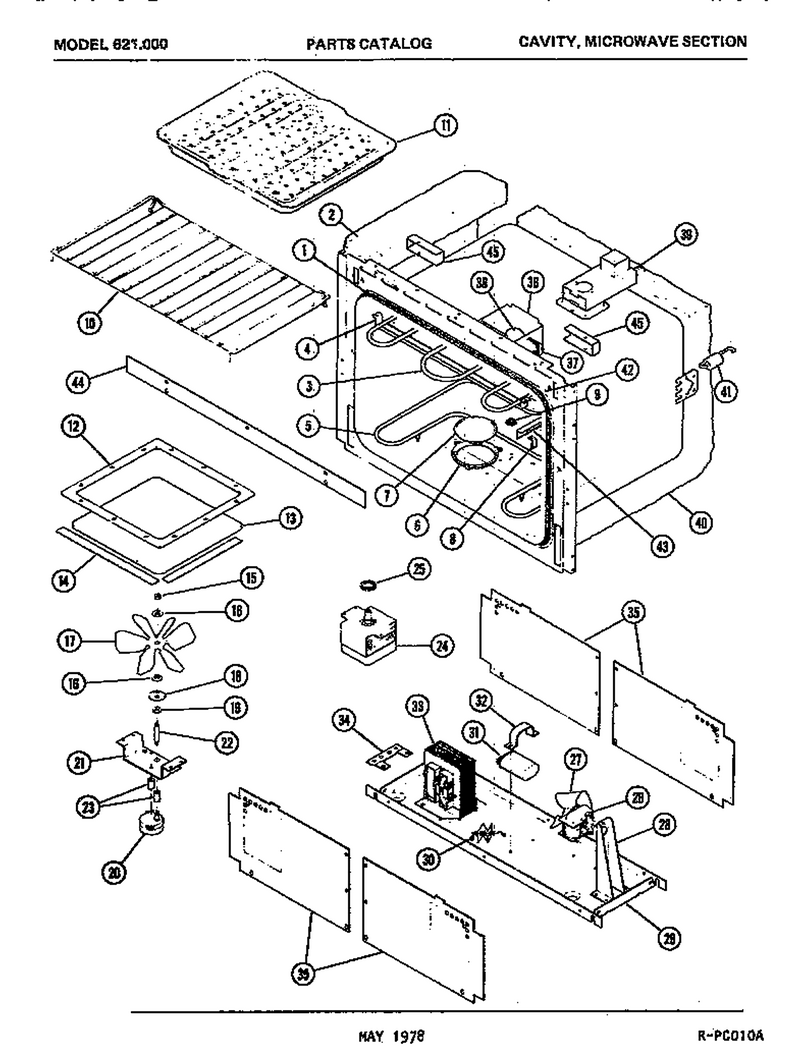

04 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D11
...
3
Not Available WPL-M1D653
...
4
Screw (25) WPL-M1D532
...
5
Not Available WPL-M1D653
...
6
M7d379 Frame WPL-M7D197
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Plug Btn Kit WPL-M1D695
...
10
Rack- WPL-M67D11
...
11
Broiler Pan And Insert Assembl WPL-M67D16
...
12
Screw-Frame Mtg (25) WPL-M1D585
...
13
Shelf WPL-M50D23
...
14
Gasket, Microwave Shelf WPL-M25D42
...
15
Nut WPL-WP488130
...
16
Washer WPL-M1D565
...
17
Stirrer WPL-M35D17
...
18
Disc, R.f. Stirrer WPL-M2D264
...
19
Spacer-R F Disc WPL-M2D310
...
20
Not Available WPL-M1D628
...
21
Brkt-Shaft Support WPL-M20D97
...
22
Shaft, Stirrer WPL-M2D338
...
23
Spacer-Stirrer Shaft WPL-M2D307
...
24
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
25
Gasket-Rf WPL-M2D296
...
26
Blower Motor Kit WPL-M12D33
...
27
Fan, Blower Kit WPL-M35D16
...
28
Screw (25) WPL-M1D526
...
29
Brkt Dec Panel WPL-M52D138
...
30
Screw (25) WPL-M1D526
...
31
H V Cap .91 +-6% WPL-M10D43
...
32
Capacitor Brkt WPL-M20D60
...
33
Transformer WPL-M60D54
...
34
Screw (25) WPL-M1D544
...
35
Screw (25) WPL-M1D107
...
36
Light Bulb WPL-8009
...
37
Socket Oven WPL-M5D113
...
38
Housing Frame WPL-M8D92
...
39
Screw (25) WPL-M1D532
...
40
Not Available WPL-M63D12
...
41
Oven Spring WPL-M5D114
...
42
Washer WPL-M1D565
...
43
Shield Capillary WPL-M20D100
...
44
Not Available WPL-M52D113
...
45
Screw (25) WPL-M1D526
