Amana 610.000

Model: 610.000

Save Part Not Listed?
product name

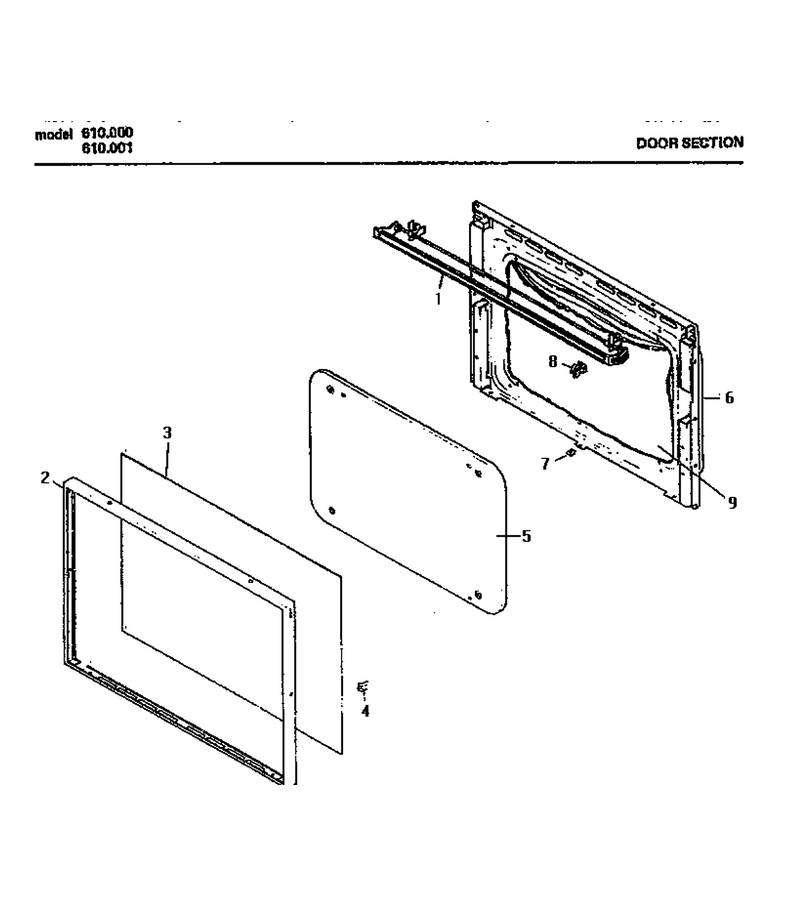

01 - Door

...
...
1
Door Handle Assembly WPL-M49D7
...
2
Screw (25) WPL-M1D540
...
3
Door Glass WPL-M51D19
...
4
Clip (1) WPL-M1D512
...
5
Screw WPL-WP90767
...
6
Not Available WPL-M72D33
...
7
U-Nut (25) WPL-M1D516
...
8
Spring, Handle Lock WPL-M2D263
...
9
Not Available WPL-M63D10

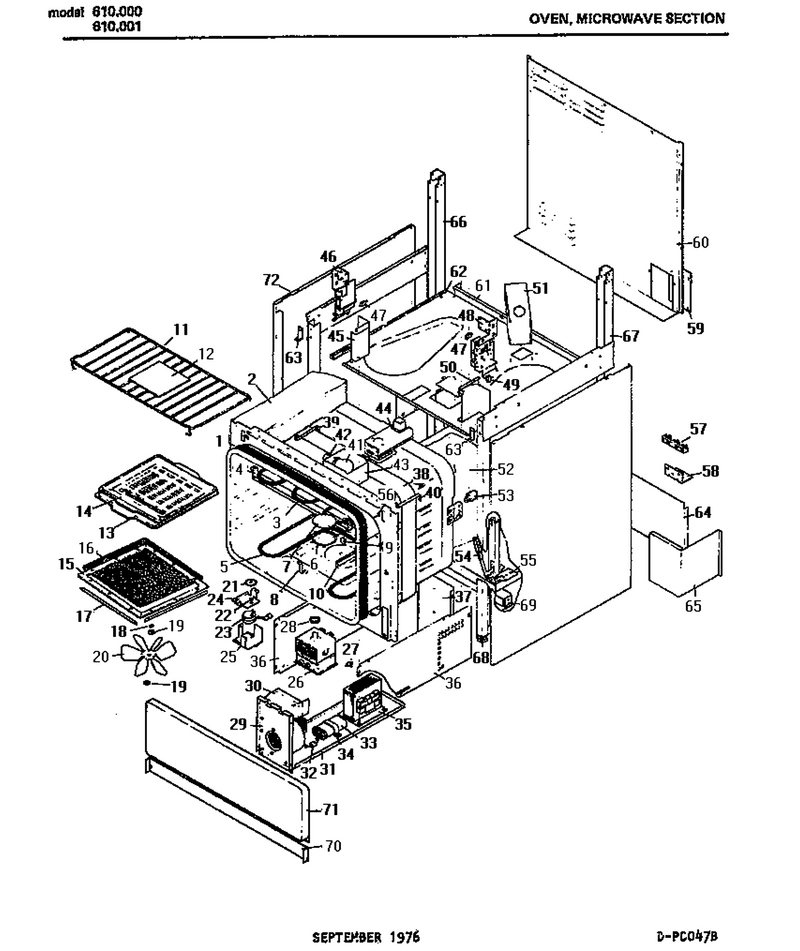

03 - Oven, Microwave

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D13
...
3
Broil Element WPL-M61D24
...
4
Brkt WPL-M52D72
...
5
Screw (25) WPL-M1D532
...
6
Screw (25) WPL-M1D532
...
7
Lens, Oven Light WPL-M6D93
...
8
Screw (25) WPL-M1D532
...
9
Hole Button WPL-M1D568
...
10
Screw (25) WPL-M1D532
...
11
Wire Rack WPL-M67D10
...
12
Shelf WPL-M50D22
...
13
Broiler Pan WPL-M67D1
...
14
Broiler Pan Insert WPL-M67D3
...
15
Screw-Frame Mtg (25) WPL-M1D585
...
16
Shelf WPL-M50D23
...
17
Gasket WPL-M25D41
...
18
.156 Dia Push On Clip WPL-M1D78
...
19
Washer WPL-M1D565
...
20
Stirrer Conv Kit WPL-M85D39
...
21
Disc, R.f. Stirrer WPL-M2D264
...
22
Retainer WPL-M2D269
...
23
Stirrer Motor WPL-M12D25
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP90767
...
26
Magnetron WPL-M57D16
...
27
Thermal Protector WPL-M4D3
...
28
R F Gasket WPL-M2D234
...
29
Screw WPL-WP90767
...
30
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
31
Component Tray WPL-M52D104
...
32
Nut WPL-WP488130
...
33
H V Cap .91 +-6% WPL-M10D27
...
34
Nut WPL-WP488130
...
35
Kit, Transformer WPL-M60D181
...
36
Screw WPL-WP90767
...
37
Screw WPL-WP90767
...
38
See Note Deflector, R.f. -- (cavity Front Panel) (no Longer Available) WPL-Y00000000
...
39
See Note Retainer Brkt, R.f. Deflector -- (upper Left) (no Longer Available) WPL-Y00000000
...
40
See Note Retainer Bracket, R.f. Deflector -- (3) (no Longer Available) WPL-Y00000000
...
41
Light Bulb WPL-8009
...
42
Socket Oven WPL-M5D113
...
43
Housing Frame WPL-M8D92
...
44
Vent Housing Asm WPL-M18D13
...
45
Screw WPL-WP90767
...
46
Washer (25) WPL-M1D586
...
47
Switch WPL-M14D85
...
48
Screw WPL-WP90767
...
49
Strike Assy. Kit WPL-M14D86
...
50
Oven Light Cover WPL-M8D91
...
51
Not Available WPL-M65D74
...
52
Not Available WPL-M63D12
...
53
Oven Spring WPL-M5D114
...
54
Screw (25) WPL-M1D532
...
55
No.10 T X 3/8`` Screw WPL-M1D539
...
56
Pin (25) WPL-M1D582
...
57
Screw (25) WPL-M1D587
...
58
Not Available WPL-M2D245
...
59
Screw WPL-WP90767
...
60
Screw WPL-WP90767
...
61
Screw WPL-WP90767
...
62
Screw WPL-WP90767
...
63
Screw WPL-WP90767
...
64
Screw WPL-WP90767
...
65
Screw WPL-WP90767
...
66
Screw WPL-WP90767
...
67
Screw WPL-WP90767
...
68
Foot WPL-M8D76
...
69
Screw WPL-WP90767
...
70
Screw WPL-WP90767
...
71
Panel WPL-M72D31
...
72
Lower Panel Avoc WPL-M82D54

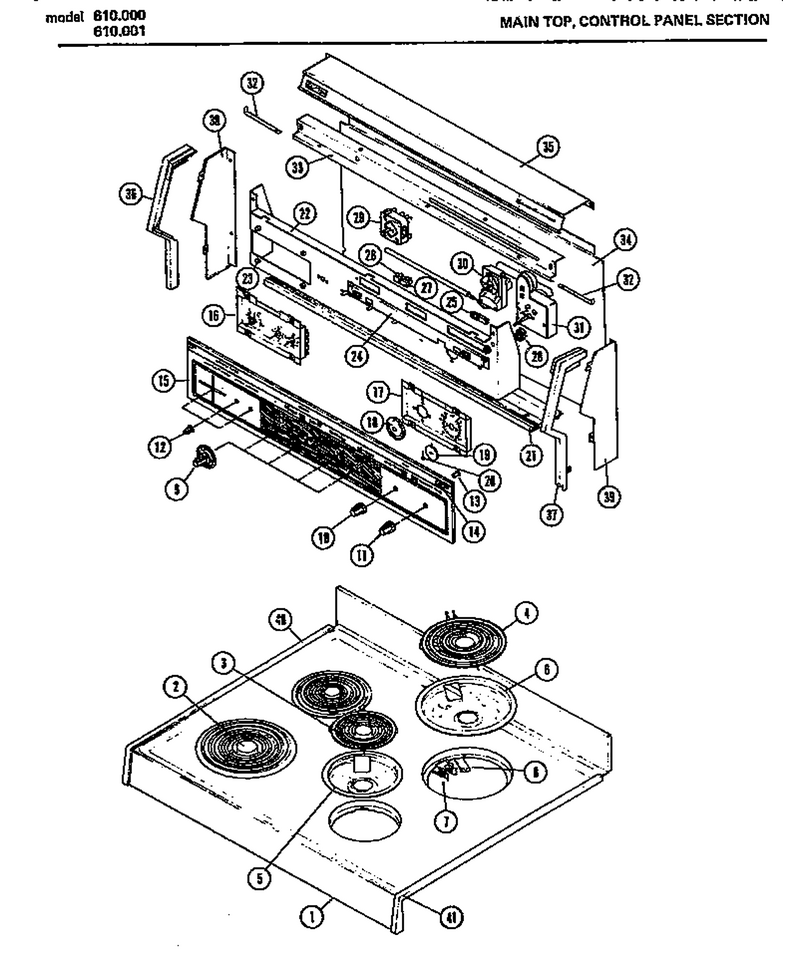

02 - Main Top, Control Panel

...
...
1
Not Available WPL-M82D63
...
2
Insert WPL-M2D267
...
3
Element WPL-M61D27
...
4
Elmnt-Surf WPL-WP3191454
...
5
Burner Bow WPL-51294P01
...
6
Bowl-Drip WPL-WPW10196405
...
7
Receptacle WPL-330031
...
8
Screw (25) WPL-M1D129
...
9
Knob, Surface Switch WPL-M6D107
...
10
Knob,thermostat WPL-M6D105
...
11
Knob Microwave WPL-M6D118
...
12
Knobs 3/pkg Kit WPL-M6D108
...
13
Button Light Switch WPL-M6D115
...
14
Push On Retainer (25) WPL-M1D566
...
15
Glass WPL-M51D14
...
16
Screw, Panel Mtg. WPL-M1D392
...
17
Screw, Panel Mtg. WPL-M1D392
...
18
Dial Thermostat WPL-M6D117
...
19
Pointer- WPL-M6D113
...
20
Pointer Outer WPL-M6D112
...
21
Screw (25) WPL-M1D540
...
22
Screw (25) WPL-M1D540
...
23
Nut (10) WPL-M1D562
...
24
Indicator Brkt WPL-M20D79
...
25
Lamp M9d47 WPL-51435P01
...
26
Fuse 20 A WPL-WPM0805101
...
27
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
28
Switch-Oven Light WPL-M14D84
...
29
Screw 8-32 (25) WPL-M1D536
...
30
Thermostat-Oven WPL-M18D10
...
31
Screw 8-32 (25) WPL-M1D536
...
32
Screw, Panel Mtg. WPL-M1D392
...
33
Screw, Panel Mtg. WPL-M1D392
...
34
Not Available WPL-M82D67
...
35
Top Cover WPL-M65D77
...
36
Screw (25) WPL-M1D534
...
37
Screw (25) WPL-M1D534
...
38
Side Cover Lt H-G WPL-M53D11
...
39
Screw WPL-WP90767
...
40
Screw WPL-WPW10348409
...
41
Screw WPL-WPW10348409
