Amana 6-SPH (BOM: P5435809R)

Model: 6-SPH (BOM: P5435809R)

Save Part Not Listed?
product name

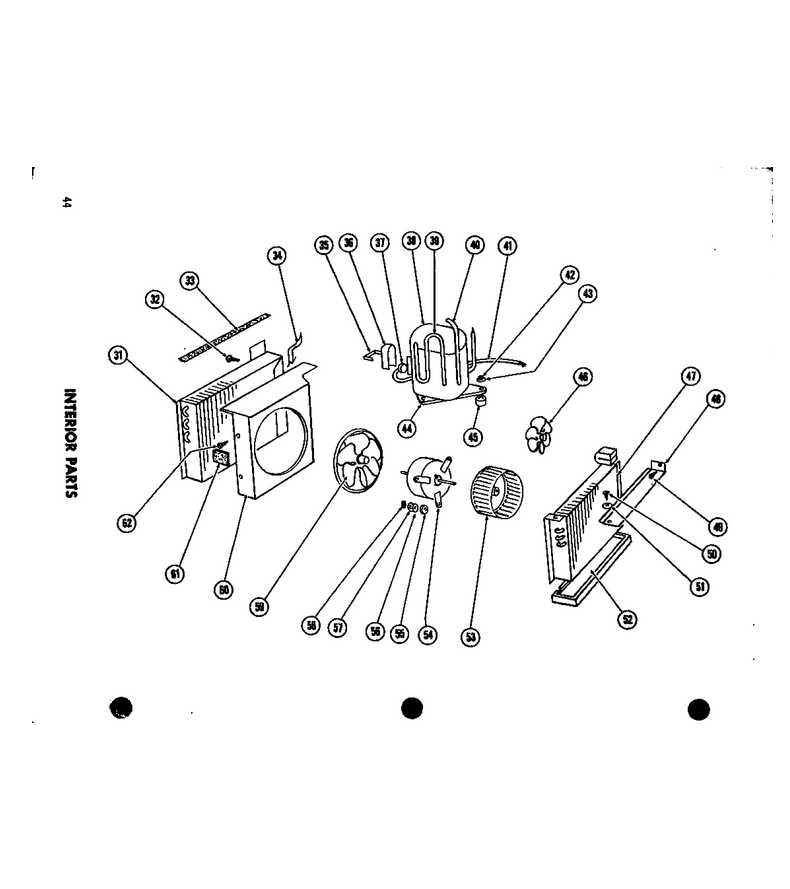

01 - Interior Parts

...
...
6p-5g/p54358-5r This Model Has An Alternate Fan Motor With Related Parts Changes. WPL-NOTE:
...
NI
Tie Brace WPL-B4792207
...
39
Tube Suct, Preformed, Rev Vlv WPL-C5871701
...
40
Tube, Disch, Preformed, Comp T WPL-C5871301
...
41
Wiring Harness Assembly, Solen WPL-B5134108
...
42
Sleeve, Compressor Mounting WPL-A4538801
...
43
Nut WPL-M0283610
...
44
Mounting Plate WPL-C5801301
...
45
Grommet WPL-B4793601
...
47
Evap Assy WPL-D5461501
...
49
Screw WPL-W11233072
...
50
Screw WPL-W11233072
...
52
Filler Block WPL-D5438301
...
53
Blower Wheel WPL-D5409401
...
54
Clamp WPL-M0102501
...
55
Grommet WPL-M0500501
...
56
Washer WPL-M0270519
...
57
Washer WPL-M0270504
...
58
Nut WPL-M0282009
...
59
Fan, Condenser WPL-C5801401
...
60
Shroud Condenser WPL-D5401301
...
61
Baffle, Condenser WPL-A4639501
...
62
Screw WPL-W11233072

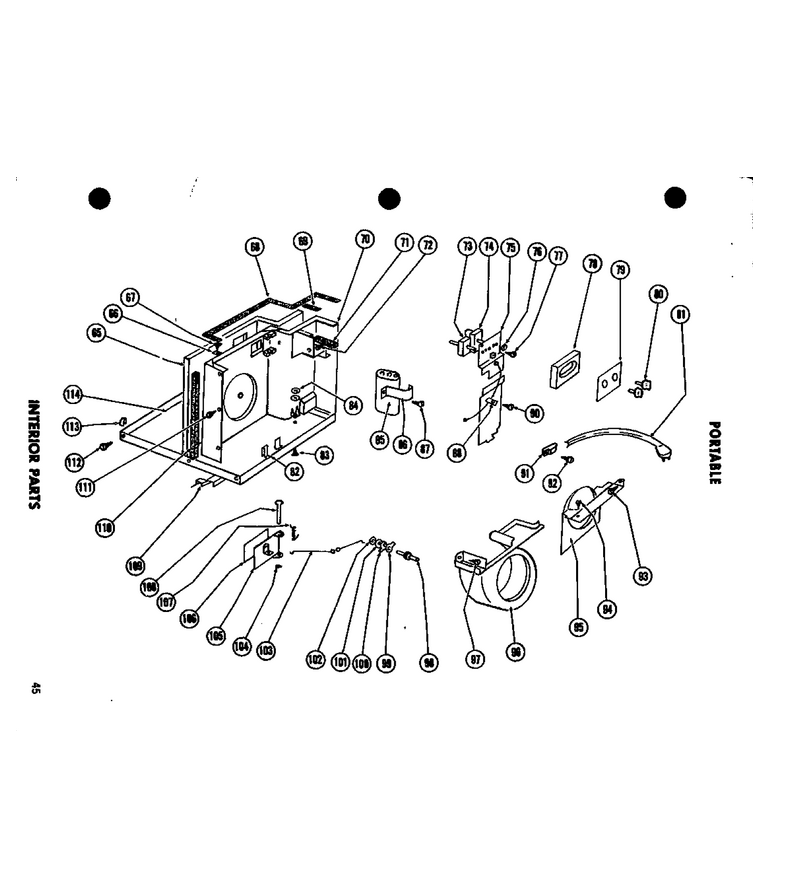

02 - Portable Interior Parts

...
...
11-2g/p54390-37r This Model Has An Alternate Compressor With Related Parts Changes. WPL-NOTE:
...
NI
Washer WPL-M0270504
...
65
Insulation WPL-D5404102
...
66
Speed Nut WPL-M0288210
...
67
Screw, Handle WPL-67006529
...
68
Gasket WPL-A3030302
...
69
Gasket WPL-A3030302
...
70
Partition Panel WPL-D5400804
...
72
Weld Nut WPL-M0292001
...
73
Rotary Switch WPL-B1101301
...
74
Thermostat WPL-B1101201
...
75
Panel-Control Mtg WPL-C5299302
...
76
Bushing WPL-A3073601
...
77
Screw WPL-M0232012
...
78
Escutcheon Spg. Pad WPL-B5152301
...
79
Escutcheon WPL-B5166607
...
80
Knob WPL-D7009803
...
81
Cord, Power WPL-Y20057501
...
82
Spring WPL-A4634102
...
83
Screw WPL-M0204515
...
84
Nut WPL-WP487939
...
85
Capacitor, Run WPL-C5825005
...
86
Strap-Capacitor WPL-A3335001
...
87
Screw WPL-W11233072
...
88
Clamp WPL-M0102702
...
89
Panel WPL-C5804602
...
90
Screw WPL-W11233072
...
91
Clamp WPL-M0103901
...
92
Screw WPL-W11233072
...
94
Screw WPL-W11233072
...
96
Scroll WPL-D5409101
...
97
Screw WPL-W11233072
...
110
Gasket WPL-10839712
...
111
Screw WPL-M0219233
...
112
Screw WPL-W11233072
...
113
Speed Nut WPL-M0288411
...
114
Base Pan WPL-D5431802
