Amana 5M11TA (BOM: P1214601R)

Model: 5M11TA (BOM: P1214601R)

Save Part Not Listed?
product name

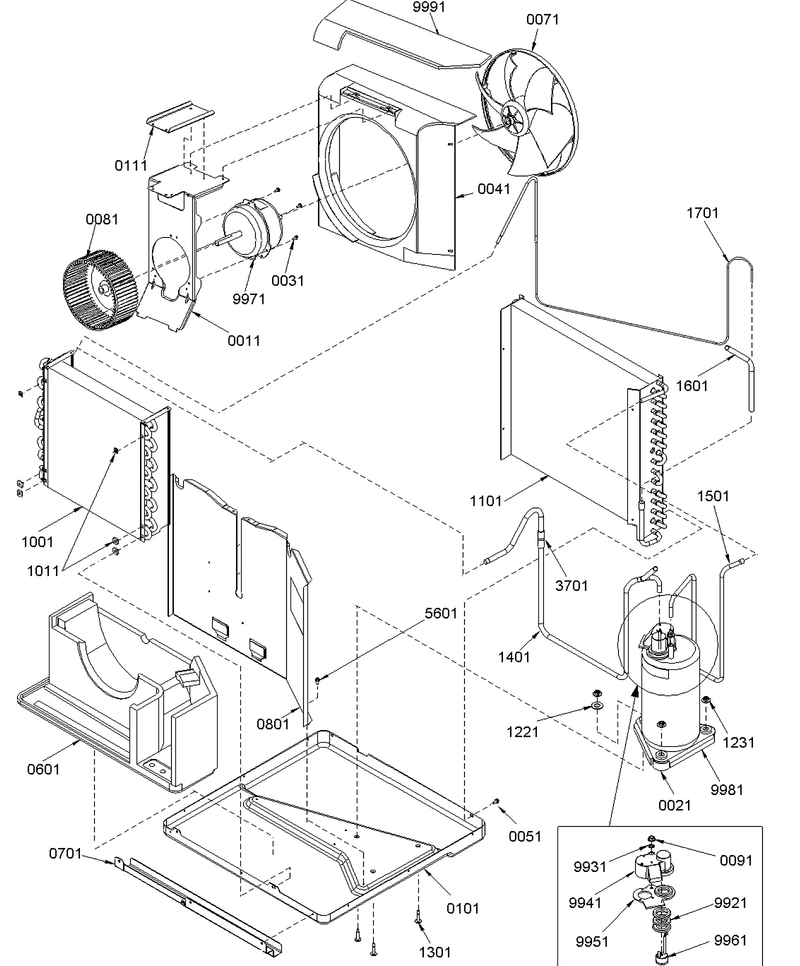

02 - Chassis Assembly

...
...
NI
Insulation, Shroud WPL-20076902
...
11
Bracket, Fan WPL-20053905
...
21
Grommet WPL-C6466001
...
31
Screw WPL-WP308544
...
41
Shroud-Condenser WPL-20051203Q
...
71
Fan Bld, Condenser WPL-20051601
...
81
Wheel, Blower WPL-10558601
...
91
Nut WPL-A9036601
...
100
Assy, Evaporator Coil WPL-20068205
...
101
Basepan WPL-20053703
...
110
Assy, Condenser Coil WPL-20068303
...
111
Bracket, Support WPL-20091201
...
122
Washer WPL-20113001A
...
130
Bolt, Shoulder WPL-20109101
...
140
Assy, Suction Tube WPL-20059802
...
150
Tube, Discharge WPL-20091101
...
160
Strainer WPL-B1394401
...
170
Assy, Capillary WPL-20058704
...
601
Scroll, Blower Btm WPL-20055303
...
701
Rail-Bottom WPL-Y20055201
...
801
Panel, Partition WPL-20053806
...
994
Cover Terminal WPL-C6470701
...
995
Gasket, Term. Cover WPL-B1434901
...
996
Overload WPL-D6961652
...
997
Motor-Fan WPL-20059701
...
998
Compressor WPL-11101503H

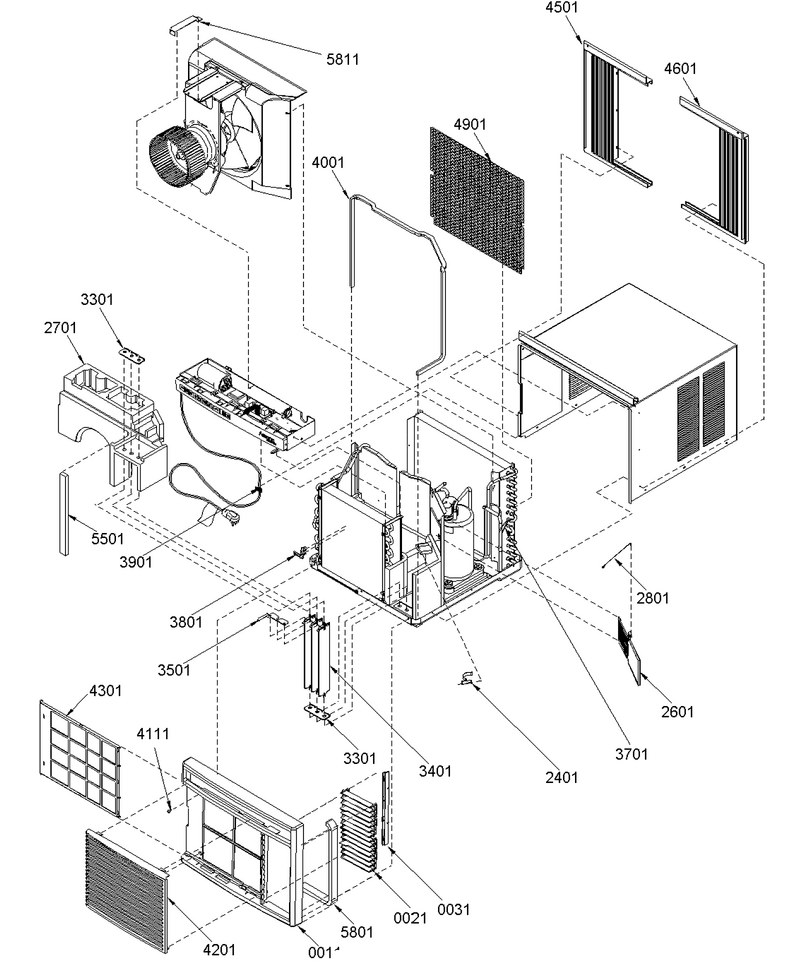

01 - Chassis Assembly

...
...
11
Front Frame WPL-20059001
...
21
Louver, Horizontal WPL-20051001
...
31
Retainer, Louver WPL-20051102
...
240
Spring, Exh Door WPL-20055502
...
260
Door, Exhaust WPL-20051302
...
270
Scroll, Blower Top WPL-Y20055403
...
280
Actuator, Exh Door WPL-Y20055605
...
330
Base, Pivot WPL-Y20051501
...
340
Louver, Vert WPL-20111201
...
350
Gang Bar, Vertical Louver WPL-20051401
...
380
Clip, T`stat WPL-20075601
...
390
Clamp, Speed WPL-M0103904
...
420
Insert, Portable WPL-20050301
...
430
Filter, Portable Rac WPL-20055901
...
450
Curt Frame Assy-Lh WPL-20055001
...
460
Curt Frame Assy-Rh WPL-20055002Q
...
490
Grille, Condenser WPL-Y20083201
...
581
Tie Strap WPL-20082201

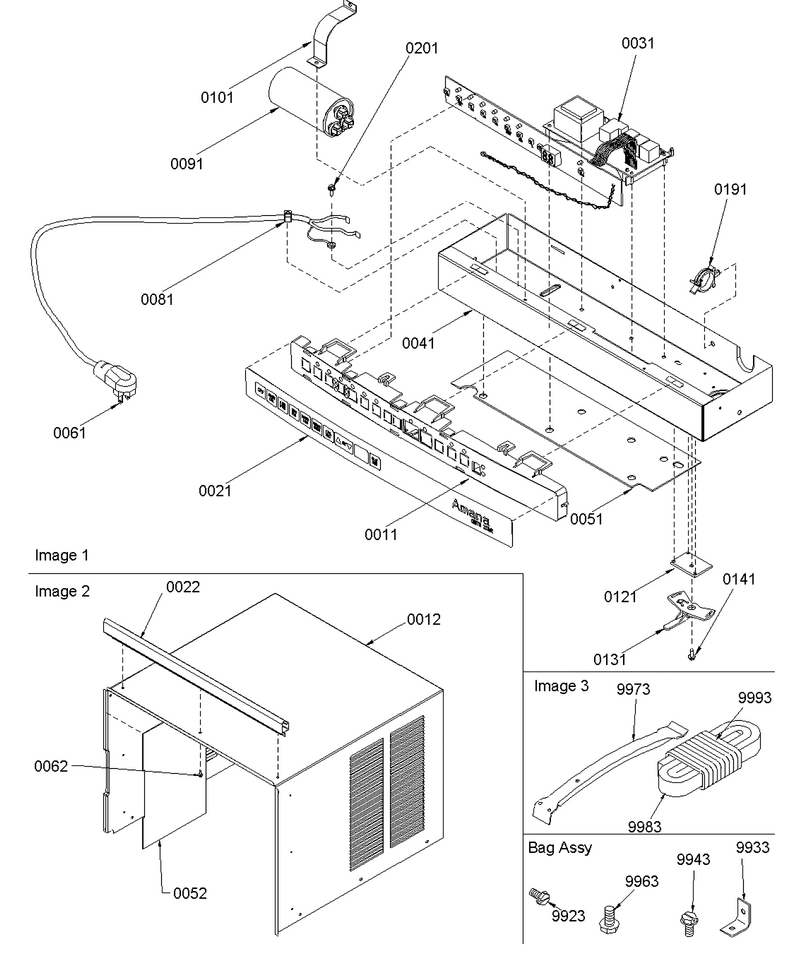

03 - Control & Outer Case Assembly

...
...
NI
Kit-Window Mounting-Curtains WPL-10228312Q
...
11
Housing, Control WPL-20052801
...
12
Outercase Bnd WPL-20050002BND
...
21
Overlay, Qz (portable) WPL-Y20057701
...
22
Rail-Top WPL-20055101V
...
31
Board,p.c. Control WPL-20103504
...
41
Box-Control WPL-Y20054601
...
51
Insul, Closed Cell Foam WPL-20069801
...
52
Insulation, 1/8 Closed Cell WPL-20059601
...
61
Cord, Power WPL-Y20057501
...
81
Clamp, Speed WPL-M0103904
...
91
Capacitor, Round WPL-D6789062
...
101
Strap, Capacitor WPL-C6300511
...
121
Blocking, Indexing Vent WPL-20050701
...
131
Lever-Control, Vent WPL-20050801
...
141
Screw-Sm WPL-M0245104
...
191
Clip-Guide WPL-M0118702
...
201
Screw WPL-M0227803
...
992
Screw WPL-M0213032
...
993
Brkt, Window Stop WPL-10661401
...
994
Screw WPL-M0200001
...
996
Screw WPL-M0211020
...
998
Gasket WPL-10839702

...
...
0
Mnl, Tech Svc Rac See Note WPL-RT4100024
...
1
Mnl, Pts Rac WPL-RP4100009
...
31
Mnl, Owners WPL-Y20058002
...
41
Instr-Install WPL-20058201
