Amana 550.017

Model: 550.017

Save Part Not Listed?
product name

01 - Page 13

...
...
1
Not Available WPL-M1D195
...
2
Allen Wrench WPL-M2D58
...
3
Stirrer Motor Kit WPL-M12D5
...
4
Spacer WPL-M2D156
...
5
Str Pan Assy WPL-M44D2
...
6
5/16 Flat Washer WPL-M1D105
...
7
Nut WPL-WP488130
...
8
Not Available WPL-M2D42
...
9
Gasket M2d36 WPL-M2D36
...
10
Not Available WPL-M1D103
...
11
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
12
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
13
Nut WPL-WP488130
...
14
See Note Not Available WPL-Y00000000
...
15
R F Capacitor WPL-M10D1
...
16
Insulator WPL-M2D72
...
17
Air Duct WPL-30107P02
...
18
Not Available WPL-M20D28
...
19
Not Available WPL-M65D9
...
20
Nut WPL-WP488130
...
21
Switch Kit WPL-M14D12
...
22
Spring Tab WPL-M4D15
...
23
Switch WPL-M14D28
...
24
Bkt Sw Mtg WPL-M2D108
...
25
Door Shims WPL-M2D71
...
26
Nut WPL-WP488130
...
27
Nut K WPL-M0282005
...
28
See Note Not Available WPL-Y00000000
...
29
Shelf WPL-M50D3
...
30
No.6 Pan Hd Machine Screw WPL-M1D69
...
31
No.6 Pan Hd Machine Screw WPL-M1D69
...
32
Bushing WPL-M2D117
...
33
Not Available WPL-M75D2
...
34
Door Asm Kit WPL-M68D40
...
35
Screw WPL-M1D8
...
36
Screw (25) WPL-M1D268
...
37
Pusbutton Timer Assembly WPL-M59D45
...
38
Dial Timer WPL-M58D5
...
39
Filter WPL-M48D1
...
40
Base WPL-M79D8
...
41
Screw (25) WPL-M1D185
...
42
Not Available WPL-M20D34
...
43
Nut WPL-WP488130
...
44
Screw (25) WPL-M1D278
...
45
Not Available WPL-M16D21
...
46
Screw (25) WPL-M1D130
...
47
Auto Tranx WPL-M60D22
...
48
Ground Lead Kit WPL-M5D47
...
49
Screw WPL-M0202325
...
50
Shelf-W/snt Kit WPL-M50D35
...
51
Strain Relief WPL-8536977
...
52
Not Available WPL-M26D11
...
53
Screw WPL-M0202325
...
54
Screw WPL-M0202325
...
55
Screw WPL-M0202325
...
56
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
57
Snap Bushing K WPL-M2D1
...
58
Fuse Holder Bkt WPL-M2D119
...
59
Fuse- 3 Am WPL-Y0078733
...
60
Fuseholder WPL-M5D17
...
61
Screw (25) WPL-M1D5
...
62
Lamp WPL-M9D10
...
63
Nut K WPL-M0282005
...
64
Not Available WPL-M1D241
...
65
Base WPL-M79D6
...
66
Lock Nut (25) WPL-M1D119
...
67
Switch WPL-M14D13
...
68
Screw (25) WPL-M1D159
...
69
Nut Clip (25) WPL-M1D126
...
70
Spacer Nut(10) WPL-M1D217
...
71
Bushing, Snap WPL-A3293504
...
72
Screw (25) WPL-M1D36
...
73
Blower Wheel WPL-M35D4
...
74
Housing, Blower Motor WPL-M65D22
...
75
Blower Motor WPL-M40D1
...
76
Fuse 250 Volt, 20 Amp WPL-M4D25
...
77
Heat Sink WPL-M20D33
...
78
Nut WPL-M1D143
...
79
Blower Assembly WPL-M41D2
...
80
R F Gasket WPL-M2D15

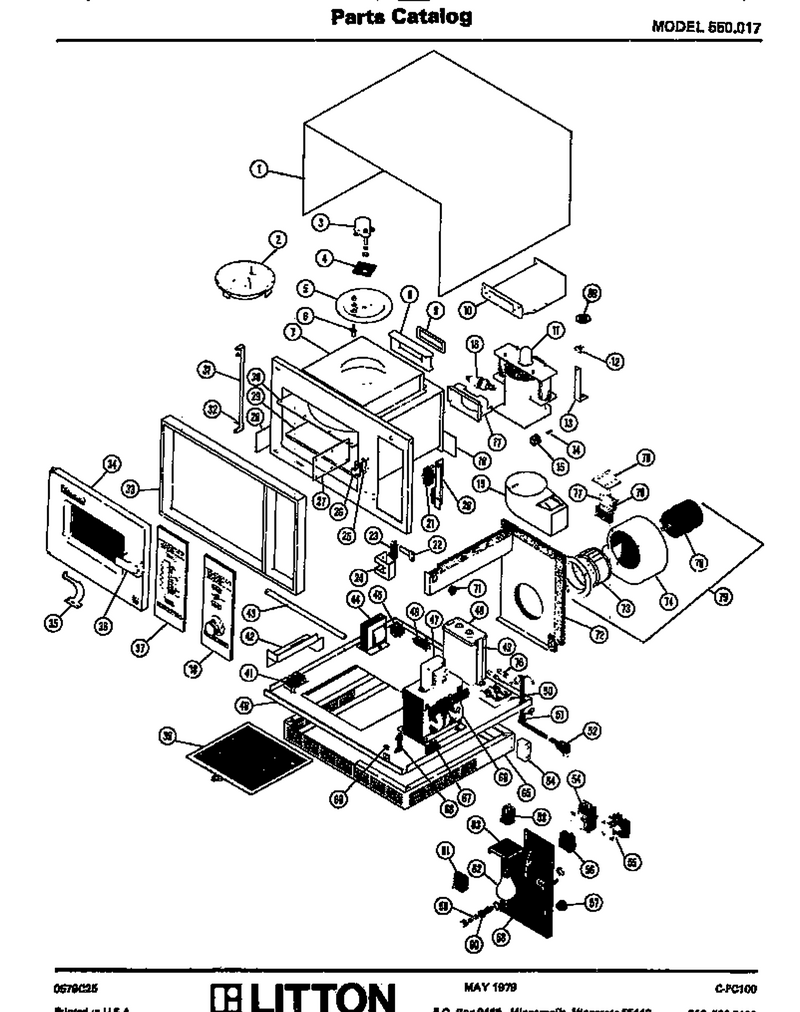

Schematic Image Zoomed
