Amana 550.014

Model: 550.014

Save Part Not Listed?
product name

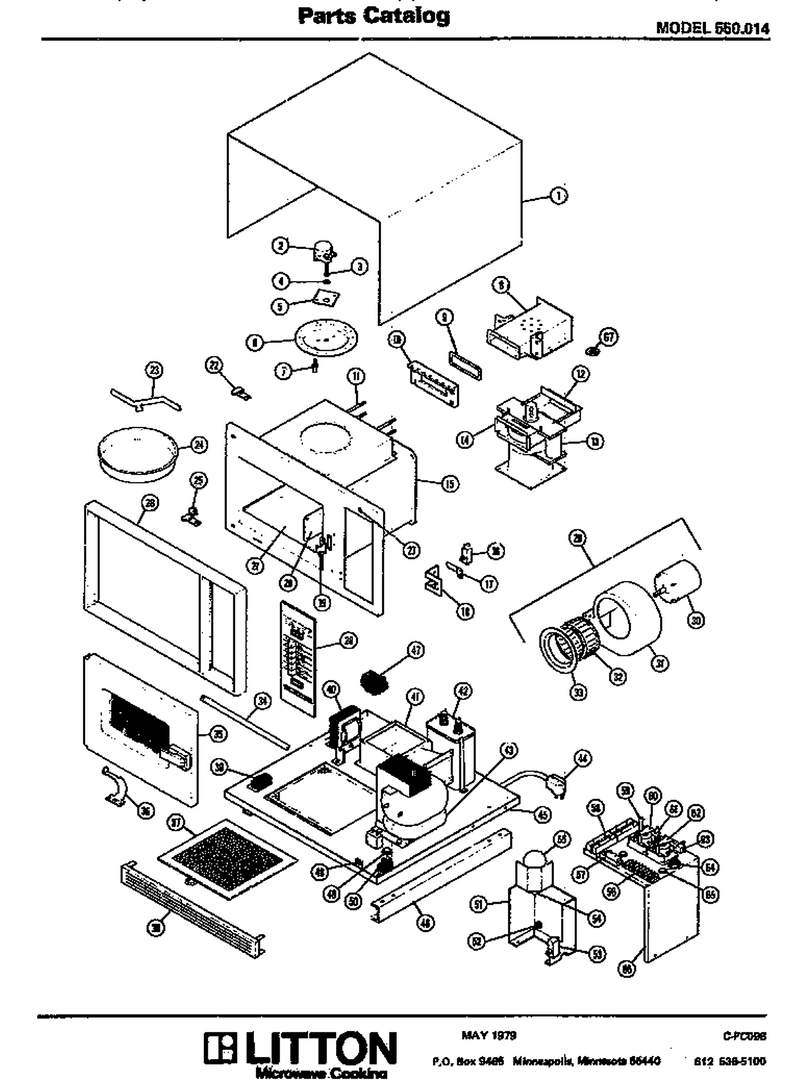

01 - Page 11

...
...
1
Not Available WPL-M80D7
...
2
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
3
Washer (25) WPL-M1D12
...
4
R.f. Gasket WPL-94072P01
...
5
Spacer WPL-M2D156
...
6
Str Pan Assy WPL-M44D2
...
7
Antenna Pin WPL-M2D37
...
8
Not Available WPL-M20D10
...
9
Gasket M2d36 WPL-M2D36
...
10
Not Available WPL-M2D42
...
11
Not Available WPL-M1D279
...
12
Air Duct WPL-30107P02
...
13
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
14
Air Duct WPL-29763P02
...
15
Teflon Bushing WPL-M2D56
...
16
Switch WPL-M14D28
...
17
Spring Tab WPL-M4D15
...
18
Bkt Sw Mtg WPL-M2D108
...
19
Door Shims WPL-M2D71
...
20
Nut K WPL-M0282005
...
21
Shelf WPL-M50D3
...
22
Hinge, R.h. WPL-M8D33
...
23
Nut K WPL-M0282005
...
24
Stirrer Cover WPL-M45D3
...
25
No.6 Pan Hd Machine Screw WPL-M1D69
...
26
T Bolt (25) WPL-M1D15
...
27
Nut Clip (25) WPL-M1D126
...
28
Switch WPL-M14D28
...
29
Nut WPL-WP488130
...
30
Nut WPL-WP488130
...
31
Housing, Blower Motor WPL-M65D22
...
32
Blower Wheel WPL-M35D4
...
33
Not Available WPL-M20D4
...
34
Screw (25) WPL-M1D102
...
35
Hinge Bkt WPL-M2D109
...
36
See Note Shim, Not Available WPL-Y00000000
...
37
Filter WPL-M48D1
...
38
Front Grill WPL-M52D23
...
39
Nut K WPL-M0282005
...
40
Transformer, Fil WPL-M60D24
...
41
Wave Guide WPL-M65D17
...
42
Capacitor WPL-M10D58
...
43
See Note Use Power Supply Kit M8d23 WPL-Y00000000
...
44
Cord Set WPL-M26D4
...
45
See Note Not Avilable WPL-Y00000000
...
46
Rail Asm. WPL-M52D11
...
47
Not Available WPL-M4D28
...
48
Nut Clip (25) WPL-M1D126
...
49
Clamp-Pwr Cord WPL-M2D54
...
50
Switch WPL-M14D13
...
51
Switch Mtg Brkt WPL-M20D12
...
52
Snap Bushing K WPL-M2D1
...
53
Switch Kit WPL-M14D12
...
54
Screw (25) WPL-M1D268
...
55
Lamp WPL-M9D10
...
56
Not Available (25) WPL-M1D206
...
57
Nut K WPL-M0282005
...
58
Nut K WPL-M0282005
...
59
Resistor WPL-M3D2
...
60
Nut WPL-WP488130
...
61
Fuseholder WPL-M5D17
...
62
Nut WPL-WP488130
...
63
Screw (25) WPL-M1D159
...
64
Relay WPL-M16D12
...
65
Snap Bushing K WPL-M2D1
...
66
Nut WPL-WP488130
...
67
M95d11-Centigrade Thermo WPL-M95D11
Schematic Image Zoomed
