Amana 5445.300

Model: 5445.300

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Lock Washer WPL-M0272803
...
2
Roller WPL-M2D174
...
3
Not Available WPL-M79D64
...
4
No.10 T X 3/8`` Screw WPL-M1D479
...
5
Capacitor WPL-M10D68
...
6
Bracket WPL-10825501
...
7
Fuse Holder WPL-M4D71
...
8
Molded Foot(4per Pkg.) WPL-M2D233
...
9
Lamp Holder WPL-M5D240
...
10
Lamp WPL-M9D85
...
11
Screw (1) WPL-M1D752
...
12
Reflector Light WPL-M7D182
...
13
Screw (25) WPL-M1D484
...
14
Strain Relief (10) WPL-M1D749
...
15
Not Available WPL-M1D542
...
16
Lockwasher (25) WPL-M1D577
...
17
Stud Pin WPL-M2D333
...
18
Insert, Stirrer WPL-M2D332
...
19
Stirrer Blade Kit WPL-M35D19
...
20
Cover WPL-M45D9
...
21
Air Baffle Left WPL-M65D170
...
22
Screw (25) WPL-M1D107
...
23
Hinge Assy WPL-M8D48
...
24
Not Available WPL-M2D170
...
25
Fillerx WPL-M55D6
...
26
Adhesive WPL-W10841140
...
27
Gasket-Rf WPL-M2D296
...
28
Magnetron 2m172jd Kit WPL-M57D18
...
29
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
30
Screw WPL-WPW10068250
...
31
Ia Probete WPL-34005P01
...
32
No.3/8-32 Hex Nut (25) WPL-M1D615
...
33
Nut K WPL-M0282005
...
34
Ia Fan WPL-M35D3
...
35
Screw WPL-WP90767
...
36
Inlet Brkt Plate WPL-M8D128
...
37
Clip (1) WPL-M1D512
...
38
Slide Latch WPL-M20D59
...
39
Washer (25) WPL-M1D361
...
40
Oval Bearing WPL-M2D175
...
41
Bearing WPL-M2D176
...
42
Ia Screw No.10-32 WPL-M1D370
...
43
Ia Screw No.10-32 WPL-M1D370
...
44
Screw, Timer Mtg. WPL-M1D604
...
45
Controller Assy WPL-M22D26
...
46
Not Available WPL-M9D83
...
47
Not Available WPL-M7D345
...
48
Dial Vari-Cook WPL-M6D203
...
49
Door Hinge WPL-M8D53
...
50
Knob Vari M6d169 WPL-M6D169
...
51
Ia Spring WPL-M2D168
...
52
Dr Rel Bar-Uas-S/s-35663p01x WPL-M11D12
...
53
Door Asm WPL-M68D87
...
54
Door Handle WPL-M7D269
...
55
Screw (25) WPL-M1D473
...
56
H.v. Lead No. 32 WPL-M5D212
...
57
Not Available WPL-M2D172
...
58
Insulator Cap WPL-M5D161
...
59
Nut (25) WPL-M1D728
...
60
Foot, Outer Case WPL-C8960601
...
61
Termnl Block WPL-M4D55
...
62
Resistor, Bleeder-Line Filter WPL-M3D45
...
63
Wire Clip WPL-B5667304
...
64
Chassis Bottom WPL-M80D71

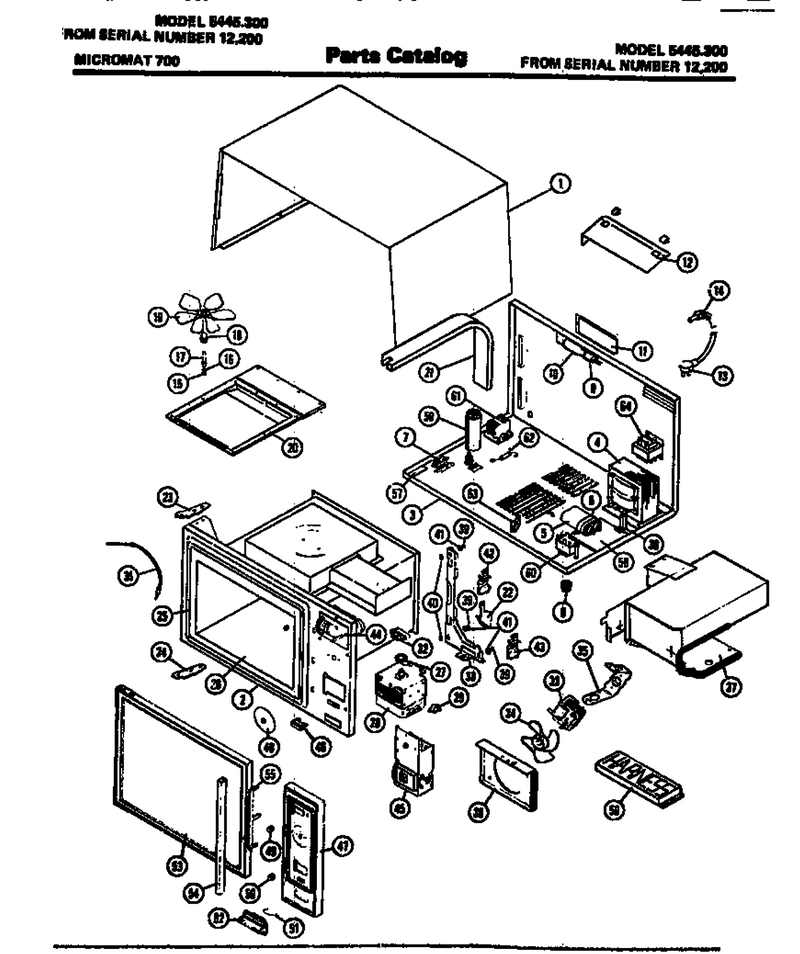

Schematic Image Zoomed
