Amana 540.000

Model: 540.000

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Screw, Base Mtg. WPL-M1D663
...
2
Trim, Outer Case WPL-M75D33
...
3
Bezel Door WPL-M6D167
...
4
Button, Door Release WPL-31990P01
...
5
Not Available WPL-M77D70
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Not Available WPL-M65D115
...
9
Not Available WPL-M65D116
...
10
Not Available WPL-M65D120
...
11
Not Available WPL-M65D114
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Cover Lamp WPL-M7D309
...
14
Wire Harness WPL-M5D186
...
15
Light Bulb WPL-8009
...
16
Brace Upper WPL-M20D102
...
17
Fuse 20 A WPL-WPM0805101
...
18
Ia Screw WPL-M1D329
...
19
Bush, Strain Relf (10) WPL-M1D600
...
20
No.8 T X 3/8`` Screw WPL-M1D402
...
21
Stirrer Motor Kit WPL-M12D39
...
22
R F Gasket Kit WPL-M2D152
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
Washer (25) WPL-M1D617
...
25
Latch Slide WPL-M20D101
...
26
Bearing Latch WPL-M2D327
...
27
Ia Screw No.10-32 WPL-M1D370
...
28
Ia Screw No.10-32 WPL-M1D370
...
29
Assy, Switch WPL-M14D75
...
30
Gasket-Rf WPL-M2D296
...
31
Kit, Magnetron WPL-M57D20
...
32
Screw Thrm WPL-M1D666
...
33
Washer WPL-M1D565
...
34
Stirrer Blade Kit WPL-M35D18
...
35
.156 Dia Push On Clip WPL-M1D78
...
36
Stirrer Cov WPL-M45D12
...
37
Not Available WPL-M20D104
...
38
Fan, Blower Kit WPL-M35D16
...
39
Nut K WPL-M0282005
...
40
Screw, Base Mtg. WPL-M1D663
...
41
Lower Trim WPL-M75D55
...
42
Support, Trim Mtg. WPL-M52D135
...
43
Not Available WPL-M79D44
...
44
Triac Assy Kit WPL-M16D50
...
45
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
46
Base, Right WPL-M79D45
...
47
Capacitor-.69 WPL-59001160
...
48
Capacitor Brkt WPL-M20D60
...
49
Kit, Diode WPL-M3D71
...
50
Transformer WPL-M60D54
...
51
Air Duct Cont WPL-M65D198
...
52
Not Available WPL-M65D119
...
53
Back Platex WPL-M7D314
...
54
Relay, 60 Sec WPL-M16D49
...
55
No.6 Thread Forming Screw WPL-M1D627
...
56
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
57
Shelf WPL-M50D29
...
58
Ia Probete WPL-34005P01
...
59
Rack WPL-29888P01
...
60
H V Barrier WPL-M2D329
...
61
Varistor Asy WPL-M3D33
...
62
Ia Screw WPL-M1D329
...
63
No.4-40 Pan Hd Mach Scr WPL-M1D6

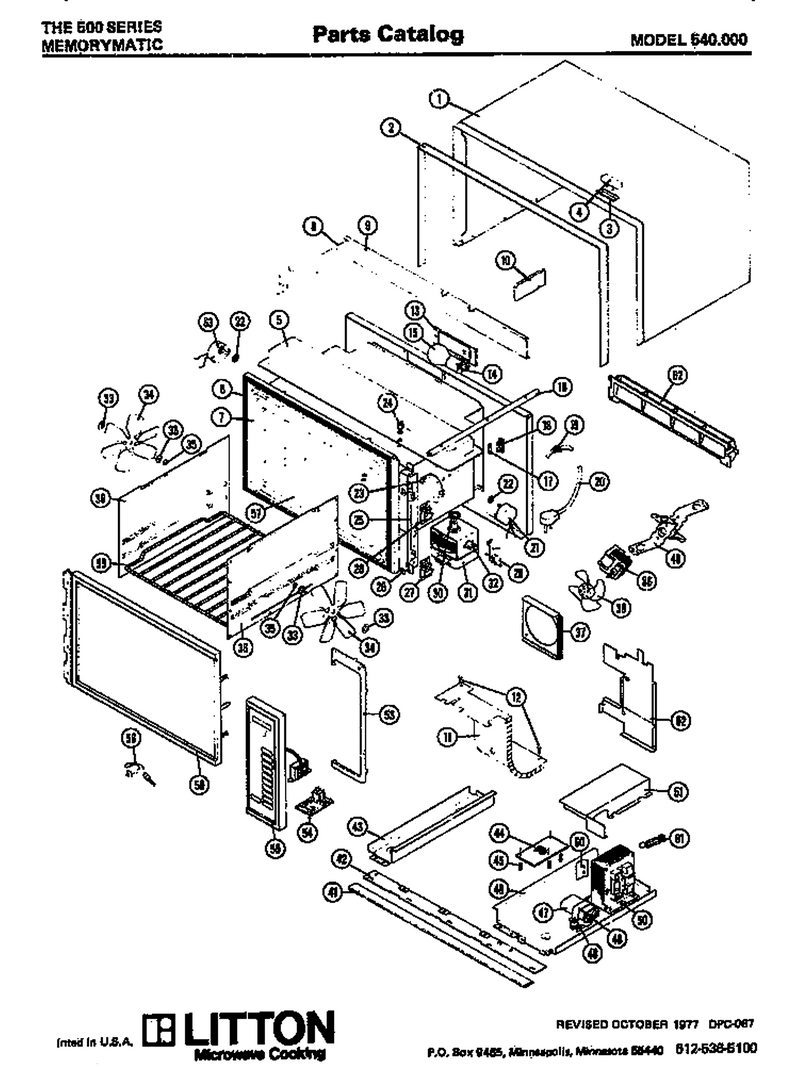

Schematic Image Zoomed
