product name

Amana 420.500

Model: 420.500

Save Part Not Listed?
product name

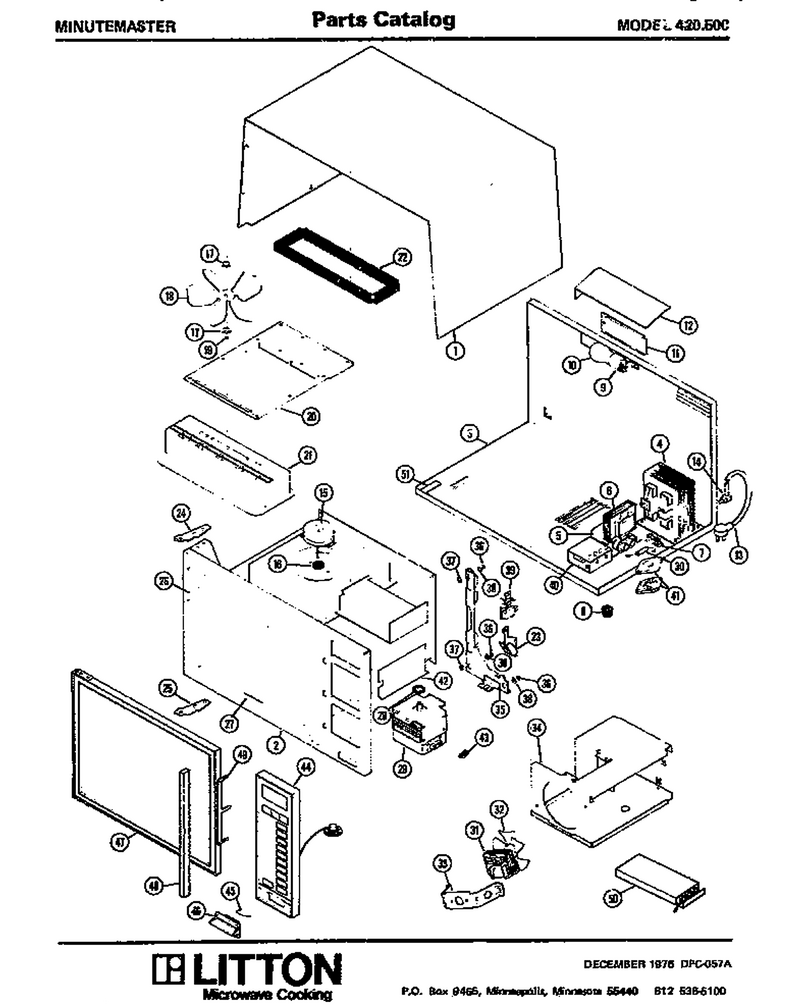

01 - Page 1

...
...
1
Screw(25) WPL-M1D445
...
2
No.8 Ab X 1/2`` Screw WPL-M1D358
...
3
Not Available WPL-M79D39
...
4
Transformer WPL-M60D54
...
5
Capacitor-.69 WPL-59001160
...
6
Filament Transformer WPL-M60D59
...
7
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
8
Foot WPL-M2D179
...
9
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
10
Light Bulb WPL-8009
...
11
Lamp Cover WPL-M7D170
...
12
Reflector Light WPL-M7D182
...
13
Power Cord WPL-1731300202
...
14
Bush, Strain Relf (10) WPL-M1D600
...
15
Stirrer Motor Kit WPL-M12D21
...
16
R F Gasket Kit WPL-M2D152
...
17
Spcr-Stir WPL-M2D26
...
18
Stirrer Blade Kit WPL-M35D11
...
19
.156 Dia Push On Clip WPL-M1D78
...
20
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
21
Exhaust Duct, Cavity WPL-M65D105
...
22
Not Available WPL-M25D31
...
23
Screw (25) WPL-M1D107
...
24
Hinge Assy WPL-M8D48
...
25
Hinge-Bottom WPL-M8D49
...
26
Fillerx WPL-M55D6
...
27
Shelf W/rtv Kit WPL-M50D14
...
28
Gasket-Rf WPL-M2D296
...
29
Magnetron Assembly WPL-M57D1B
...
30
Kit, Diode WPL-M3D71
...
31
Nut K WPL-M0282005
...
32
Fan, Blower Kit WPL-M35D16
...
33
Blower Brkt.kit WPL-M20D89
...
34
Air Duct, Exhaust WPL-M65D102
...
35
Brkt-Latch Slide WPL-M20D92
...
36
Washer (25) WPL-M1D361
...
37
Oval Bearing WPL-M2D175
...
38
Bearing WPL-M2D176
...
39
Switch Assy M14d123 WPL-92547P01
...
40
No.6 Thread Forming Screw WPL-M1D627
...
41
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
42
No.8 Ab X 1/2`` Screw WPL-M1D358
...
43
Cutout-Thermal-Control WPL-31866P01
...
44
Net-Kit-Ti WPL-M85D85
...
45
Ia Spring WPL-M2D168
...
46
Bar WPL-M11D37
...
47
Door Assyx WPL-M68D71
...
48
Ia Screw 8b M1d618 WPL-M1D618
...
49
Hook, Door WPL-M8D52
...
50
Molex Plug WPL-Y0042094
...
51
Not Available WPL-M2D172
