Amana 418.001

Model: 418.001

Save Part Not Listed?
product name

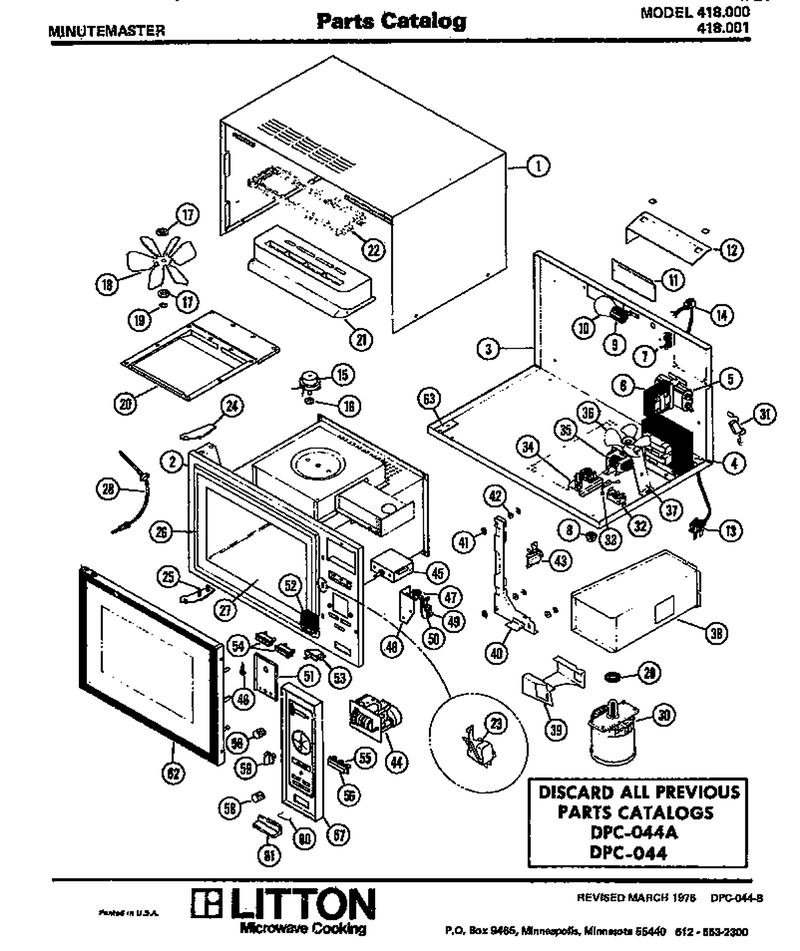

01 - Page 1

...
...
1
Not Available WPL-M80D44
...
2
Not Available WPL-M77D46
...
3
Not Available WPL-M79D13
...
4
Kit, Transformer WPL-M60D181
...
5
Capacitor-.69 WPL-59001160
...
6
Screw (25) WPL-M1D484
...
7
Fuse 20 A WPL-WPM0805101
...
8
Screw (25) WPL-M1D21
...
9
Lamp Socket & Bracket Assembly WPL-M5D106
...
10
Light Bulb WPL-8009
...
11
No.8 Ab X 1/2`` Screw WPL-M1D358
...
12
Reflector Light WPL-M7D182
...
13
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
14
Strain Relief (10) WPL-M1D365
...
15
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
16
R F Gasket Kit WPL-M2D152
...
17
Spcr-Stir WPL-M2D26
...
18
Stirrer Blade Kit WPL-M35D11
...
19
.156 Dia Push On Clip WPL-M1D78
...
20
Cover WPL-M45D9
...
21
Exhaust Duct, Cavity WPL-M65D34
...
22
Not Available WPL-M25D31
...
23
Assy, Switch WPL-M14D75
...
24
Nut, Hinge Mtg WPL-M1D357
...
25
Nut, Hinge Mtg WPL-M1D357
...
26
Fillerx WPL-M55D6
...
27
Shelf W/rtv Kit WPL-M50D14
...
28
Temp Probe Assy WPL-M90D15
...
29
R F Gasket WPL-M2D35
...
30
Magnetron Assembly WPL-M57D9
...
31
Nut WPL-WP488130
...
32
No.8 T X 3/8`` Screw WPL-M1D402
...
33
Resistor Asm WPL-M3D21
...
34
Nut K WPL-M0282005
...
35
Blower Motor Kit WPL-M12D33
...
36
Ia Fan WPL-M35D3
...
37
Screw (25) WPL-M1D185
...
38
Not Available WPL-M94D27
...
39
Not Available Sy WPL-M65D33
...
40
Screw (25) WPL-M1D212
...
41
Oval Bearing WPL-M2D175
...
42
Bearing WPL-M2D176
...
43
Switch Assy M14d123 WPL-92547P01
...
44
No.8 T X 3/8`` Screw WPL-M1D402
...
45
No.8 T X 3/8`` Screw WPL-M1D402
...
46
Not Available WPL-M2D258
...
47
Not Available WPL-M5D122
...
48
Not Available WPL-M2D259
...
49
Switch WPL-M14D93
...
50
No.4-40 Twin Whiz-Lock Nut WPL-M1D374
...
51
Panel, Indicator WPL-M8DB3
...
52
Screw, Door Panel Mtg WPL-M1D444
...
53
Switch Cook/temp WPL-M14D78
...
54
Indicator Light WPL-M9D28
...
55
Button WPL-M6D103
...
56
Not Available WPL-M2D260
...
57
Screw (25) WPL-M1D549
...
58
Knob WPL-M6D91
...
59
Knob, Controller WPL-M6D104
...
60
Ia Spring WPL-M2D168
...
61
Handle Door Releasex WPL-M11D32
...
62
Nla (see D-Pb17) WPL-M27D108
