Amana 416.001

Model: 416.001

Save Part Not Listed?
product name

Popular Parts

Popular Parts

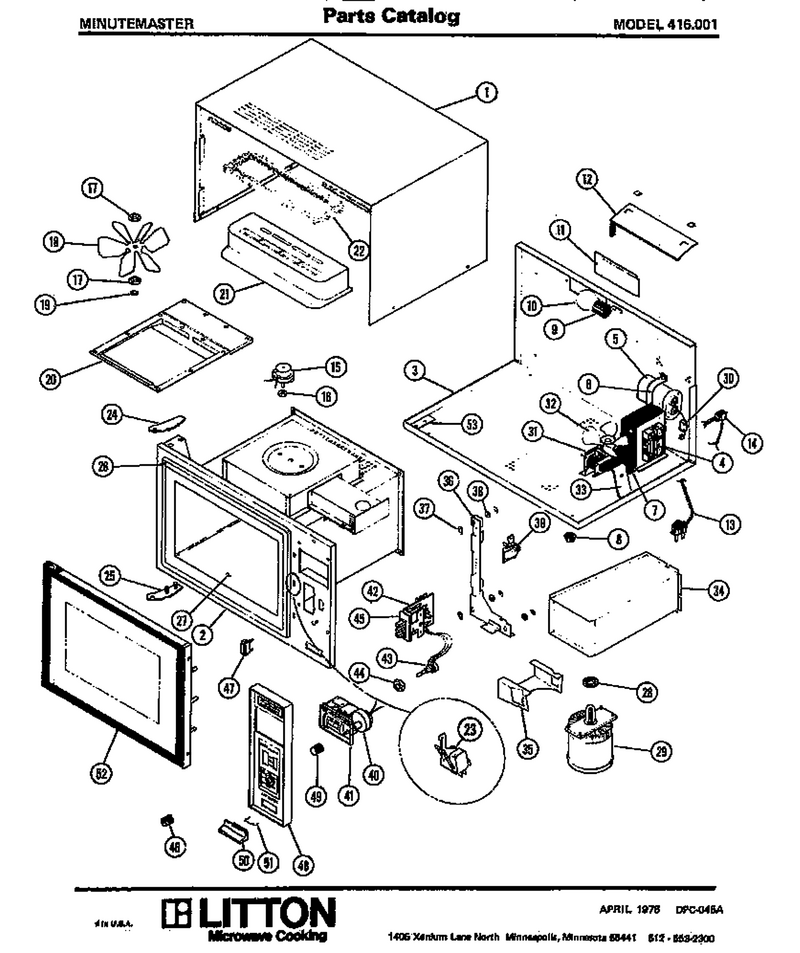

01 - Page 1

...
...
1
Screw(25) WPL-M1D445
...
2
Roller WPL-M2D174
...
3
Not Available WPL-M79D28
...
4
No.10 T X 3/8`` Screw WPL-M1D479
...
5
Capacitor-.69 WPL-59001160
...
6
Capacitor Brkt WPL-M20D60
...
7
Fuse 20 A WPL-WPM0805101
...
8
Foot WPL-M2D179
...
9
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
10
Light Bulb WPL-8009
...
11
No.8 Ab X 1/2`` Screw WPL-M1D358
...
12
Tinnerman (25) WPL-M1D386
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
Strain Relief (10) WPL-M1D365
...
15
Stirrer Motor Kit WPL-M12D21
...
16
R F Gasket Kit WPL-M2D152
...
17
Spcr-Stir WPL-M2D26
...
18
Stirrer Blade Kit WPL-M35D11
...
19
.156 Dia Push On Clip WPL-M1D78
...
20
Cover WPL-M45D9
...
21
Exhaust Duct, Cavity WPL-M65D34
...
22
Not Available WPL-M25D31
...
23
Screw (25) WPL-M1D107
...
24
Hinge Assy WPL-M8D48
...
25
Not Available WPL-M2D170
...
26
Fillerx WPL-M55D6
...
27
Adhesive WPL-W10841140
...
28
R F Gasket WPL-M2D35
...
29
Nut, Mag. Mtg. WPL-M1D95
...
30
Screw WPL-WPW10068250
...
31
Blower Motor Kit WPL-M12D33
...
32
Ia Fan WPL-M35D3
...
33
Nut K WPL-M0282005
...
34
Not Available WPL-M94D27
...
35
Not Available Sy WPL-M65D33
...
36
Slide Latch WPL-M20D59
...
37
Oval Bearing WPL-M2D175
...
38
Bearing WPL-M2D176
...
39
Switch Assy M14d123 WPL-92547P01
...
40
Ia Timer Asy WPL-26910A01
...
41
Push-On Clip (25) WPL-M1D410
...
42
Pulser Kit WPL-M22D6
...
43
Variable Switch WPL-M14D59
...
44
Palnut (25) WPL-M1D488
...
45
Panel Insert WPL-M7D183
...
46
Not Available WPL-M6D74
...
47
Indicator Light WPL-M9D28
...
48
Screw (25) WPL-M1D590
...
49
Tinn Ring Cl WPL-M1D385
...
50
Bar WPL-M11D10
...
51
Ia Spring WPL-M2D168
...
52
Screw (25) WPL-M1D460
...
53
Not Available WPL-M2D172
