Amana 415.000

Model: 415.000

Save Part Not Listed?
product name

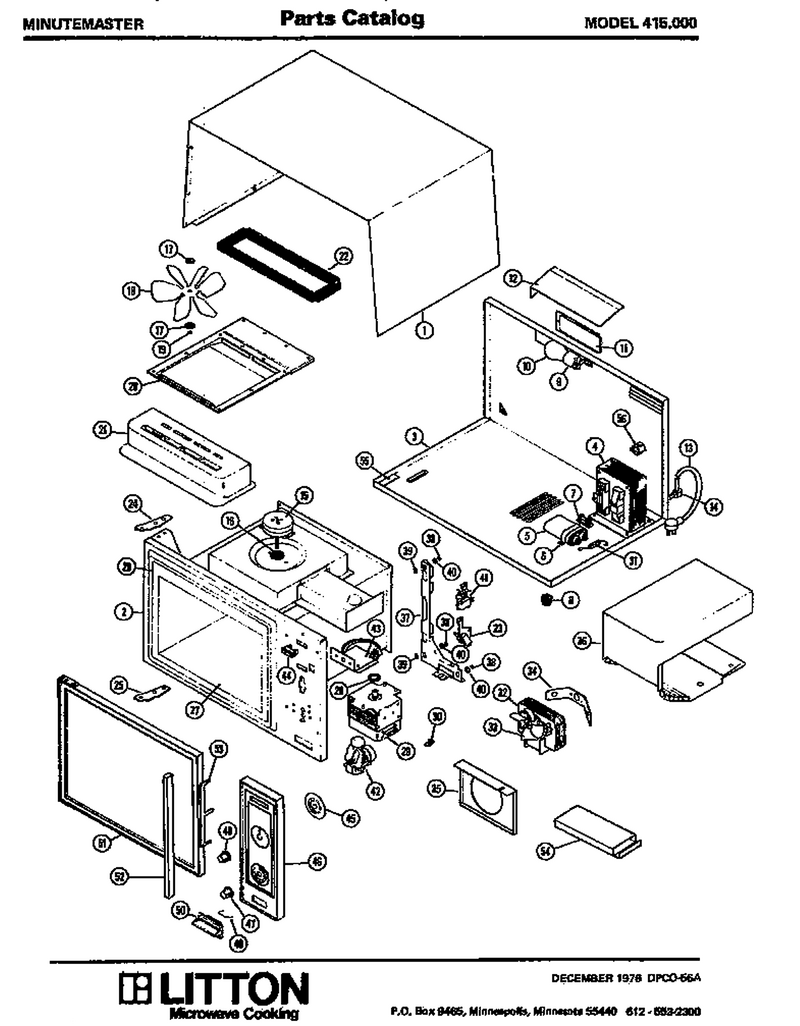

01 - Page 1

...
...
1
Not Available WPL-M80D44
...
2
Not Available WPL-M77D60
...
3
Not Available WPL-M79D35
...
4
Transformer WPL-M60D54
...
5
Capacitor-.69 WPL-59001160
...
6
Bracket WPL-10825501
...
7
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
8
Foot WPL-M2D179
...
9
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
10
Light Bulb WPL-8009
...
11
No.8 Ab X 1/2`` Screw WPL-M1D358
...
12
U-Clip WPL-M1D90
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
Bush, Strain Relf (10) WPL-M1D600
...
15
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
16
R F Gasket Kit WPL-M2D152
...
17
Spcr-Stir WPL-M2D26
...
18
Stirrer Blade Kit WPL-M35D11
...
19
.156 Dia Push On Clip WPL-M1D78
...
20
Cover WPL-M45D9
...
21
Exhaust Duct, Cavity WPL-M65D105
...
22
Not Available WPL-M25D31
...
23
Screw (25) WPL-M1D107
...
24
Hinge Assy WPL-M8D48
...
25
Hinge-Bottom WPL-M8D49
...
26
Fillerx WPL-M55D6
...
27
Shelf W/rtv Kit WPL-M50D26
...
28
Gasket-Rf WPL-M2D296
...
29
Magnetron 2m172jd Kit WPL-M57D18
...
30
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
31
Nut WPL-WP488130
...
32
Nut K WPL-M0282005
...
33
Ia Fan WPL-M35D3
...
34
Bracket Blower Mtg. WPL-M8D106
...
35
Inlet Brkt Plate WPL-M8D113
...
36
U-Clip WPL-M1D90
...
37
Slide Latch WPL-M20D59
...
38
Washer (25) WPL-M1D361
...
39
Oval Bearing WPL-M2D175
...
40
Bearing WPL-M2D176
...
41
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
42
No.6 Hex Wshr Hd Mach Scr (25) WPL-M1D481
...
43
Control WPL-M22D8
...
44
Cook Light WPL-M9D52
...
45
Dial-Backplate WPL-M6D146
...
46
Screw (25) WPL-M1D590
...
47
Knob, Timer WPL-M6D145
...
48
Knob Cont WPL-M6D144
...
49
Ia Spring WPL-M2D168
...
50
Release Barx WPL-M11D35
...
51
Door Assy Kit WPL-M68D144
...
52
Ia Screw 8b M1d618 WPL-M1D618
...
53
Screw (25) WPL-M1D473
...
54
Lead Asm WPL-M5D119
...
55
Not Available WPL-M2D172
...
56
H V Shield WPL-M2D302
