Amana 403.001

Model: 403.001

Save Part Not Listed?
product name

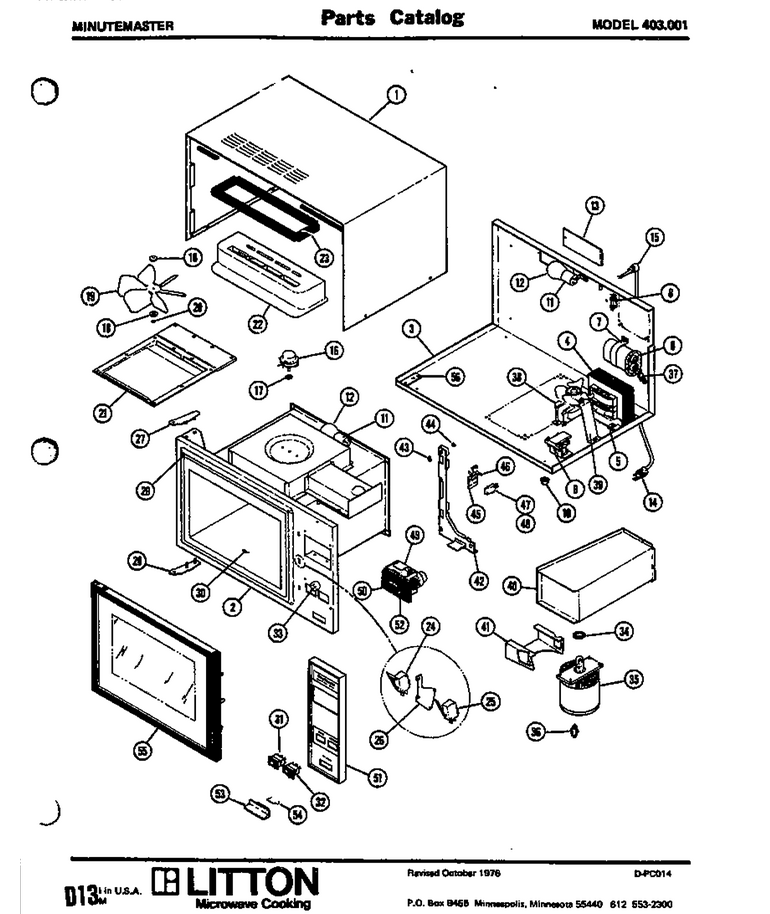

01 - Page 1

...
...
1
Screw(25) WPL-M1D445
...
2
Not Available WPL-M77D31
...
3
Not Available WPL-M79D13
...
4
Ia Screw 10ab WPL-M1D369
...
5
Tinnerman (25) WPL-M1D79
...
6
Capacitor-.69 WPL-59001160
...
7
Nut WPL-WP488130
...
8
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
9
Nut WPL-WP488130
...
10
Nut WPL-WP488130
...
11
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
12
Light Bulb WPL-8009
...
13
No.8 Ab X 1/2`` Screw WPL-M1D358
...
14
Power Cord WPL-1731300202
...
15
Strain Relief (10) WPL-M1D365
...
16
Stirrer Motor Kit WPL-M12D21
...
17
R F Gasket Kit WPL-M2D152
...
18
Spcr-Stir WPL-M2D26
...
19
Str Blade Kit WPL-M35D2
...
20
.156 Dia Push On Clip WPL-M1D78
...
21
Cover WPL-M45D9
...
22
Exhaust Duct, Cavity WPL-M65D34
...
23
Not Available WPL-M25D31
...
24
Switch, Interlock Monitor WPL-M14D52
...
25
Screw (25) WPL-M1D362
...
26
Brkt, Switch WPL-M8D61
...
27
Not Available WPL-M2D170
...
28
Not Available WPL-M2D170
...
29
Fillerx WPL-M55D6
...
30
Shelf W/rtv Kit WPL-M50D14
...
31
Ia Switch WPL-M14D6
...
32
Switch, Defrost WPL-M14D36
...
33
No.8 Ab X 1/2`` Screw WPL-M1D358
...
34
R F Gasket WPL-M2D35
...
35
Magnetron Assembly WPL-M57D9
...
36
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
37
Screw WPL-WPW10068250
...
38
Nut K WPL-M0282005
...
39
Blower Mtg Brkt WPL-M8D62
...
40
Air Duct, Tube Assembly WPL-M65D32
...
41
Not Available Sy WPL-M65D33
...
42
Slide Latch WPL-M20D59
...
43
Oval Bearing WPL-M2D175
...
44
Bearing WPL-M2D176
...
45
Switch Assy M14d123 WPL-92547P01
...
46
Latch Switch WPL-M2D173
...
47
Switch Assy M14d123 WPL-92547P01
...
48
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
49
Ia Timer Asy WPL-26910A01
...
50
Not Available WPL-M7D143
...
51
Screw, Panel Mtg WPL-M1D466
...
52
Tinn Ring Cl WPL-M1D385
...
53
Bar WPL-M11D10
...
54
Ia Spring WPL-M2D168
...
55
Trim Insert WPL-M7D165
...
56
High Voltage Lead 5`` WPL-M5D15
