Amana 36768 (BOM: P1135804W L)

Model: 36768 (BOM: P1135804W L)

Save Part Not Listed?
product name

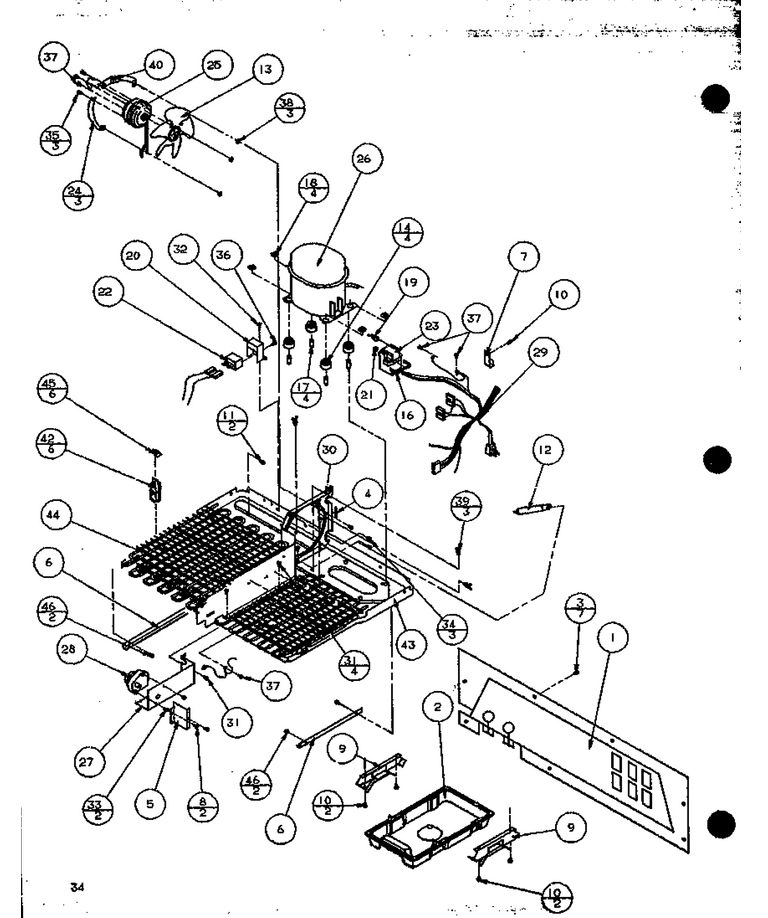

15 - Machine Compartment - Tec Comp

...
...
NI
Spring K WPL-C8916701
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
16
Strap K WPL-A3041801
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-C8866908
...
20
Shield, Capacitor WPL-10266402
...
21
Start-Dev WPL-WPW10189190
...
22
Capacitor WPL-WP65889-4
...
23
Cover K WPL-B0559501
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667102H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness M.c. WPL-10356801
...
30
Cond Fan Shroud WPL-D7844108
...
31
Screw WPL-WP12990527
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
36
Kit, Screw WPL-R9800670
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
42
Spacer Cond. WPL-B8346301
...
43
Pan, Base WPL-D7748610
...
44
Condenser Pntd WPL-D7824503
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530

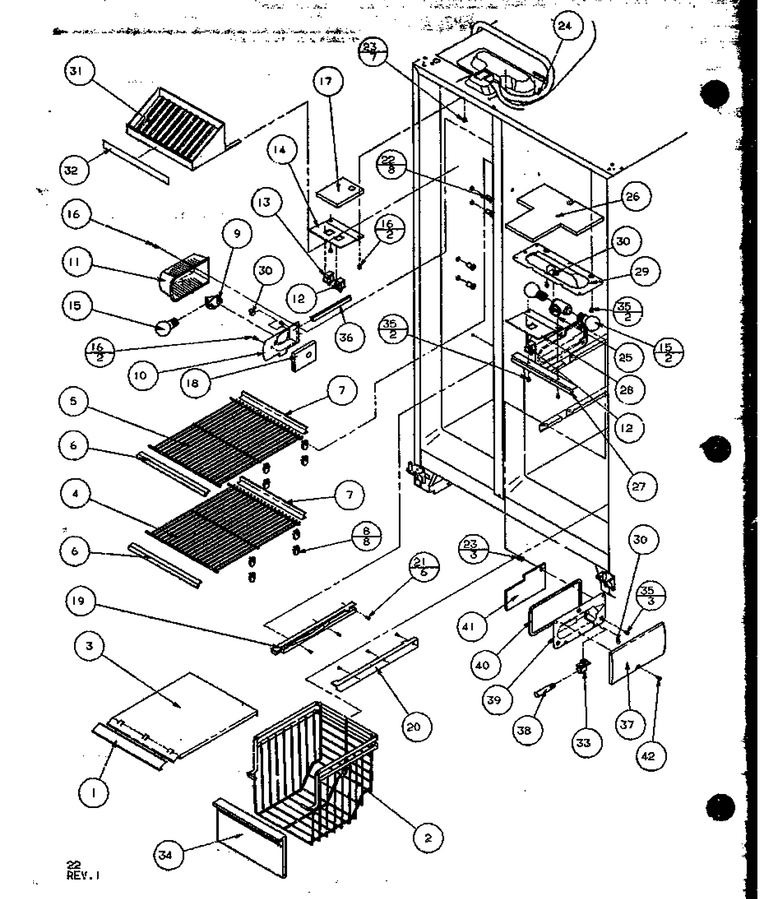

17 - Ref Shelving And Drawers

...
...
NI
Crisper Frame Assy-Glass WPL-R0179159
...
1
Knob, Crisper Control WPL-10038401
...
2
Slide, Crisper WPL-YD7860605
...
3
Trim, Crisper Front WPL-D7616654
...
4
Glass Crisper Top WPL-D7421275
...
5
Glass Crisper Top WPL-D7421275
...
6
Pan Crisper WPL-D7782119
...
8
Trim, Front Shelf WPL-C8913513
...
9
Trim, Glass Shelf Rear WPL-C8913606
...
10
Glass Shelf WPL-10036025
...
11
Frame-Cantilever Shelf WPL-D7871009
...
12
Gasket WPL-A3030302
...
13
Trim-M.k., Top, Rear WPL-C8990404
...
14
Trim WPL-10049914
...
15
Blank Side Rail (silver) WPL-D7862925
...
16
Slide-Mk Control WPL-D7859401
...
17
Band M.k. Control WPL-D7859503
...
18
Sleeve M.k. WPL-D7698113
...
19
Pan-Meat WPL-D7698329
...
20
Glass Shelf M.k. WPL-10036028
...
21
Grommet, Mk WPL-D7873601
...
22
Xduct M.k. Air WPL-D7869001
...
23
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
24
Rack, Bottle WPL-D7547614
...
25
Ladder Cantilever WPL-D7789807
...
26
Screw WPL-WP90767
...
27
Grommet, Screw WPL-M0580007
...
28
Ext. Rear Glass WPL-10043102
...
29
Frame,crisper WPL-D7853207
...
30
Band M.k. Control WPL-D7859604
...
31
Frame, M.k. WPL-D7857002
...
32
Ext. Air Duct WPL-D7869102
...
33
Brkt, Cont Cover WPL-12414701
...
34
Seal, Crisper Front WPL-D7718403
...
35
Ladder, Center WPL-D7599003
...
36
Kit, Screw WPL-R9800670

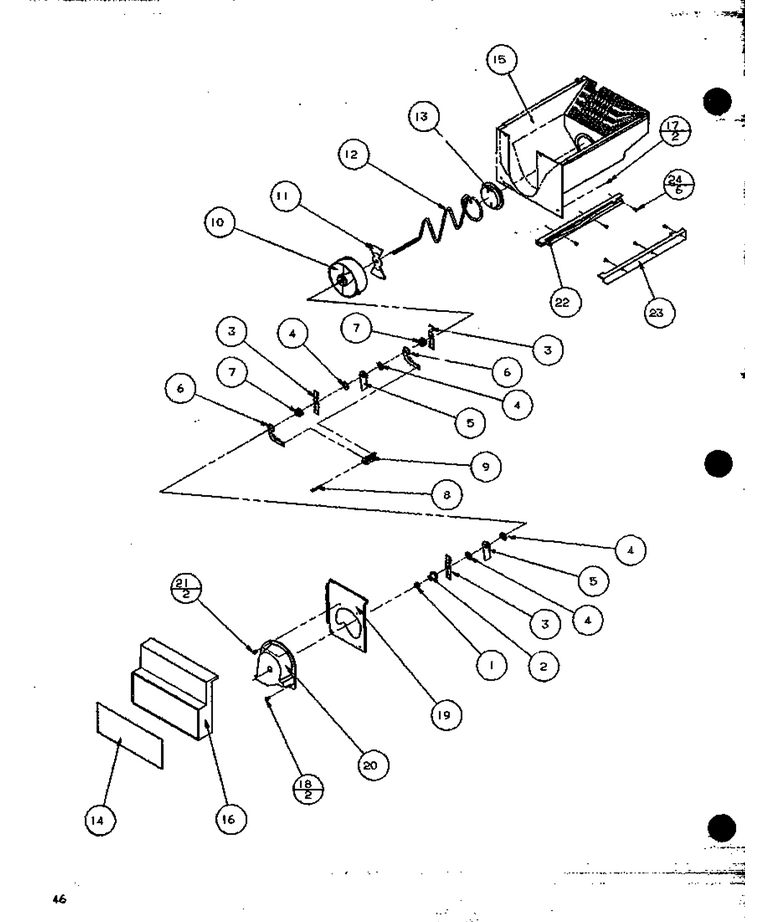

03 - Crushed Ice Bucket

...
...
NI
Crushr-Mec WPL-WP12740302
...
1
Nut WPL-WPM0223101
...
2
Spacer, Cover WPL-10113901
...
3
Blade, Rotating WPL-10114501
...
4
Washer, Waved WPL-10275101
...
5
Damper, Ice WPL-10275201
...
6
Blade, Static WPL-10114601
...
7
Washer Stepped WPL-10114301
...
8
Pin, Roll WPL-M1200108
...
9
Anchor, Blade WPL-10114101
...
10
Wheel- Crs WPL-WP67002052
...
11
Bar, Crsh Ice Bucket WPL-10113801
...
12
Agitator, Ice WPL-10114401
...
13
Cap- Helix WPL-WPD7749401
...
14
Insert Bkt Cfc 113 WPL-10099703
...
15
Bucket- Cr WPL-WP10111905
...
16
Front-Crsh Ice Brkt WPL-10112001
...
17
Screw (3) WPL-67006425
...
18
Screw WPL-WP3388228
...
19
Front, Ice Crusher WPL-10115001
...
20
Cover, Blade WPL-10114002
...
21
Screw, Tf WPL-M0231704
...
22
Glide, Container (left) WPL-67005375
...
23
Glide, Frz. (rt) WPL-67004323
...
24
Screw, Handle WPL-67006529

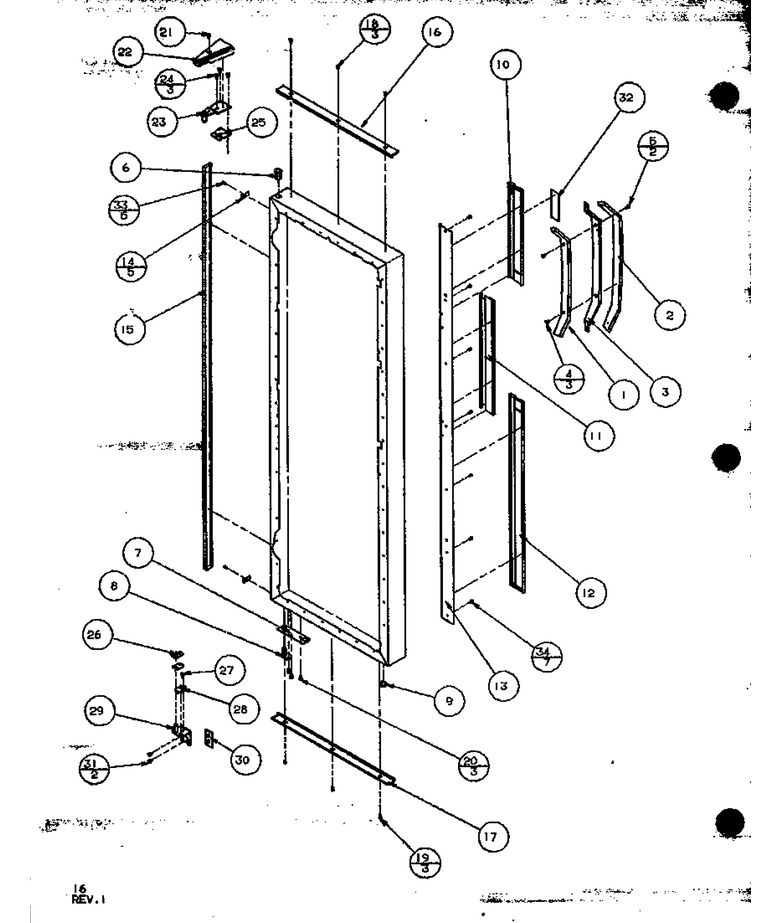

05 - Evap And Air Handling

...
...
1
Pad, Handle Inner (alm) WPL-D7863004
...
2
Pad, Handle Outer (wht) WPL-D7863102
...
3
Handle WPL-D7826603
...
4
Screw WPL-M0215116
...
5
Kit, Screw WPL-R9800670
...
6
Bushing- D WPL-WP67004977
...
7
Door Stop WPL-10161802
...
8
Kit,dr Closure WPL-R0181181
...
9
Plug, Button (wht) WPL-M0310308
...
10
Trim WPL-D7852010
...
11
Trim Center Ref Dr WPL-D7853805
...
12
Trim Lwr Ref Door WPL-D7792803
...
13
Ref. Trim, Retainer WPL-D7793202
...
14
Clip Trim WPL-10137601
...
15
Trim Vertical WPL-10133101
...
16
Trim Ref Door Top WPL-10133201
...
17
Trim, Ref Door Bottom WPL-10133301
...
18
Screw WPL-W11245710
...
19
Screw WPL-WP489349
...
20
Screw WPL-WP98165
...
21
Screw WPL-WP8281196
...
22
Hinge Cover - Chrome WPL-10126401
...
23
Top Hinge-E Ct WPL-12077313
...
24
Kit, Screw WPL-R9800670
...
25
Shim, Top Hinge WPL-B8389007
...
26
Shim, Door Closure WPL-B8387702
...
27
Screw WPL-WP489128
...
28
Kit,dr Closure WPL-R0181181
...
29
Rh Bot Hinge-Bk E Ct WPL-10496118
...
30
Kit,btm Hinge Shim WPL-B8386703
...
31
Screw WPL-WP67006715
...
32
Thinplate Door WPL-C8984308
...
33
Screw WPL-M0213815
...
34
Screw WPL-M0213815

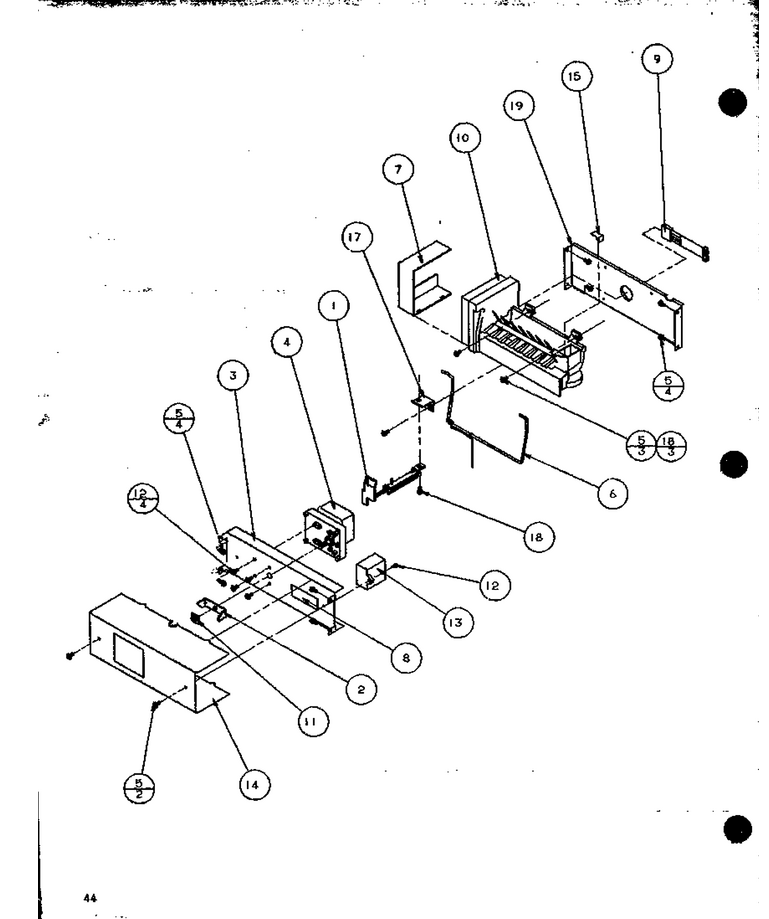

12 - Ice Maker

...
...
1
Im Shut Off Assy WPL-C8980404
...
2
Coupling WPL-WP10114901
...
3
Support,auger Motor WPL-D7749207
...
4
Kit, Auger Motor WPL-10114801
...
5
Screw (3) WPL-67006425
...
6
Arm,ice Maker Shut Off WPL-D7877001
...
7
Cover Im WPL-D7820401
...
8
Gasket-Per Ft WPL-A3030305
...
9
Harness WPL-D7824601
...
10
Ice Maker Assy. WPL-D7824706Q
...
11
Nut WPL-WPM0223101
...
12
Screw WPL-WP489128
...
13
Start-Dev WPL-W10613606
...
14
Cover, Auger Motor WPL-D7788836
...
15
Clip WPL-B5720301
...
17
Bracket, I/m WPL-B8391802
...
18
Screw WPL-WP98165
...
19
Support-Im WPL-D7821004

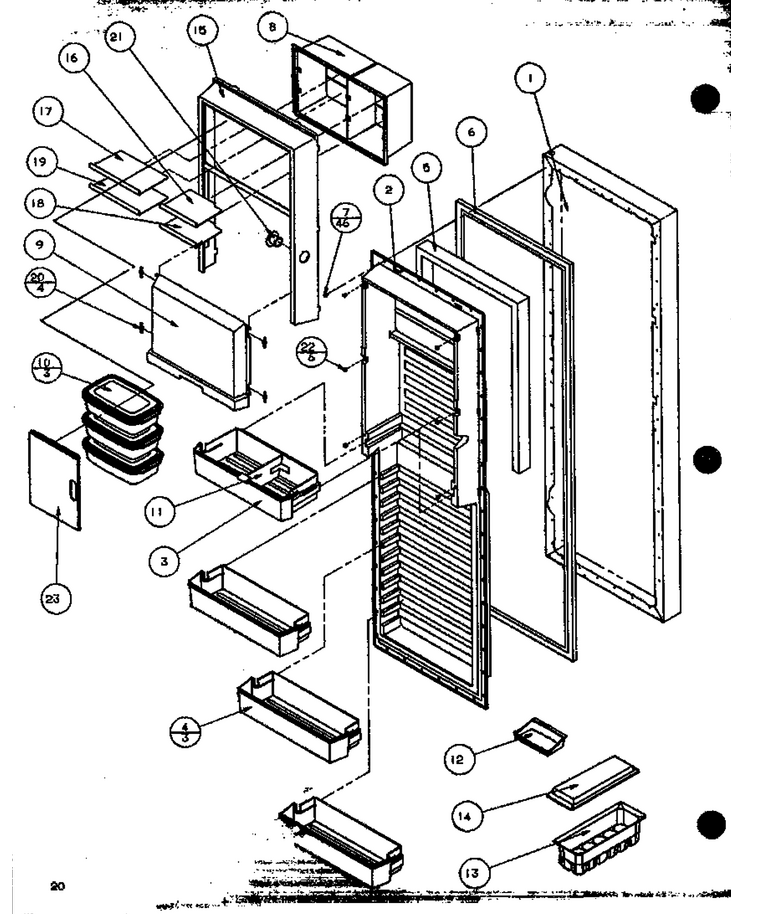

14 - Machine Compartment - Tec Comp

...
...
1
Ref Dr Assy Sxs WPL-10057503LQ
...
2
Liner Ref Door WPL-10111302
...
3
Bucket-Igloo WPL-10111007
...
4
Bucket-Ref WPL-12083408
...
5
Insul. By The Ft. WPL-B0523562
...
6
Gasket-Dr WPL-WP10359708Q
...
7
Screw WPL-WPM0219730
...
8
Cavity Dairy WPL-10154801
...
9
Door, Igloo WPL-10111809
...
10
Container Sec. Ser. WPL-D7806403
...
11
Snugger, Shelf WPL-10169004
...
12
Tray, Butter WPL-10310901
...
13
Assy,egg Bkt W/ Lid WPL-12460016
...
14
Cover, Egg Bucket WPL-D7805909
...
15
Frame-Igloo Dairy WPL-10154901
...
16
Ass`y, Shelf Remove WPL-10161901
...
17
Ass``y, Shelf WPL-10161902
...
18
Ext. Hz Dairy Shelf WPL-10162003
...
19
Ass``y, Shelf WPL-10162004
...
20
Glide-Igloo Door WPL-10162101
...
21
Tunnel-Air WPL-10165001
...
22
Clip-Tubular WPL-10165101
...
23
Door Dairy WPL-10161603

04 - Drain And Rollers

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Drain Tube WPL-10393002
...
10
Tank, Coil Water WPL-D7787801
...
11
Clamp WPL-M0102303
...
12
Screw WPL-WP489069
...
13
Insulation, Tube WPL-10851302
...
14
Clamp WPL-WP488366
...
15
Screw, Mach WPL-M0206313
...
16
Fill Tube WPL-R0182123
...
17
Tunnel, Heat Ex. WPL-C8971902
...
18
Tunnel Wire WPL-10187501
...
19
Tunnel Wire WPL-10187601
...
20
Bracket, Retainer WPL-C8985801
...
21
Screw WPL-WP12990527

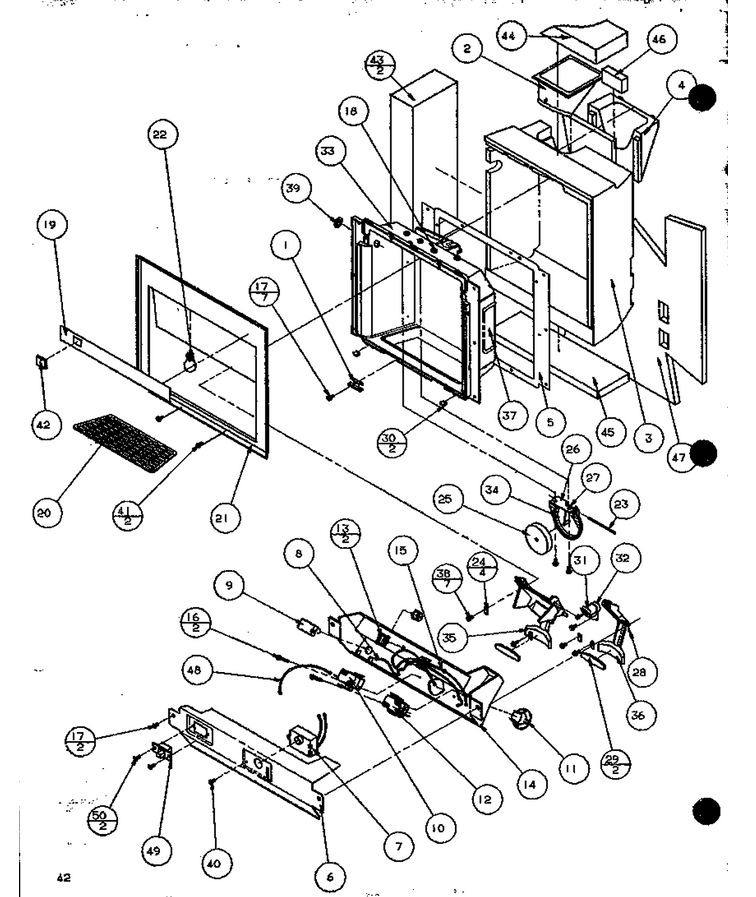

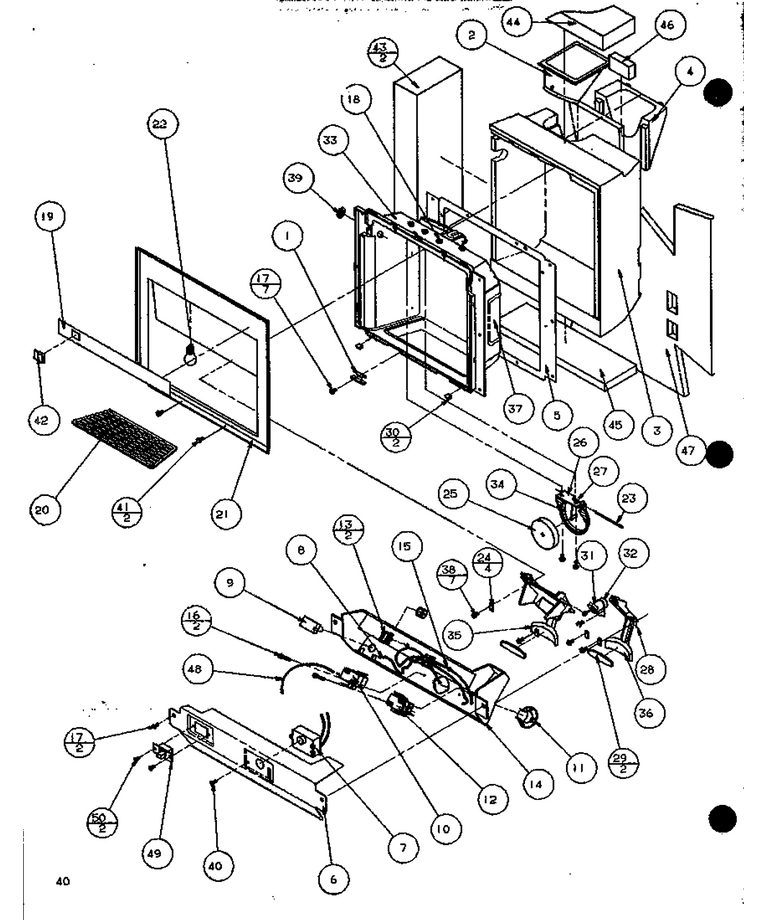

11 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Clip WPL-C8992901
...
2
Ice Chute WPL-10131401
...
3
Control-Air WPL-10164601
...
4
Insul-Ice Chute WPL-10164501
...
5
Gasket-Cav WPL-D7791004
...
6
Cover-Elect Brkt WPL-10131801
...
7
Switch-Photosensitive WPL-D7854104
...
8
Wire-Jumper WPL-D7726590
...
9
Switch-Light Cavity WPL-10166101
...
10
Assy, Limit Switch WPL-C8972702
...
11
Socket, Light WPL-10131701
...
12
Kit, Limit Switch WPL-C8972701
...
13
Wire Clip WPL-B5667304
...
14
Bracket, Elec Mtg WPL-10323301
...
15
Wire Jumper WPL-D7726593
...
16
Screw WPL-M0234008
...
17
Screw-Sm/hex WPL-12990523
...
18
Retainer, Ring WPL-M0274701
...
19
Membrane,facade (white) WPL-D7842221
...
20
Grille, Sump L WPL-D7750605
...
21
Facade, Dispenser Al WPL-D7877525
...
22
Bulb-Light WPL-W10857122
...
23
Pin, Chute Door WPL-A1061501
...
24
Retainer, Ice Arm WPL-A1061601
...
25
Insulation, Chute Door WPL-B8380701
...
26
Brkt-Chute Door WPL-B8380801
...
27
Spring,chute Door WPL-B8380901
...
28
Spring, Return WPL-B8385401
...
29
Pad, Actuating WPL-B8390201
...
30
Clip WPL-W10819546
...
31
Retainer Door Delay WPL-C8972501
...
32
Delay, Door WPL-C8973601
...
33
Cavity-Dispenser, Almond WPL-D7750014
...
34
Kit,chute Dr No.3 WPL-10246601
...
35
Arm-Dispsr WPL-12002642
...
36
Arm-Dispsr WPL-12002642
...
37
Heater-Cavity WPL-10176101
...
38
Screw WPL-WP90767
...
39
Plug Button WPL-M0311401
...
40
Screw WPL-WP489349
...
41
Screw K WPL-M0219614
...
42
Cap-Grey Switch WPL-12043805
...
43
Insulation Batt WPL-B5629052
...
44
Insulation Batt WPL-B5629053
...
45
Insulation Batt WPL-B5629054
...
46
Insulation Batt WPL-B5629058
...
47
Insulation Batt WPL-10220201
...
48
Wire-Jumper WPL-D7726592
...
49
Switch-Crushed/cube WPL-10166002
...
50
Screw WPL-M0234003

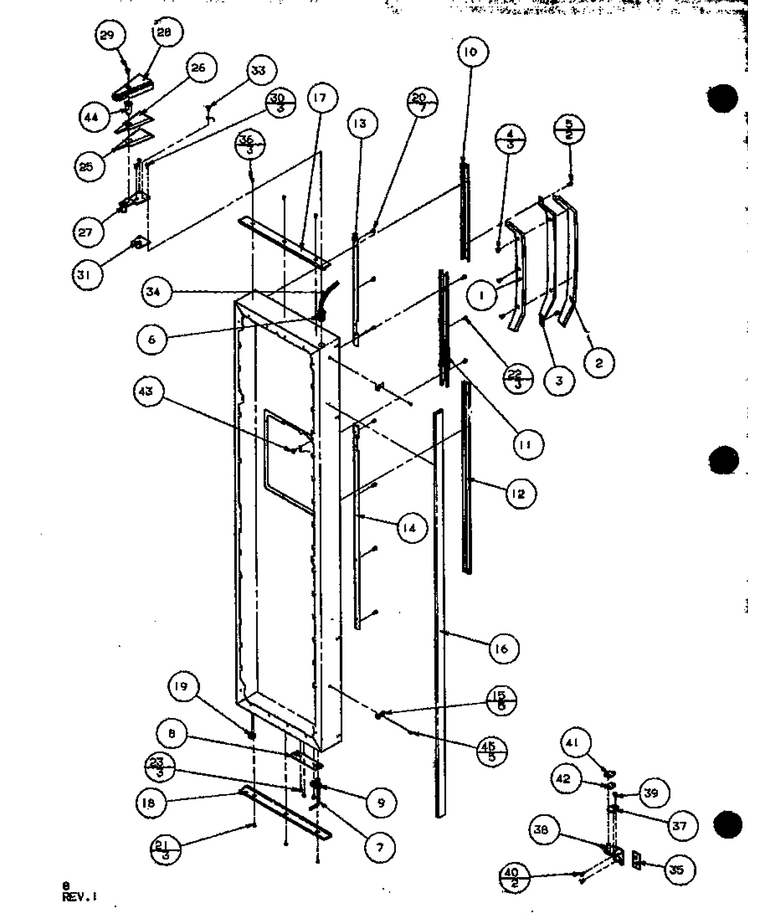

07 - Fz Door

...
...
1
Pad, Handle Inner (alm) WPL-D7863004
...
2
Pad, Handle Outer (wht) WPL-D7863102
...
3
Handle WPL-D7826603
...
4
Screw WPL-M0215116
...
5
Kit, Screw WPL-R9800670
...
6
Bushing- D WPL-WP67004977
...
7
Tube WPL-WPB5705307
...
8
Door Stop WPL-10161802
...
9
Kit,dr Closure WPL-R0181181
...
10
Upper Trim Frz Dr (w) WPL-D7852103
...
11
Trim Center Frz (l) WPL-D7854005
...
12
Trim, Lwr Frz Door (l) WPL-D7792705
...
13
Retainer, Trim WPL-D7793002
...
14
Retainer, Trim WPL-D7793102
...
15
Clip Trim WPL-10137601
...
16
Trim Vertical WPL-10133101
...
17
Trim, Fz Door Top WPL-10133401
...
18
Trim Fz Door Bottom WPL-10133501
...
19
Plug, Button (wht) WPL-M0310308
...
20
Screw WPL-M0213815
...
21
Screw WPL-WP489349
...
22
Screw-Sm/hex WPL-12990523
...
23
Screw WPL-WP98165
...
25
Insulation, Hinge Cover WPL-10126501
...
26
Foil, Hinge Cover V/a WPL-10126601
...
27
Top Hinge-E Ct WPL-12077313
...
28
Hinge Cover - Chrome WPL-10126401
...
29
Screw WPL-WP8281196
...
30
Kit, Screw WPL-R9800670
...
31
Shim, Top Hinge WPL-B8389007
...
33
Screw WPL-W11214483
...
34
Harness Fz Door WPL-10164202
...
35
Kit,btm Hinge Shim WPL-B8386703
...
36
Screw WPL-W11245710
...
37
Kit,dr Closure WPL-R0181181
...
38
Bottom Hinge, Frz WPL-10163601
...
39
Screw WPL-WP489128
...
40
Screw WPL-WP67006715
...
41
Shim, Door Closure WPL-B8387702
...
42
Shim, Door Closure WPL-B8387701
...
43
Screw WPL-WP489399
...
44
Tubing Plastic WPL-A3012532
...
45
Screw WPL-M0213815

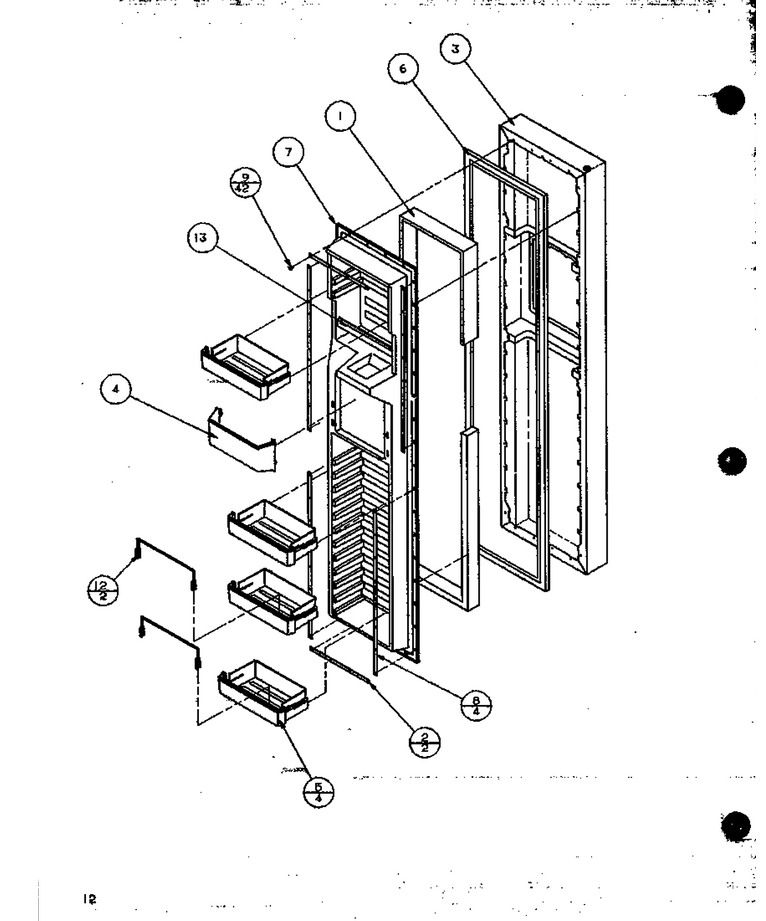

08 - Fz Door

...
...
1
Insul. By The Ft. WPL-B0523562
...
2
Retainer, Door Liner WPL-C8982801
...
3
Assy Frz Dr Fm WPL-10057602LQ
...
4
Shelf, Half Fz. Dr WPL-D7783508
...
5
Bucket-Fz Door WPL-10111206
...
6
Gasket W WPL-WP10359709Q
...
7
Liner I & W Fz Door WPL-10111402
...
8
Retainer, Door Liner WPL-D7828601
...
9
Screw WPL-WPM0219730
...
12
Retainer, Package WPL-10237602
...
13
Retainer Pkg WPL-C8907235

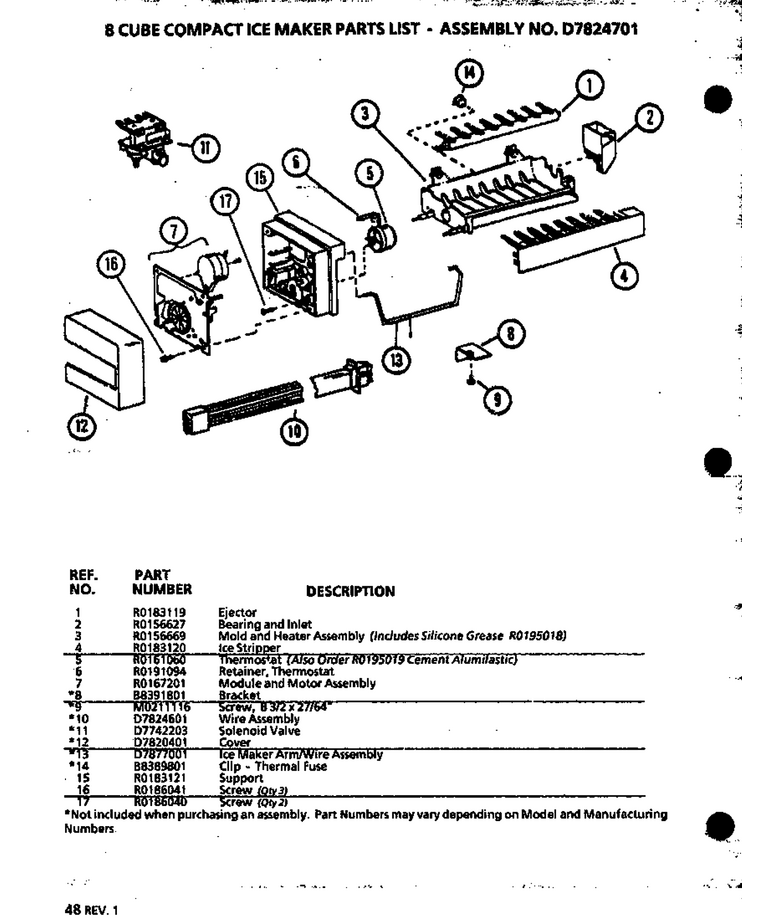

01 - 8 Cube Compact Ice Maker

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Ice Maker Assy. WPL-D7824706Q
...
4
Arm-Stripr WPL-WP2182124
...
5
Bimetl-Def WPL-WP627985
...
6
Clip WPL-WP2315522
...
7
Ice Maker Assy. WPL-D7824706Q
...
8
Bracket, I/m WPL-B8391802
...
9
Screw WPL-WP90767
...
10
Harness WPL-D7824601
...
11
Valve-Inlt WPL-WPW10245167
...
12
Cover Im WPL-D7820401
...
13
Arm,ice Maker Shut Off WPL-D7877001
...
14
Clip WPL-WP628379
...
15
Housing-Im WPL-WP2195914
...
16
Screw WPL-R0186041
...
17
Screw WPL-R0186040

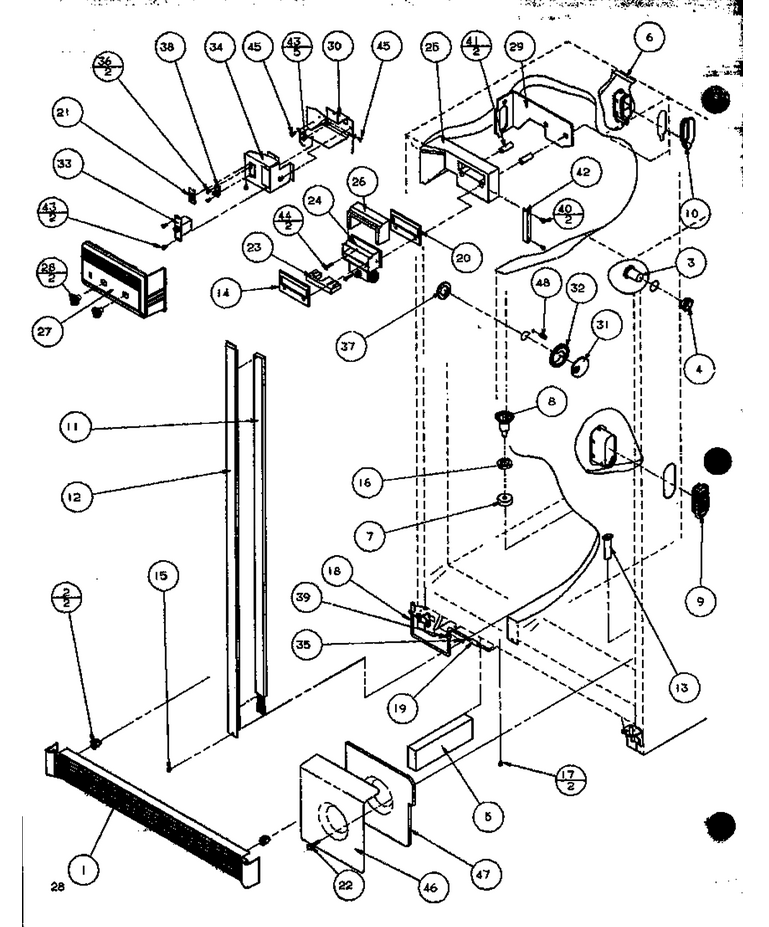

16 - Ref

...
...
1
Grille Toe L V WPL-D7786704
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Retainer WPL-A3187801
...
5
Insulation WPL-B5629045
...
6
Tube-Plastic WPL-B8372601
...
7
Gasket- Dr WPL-WPB8381501
...
8
Funnel WPL-W10815413
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel Air Supply WPL-10178001
...
11
Heater, Mullion WPL-D7837501
...
12
Mullion,vert-White E Ct WPL-D7788602
...
13
Grommet WPL-D7793501
...
14
Gasket, Damper WPL-10383201
...
15
Screw, Handle (black) WPL-12991101
...
16
Seal- O Ri WPL-WPM0500703
...
17
Grommet, Screw WPL-M0580007
...
18
Tube WPL-WPB5705307
...
19
Fitting WPL-WP4373559
...
20
Gasket, Damper WPL-B8345401
...
21
Collar, Switch WPL-B8391602
...
22
Clip K WPL-C6457701
...
23
Insert, Control WPL-C8902601
...
24
Control, Damper WPL-D7547407
...
25
Air Duct, Waxed WPL-10176602
...
26
Insulation WPL-D7788201
...
27
Cover Cont WPL-D7790324
...
28
Kit Knob WPL-D7795806
...
29
Gasket, Air Duct WPL-10177901
...
30
Box, Bottom Control WPL-D7822404
...
31
Grille Control WPL-10164806
...
32
Control, Air WPL-10164703
...
33
Assy, Control-Fz WPL-R0161092
...
34
Box Control Top WPL-D7868601
...
35
Screw WPL-WP90767
...
36
Screw WPL-M0234003
...
37
Gasket, Tunnel WPL-10166701
...
38
Switch, Heater WPL-M0342601
...
39
Clamp WPL-M0102301
...
40
Screw WPL-WP489474
...
41
Spacer Damper WPL-A3044208
...
42
Clamp WPL-C8977301
...
43
Screw WPL-WP489464
...
44
Screw WPL-M0216539
...
45
Screw WPL-WP489399
...
46
Cover, Tank WPL-D7879301
...
47
Insulation Cut Tank WPL-D7793402
...
48
Clip WPL-M0554001

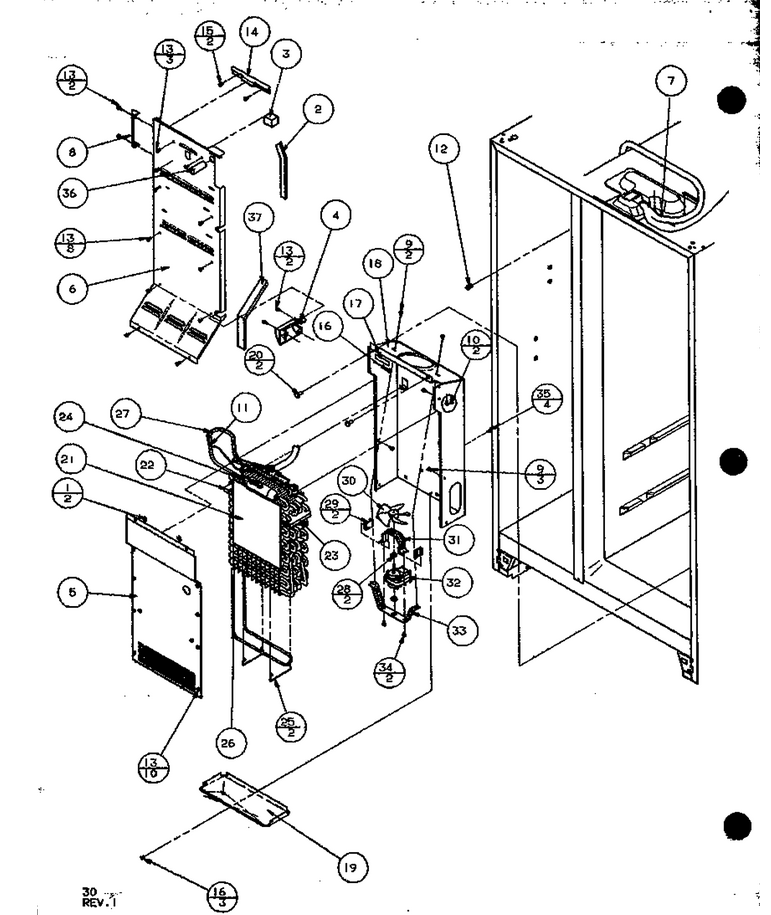

06 - Evap And Air Handling

...
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
5
Cover, Evaporator WPL-D7865907
...
6
Inner Fz Back Pnt WPL-D7821125
...
7
Harness, Ref Liner WPL-10281401
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP12990527
...
10
Screw WPL-WP489399
...
11
Tie-Wire WPL-WPW10339879
...
13
Screw (3) WPL-67006425
...
14
Clamp WPL-C8976201
...
15
Screw WPL-WP98165
...
16
Rivet WPL-10098801
...
17
Gasket, Foam WPL-B5757707
...
18
Evaporator Shield WPL-D7865804
...
19
Drip Tray Pnt. WPL-D7850202
...
20
Grommet WPL-M0580003
...
21
Gasket, Evap. WPL-B8327901
...
22
Block-Lh Air Coil WPL-B8385502
...
23
Block P M Air Coil WPL-B8385601
...
24
Thermostat WPL-WPC8972006
...
25
Clip, Evap. Heater WPL-C8983101
...
26
Heater, Defrost WPL-D7872801
...
27
Assy,low Side-Thin Wall Evap WPL-R0170041
...
28
Grommet WPL-WP2264462
...
29
Shim WPL-A1047901
...
30
Fan-Evap WPL-C8795501
...
31
Brkt Evap Fan WPL-C8881301
...
32
Motor-Evap WPL-WPC8891605
...
33
Bracket, Motor Shroud WPL-D7767701
...
34
Screw WPL-WP12990527
...
35
Grommet A WPL-M0580002
...
36
Ext. Fill Tube WPL-A3127414
...
37
Gasket Foam WPL-A3189335

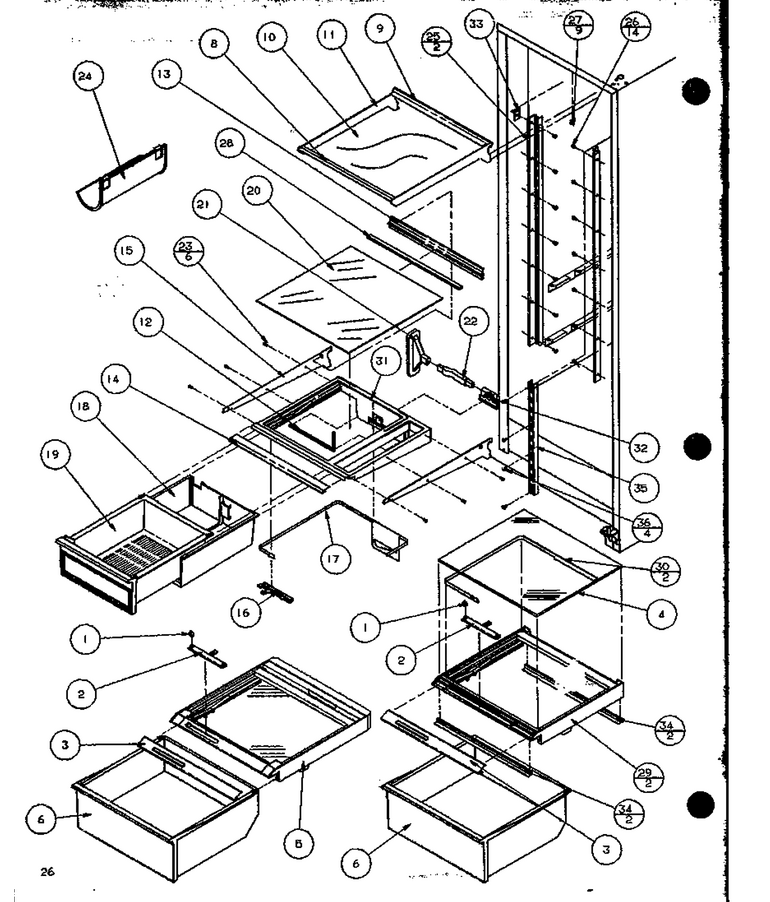

09 - Fz Shelving And Ref Light

...
...
1
Trim, Frz Shelf WPL-D7616620
...
2
Basket Fre WPL-D7781410
...
3
Freezer Shelf WPL-D7781504
...
4
Shelf Fz Wire WPL-D7788314
...
5
Shelf, Frz Wire WPL-D7788315
...
6
Trim WPL-10049917
...
7
Trim, Rear Frz Shelf WPL-C8913607
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Barrier Frz. WPL-C8976401
...
18
Barrier, Frz Side WPL-C8974501
...
19
Glide, Frezer. L.h. WPL-D7839901
...
20
Glide, Fz, R.h. WPL-D7839902
...
21
Screw, Handle WPL-67006529
...
22
Plug, Frz Shelf Support WPL-C8973701
...
23
Grommet, Screw WPL-M0580007
...
24
Harness Fz Liner WPL-10268001
...
25
Socket, Dual Lamp WPL-D7808602
...
26
Insulation WPL-C8778301
...
27
Shield, Light WPL-10014716
...
28
Cover, Light Sw WPL-D7297604
...
29
Housing-Ref Light WPL-D7716409
...
30
Clip, Ground WPL-B5733302
...
31
Rack, Juice V WPL-D7839701
...
32
Insert Juice Rack WPL-C8986111
...
33
Socket-Light WPL-10281601
...
34
Front,basket WPL-D7820711
...
35
Screw (3) WPL-67006425
...
36
Cover Wiring WPL-10250001
...
37
Cover-Light WPL-Y10270101
...
38
Bulb-Light WPL-WPA3073101
...
39
Housing, Light WPL-10270203
...
40
Gasket WPL-A3189337
...
41
Insulation WPL-10278001
...
42
Screw WPL-WP12990527

10 - Ice And Water Cavity

...
...
21
Facade, Dispenser Al WPL-D7877525
...
41
Screw WPL-M0219640

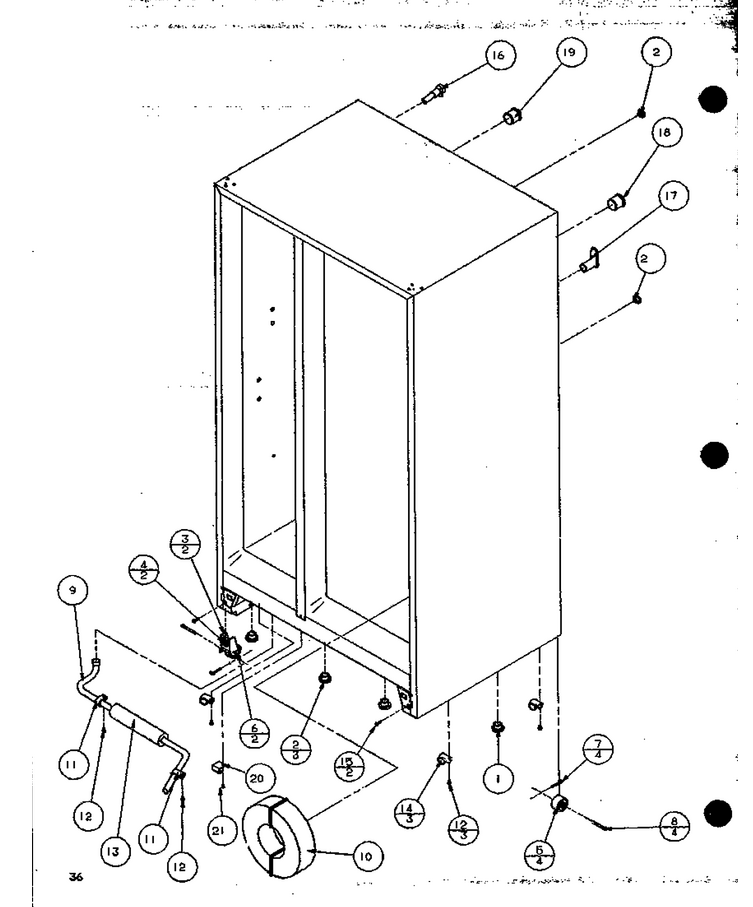

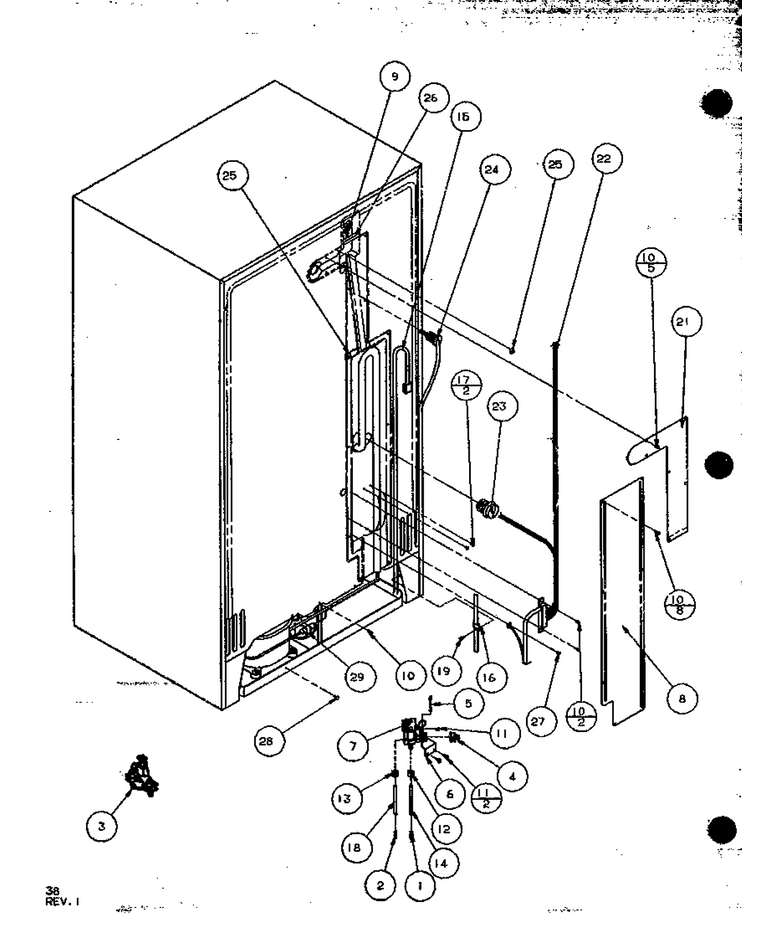

02 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Spring WPL-WPA1055105
...
2
Spring K WPL-A1055102
...
3
Saddle Valve WPL-A3034801
...
4
Coupling WPL-10244901
...
5
Clip, Water Valve WPL-10798001
...
6
Bracket WPL-WPD7701602
...
7
Valve-Inlt WPL-WPW10245167
...
8
Cover, O.c.back WPL-10178406
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP489069
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube WPL-WPB5705307
...
15
Cord-Power WPL-10916505
...
16
Clamp WPL-M0103901
...
17
Screw WPL-WP489399
...
18
Tank, Coil Water WPL-D7787801
...
19
Screw WPL-WP12990527
...
21
Wire Cover WPL-10178502
...
22
Harness Cabinet WPL-10268101
...
23
Grommet Wire WPL-10178701
...
24
Grommet Wire WPL-10178801
...
25
Clip WPL-WPM0104106
...
26
Gasket (ft.) WPL-10839803
...
27
Screw, Spextite WPL-M0232330
...
28
Screw (3) WPL-67006425
...
29
Clamp-Tube WPL-M0107701

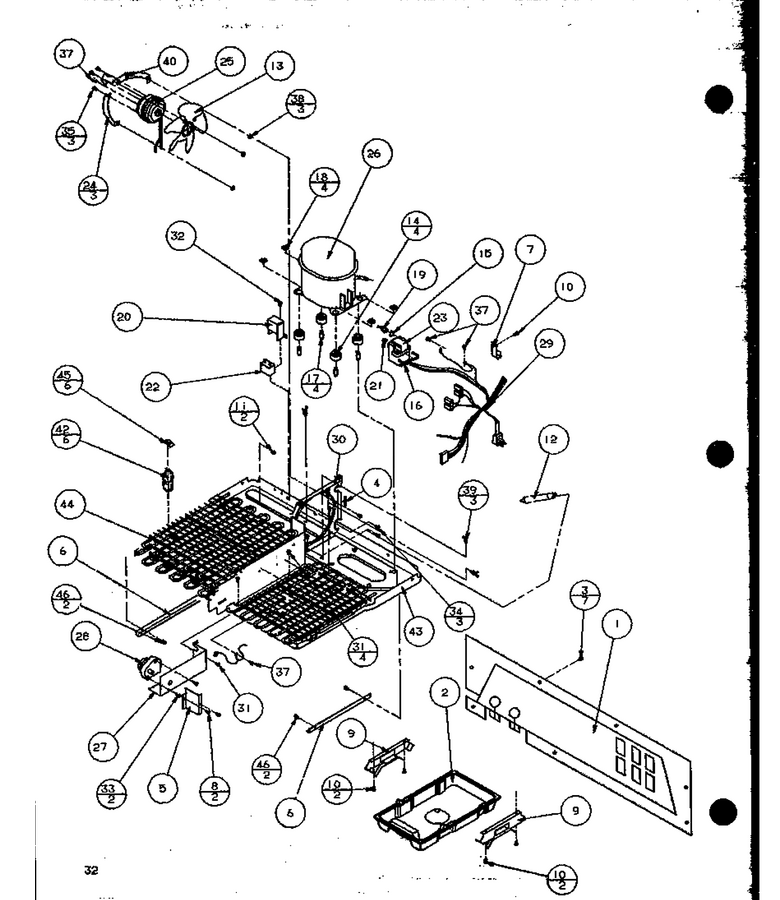

13 - Machine Compartment - Pan Comp

...
...
1
Mach Back Assy A WPL-D7788901
...
2
Drain Pan WPL-D7790601
...
3
Screw WPL-WP489464
...
4
Gasket WPL-B5759604
...
5
Bracket, Timer WPL-C8973502
...
6
Support M.c. WPL-D7835501
...
7
Clamp WPL-M0102325
...
8
Screw WPL-WP90767
...
9
Support Drain Pan WPL-D7790501
...
10
Screw WPL-WP489069
...
11
Screw WPL-M0294459
...
12
Drier WPL-WPB2150504
...
13
Blade, Fan WPL-B5742603
...
14
Grommet, Compressor WPL-67003493
...
15
Spring, Overload WPL-B8358301
...
16
Bale Strap WPL-YB8358601
...
17
Pin, Comp. Mtg. WPL-B8384901
...
18
Clip, Comp. Mtg WPL-B8385001
...
19
Overload WPL-10377005
...
20
Shield, Capacitor WPL-10266402
...
21
Relay WPL-C8931503
...
22
Capacitor WPL-WPW10662129
...
23
Term Cover WPL-C8960801
...
24
Bracket, Cond Motor WPL-C8982101
...
25
Motor-Cond WPL-833697
...
26
Compressor WPL-C3667102H
...
27
Bracket, Timer WPL-D7844201
...
28
Timer-Def WPL-R0131577
...
29
Harness M.c. WPL-10356801
...
30
Cond Fan Shroud WPL-D7844108
...
31
Screw WPL-WP12990527
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0218118
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-M0223803
...
37
Screw WPL-M0253916
...
38
Grommet K WPL-M0500107
...
39
Tie, Wire WPL-M0585401
...
40
Tie-Wire WPL-WPW10339879
...
42
Spacer Cond. WPL-B8346301
...
43
Pan, Base WPL-D7748610
...
44
Condenser WPL-D7824504
...
45
Speednut WPL-M0293703
...
46
Screw WPL-M0211530
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
